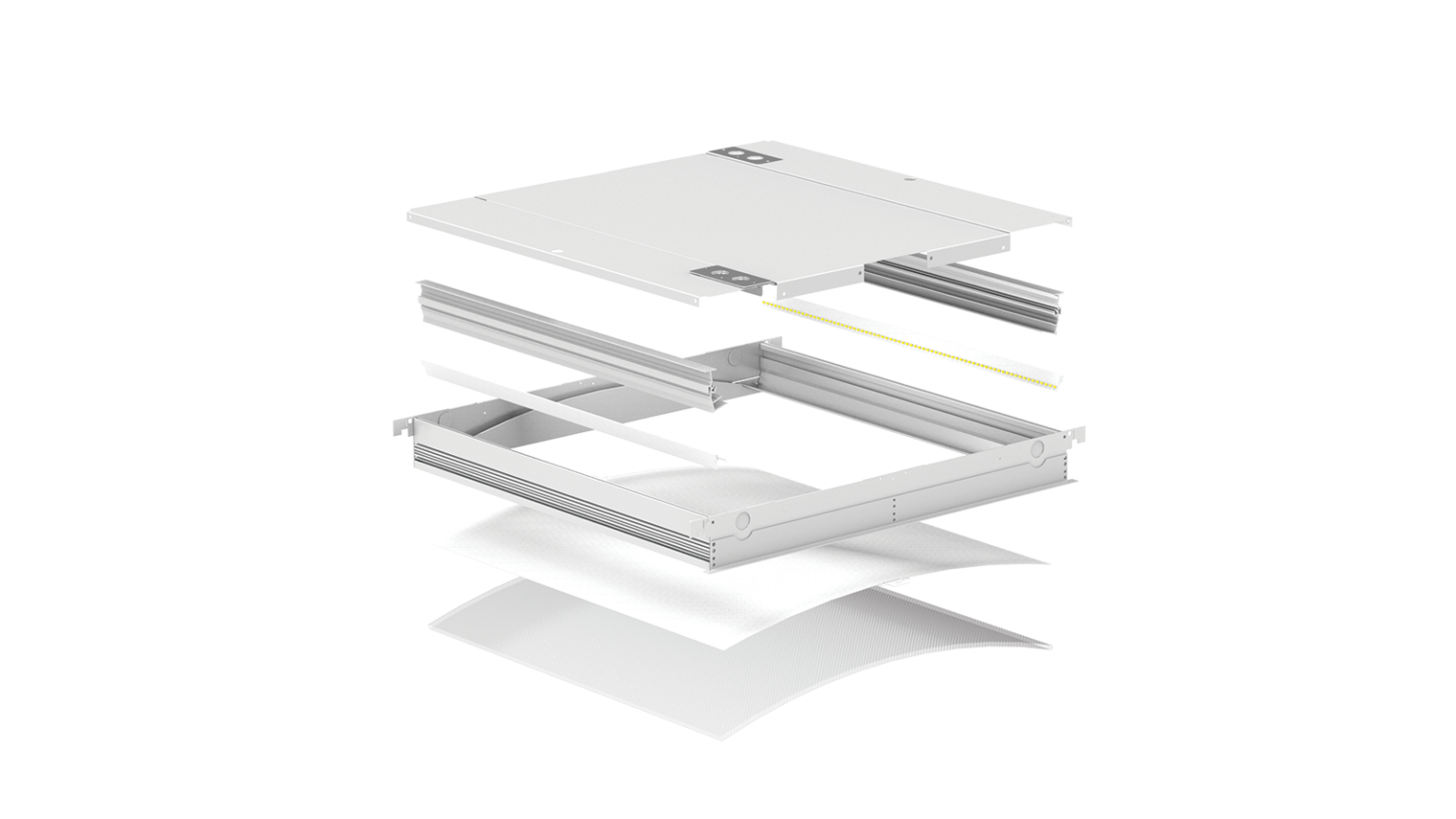

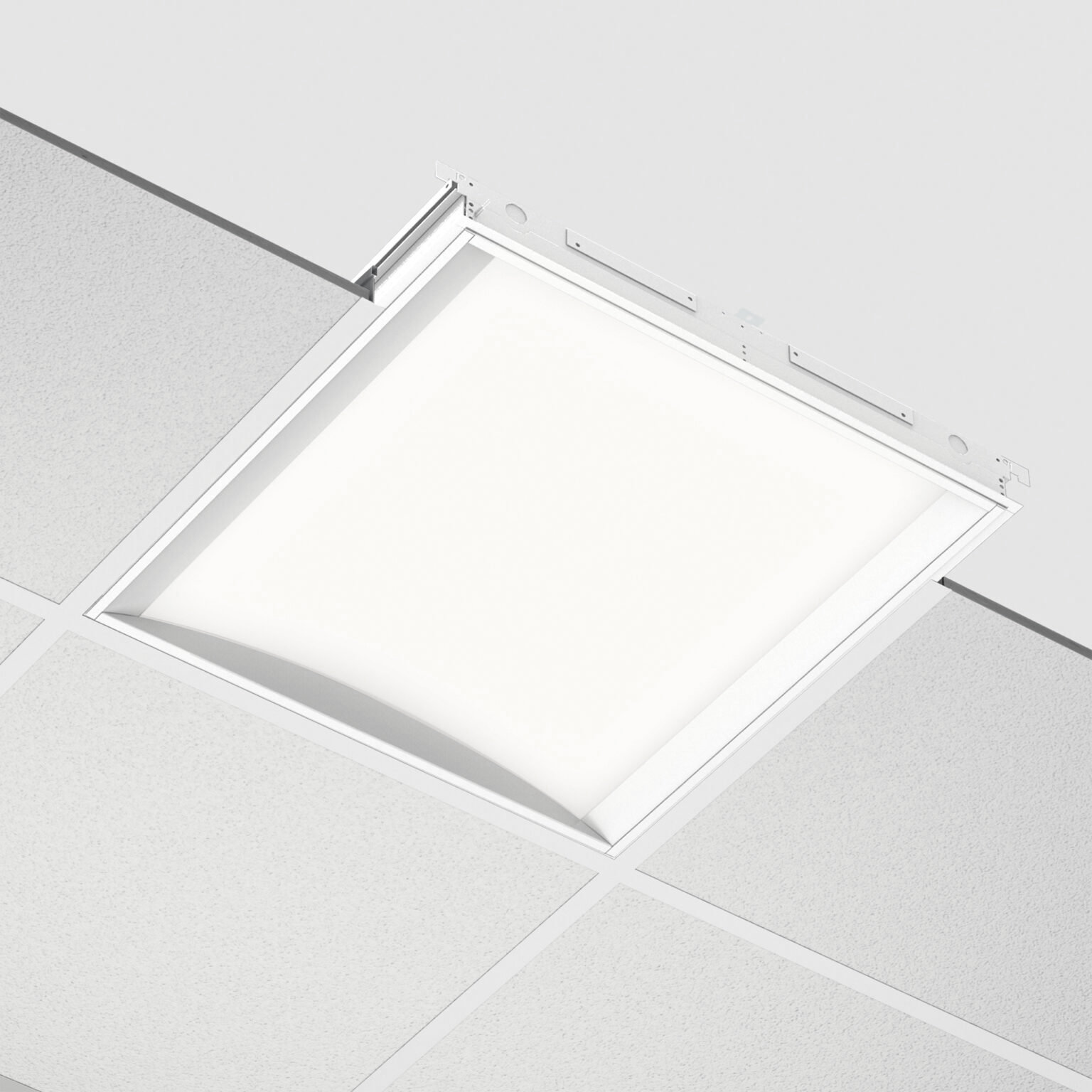

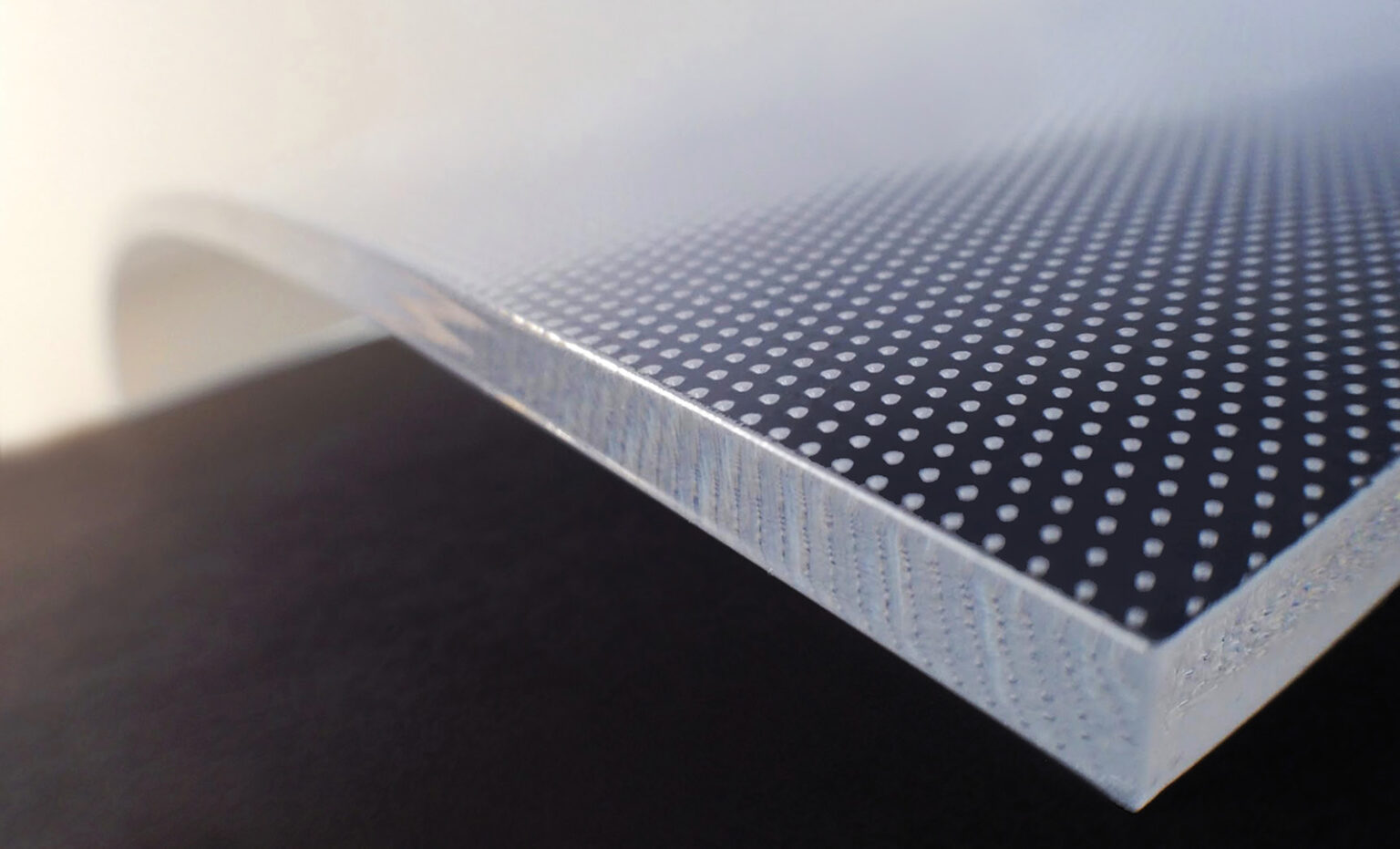

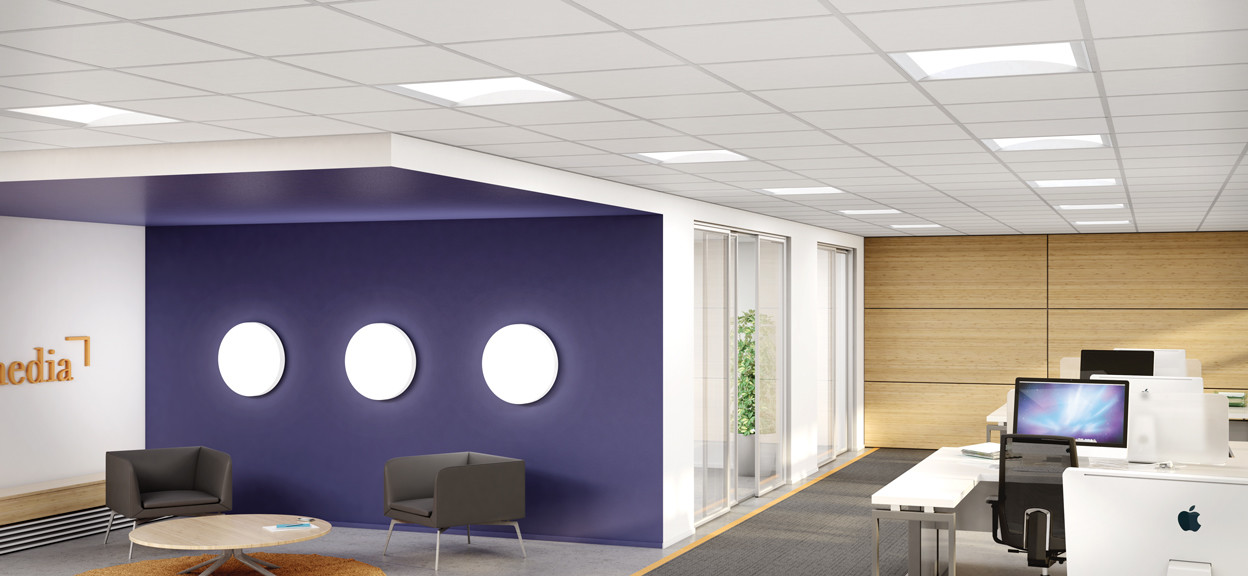

Sideview delivers visually comfortable and notably pleasant general illumination with an uncommonly even luminous surface. This attractive and comfortable lighting result comes from our innovative Compression Planar Optic. With the LED flux side-coupled directly into the optical panel, the Sideview housing is very shallow, at less than 2 ¾” deep. Despite its minimal depth, Sideview’s gently curved concave optic seems to disappear up into the ceiling.

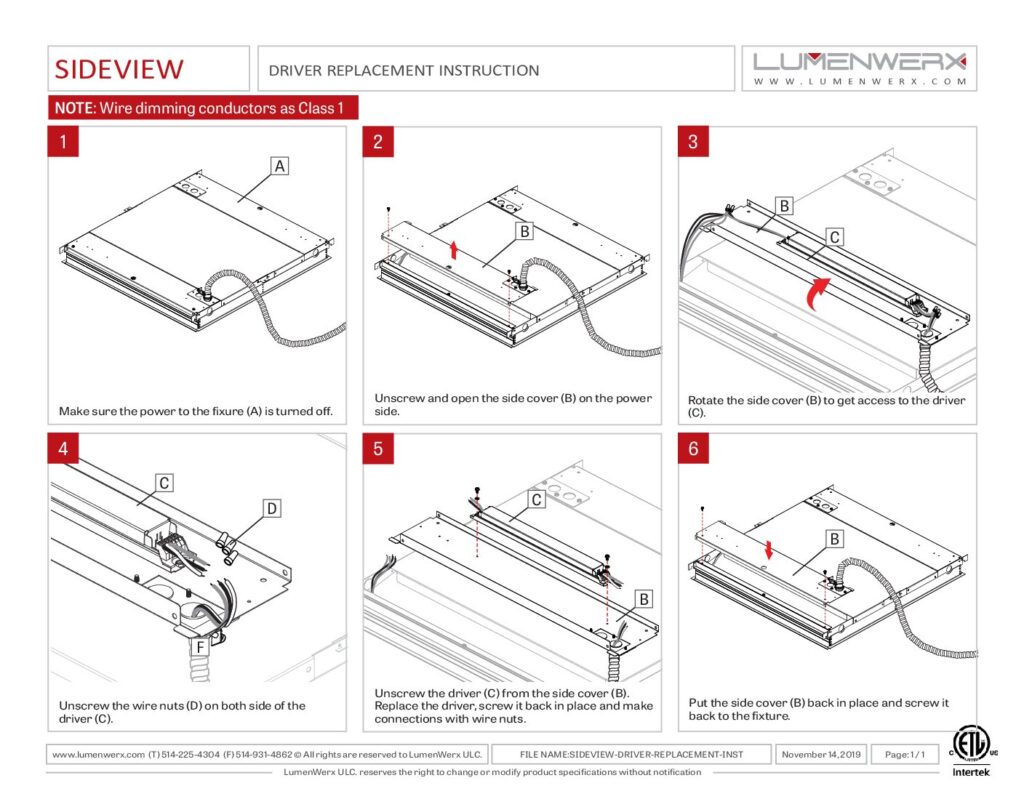

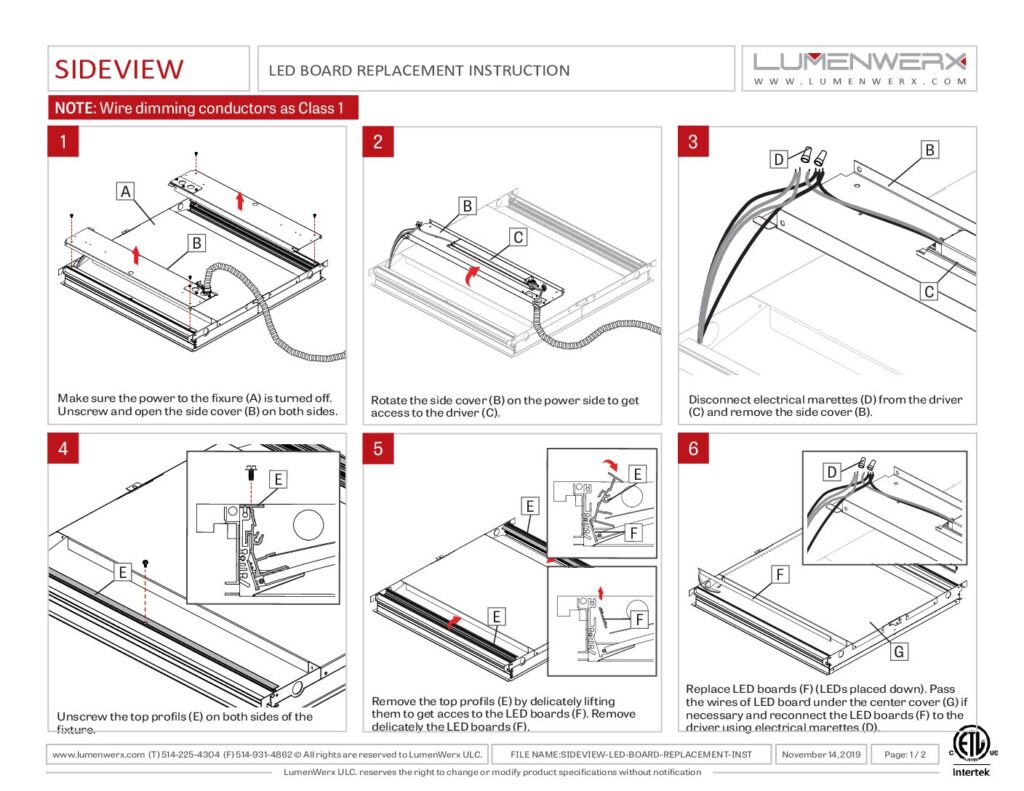

Sideview offers three lumen packages from 2000 to 4000 lumens, with luminaire efficacy up to 87 lm/W. Custom arrays maintain the three color temperature options within three SDCM. Dimmable drivers, either digital or analog, are standard. They operate the LEDs at reduced temperatures, achieving L80 beyond 60,000 hours. Clean detailing assures compatibility with typical ceiling types. Both driver and LED cartridges are field-replaceable.
