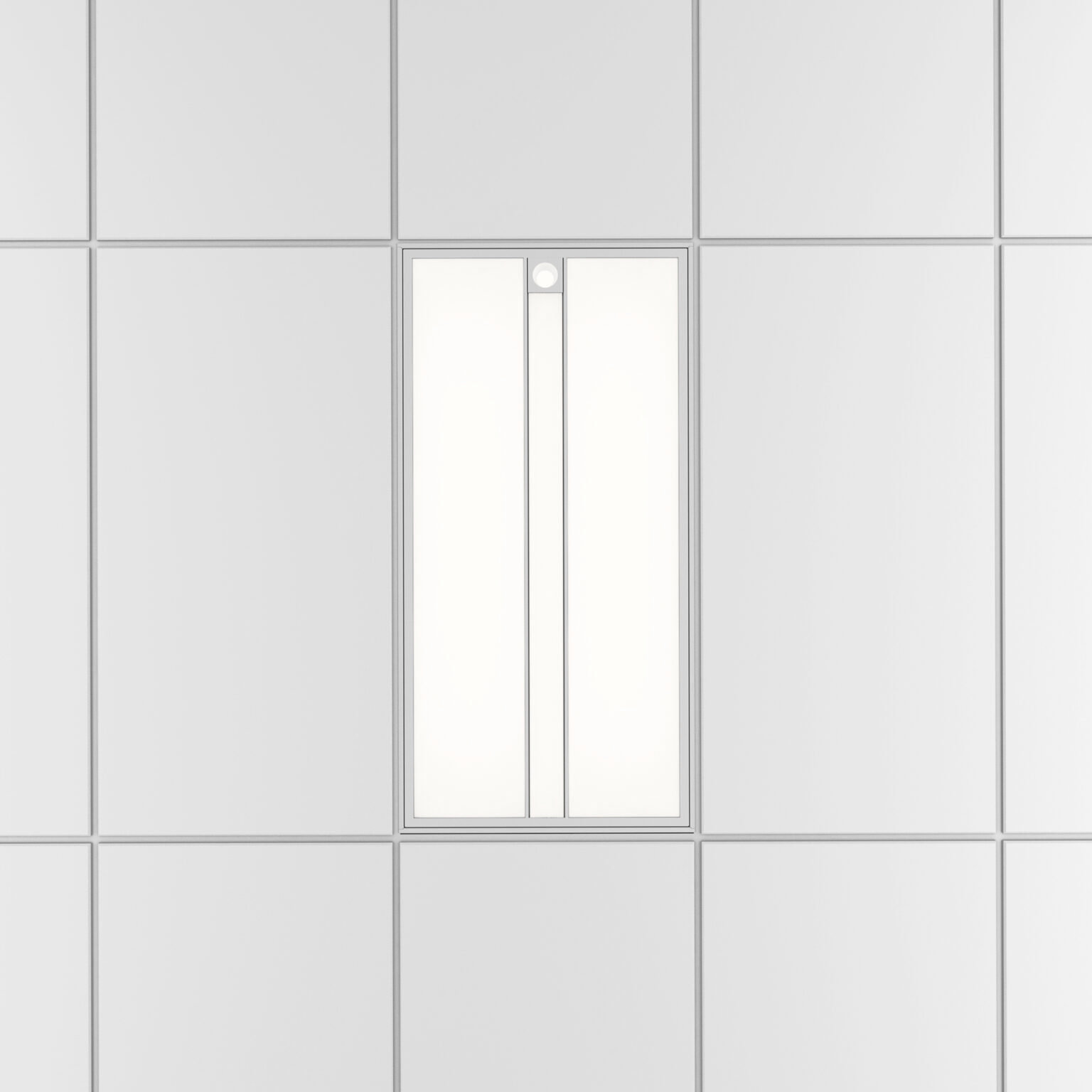

Medico Plus

Direct

Medico was designed to address both patient and staff needs in healthcare facilities. Multifunctional and powerful, the luminaire family delivers low glare illumination without light trespass in multi-patient room settings. Medico Plus offers Exam, Ambient, and Reading modes.

  • Multi-mode light functions
  • Two side lens options in standard version: frosted acrylic and nano-prismatic
  • Optional IP64 door with polycarbonate lens and tamper-resistant screws
  • Easy-to-clean unit with antimicrobial finish
Product Downloads
Specifications - 2′ x 2′
Product TypesSeal (IP-rated), Arch. Troffer, Healthcare Size2' × 2' OpticsEDPO, NPO, ULO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo), Full-Spectrum MountingRecessed Distribution TypeDirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Full-Spectrum
Full-Spectrum

Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.

Optics
EDPO

The Environmentally Protected Direct Optic (EPDO) creates a seal that blocks debris and moisture, and withstands UV distortion and moderate impact. This extruded snap-in lens has a gasket to ensure proper sealing. The lens is 1/16″ thick and made of frosted polycarbonate. Internally, white side-kicking reflectors guide the light through the lens. The EPDO is suitable for moderate climate environments.

NPO

Nano-Prismatic Optic (NPO) is composed of multiple nano-prismatic refractors that bend light with high precision. The NPO’s nanostructure eliminates pixelation from the LED diodes, resulting in a harmonious lens appearance. Light distribution is glare-free, concentrated, and 20% sharper than that from a frosted acrylic lens.

ULO

Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.

Medico Plus

Direct

Medico was designed to address both patient and staff needs in healthcare facilities. Multifunctional and powerful, the luminaire family delivers low glare illumination without light trespass in multi-patient room settings. Medico Plus offers Exam, Ambient, and Reading modes.

  • Multi-mode light functions
  • Two side lens options in standard version: frosted acrylic and nano-prismatic
  • Optional IP64 door with polycarbonate lens and tamper-resistant screws
  • Easy-to-clean unit with antimicrobial finish
Product Downloads
Specifications - 2′ x 4′
Product TypesSeal (IP-rated), Arch. Troffer, Healthcare Size2' × 4' OpticsEDPO, NPO, ULO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo), Full-Spectrum MountingRecessed Distribution TypeDirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Full-Spectrum
Full-Spectrum

Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.

Optics
EDPO

The Environmentally Protected Direct Optic (EPDO) creates a seal that blocks debris and moisture, and withstands UV distortion and moderate impact. This extruded snap-in lens has a gasket to ensure proper sealing. The lens is 1/16″ thick and made of frosted polycarbonate. Internally, white side-kicking reflectors guide the light through the lens. The EPDO is suitable for moderate climate environments.

NPO

Nano-Prismatic Optic (NPO) is composed of multiple nano-prismatic refractors that bend light with high precision. The NPO’s nanostructure eliminates pixelation from the LED diodes, resulting in a harmonious lens appearance. Light distribution is glare-free, concentrated, and 20% sharper than that from a frosted acrylic lens.

ULO

Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.

Polycarbonate
lens

Shallow housing
complies with ADA
requirements

Use it vertically
or horizontally

Durability

  1. Side lenses are made of either frosted smooth acrylic or a nanoprismatic lens.
  2. The center lens is a gasketed, frosted, high-grade polycarbonate designed to meet IP54 requirements.
  3. An optional reading light is available with HyFlex™ optics, a unique quad-tiered optical system for even light distribution.
  4. The frame is gasketed, and side lenses can be gasketed as an option to meet IP54. An optional door with a polycarbonate lens and tamper-resistant screws is available to meet IP64.

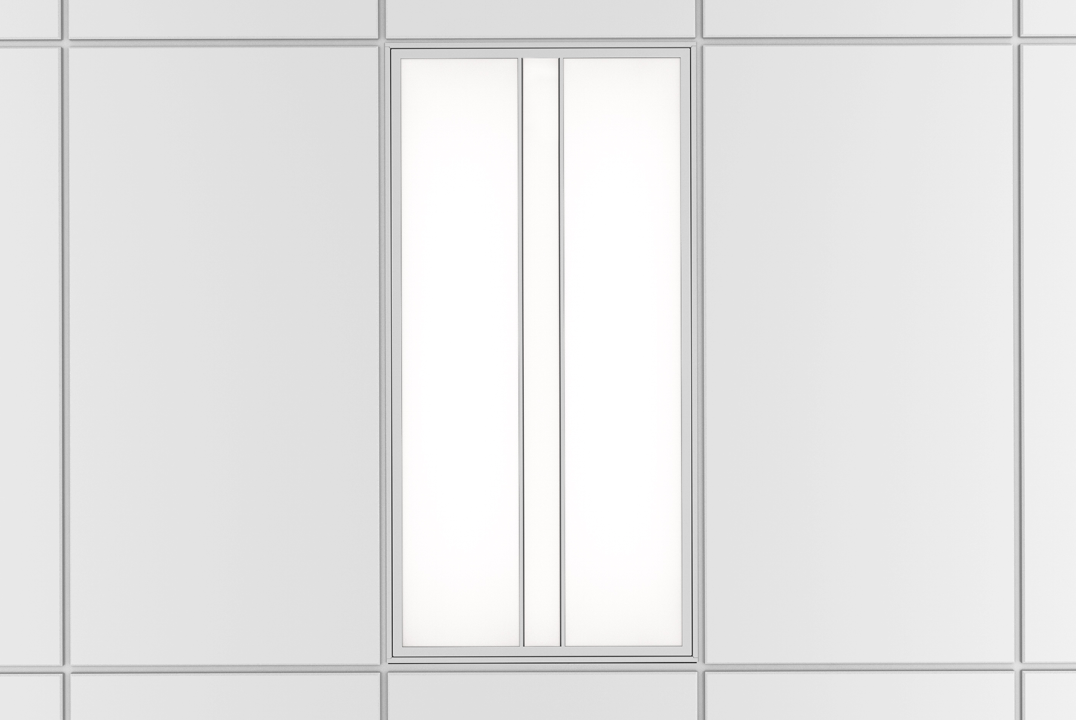

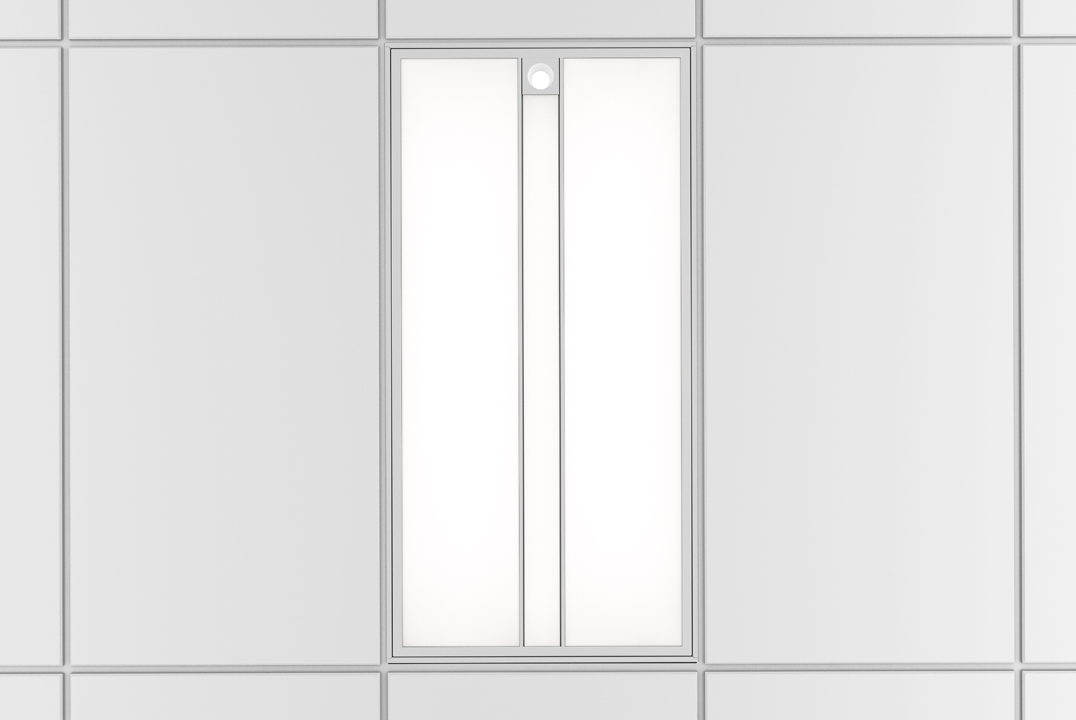

Inspiration Gallery
