Smile

Direct/Indirect

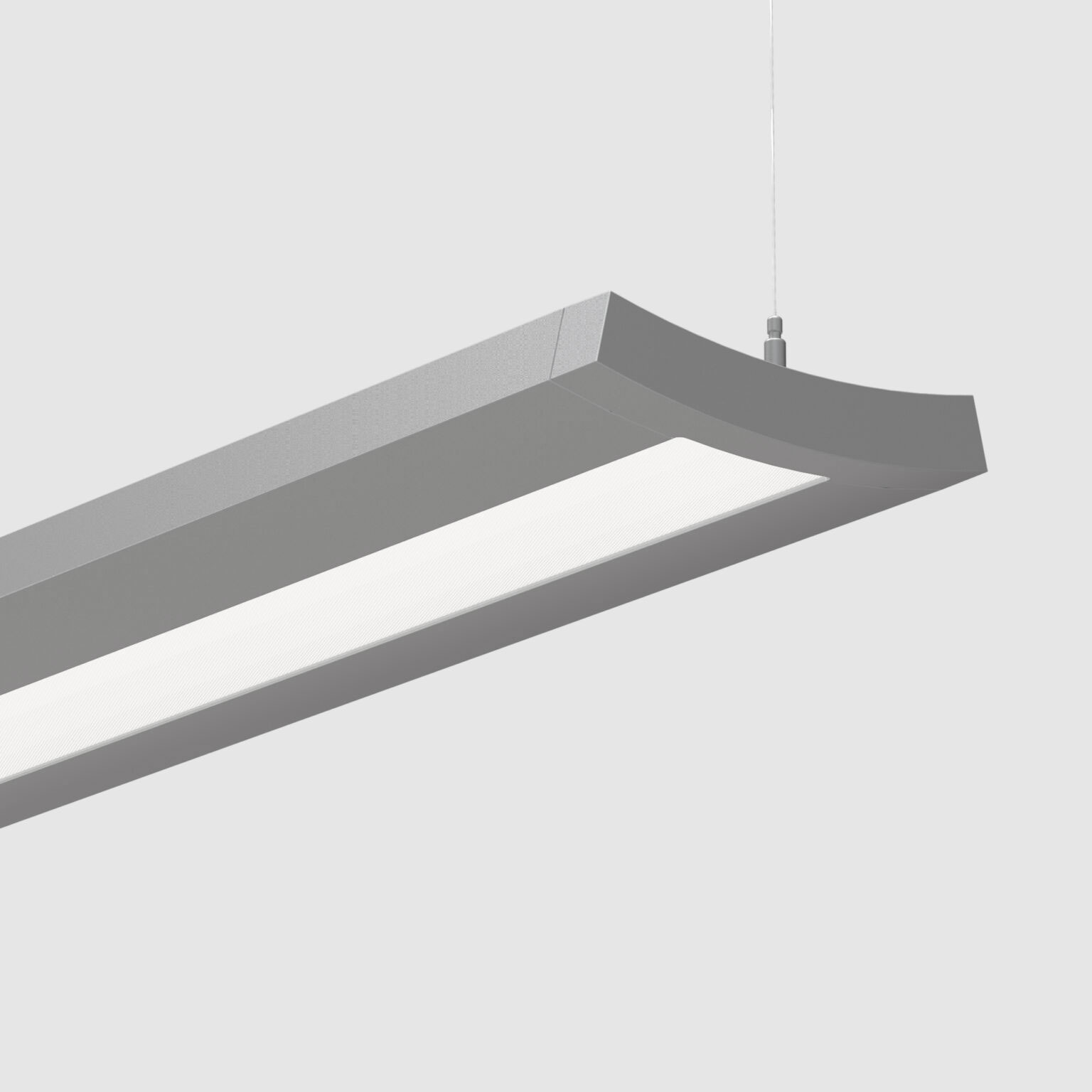

Smile is a linear LED luminaire with a gently curved profile and a charming aspect. Using advanced LED engines and optical control, Smile provides widespread uplighting and well-controlled downlighting, delivering both efficient and comfortable illumination. Smile is offered in a choice of light distributions, outputs, and color temperatures, together with comprehensive electrical and control options.

Product Downloads
Specifications - Pendant
Product TypeLinear SizeW 8" OpticPMO CCT/Light & ColorStatic White MountingPendant Distribution TypeDirect/Indirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics
PMO

Precision Micro-Prism Optic (PMO) – The exclusive two-dimensional array of prisms is designed to eliminate glare at higher viewing angles, enabling a glare cut-off at a 45° viewing angle.

Performance

Per 4 ft – 15% Down, 85% Up Distribution

LED Output Color Temp Watts Nominal Lumens Efficacy (LPW)
Low output 4000K 27.5 3000 110
Medium output 4000K 32 3500 109
High output 4000K 37 4000 108

Smile

Direct/Indirect

Smile is a linear LED luminaire with a gently curved profile and a charming aspect. Using advanced LED engines and optical control, Smile provides widespread uplighting and well-controlled downlighting, delivering both efficient and comfortable illumination. Smile is offered in a choice of light distributions, outputs, and color temperatures, together with comprehensive electrical and control options.

Product Downloads
Specifications - Wall
Product TypeLinear SizeW 8" OpticPMO CCT/Light & ColorStatic White MountingWall Distribution TypeDirect/Indirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics
PMO

Precision Micro-Prism Optic (PMO) – The exclusive two-dimensional array of prisms is designed to eliminate glare at higher viewing angles, enabling a glare cut-off at a 45° viewing angle.

Performance

Per 4 ft – 15% Down, 85% Up Distribution

LED Output Color Temp Watts Nominal Lumens Efficacy (LPW)
Low output 4000K 27.5 3000 110
Medium output 4000K 32 3500 109
High output 4000K 37 4000 108
MOUNTINGS

Pendant
Wall

DISTRIBUTION

Direct/Indirect

SIZE

1 ⅜" Deep × 8 ⅝" Wide
