Via Wet

Direct

Via Wet (IP54) offers architectural lighting for wet locations in both exterior and interior applications. Via Wet is equipped with an additional lens layer (polycarbonate or tempered glass) and features a double seal with a two-tier gasket, ensuring that nothing can enter the fixture. Its watertight and dust tight, durable construction makes it suitable for harsh environments prone to water and debris.

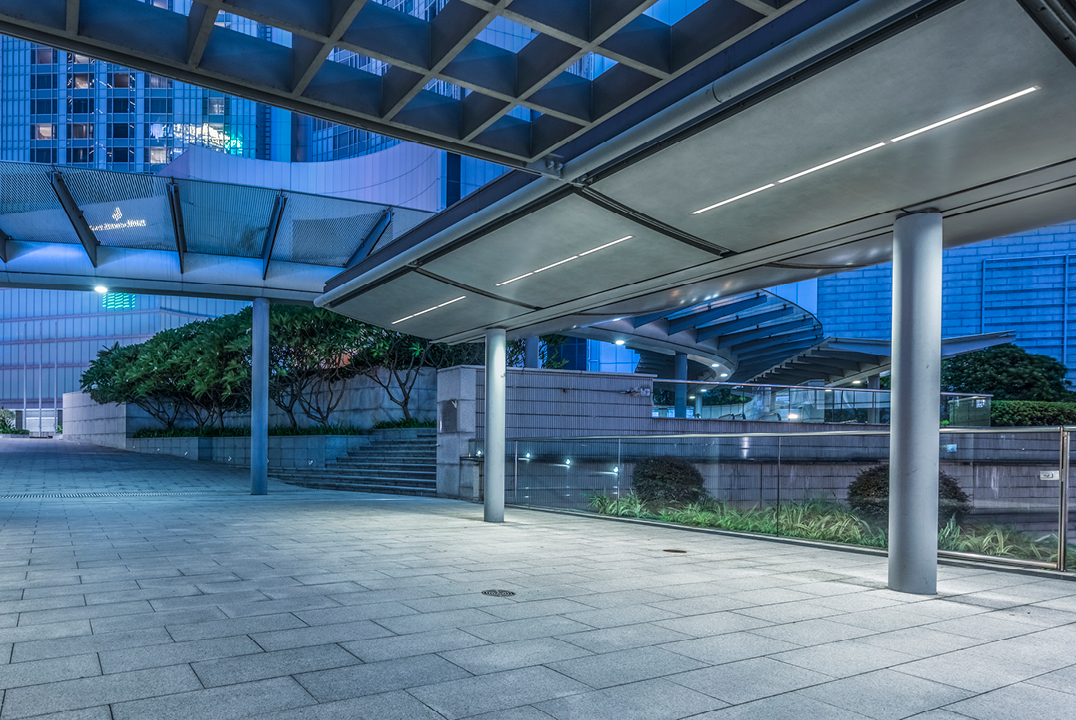

The 4.5″ profile is available with a natatorium- and corrosion-resistant finish for extra protection. Via Wet can be used outdoors—such as in parking lots, bridges, and exterior trusses—or indoors, for example in pools, food prep areas, and laboratories that undergo frequent washdowns. With a compact 3.75″ high by 4.5″ wide extruded aluminum profile, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting configurations. It is suitable for extreme weather conditions, from -20ºC/-4ºF to 40ºC/104ºF. Output options provide up to 1,000 lumens per linear foot.

Fully sealed and protected

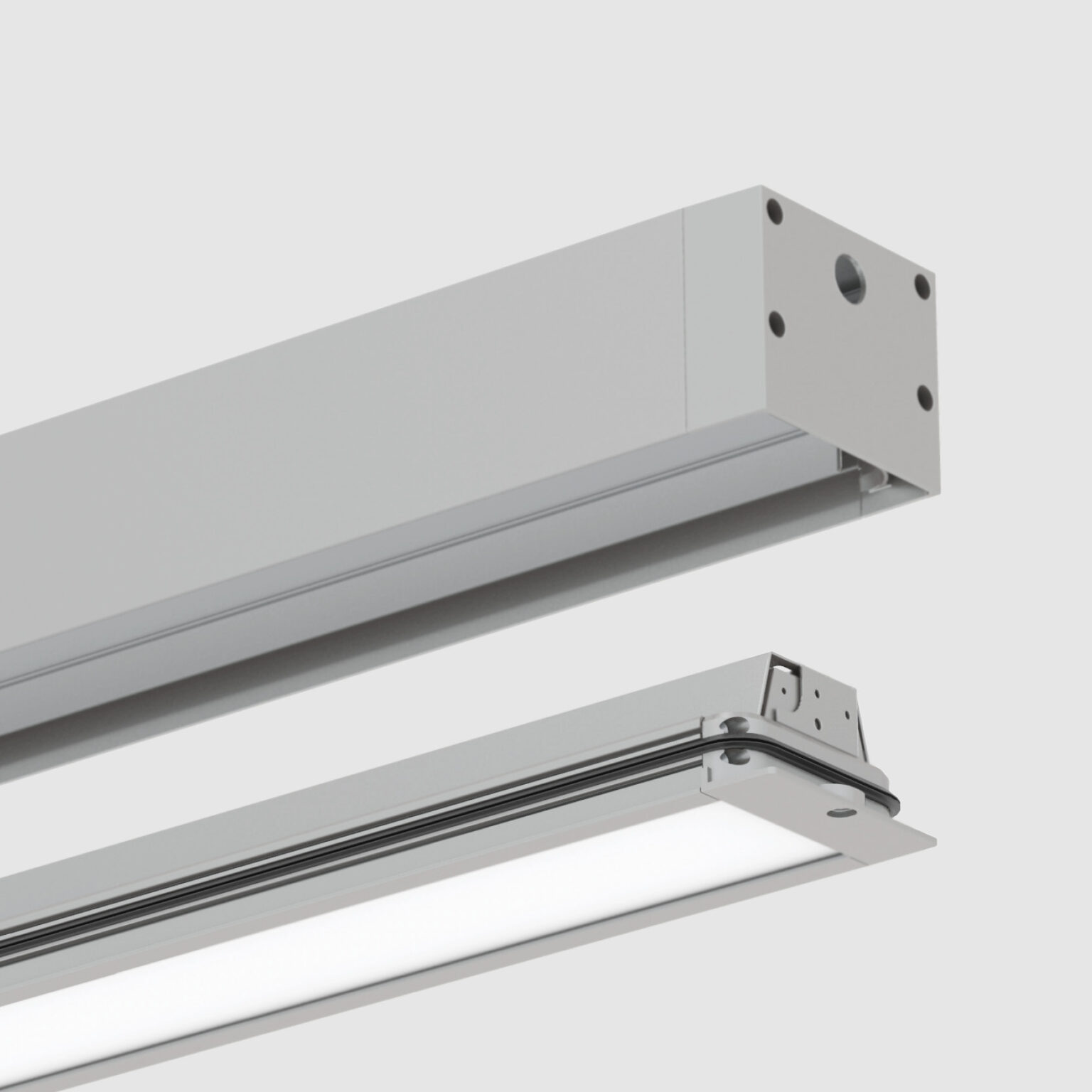

Features the Smart-Lock Module: proprietary lens, LED, and driver cartridge design
Corrosion-resistant finish option for harsh environments (salt, dust, and chemical-resistant)
Meets IP54 criteria

Specifications - Pendant

Product TypesLinear, Healthcare SizesH 3 ¾", W 4.5" OpticsHLO, PMO CCT/Light & ColorStatic White MountingPendant Distribution TypeDirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

PMO

Precision Micro-Prism Optic (PMO) – The exclusive two-dimensional array of prisms is designed to eliminate glare at higher viewing angles, enabling a glare cut-off at a 45° viewing angle.

Via Wet

Direct

Via Wet (IP54) offers architectural lighting for wet locations in both exterior and interior applications. Via Wet is equipped with an additional lens layer (polycarbonate or tempered glass) and features a double seal with a two-tier gasket, ensuring that nothing can enter the fixture. Its watertight and dust tight, durable construction makes it suitable for harsh environments prone to water and debris.

The 4.5″ profile is available with a natatorium- and corrosion-resistant finish for extra protection. Via Wet can be used outdoors—such as in parking lots, bridges, and exterior trusses—or indoors, for example in pools, food prep areas, and laboratories that undergo frequent washdowns. With a compact 3.75″ high by 4.5″ wide extruded aluminum profile, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting configurations. It is suitable for extreme weather conditions, from -20ºC/-4ºF to 40ºC/104ºF. Output options provide up to 1,000 lumens per linear foot.

Fully sealed and protected
Features the Smart-Lock Module: proprietary lens, LED, and driver cartridge design
Corrosion-resistant finish option for harsh environments (salt, dust, and chemical-resistant)
Meets IP54 criteria

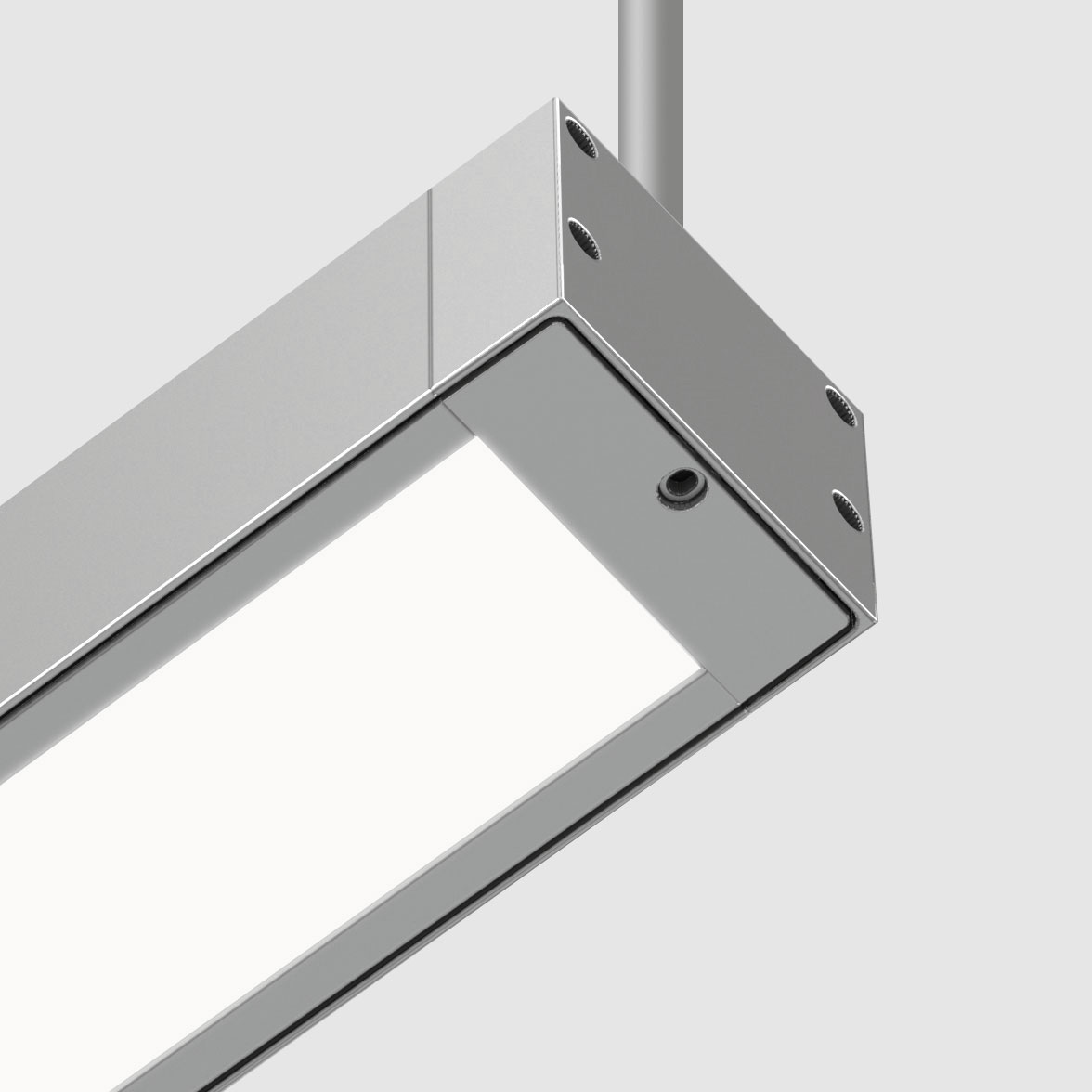

Specifications - Pendant Asymmetric

Product TypesLinear, Healthcare SizesH 3 ¾", W 4.5" OpticHLO CCT/Light & ColorStatic White MountingPendant Distribution TypesDirect, Asymmetric

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

Via Wet

Direct

Via Wet (IP54) offers architectural lighting for wet locations in both exterior and interior applications. Via Wet is equipped with an additional lens layer (polycarbonate or tempered glass) and features a double seal with a two-tier gasket, ensuring that nothing can enter the fixture. Its watertight and dust tight, durable construction makes it suitable for harsh environments prone to water and debris.

The 4.5″ profile is available with a natatorium- and corrosion-resistant finish for extra protection. Via Wet can be used outdoors—such as in parking lots, bridges, and exterior trusses—or indoors, for example in pools, food prep areas, and laboratories that undergo frequent washdowns. With a compact 3.75″ high by 4.5″ wide extruded aluminum profile, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting configurations. It is suitable for extreme weather conditions, from -20ºC/-4ºF to 40ºC/104ºF. Output options provide up to 1,000 lumens per linear foot.

Fully sealed and protected
Features the Smart-Lock Module: proprietary lens, LED, and driver cartridge design
Corrosion-resistant finish option for harsh environments (salt, dust, and chemical-resistant)
Meets IP54 criteria

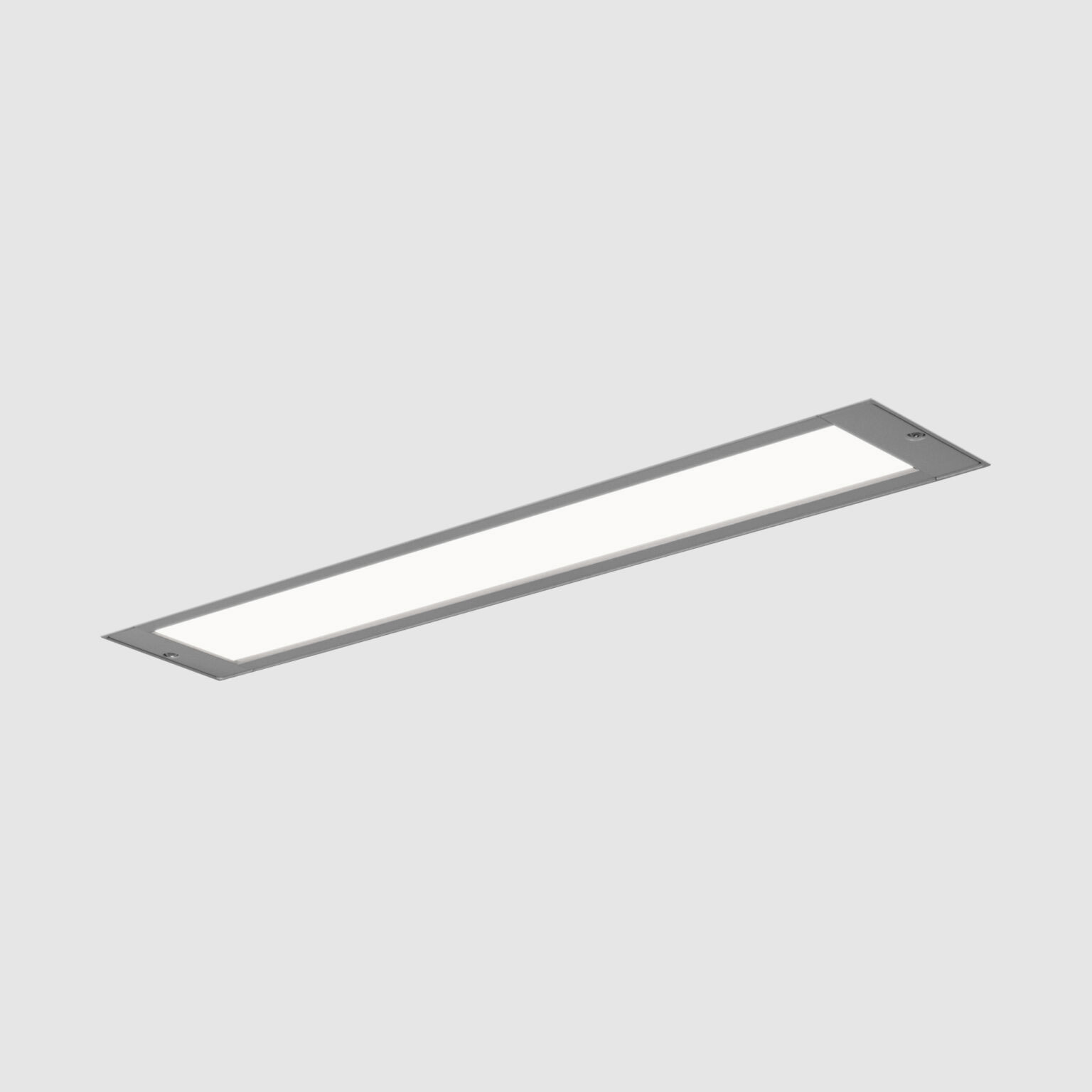

Specifications - Recessed

Product TypesLinear, Healthcare SizesH 3 ¾", W 4.5" OpticsHLO, PMO CCT/Light & ColorStatic White MountingRecessed Distribution TypeDirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

PMO

Precision Micro-Prism Optic (PMO) – The exclusive two-dimensional array of prisms is designed to eliminate glare at higher viewing angles, enabling a glare cut-off at a 45° viewing angle.

Via Wet

Direct

Via Wet (IP54) offers architectural lighting for wet locations in both exterior and interior applications. Via Wet is equipped with an additional lens layer (polycarbonate or tempered glass) and features a double seal with a two-tier gasket, ensuring that nothing can enter the fixture. Its watertight and dust tight, durable construction makes it suitable for harsh environments prone to water and debris.

The 4.5″ profile is available with a natatorium- and corrosion-resistant finish for extra protection. Via Wet can be used outdoors—such as in parking lots, bridges, and exterior trusses—or indoors, for example in pools, food prep areas, and laboratories that undergo frequent washdowns. With a compact 3.75″ high by 4.5″ wide extruded aluminum profile, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting configurations. It is suitable for extreme weather conditions, from -20ºC/-4ºF to 40ºC/104ºF. Output options provide up to 1,000 lumens per linear foot.

Fully sealed and protected
Features the Smart-Lock Module: proprietary lens, LED, and driver cartridge design
Corrosion-resistant finish option for harsh environments (salt, dust, and chemical-resistant)
Meets IP54 criteria

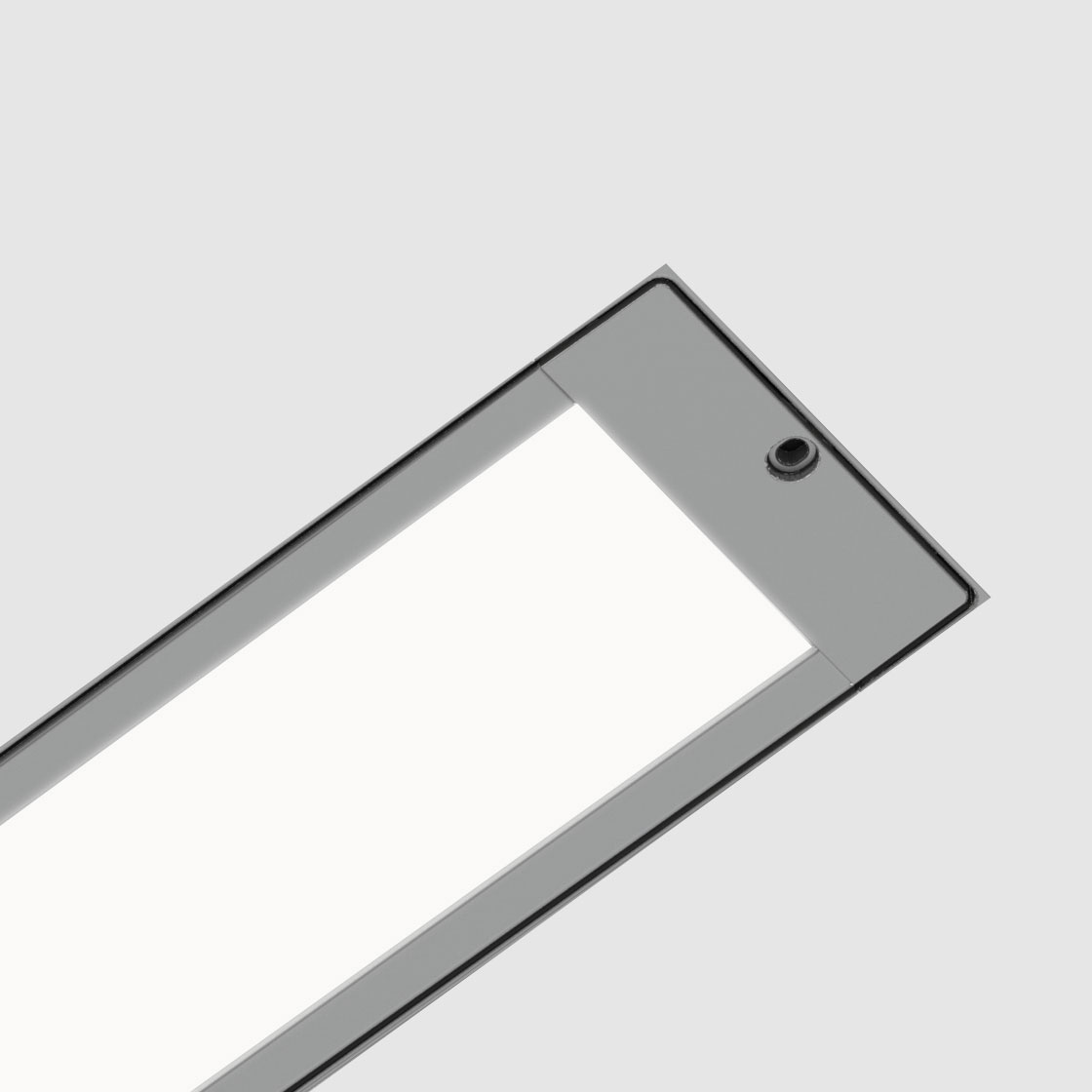

Specifications - Recessed Asymmetric

Product TypesLinear, Healthcare SizesH 3 ¾", W 4.5" OpticHLO CCT/Light & ColorStatic White MountingRecessed Distribution TypesDirect, Asymmetric

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

Via Wet

Direct

Via Wet (IP54) offers architectural lighting for wet locations in both exterior and interior applications. Via Wet is equipped with an additional lens layer (polycarbonate or tempered glass) and features a double seal with a two-tier gasket, ensuring that nothing can enter the fixture. Its watertight and dust tight, durable construction makes it suitable for harsh environments prone to water and debris.

The 4.5″ profile is available with a natatorium- and corrosion-resistant finish for extra protection. Via Wet can be used outdoors—such as in parking lots, bridges, and exterior trusses—or indoors, for example in pools, food prep areas, and laboratories that undergo frequent washdowns. With a compact 3.75″ high by 4.5″ wide extruded aluminum profile, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting configurations. It is suitable for extreme weather conditions, from -20ºC/-4ºF to 40ºC/104ºF. Output options provide up to 1,000 lumens per linear foot.

Fully sealed and protected
Features the Smart-Lock Module: proprietary lens, LED, and driver cartridge design
Corrosion-resistant finish option for harsh environments (salt, dust, and chemical-resistant)
Meets IP54 criteria

Specifications - Surface

Product TypesLinear, Healthcare SizesH 3 ¾", W 4.5" OpticsHLO, PMO CCT/Light & ColorStatic White MountingSurface Distribution TypeDirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

PMO

Precision Micro-Prism Optic (PMO) – The exclusive two-dimensional array of prisms is designed to eliminate glare at higher viewing angles, enabling a glare cut-off at a 45° viewing angle.

Via Wet

Direct

Via Wet (IP54) offers architectural lighting for wet locations in both exterior and interior applications. Via Wet is equipped with an additional lens layer (polycarbonate or tempered glass) and features a double seal with a two-tier gasket, ensuring that nothing can enter the fixture. Its watertight and dust tight, durable construction makes it suitable for harsh environments prone to water and debris.

The 4.5″ profile is available with a natatorium- and corrosion-resistant finish for extra protection. Via Wet can be used outdoors—such as in parking lots, bridges, and exterior trusses—or indoors, for example in pools, food prep areas, and laboratories that undergo frequent washdowns. With a compact 3.75″ high by 4.5″ wide extruded aluminum profile, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting configurations. It is suitable for extreme weather conditions, from -20ºC/-4ºF to 40ºC/104ºF. Output options provide up to 1,000 lumens per linear foot.

Fully sealed and protected
Features the Smart-Lock Module: proprietary lens, LED, and driver cartridge design
Corrosion-resistant finish option for harsh environments (salt, dust, and chemical-resistant)
Meets IP54 criteria

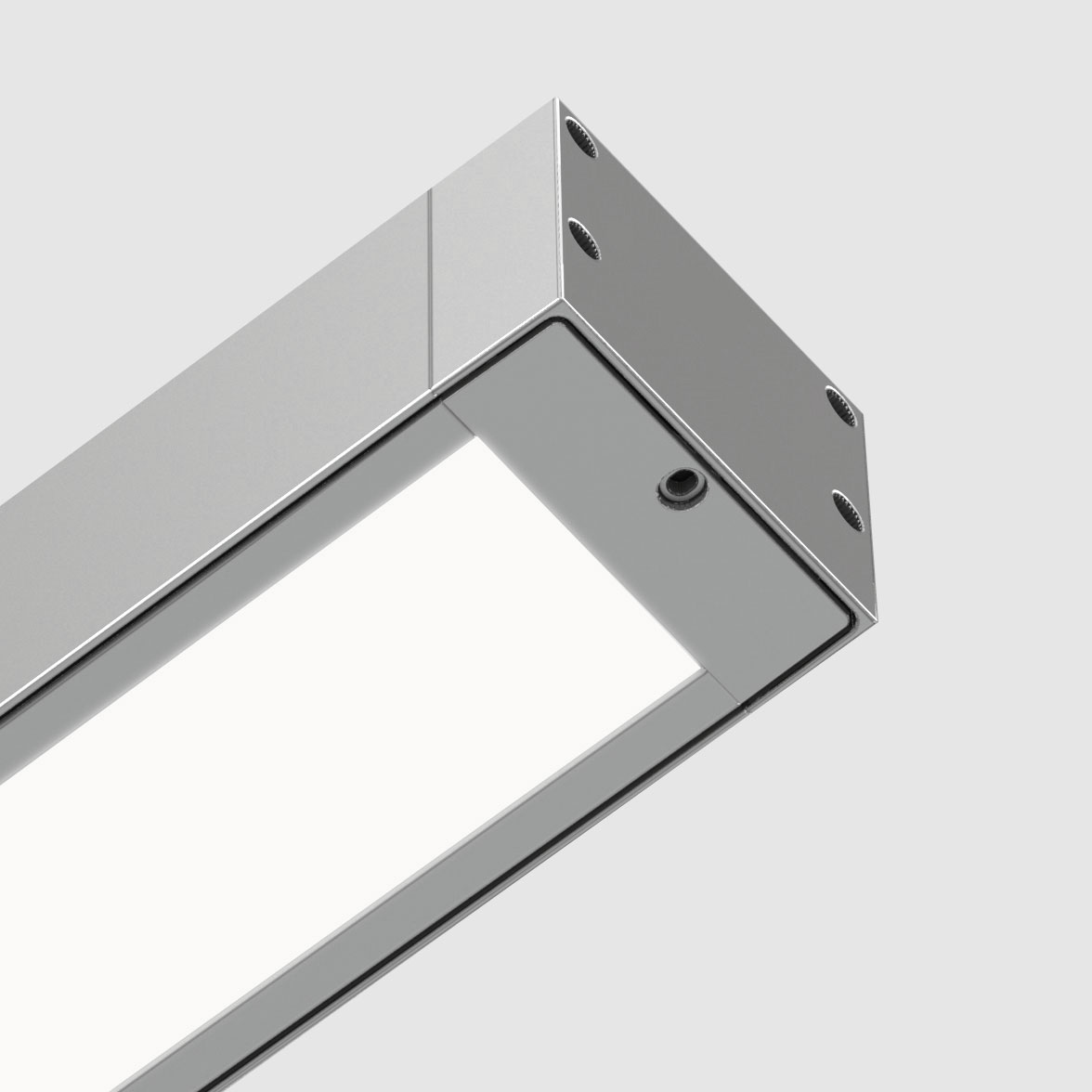

Specifications - Surface Asymmetric

Product TypesLinear, Healthcare SizesH 3 ¾", W 4.5" OpticHLO CCT/Light & ColorStatic White MountingSurface Distribution TypesDirect, Asymmetric

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

Via Wet

Direct

Via Wet (IP54) offers architectural lighting for wet locations in both exterior and interior applications. Via Wet is equipped with an additional lens layer (polycarbonate or tempered glass) and features a double seal with a two-tier gasket, ensuring that nothing can enter the fixture. Its watertight and dust tight, durable construction makes it suitable for harsh environments prone to water and debris.

The 4.5″ profile is available with a natatorium- and corrosion-resistant finish for extra protection. Via Wet can be used outdoors—such as in parking lots, bridges, and exterior trusses—or indoors, for example in pools, food prep areas, and laboratories that undergo frequent washdowns. With a compact 3.75″ high by 4.5″ wide extruded aluminum profile, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting configurations. It is suitable for extreme weather conditions, from -20ºC/-4ºF to 40ºC/104ºF. Output options provide up to 1,000 lumens per linear foot.

Fully sealed and protected
Features the Smart-Lock Module: proprietary lens, LED, and driver cartridge design
Corrosion-resistant finish option for harsh environments (salt, dust, and chemical-resistant)
Meets IP54 criteria

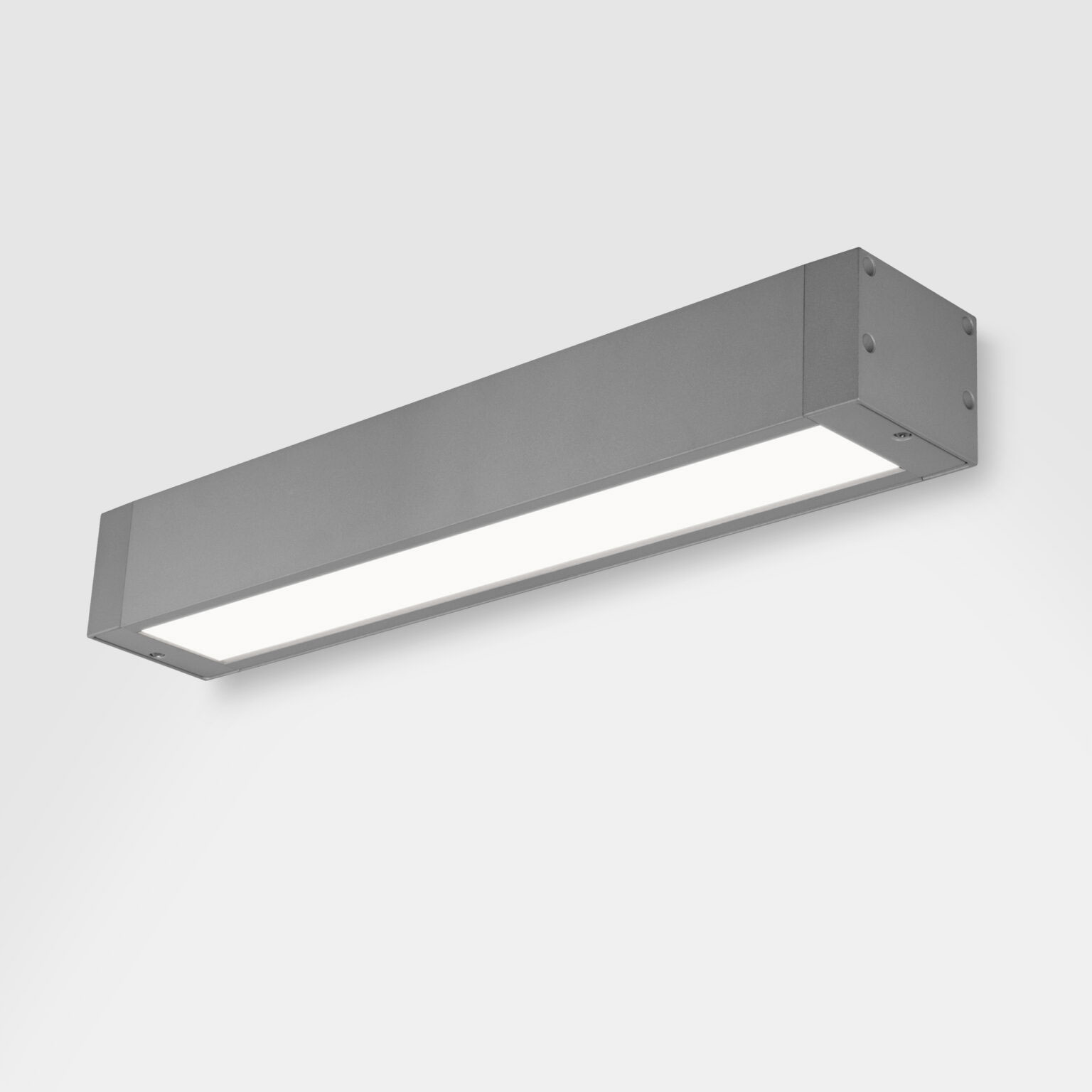

Specifications - Wall

Product TypesLinear, Healthcare SizesH 3 ¾", W 4.5" OpticsHLO, PMO CCT/Light & ColorStatic White MountingWall Distribution TypeDirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

PMO

Precision Micro-Prism Optic (PMO) – The exclusive two-dimensional array of prisms is designed to eliminate glare at higher viewing angles, enabling a glare cut-off at a 45° viewing angle.

Via Wet

Direct

Via Wet (IP54) offers architectural lighting for wet locations in both exterior and interior applications. Via Wet is equipped with an additional lens layer (polycarbonate or tempered glass) and features a double seal with a two-tier gasket, ensuring that nothing can enter the fixture. Its watertight and dust tight, durable construction makes it suitable for harsh environments prone to water and debris.

The 4.5″ profile is available with a natatorium- and corrosion-resistant finish for extra protection. Via Wet can be used outdoors—such as in parking lots, bridges, and exterior trusses—or indoors, for example in pools, food prep areas, and laboratories that undergo frequent washdowns. With a compact 3.75″ high by 4.5″ wide extruded aluminum profile, Via Wet can be installed in recessed, ceiling, wall, or pendant mounting configurations. It is suitable for extreme weather conditions, from -20ºC/-4ºF to 40ºC/104ºF. Output options provide up to 1,000 lumens per linear foot.

Fully sealed and protected
Features the Smart-Lock Module: proprietary lens, LED, and driver cartridge design
Corrosion-resistant finish option for harsh environments (salt, dust, and chemical-resistant)
Meets IP54 criteria

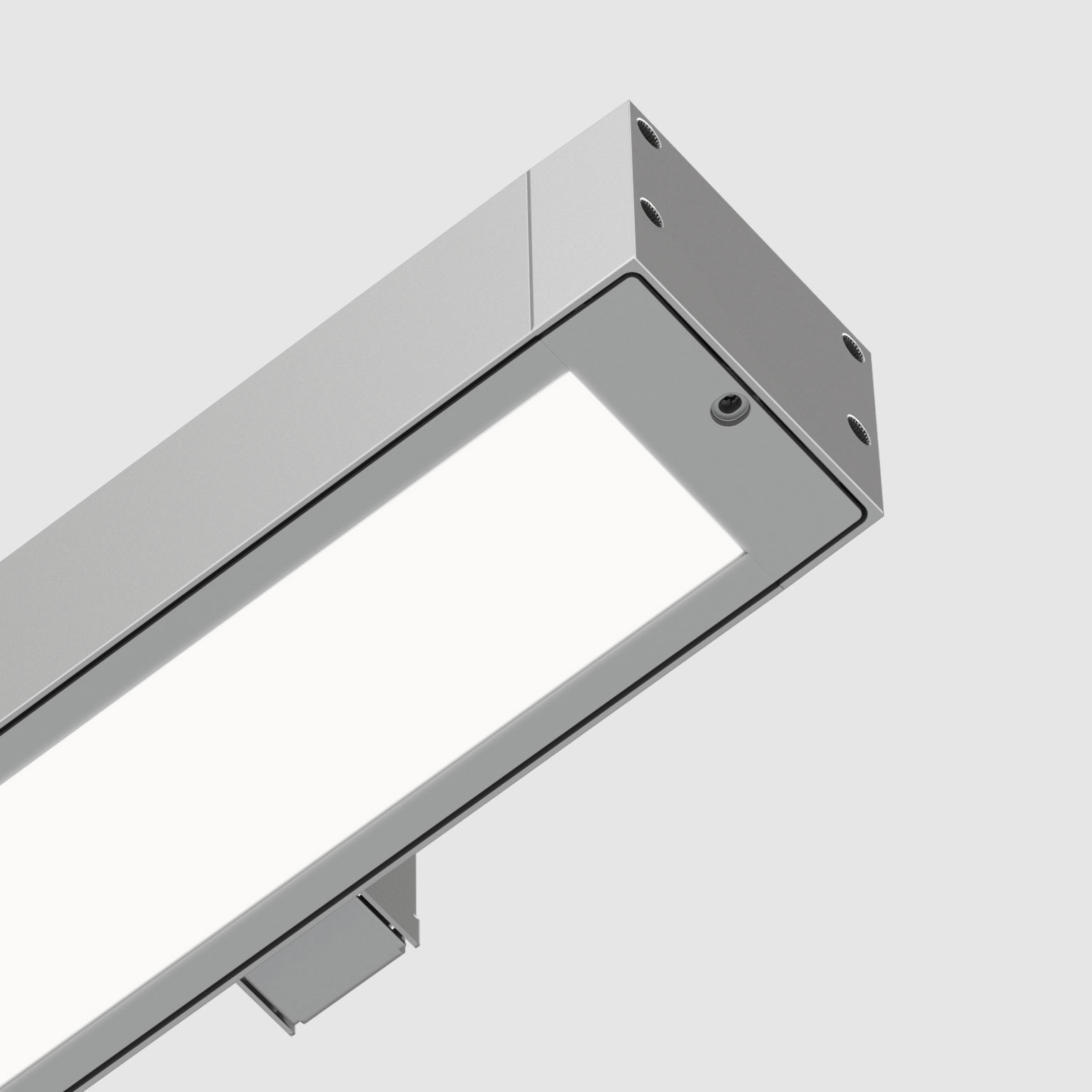

Specifications - Wall Asymmetric

Product TypesLinear, Healthcare SizesH 3 ¾", W 4.5" OpticHLO CCT/Light & ColorStatic White MountingWall Distribution TypesDirect, Asymmetric

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.
