Ory

Indirect Widespread Optics

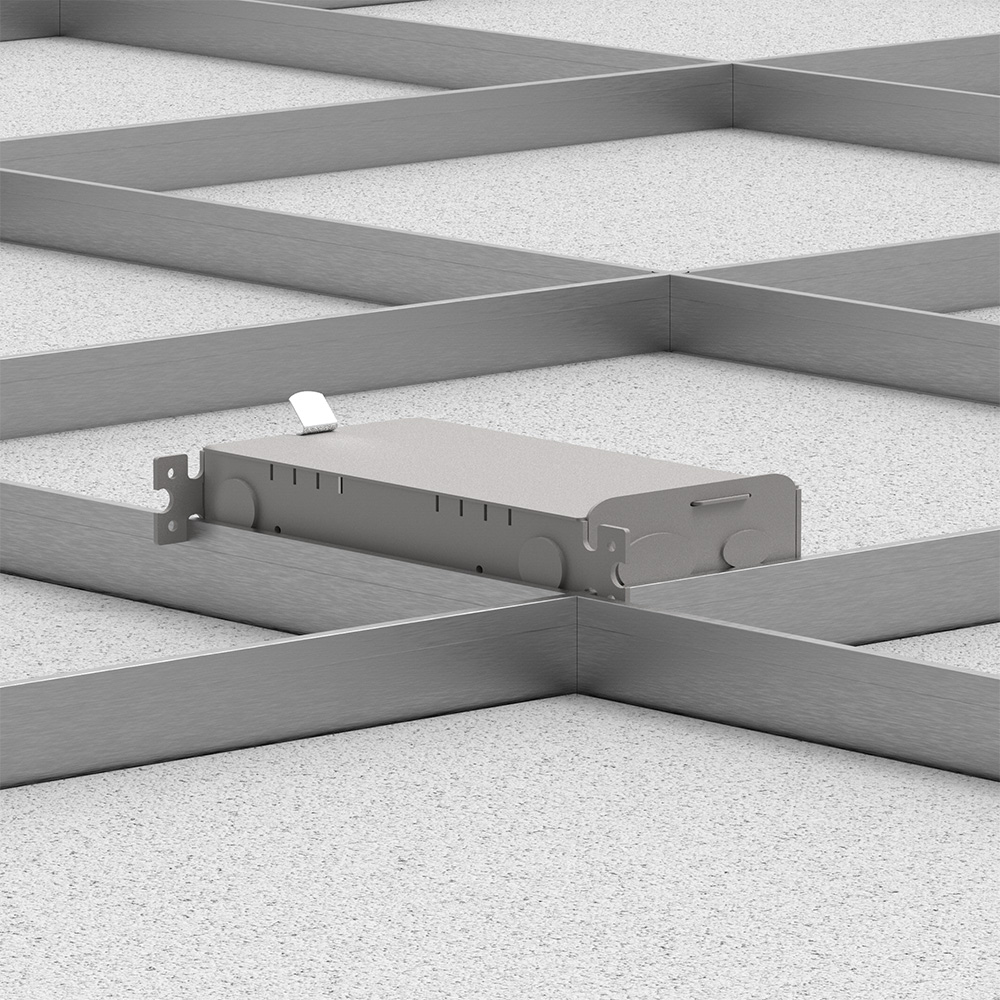

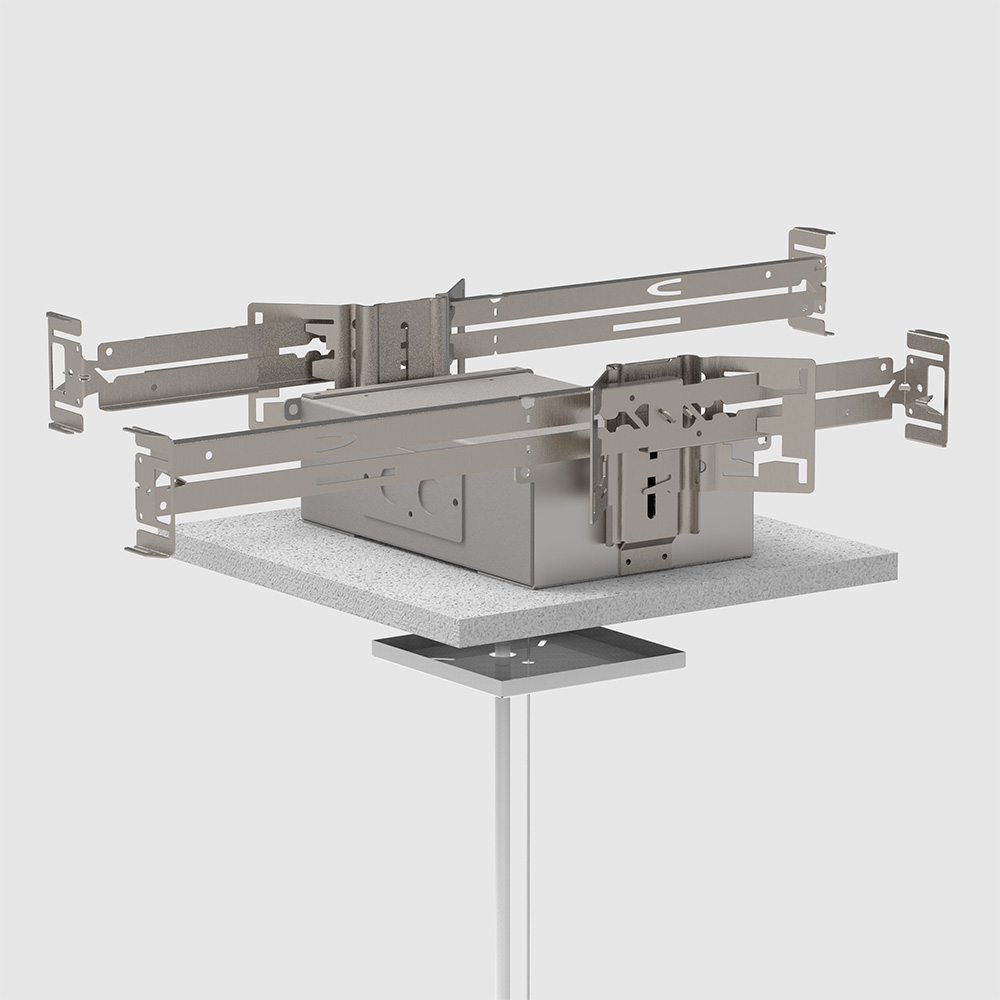

Ory offers widespread, energy-efficient lighting from a luminaire just 1″ high × 2.5″ wide. A remote driver, accessible through the suspension canopy, provides power.

Utilizing the LumenWerx widespread indirect optic (WIO), Ory delivers peak intensity at 110 degrees while suppressing direct uplighting. This produces noticeably smoother ceiling brightness than a typical Lambertian uplighting distribution, allowing for generally wider spacing as well.

Ory is available as an indirect pendant, an indirect asymmetric wall luminaire (ADA-compliant), and pendant patterns.

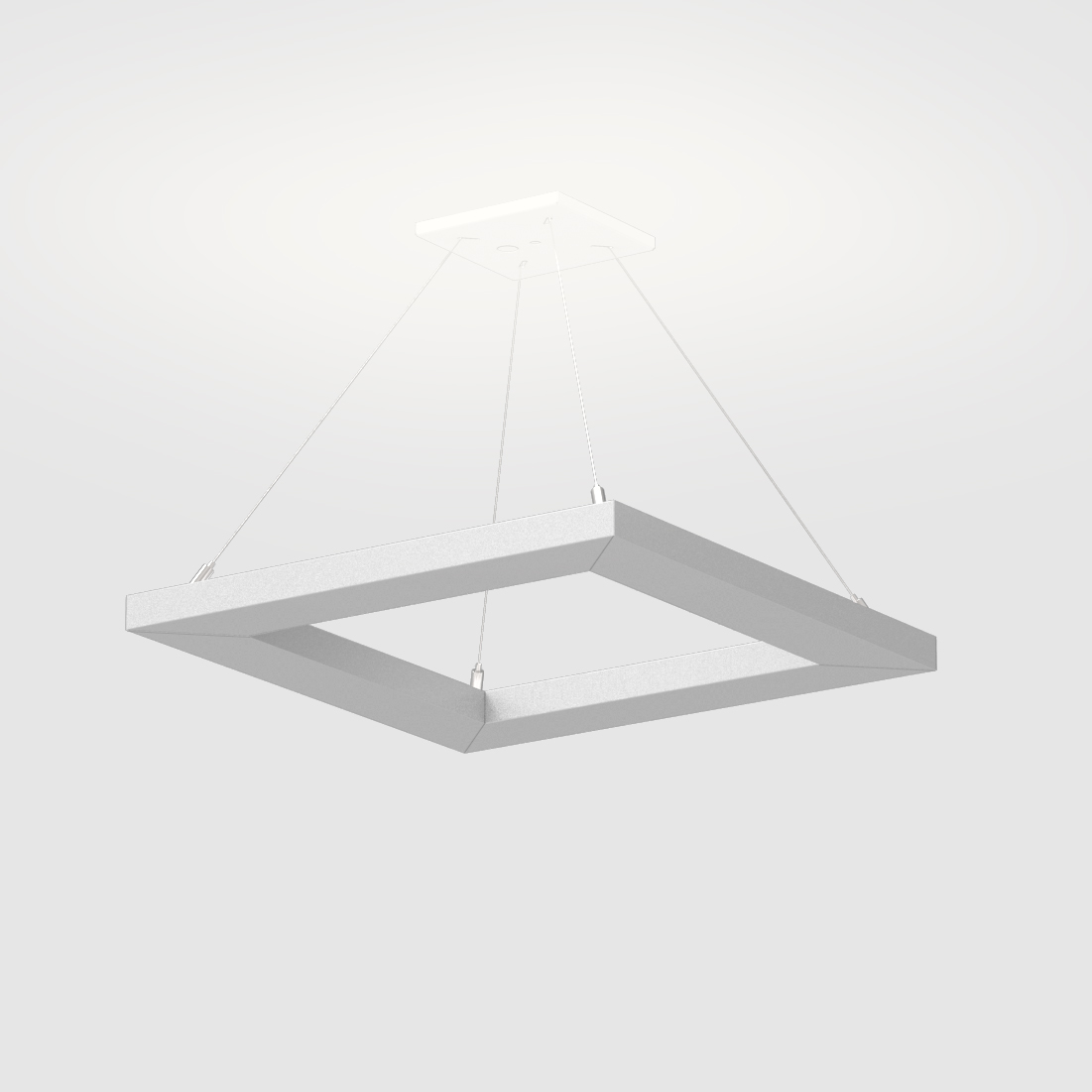

Specifications - 1′ x 1′ Pendant Indirect

Product TypesLinear, Arch. Decorative Size1′ × 1′ OpticWIO2 CCT/Light & ColorStatic White MountingPendant Distribution TypeIndirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

Patterns

Ory is available in rectangular patterns: 1′ × 1′, 1′ × 4′, 2′ × 2′, 2′ × 4′, and 4′ × 4′ (nominal inside dimensions), with mitered corners. Each pattern is detailed on its own specification sheet. For other configurations, your LumenWerx representative can consult the factory.

Ory

Indirect Widespread Optics

Ory offers widespread, energy-efficient lighting from a luminaire just 1″ high × 2.5″ wide. A remote driver, accessible through the suspension canopy, provides power.

Utilizing the LumenWerx widespread indirect optic (WIO), Ory delivers peak intensity at 110 degrees while suppressing direct uplighting. This produces noticeably smoother ceiling brightness than a typical Lambertian uplighting distribution, allowing for generally wider spacing as well.

Ory is available as an indirect pendant, an indirect asymmetric wall luminaire (ADA-compliant), and pendant patterns.

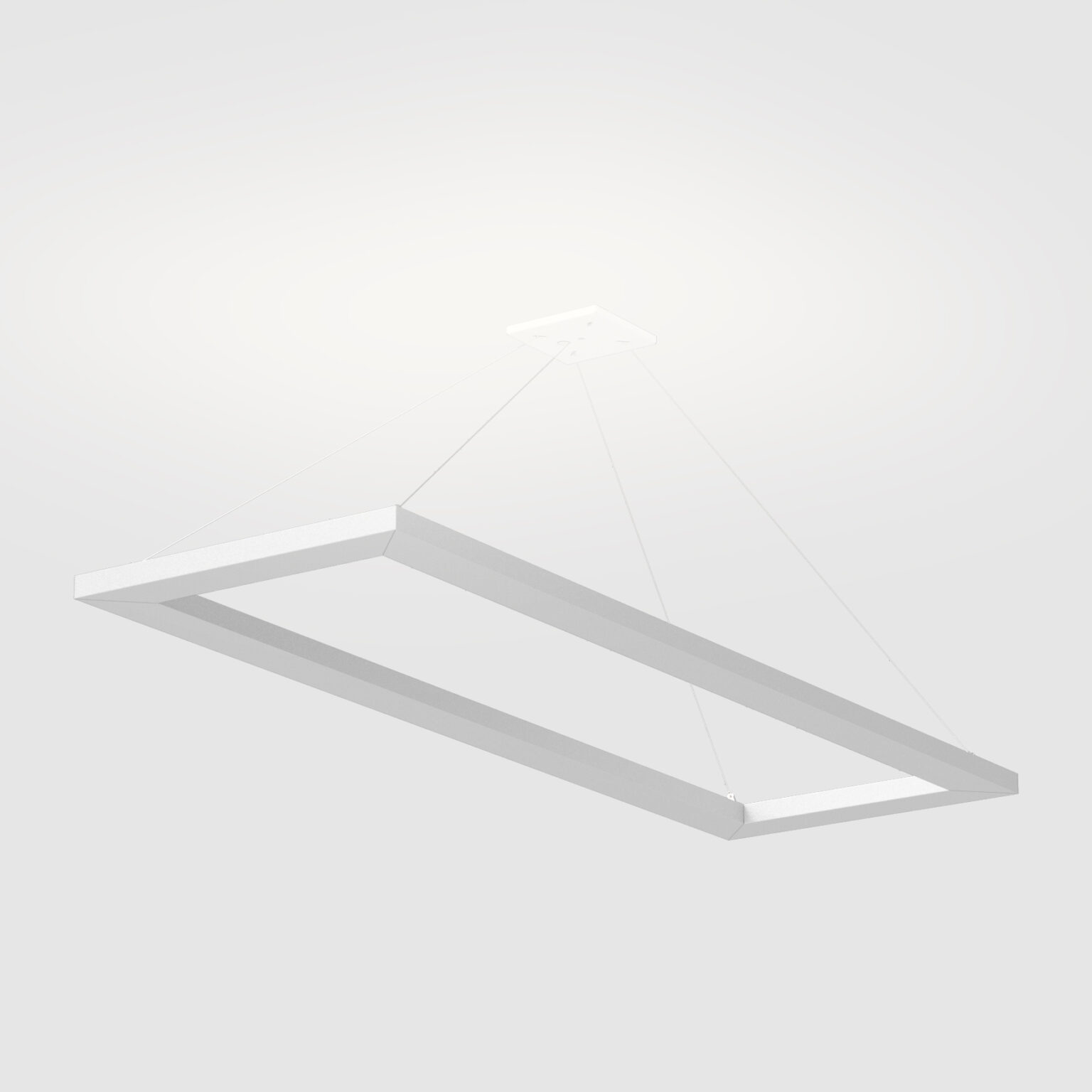

Specifications - 1′ x 4′ Pendant Indirect

Product TypesLinear, Arch. Decorative Size1' × 4' OpticWIO2 CCT/Light & ColorStatic White MountingPendant Distribution TypeIndirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

Patterns

Ory is available in rectangular patterns: 1′ × 1′, 1′ × 4′, 2′ × 2′, 2′ × 4′, and 4′ × 4′ (nominal inside dimensions), with mitered corners. Each pattern is detailed on its own specification sheet. For other configurations, your LumenWerx representative can consult the factory.

Ory

Indirect Widespread Optics

Ory offers widespread, energy-efficient lighting from a luminaire just 1″ high × 2.5″ wide. A remote driver, accessible through the suspension canopy, provides power.

Utilizing the LumenWerx widespread indirect optic (WIO), Ory delivers peak intensity at 110 degrees while suppressing direct uplighting. This produces noticeably smoother ceiling brightness than a typical Lambertian uplighting distribution, allowing for generally wider spacing as well.

Ory is available as an indirect pendant, an indirect asymmetric wall luminaire (ADA-compliant), and pendant patterns.

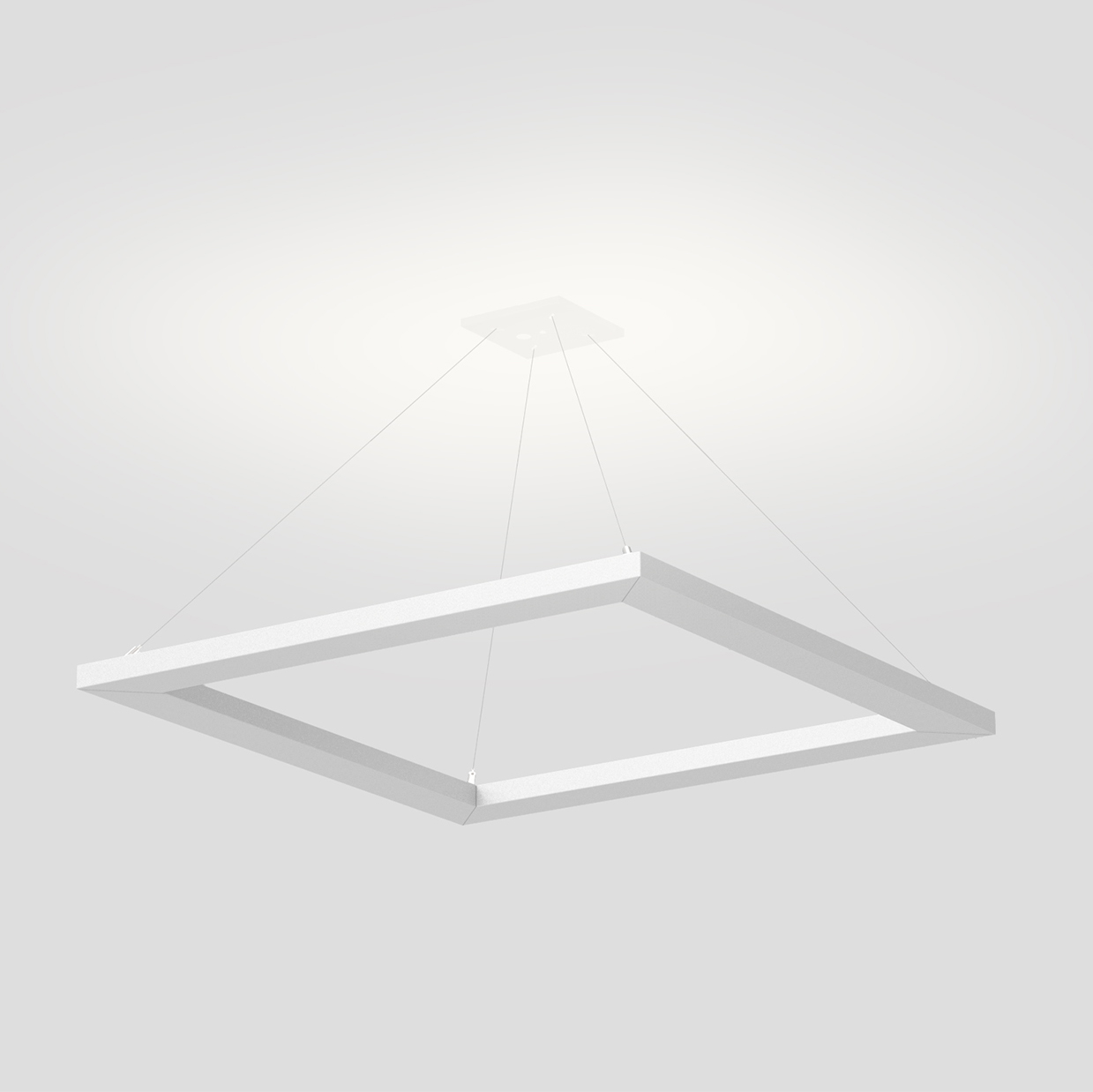

Specifications - 2′ x 2′ Pendant Indirect

Product TypesLinear, Arch. Decorative Size2' × 2' OpticWIO2 CCT/Light & ColorStatic White MountingPendant Distribution TypeIndirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

Patterns

Ory is available in rectangular patterns: 1′ × 1′, 1′ × 4′, 2′ × 2′, 2′ × 4′, and 4′ × 4′ (nominal inside dimensions), with mitered corners. Each pattern is detailed on its own specification sheet. For other configurations, your LumenWerx representative can consult the factory.

Ory

Indirect Widespread Optics

Ory offers widespread, energy-efficient lighting from a luminaire just 1″ high × 2.5″ wide. A remote driver, accessible through the suspension canopy, provides power.

Utilizing the LumenWerx widespread indirect optic (WIO), Ory delivers peak intensity at 110 degrees while suppressing direct uplighting. This produces noticeably smoother ceiling brightness than a typical Lambertian uplighting distribution, allowing for generally wider spacing as well.

Ory is available as an indirect pendant, an indirect asymmetric wall luminaire (ADA-compliant), and pendant patterns.

Specifications - 2′ x 4′ Pendant Indirect

Product TypesLinear, Arch. Decorative Size2' × 4' OpticWIO2 CCT/Light & ColorStatic White MountingPendant Distribution TypeIndirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

Patterns

Ory is available in rectangular patterns: 1′ × 1′, 1′ × 4′, 2′ × 2′, 2′ × 4′, and 4′ × 4′ (nominal inside dimensions), with mitered corners. Each pattern is detailed on its own specification sheet. For other configurations, your LumenWerx representative can consult the factory.

Ory

Indirect Widespread Optics

Ory offers widespread, energy-efficient lighting from a luminaire just 1″ high × 2.5″ wide. A remote driver, accessible through the suspension canopy, provides power.

Utilizing the LumenWerx widespread indirect optic (WIO), Ory delivers peak intensity at 110 degrees while suppressing direct uplighting. This produces noticeably smoother ceiling brightness than a typical Lambertian uplighting distribution, allowing for generally wider spacing as well.

Ory is available as an indirect pendant, an indirect asymmetric wall luminaire (ADA-compliant), and pendant patterns.

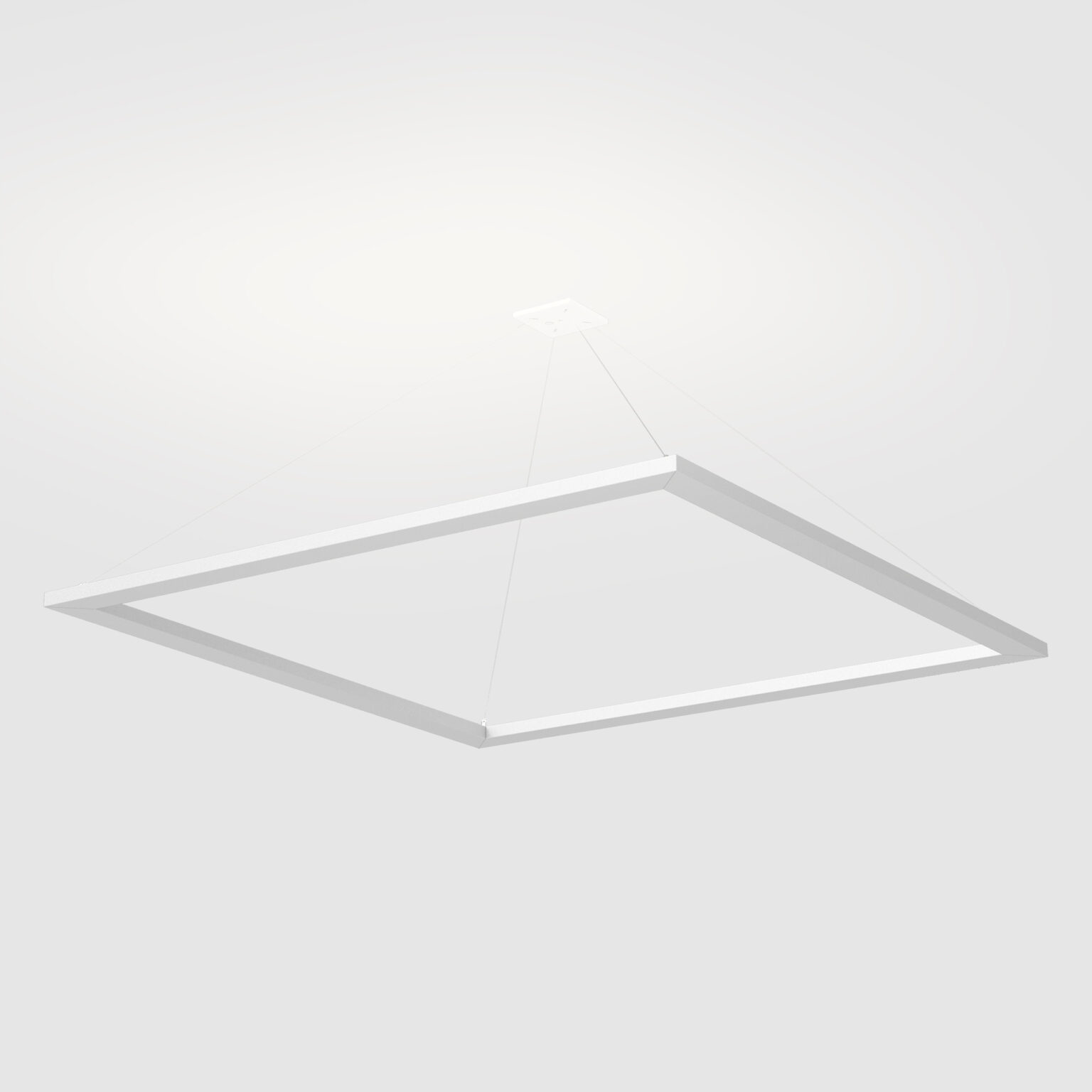

Specifications - 4′ x 4′ Pendant Indirect

Product TypesLinear, Arch. Decorative Size4' × 4' OpticWIO2 CCT/Light & ColorStatic White MountingPendant Distribution TypeIndirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

Patterns

Ory is available in rectangular patterns: 1′ × 1′, 1′ × 4′, 2′ × 2′, 2′ × 4′, and 4′ × 4′ (nominal inside dimensions), with mitered corners. Each pattern is detailed on its own specification sheet. For other configurations, your LumenWerx representative can consult the factory.

Ory

Indirect Widespread Optics

Ory offers widespread, energy-efficient lighting from a luminaire just 1″ high × 2.5″ wide. A remote driver, accessible through the suspension canopy, provides power.

Utilizing the LumenWerx widespread indirect optic (WIO), Ory delivers peak intensity at 110 degrees while suppressing direct uplighting. This produces noticeably smoother ceiling brightness than a typical Lambertian uplighting distribution, allowing for generally wider spacing as well.

Ory is available as an indirect pendant, an indirect asymmetric wall luminaire (ADA-compliant), and pendant patterns.

Specifications - Pendant Indirect

Product TypeLinear SizesH 1″, W 2.5" OpticWIO2 CCT/Light & ColorStatic White MountingPendant Distribution TypeIndirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

Patterns

Ory is available in rectangular patterns: 1′ × 1′, 1′ × 4′, 2′ × 2′, 2′ × 4′, and 4′ × 4′ (nominal inside dimensions), with mitered corners. Each pattern is detailed on its own specification sheet. For other configurations, your LumenWerx representative can consult the factory.

Ory

Indirect Widespread Optics

Ory offers widespread, energy-efficient lighting from a luminaire just 1″ high × 2.5″ wide. A remote driver, accessible through the suspension canopy, provides power.

Utilizing the LumenWerx widespread indirect optic (WIO), Ory delivers peak intensity at 110 degrees while suppressing direct uplighting. This produces noticeably smoother ceiling brightness than a typical Lambertian uplighting distribution, allowing for generally wider spacing as well.

Ory is available as an indirect pendant, an indirect asymmetric wall luminaire (ADA-compliant), and pendant patterns.

Specifications - Wall Indirect Asymmetric

Product TypeLinear SizesH 1″, W 3 ¼" OpticWAI2 CCT/Light & ColorStatic White MountingWall Distribution TypesIndirect, Asymmetric

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics

WAI2

The Widespread Asymmetric Indirect Optic (WAI2) offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling with uplight while distributing the required illumination throughout the rest of the interior space. To minimize glare and enhance visual comfort, the WAI2 is an ideal solution.

Patterns

Ory is available in rectangular patterns: 1′ × 1′, 1′ × 4′, 2′ × 2′, 2′ × 4′, and 4′ × 4′ (nominal inside dimensions), with mitered corners. Each pattern is detailed on its own specification sheet. For other configurations, your LumenWerx representative can consult the factory.
