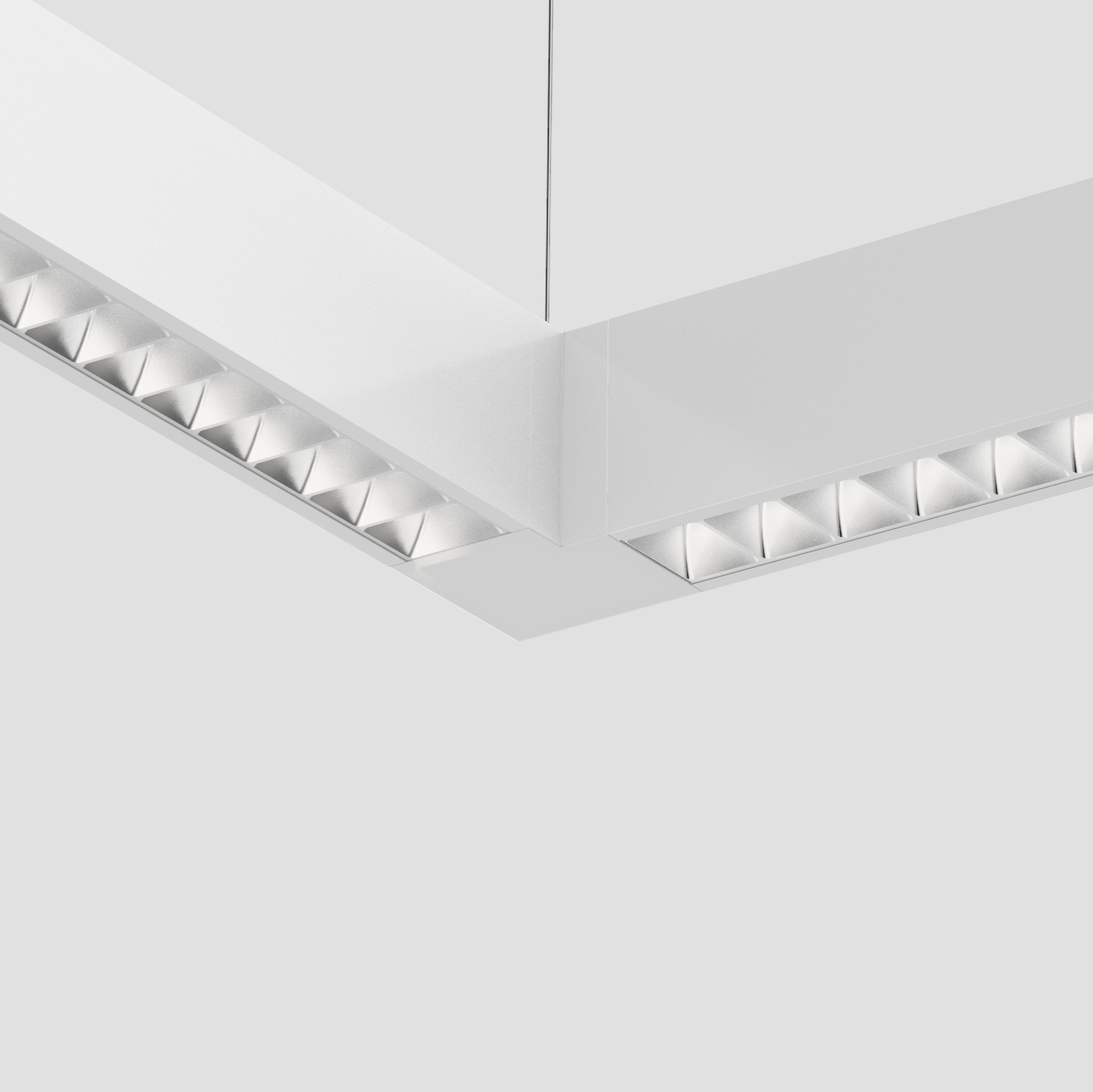

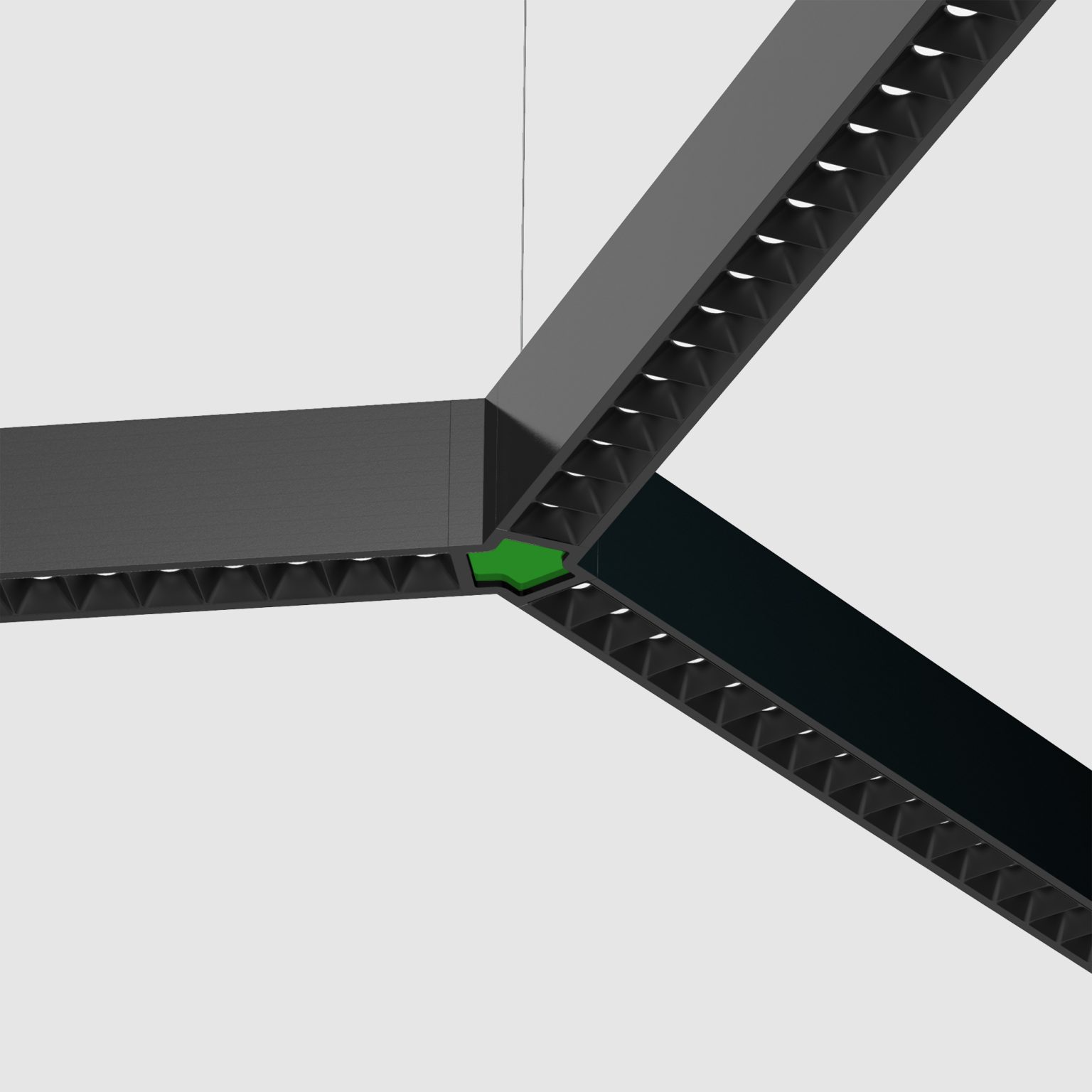

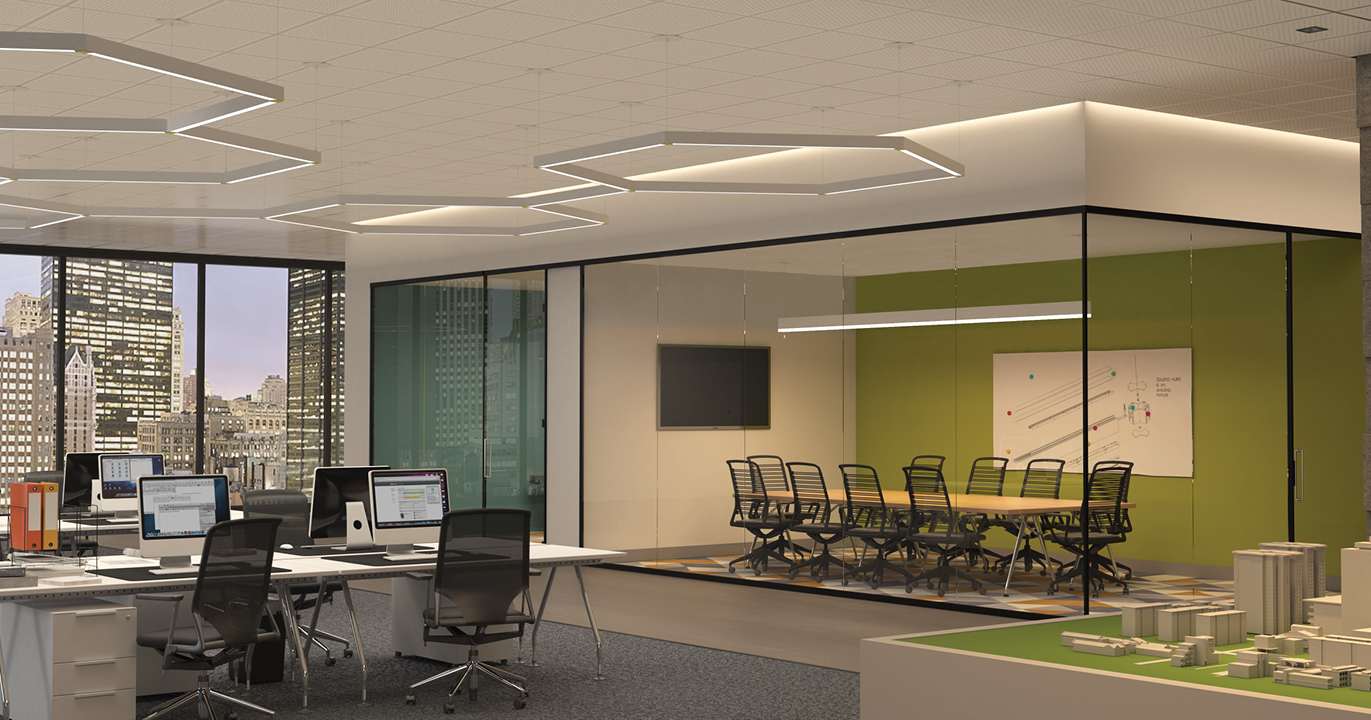

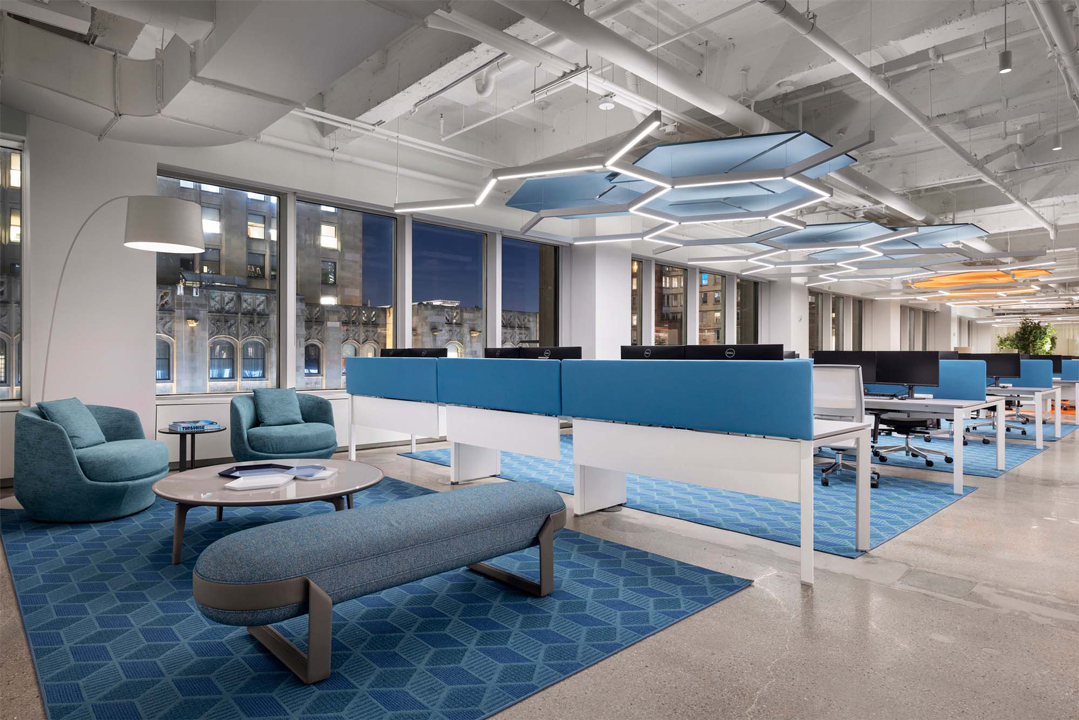

Squero Hubs create fresh luminaire forms with distinctive angles and intersections. Hubs connect standard Squero pendant modules with 12 precise geometric alignment for 2, 3 and 4 way arrangement. With milled aluminum construction, Hubs assure rigid locking to the Squero luminaire modules and provide for cable suspension and through wiring. Concealed fastening, crisp details, and multiple color options add a touch of flair to any pattern.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is coupled with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED light source CCT options are 3000K, 3500K, or 4000K, available in either 80 CRI or 90 CRI.
The AAM module can be selected in either a white or black finish, and a honeycomb louver accessory is also available. The AAM driver is mounted above the cylinder inside the Squero housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.
High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.
Matte Black Parabolic Louver
Matte Aluminum Parabolic Louver
The Miniature Reflector Optic (MRO) is composed of molded Total Internal Reflection (TIR) elements placed over the LED emitter, along with precise parabolic reflectors that further shield the light source. The resulting beam is soft and features a feathered edge.
The Micro Spot is a Ø7/8″ × 1 5/16″ adjustable spotlight that extends, retracts, rotates 360°, and tilts 90°. Its LED light source is coupled with a TIR refractor to provide beam angles of 25°, 35°, and 50°, producing up to 400 lumens. LED CCT options include 2700K, 3000K, 3500K, 4000K, and 5000K, available in either 80+ CRI or 90+ CRI. The Micro Spot is offered in white or black finishes. Its driver is mounted within the luminaire housing and accepts universal input voltage (120–277 VAC) with 0–10V dimming control.
Specular Aluminum
The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.
The Widespread Asymmetric Indirect Optic (WAI2) offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling with uplight while distributing the required illumination throughout the rest of the interior space. To minimize glare and enhance visual comfort, the WAI2 is an ideal solution.
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.
Squero Hubs create fresh luminaire forms with distinctive angles and intersections. Hubs connect standard Squero pendant modules with 12 precise geometric alignment for 2, 3 and 4 way arrangement. With milled aluminum construction, Hubs assure rigid locking to the Squero luminaire modules and provide for cable suspension and through wiring. Concealed fastening, crisp details, and multiple color options add a touch of flair to any pattern.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is coupled with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED light source CCT options are 3000K, 3500K, or 4000K, available in either 80 CRI or 90 CRI.
The AAM module can be selected in either a white or black finish, and a honeycomb louver accessory is also available. The AAM driver is mounted above the cylinder inside the Squero housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.
High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.
Matte Black Parabolic Louver
Matte Aluminum Parabolic Louver
The Miniature Reflector Optic (MRO) is composed of molded Total Internal Reflection (TIR) elements placed over the LED emitter, along with precise parabolic reflectors that further shield the light source. The resulting beam is soft and features a feathered edge.
The Micro Spot is a Ø7/8″ × 1 5/16″ adjustable spotlight that extends, retracts, rotates 360°, and tilts 90°. Its LED light source is coupled with a TIR refractor to provide beam angles of 25°, 35°, and 50°, producing up to 400 lumens. LED CCT options include 2700K, 3000K, 3500K, 4000K, and 5000K, available in either 80+ CRI or 90+ CRI. The Micro Spot is offered in white or black finishes. Its driver is mounted within the luminaire housing and accepts universal input voltage (120–277 VAC) with 0–10V dimming control.
Specular Aluminum
The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.
The Widespread Asymmetric Indirect Optic (WAI2) offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling with uplight while distributing the required illumination throughout the rest of the interior space. To minimize glare and enhance visual comfort, the WAI2 is an ideal solution.
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.
Squero Hubs create fresh luminaire forms with distinctive angles and intersections. Hubs connect standard Squero pendant modules with 12 precise geometric alignment for 2, 3 and 4 way arrangement. With milled aluminum construction, Hubs assure rigid locking to the Squero luminaire modules and provide for cable suspension and through wiring. Concealed fastening, crisp details, and multiple color options add a touch of flair to any pattern.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is coupled with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED light source CCT options are 3000K, 3500K, or 4000K, available in either 80 CRI or 90 CRI.
The AAM module can be selected in either a white or black finish, and a honeycomb louver accessory is also available. The AAM driver is mounted above the cylinder inside the Squero housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.
High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.
Matte Black Parabolic Louver
Matte Aluminum Parabolic Louver
The Miniature Reflector Optic (MRO) is composed of molded Total Internal Reflection (TIR) elements placed over the LED emitter, along with precise parabolic reflectors that further shield the light source. The resulting beam is soft and features a feathered edge.
The Micro Spot is a Ø7/8″ × 1 5/16″ adjustable spotlight that extends, retracts, rotates 360°, and tilts 90°. Its LED light source is coupled with a TIR refractor to provide beam angles of 25°, 35°, and 50°, producing up to 400 lumens. LED CCT options include 2700K, 3000K, 3500K, 4000K, and 5000K, available in either 80+ CRI or 90+ CRI. The Micro Spot is offered in white or black finishes. Its driver is mounted within the luminaire housing and accepts universal input voltage (120–277 VAC) with 0–10V dimming control.
Specular Aluminum
The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.
The Widespread Asymmetric Indirect Optic (WAI2) offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling with uplight while distributing the required illumination throughout the rest of the interior space. To minimize glare and enhance visual comfort, the WAI2 is an ideal solution.
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

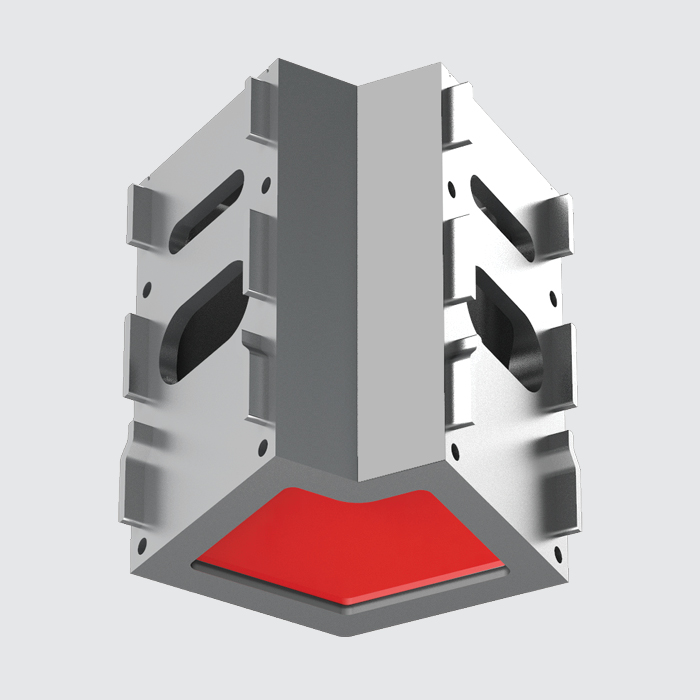

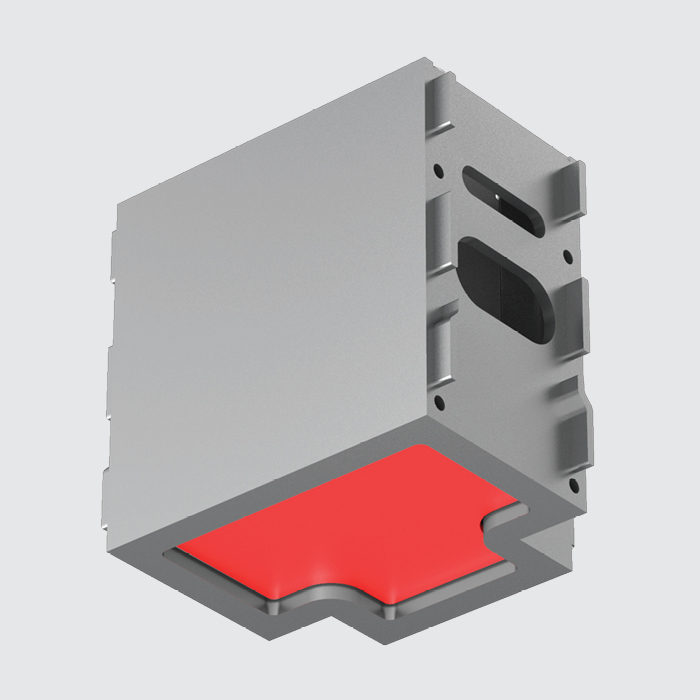

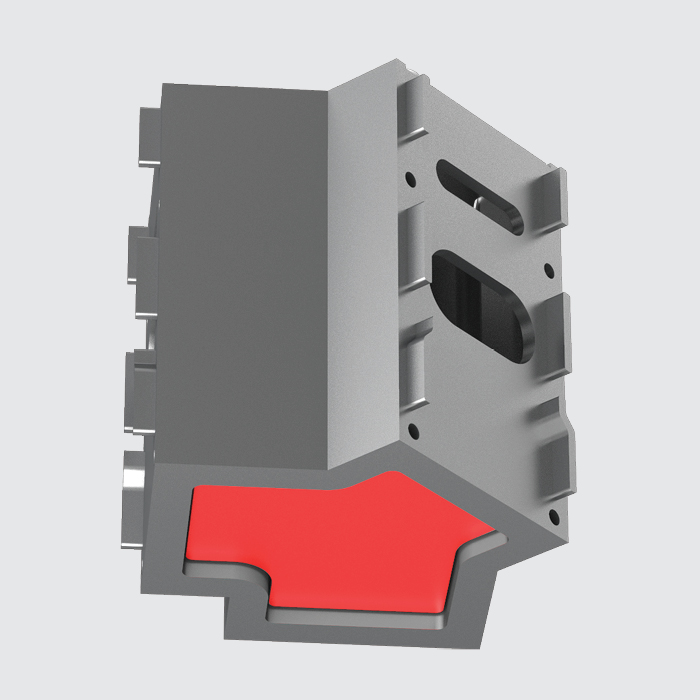

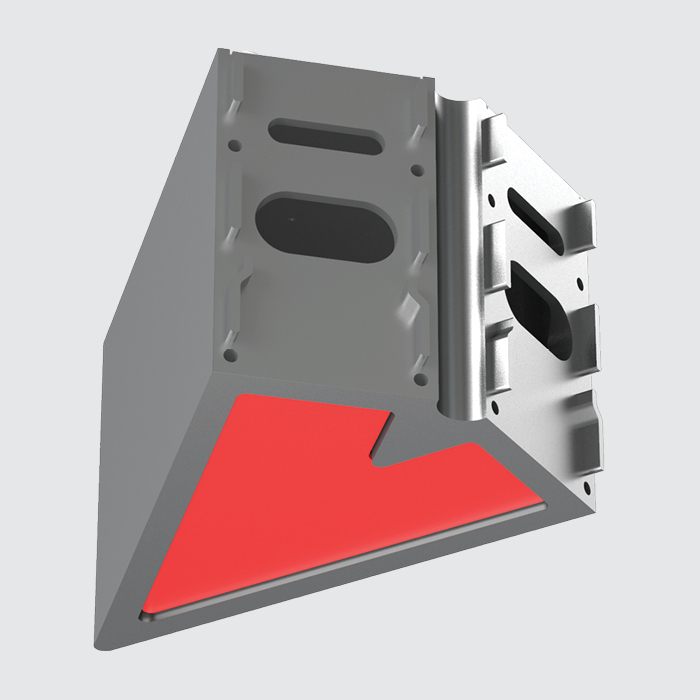

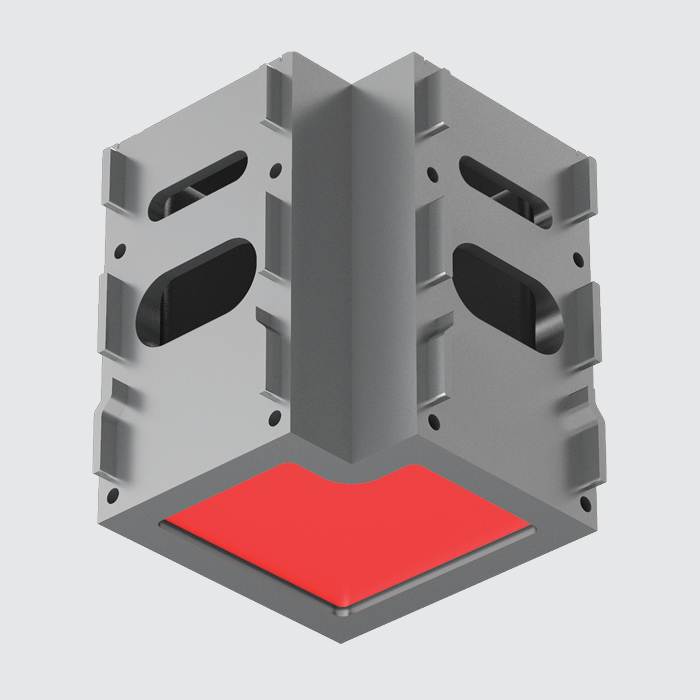

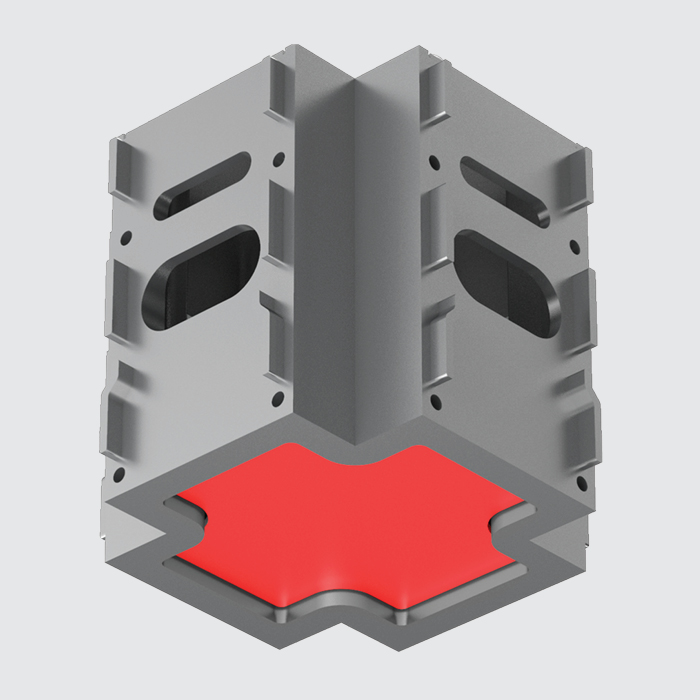

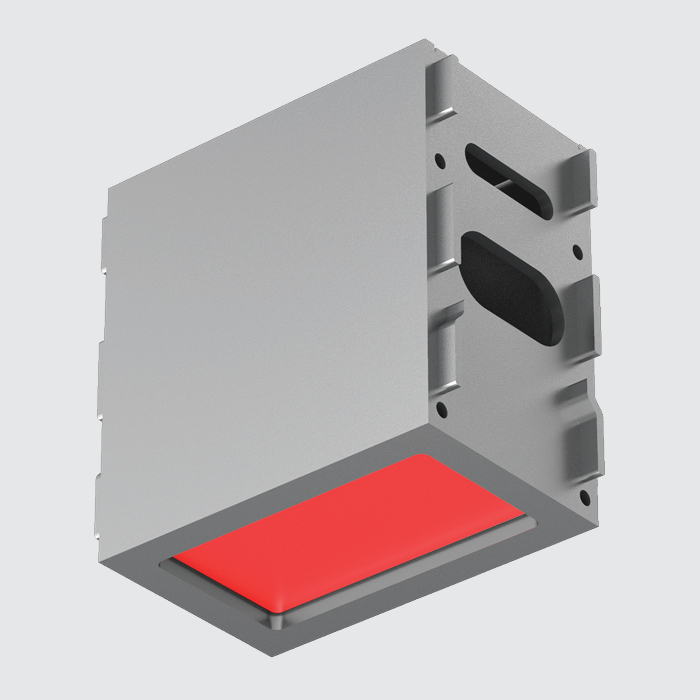

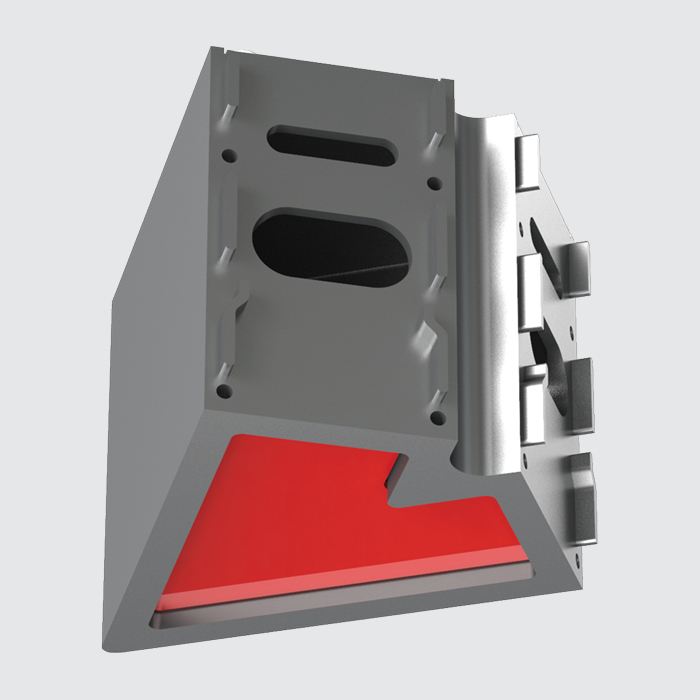

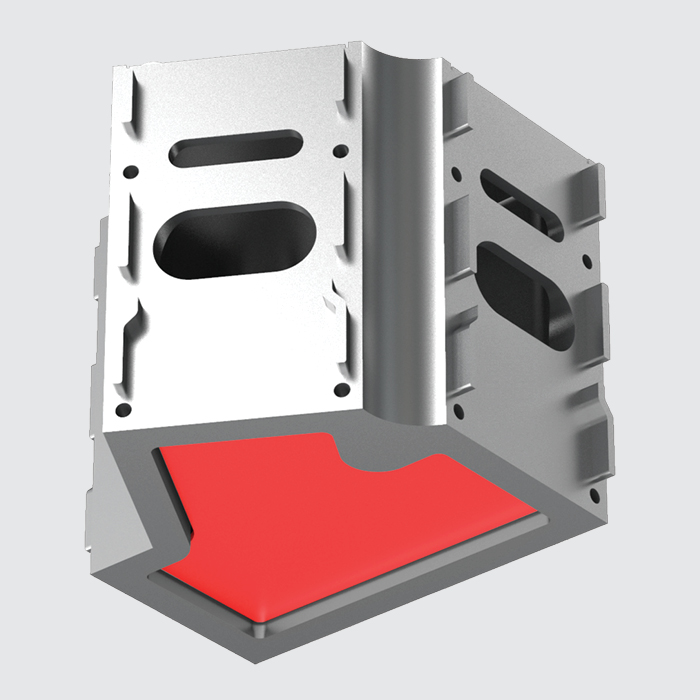

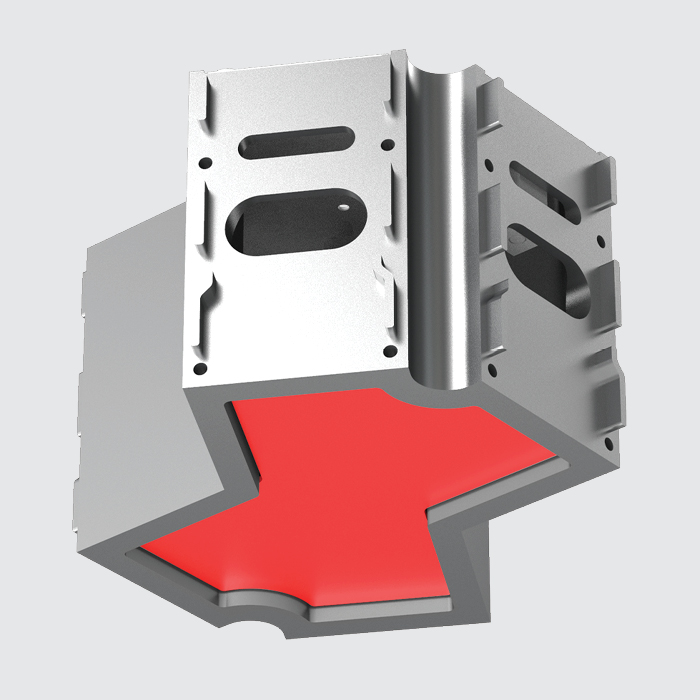

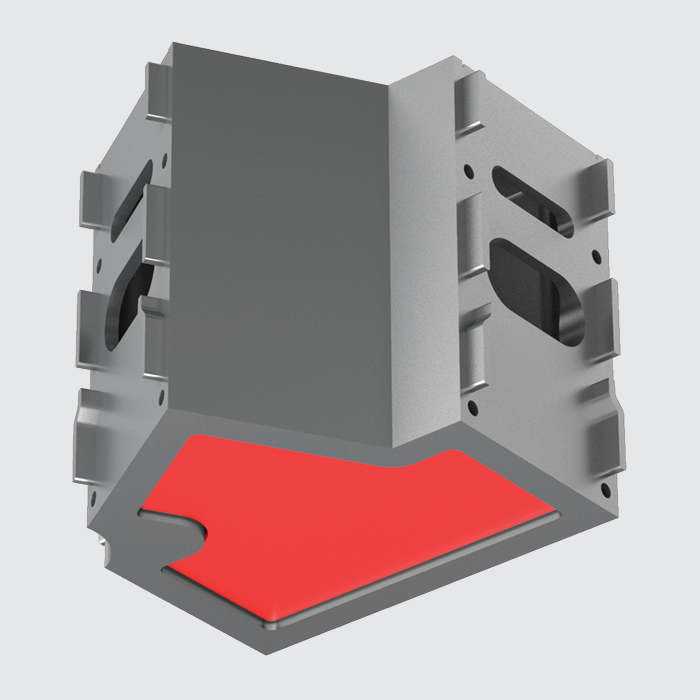

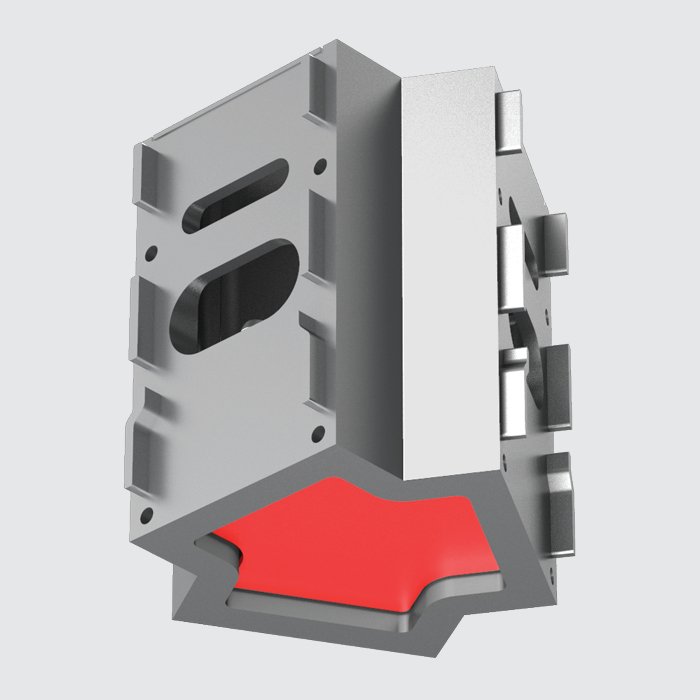

All Hubs are available with a choice of recessed color accent panels or with a flush room-side face. Two-way, three-way, and four-way connectors are available in different angles, as well as custom variations. The 12 Hubs create precise geometric alignment and match the 1 7/8″ x 3 1/8″ profile and finish of Squero modules.
