Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

Specifications - Pendant Direct MRO-HLO

Product TypeLinear SizeW 2" OpticsHLO, MRO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingPendant Distribution TypesDirect, Direct/Indirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

MRO

The Miniature Reflector Optic (MRO) is composed of molded Total Internal Reflection (TIR) elements placed over the LED emitter, along with precise parabolic reflectors that further shield the light source. The resulting beam is soft and features a feathered edge.

Patterns

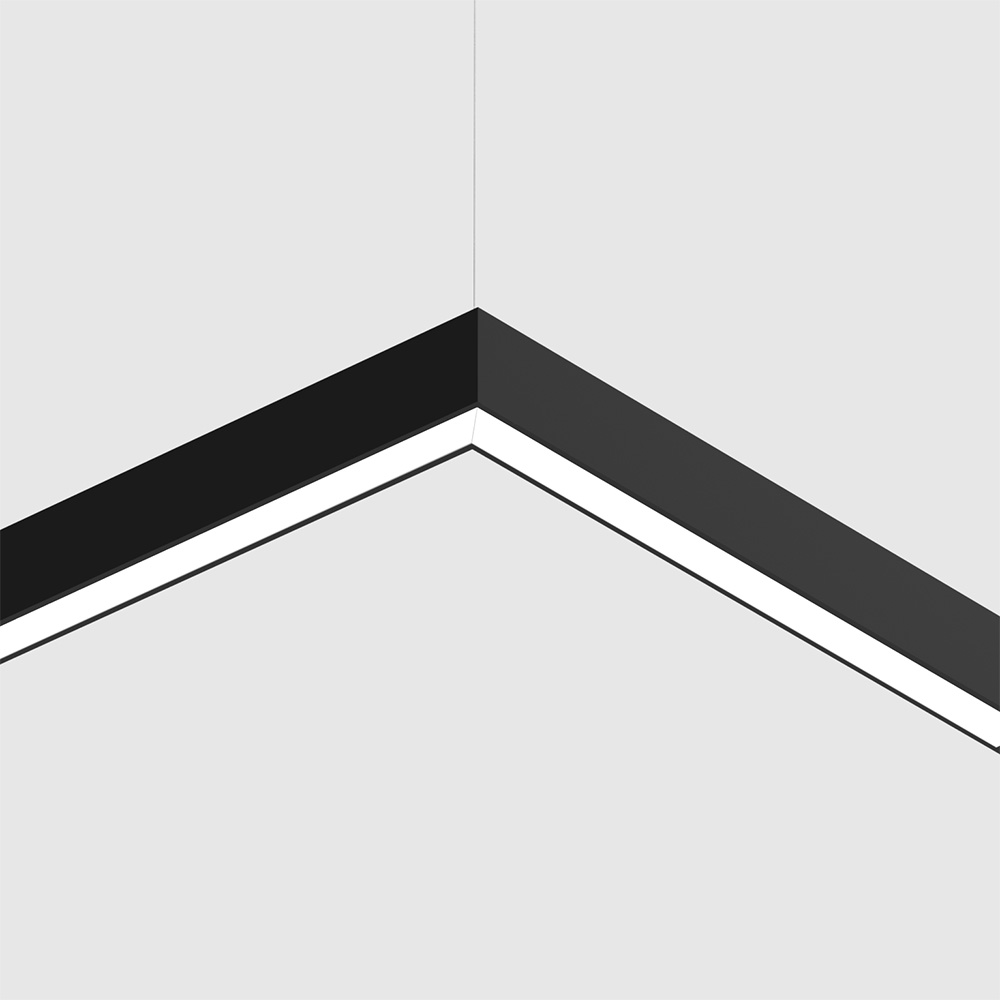

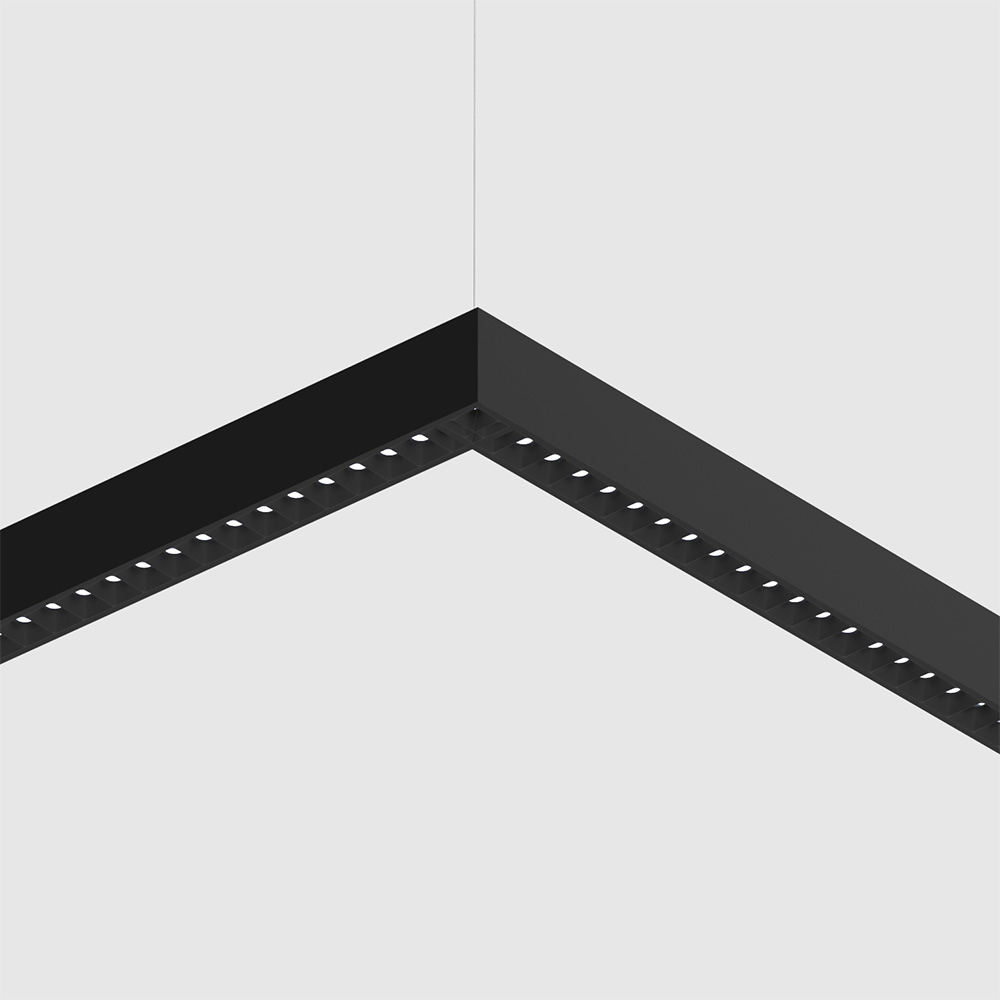

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

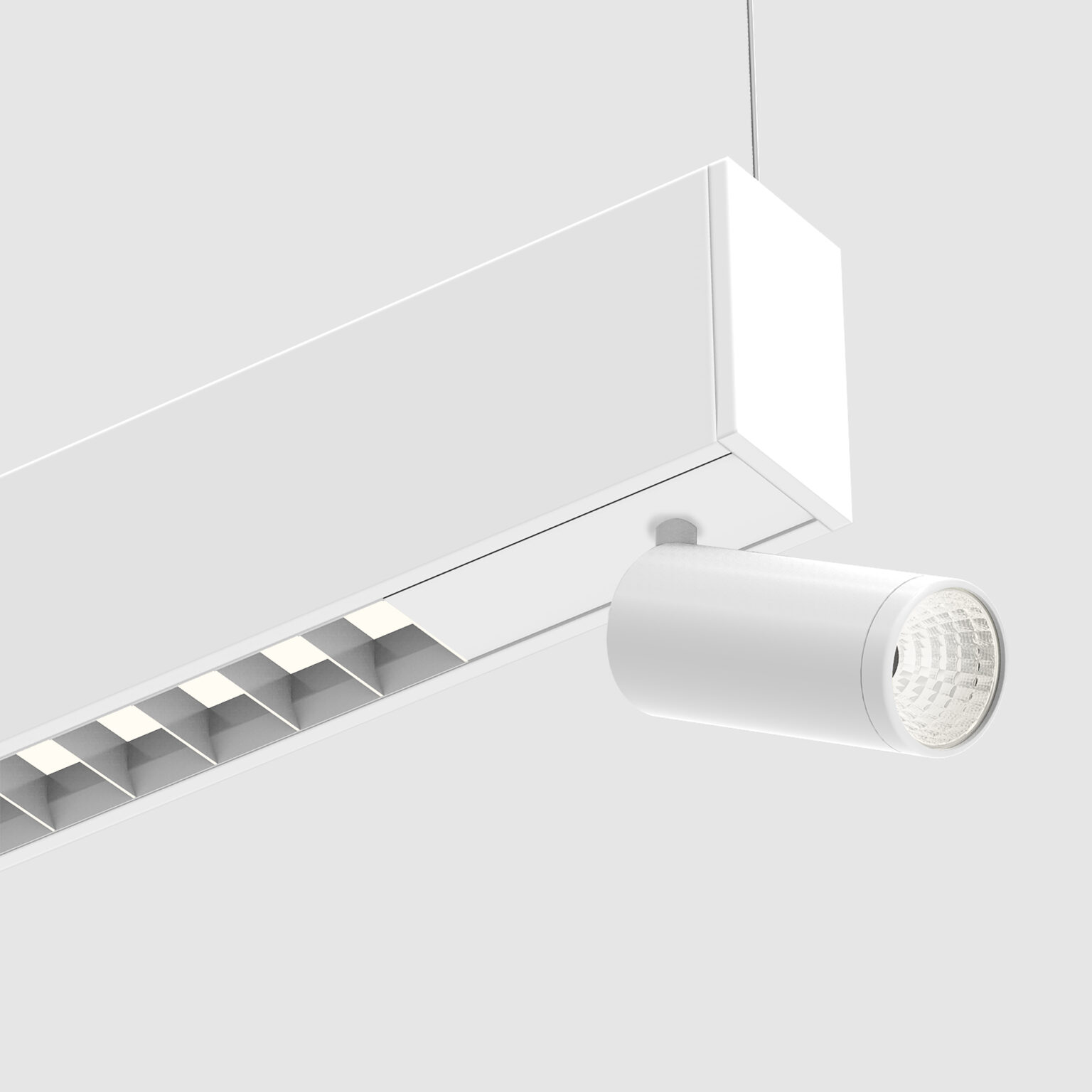

Specifications - Pendant Direct Parabolic-AAM

Product TypeLinear SizeW 2" OpticsHLO, PAR, AAM, MBPL, MPL, MS, SPL CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingPendant Distribution TypesDirect, Direct/Indirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

AAM

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is coupled with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED light source CCT options are 3000K, 3500K, or 4000K, available in either 80 CRI or 90 CRI.

The AAM module can be selected in either a white or black finish, and a honeycomb louver accessory is also available. The AAM driver is mounted above the cylinder inside the Squero housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

MBPL

Matte Black Parabolic Louver

MPL

Matte Aluminum Parabolic Louver

MS

The Micro Spot is a Ø7/8″ × 1 5/16″ adjustable spotlight that extends, retracts, rotates 360°, and tilts 90°. Its LED light source is coupled with a TIR refractor to provide beam angles of 25°, 35°, and 50°, producing up to 400 lumens. LED CCT options include 2700K, 3000K, 3500K, 4000K, and 5000K, available in either 80+ CRI or 90+ CRI. The Micro Spot is offered in white or black finishes. Its driver is mounted within the luminaire housing and accepts universal input voltage (120–277 VAC) with 0–10V dimming control.

SPL

Specular Aluminum

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

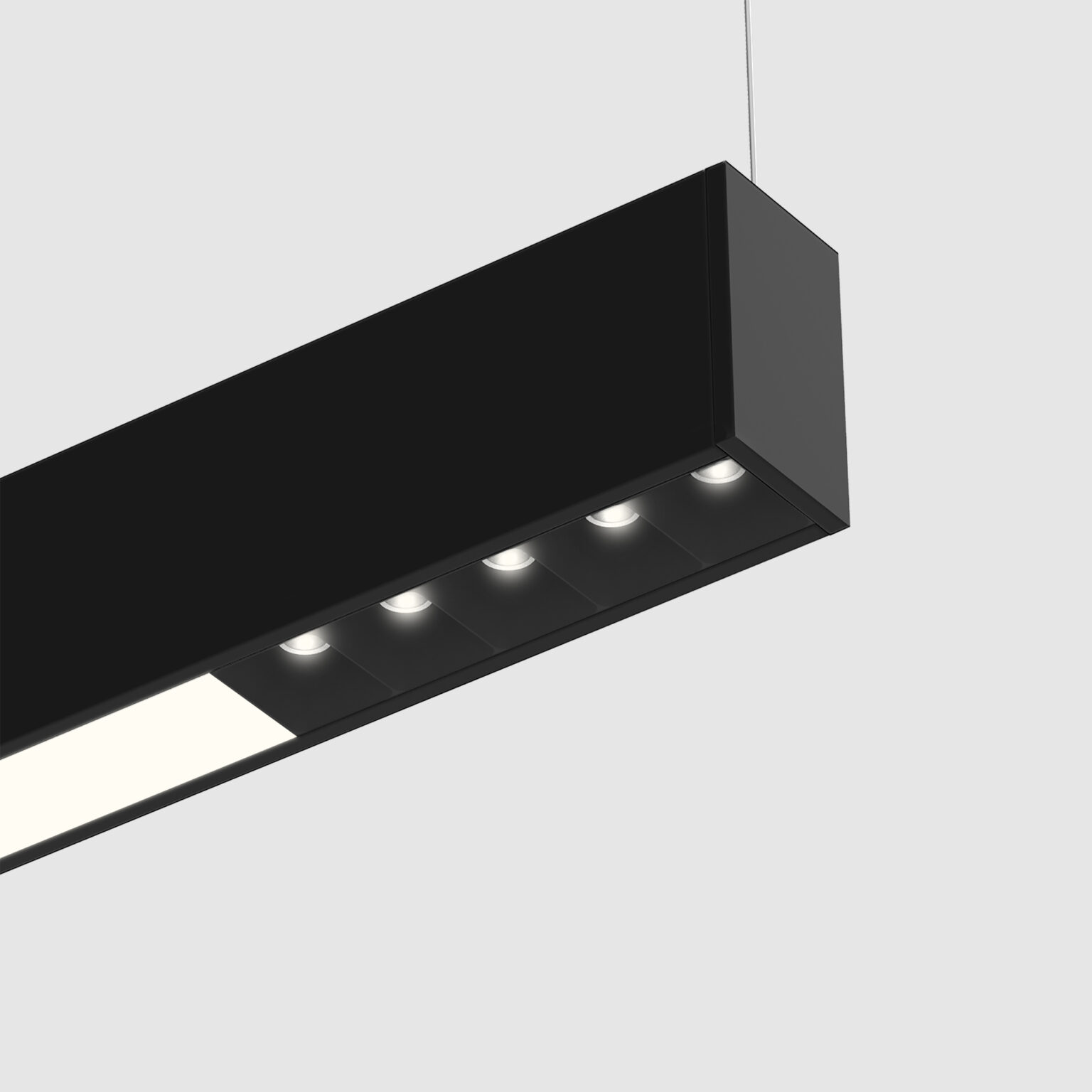

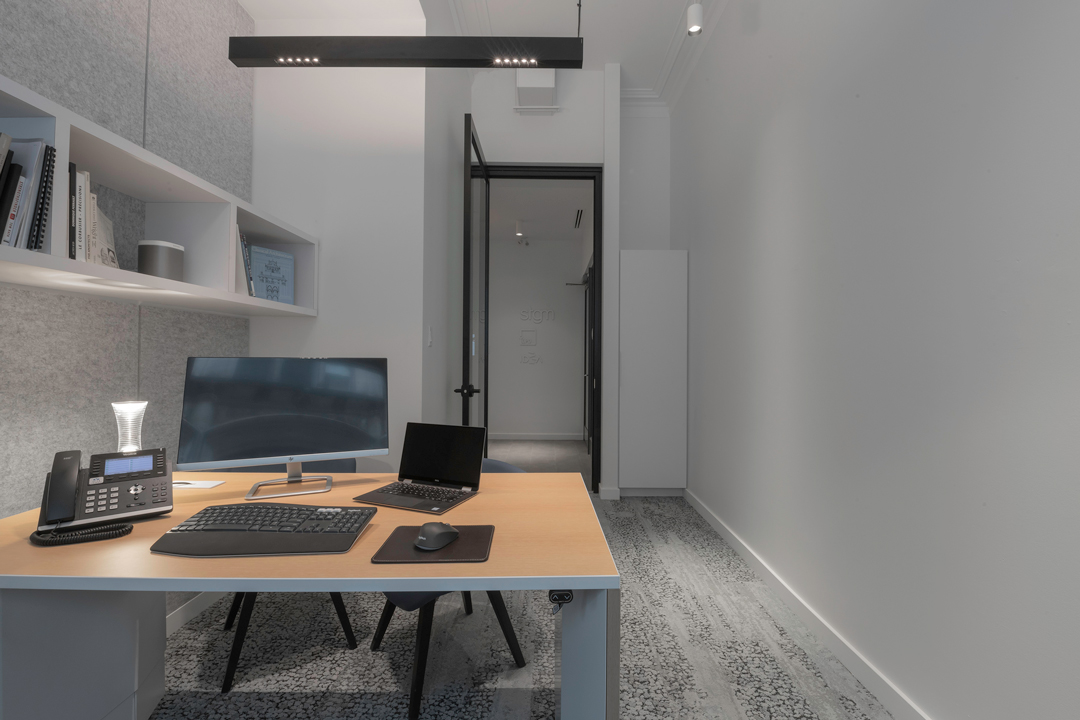

Specifications - Pendant Direct/Indirect MRO-HLO

Product TypeLinear SizeW 2" OpticsHLO, TIO, MRO, WAI2, WIO2 CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingPendant Distribution TypesDirect, Direct/Indirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

MRO

The Miniature Reflector Optic (MRO) is composed of molded Total Internal Reflection (TIR) elements placed over the LED emitter, along with precise parabolic reflectors that further shield the light source. The resulting beam is soft and features a feathered edge.

WAI2

The Widespread Asymmetric Indirect Optic (WAI2) offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling with uplight while distributing the required illumination throughout the rest of the interior space. To minimize glare and enhance visual comfort, the WAI2 is an ideal solution.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

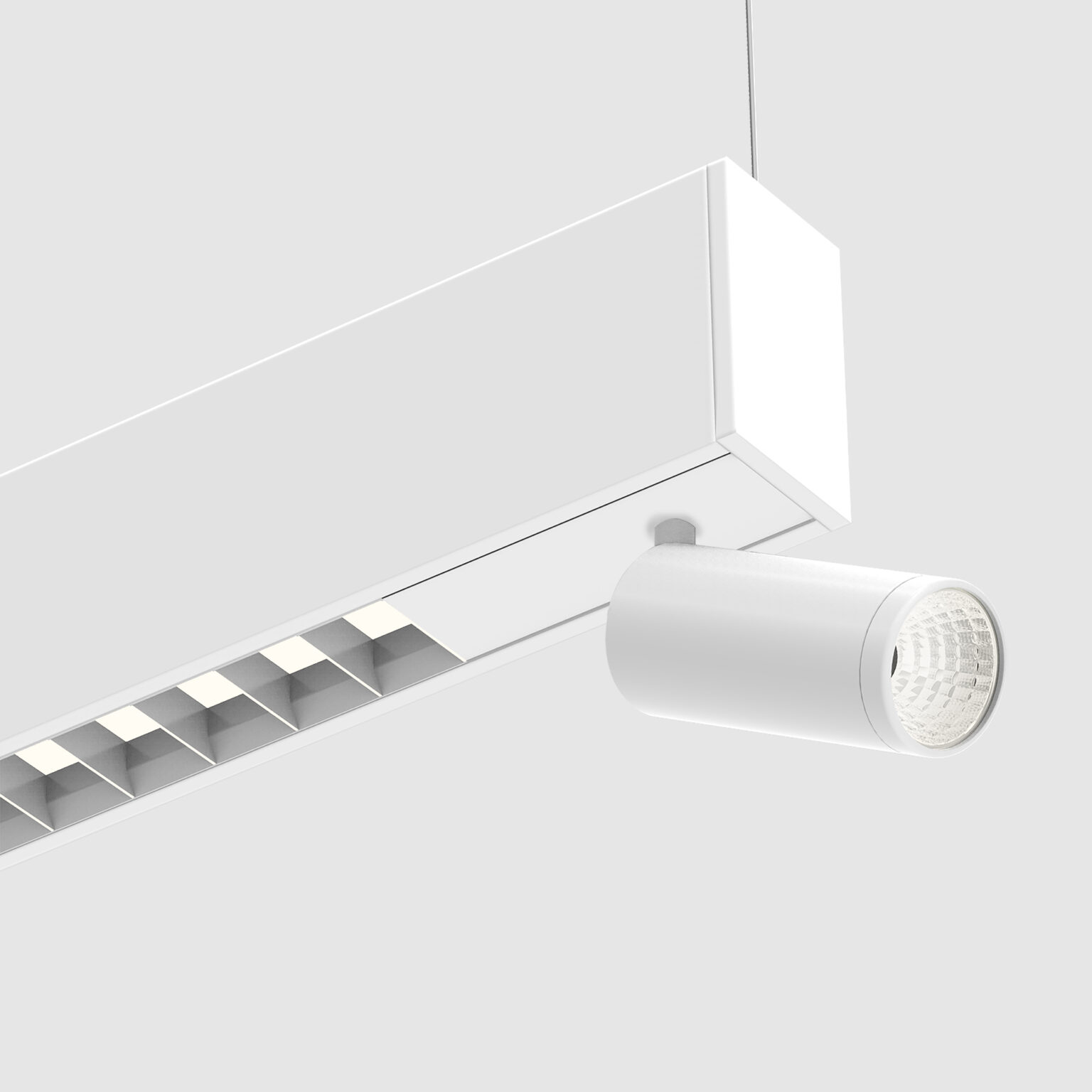

Specifications - Pendant Direct/Indirect Parabolic-AAM

Product TypeLinear SizeW 2" OpticsTIO, PAR, AAM, MBPL, MPL, MS, SPL, WAI2, WIO2 CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingPendant Distribution TypesDirect, Direct/Indirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

AAM

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is coupled with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED light source CCT options are 3000K, 3500K, or 4000K, available in either 80 CRI or 90 CRI.

The AAM module can be selected in either a white or black finish, and a honeycomb louver accessory is also available. The AAM driver is mounted above the cylinder inside the Squero housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

MBPL

Matte Black Parabolic Louver

MPL

Matte Aluminum Parabolic Louver

MS

The Micro Spot is a Ø7/8″ × 1 5/16″ adjustable spotlight that extends, retracts, rotates 360°, and tilts 90°. Its LED light source is coupled with a TIR refractor to provide beam angles of 25°, 35°, and 50°, producing up to 400 lumens. LED CCT options include 2700K, 3000K, 3500K, 4000K, and 5000K, available in either 80+ CRI or 90+ CRI. The Micro Spot is offered in white or black finishes. Its driver is mounted within the luminaire housing and accepts universal input voltage (120–277 VAC) with 0–10V dimming control.

SPL

Specular Aluminum

WAI2

The Widespread Asymmetric Indirect Optic (WAI2) offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling with uplight while distributing the required illumination throughout the rest of the interior space. To minimize glare and enhance visual comfort, the WAI2 is an ideal solution.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

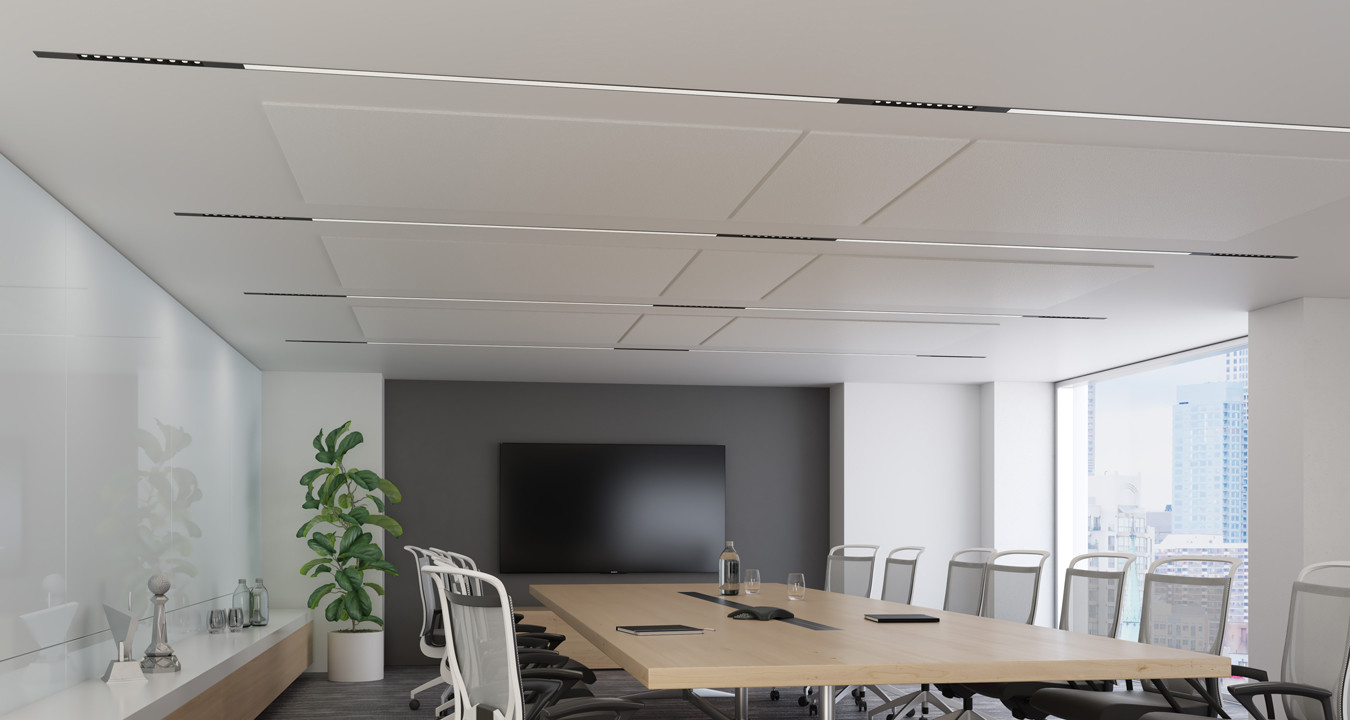

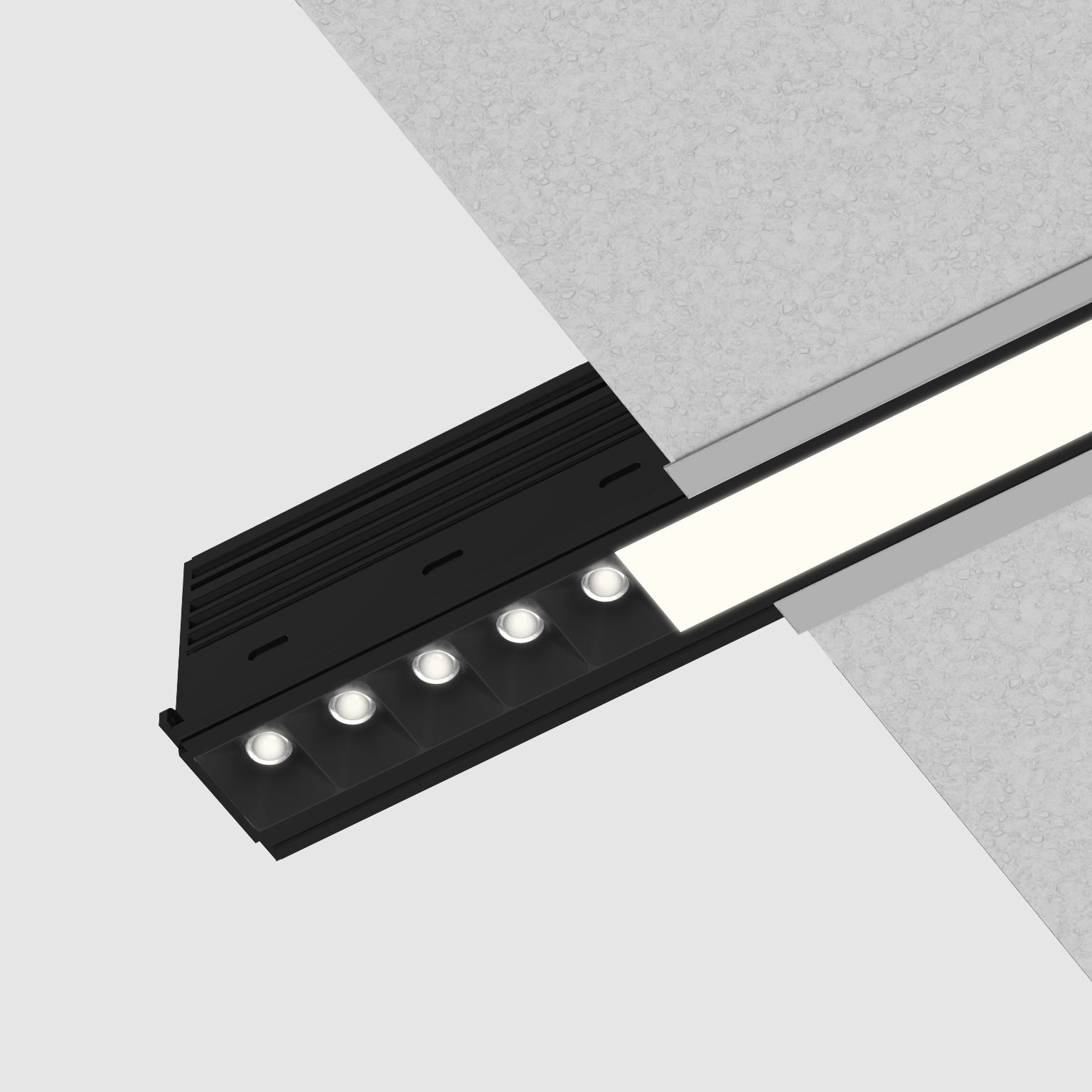

Specifications - Recessed MRO-HLO

Product TypeLinear SizeW 2" OpticsHLO, MRO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingRecessed Distribution TypesDirect, Direct/Indirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

MRO

The Miniature Reflector Optic (MRO) is composed of molded Total Internal Reflection (TIR) elements placed over the LED emitter, along with precise parabolic reflectors that further shield the light source. The resulting beam is soft and features a feathered edge.

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

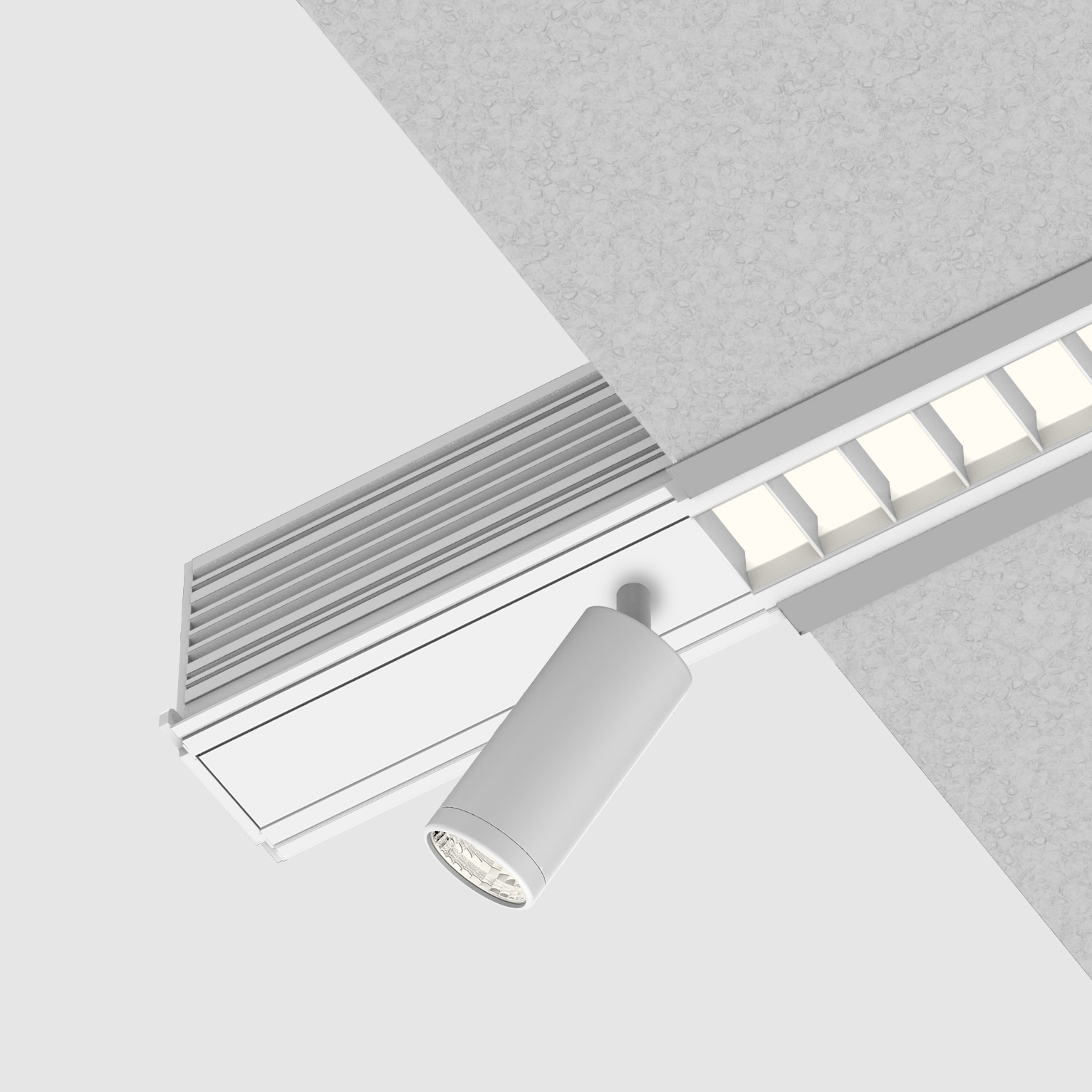

Specifications - Recessed Parabolic-AAM

Product TypeLinear SizeW 2" OpticsPAR, AAM, MBPL, MPL, SPL CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingRecessed Distribution TypesDirect, Direct/Indirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

AAM

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is coupled with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED light source CCT options are 3000K, 3500K, or 4000K, available in either 80 CRI or 90 CRI.

The AAM module can be selected in either a white or black finish, and a honeycomb louver accessory is also available. The AAM driver is mounted above the cylinder inside the Squero housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

MBPL

Matte Black Parabolic Louver

MPL

Matte Aluminum Parabolic Louver

SPL

Specular Aluminum

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

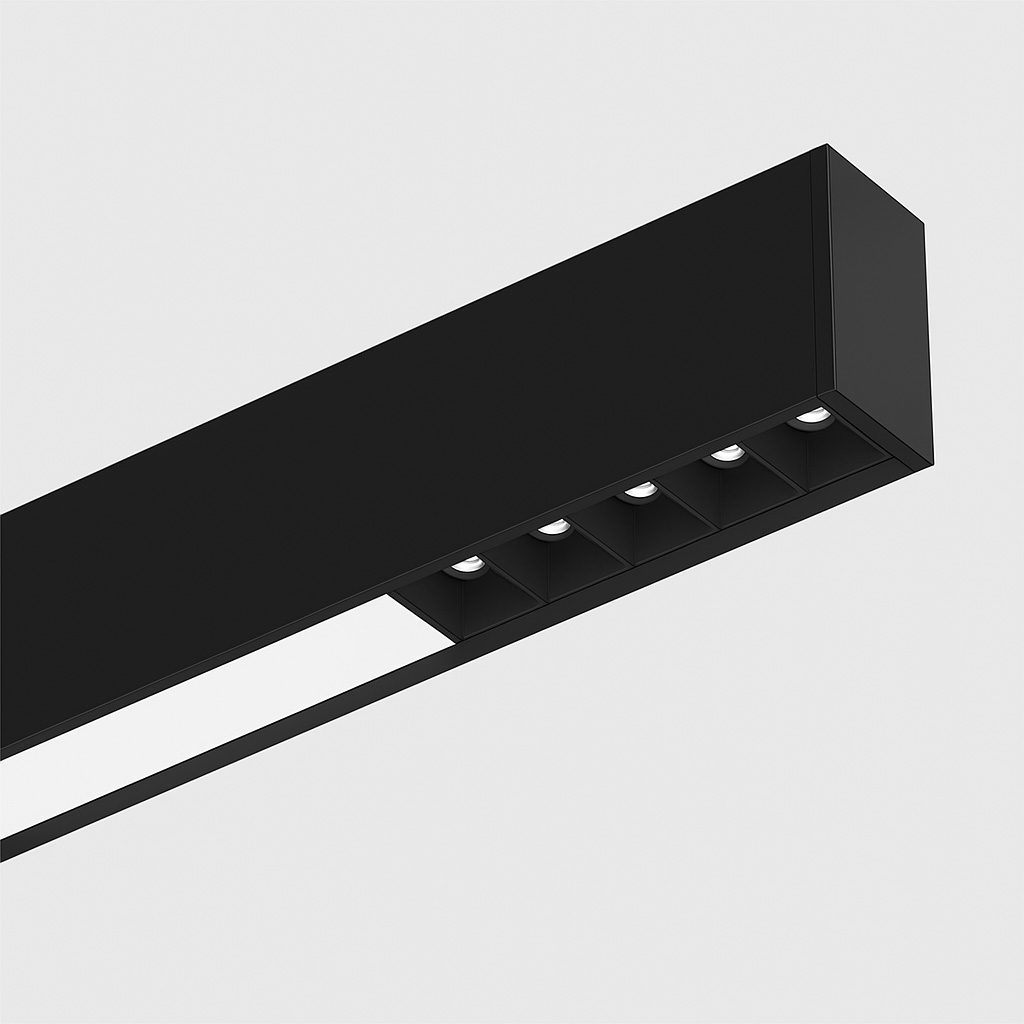

Specifications - Surface MRO-HLO

Product TypeLinear SizeW 2" OpticsHLO, MRO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingSurface Distribution TypeDirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

MRO

The Miniature Reflector Optic (MRO) is composed of molded Total Internal Reflection (TIR) elements placed over the LED emitter, along with precise parabolic reflectors that further shield the light source. The resulting beam is soft and features a feathered edge.

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

Specifications - Surface Parabolic-AAM

Product TypeLinear SizeW 2" OpticsPAR, AAM, MBPL, MPL, SPL CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingSurface Distribution TypeDirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

AAM

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is coupled with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED light source CCT options are 3000K, 3500K, or 4000K, available in either 80 CRI or 90 CRI.

The AAM module can be selected in either a white or black finish, and a honeycomb louver accessory is also available. The AAM driver is mounted above the cylinder inside the Squero housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

MBPL

Matte Black Parabolic Louver

MPL

Matte Aluminum Parabolic Louver

SPL

Specular Aluminum

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

Specifications - Wall Direct MRO-HLO

Product TypeLinear SizeW 2" OpticsHLO, MRO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingWall Distribution TypesDirect, Direct/Indirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

MRO

The Miniature Reflector Optic (MRO) is composed of molded Total Internal Reflection (TIR) elements placed over the LED emitter, along with precise parabolic reflectors that further shield the light source. The resulting beam is soft and features a feathered edge.

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

Specifications - Wall Direct Parabolic-Blank

Product TypeLinear SizeW 2" MountingWall Distribution TypeBlank

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

Specifications - Wall Direct/Indirect MRO-HLO

Product TypeLinear SizeW 2" OpticsHLO, TIO, MRO, WAI2, WIO2 CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingWall Distribution TypesDirect, Direct/Indirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

MRO

The Miniature Reflector Optic (MRO) is composed of molded Total Internal Reflection (TIR) elements placed over the LED emitter, along with precise parabolic reflectors that further shield the light source. The resulting beam is soft and features a feathered edge.

WAI2

The Widespread Asymmetric Indirect Optic (WAI2) offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling with uplight while distributing the required illumination throughout the rest of the interior space. To minimize glare and enhance visual comfort, the WAI2 is an ideal solution.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.

Squero Combinations

Direct, Direct/Indirect

Squero Combinations bring new style and flexibility to linear lighting systems. Measuring under 2″ wide, Squero offers four distinctive optics: parabolic louver, miniature reflector, diffuser, and a widespread indirect optic. Each optic provides a different visual texture and photometric performance. Squero Combinations enable the optics to be used anywhere within the same luminaire, together with adjustable accent modules. Onboard driver electronics maintain serviceability. Squero Combinations can be installed as individual luminaires or in continuous runs and patterns.

Specifications - Wall Direct/Indirect Parabolic-Blank

Product TypeLinear SizeW 2" MountingWall Distribution TypeBlank

Patterns

Level corners are used for patterns on a single plane (ceiling or wall). Inside corners are used for patterns that cross two planes (ceiling-to-wall or wall-to-wall).

Adjustable Accent Module

The Adjustable Accent Module (AAM) features a Ø 1.6″ × 3.2″ cylinder that rotates 360° and tilts 90°. The LED light source is paired with TIR optics to provide beam angles of 21°, 30°, and 36°, producing up to 600 lumens. LED CCT options include 3000K, 3500K, and 4000K, available in either 80 CRI or 90 CRI.

The AAM module is available in either a white or black finish, with an optional honeycomb louver accessory. The AAM driver is mounted above the cylinder inside the SQUERO housing and accepts universal input voltage (120–277 VAC), while providing 0–10V dimming control.

Track Systems

Multiple track systems manufactured by others are compatible with Squero individual fixtures, continuous runs, or patterns, with or without LED-integrated sections. Detailed specifications of the track system must be supplied.
