Ubik

Direct, Direct/Indirect

Geometric purity meets the best in illumination performance in Ubik, the luminaire family engineered to offer a multitude of sleek, sophisticated options for interior spaces. From linear downlighting and long linear runs to elaborate light patterns and striking corner illumination, Ubik’s potential is immense. These compact 2″ square fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination, and wide-spread or translucent optics for indirect illumination.

  • Up to 1600 lm/ft
  • Low glare with a UGR of 6
  • 145 lm/W (HLO)
  • Optical flexibility with parabolic louvers, HLO, wall wash, or blanks
Product Downloads

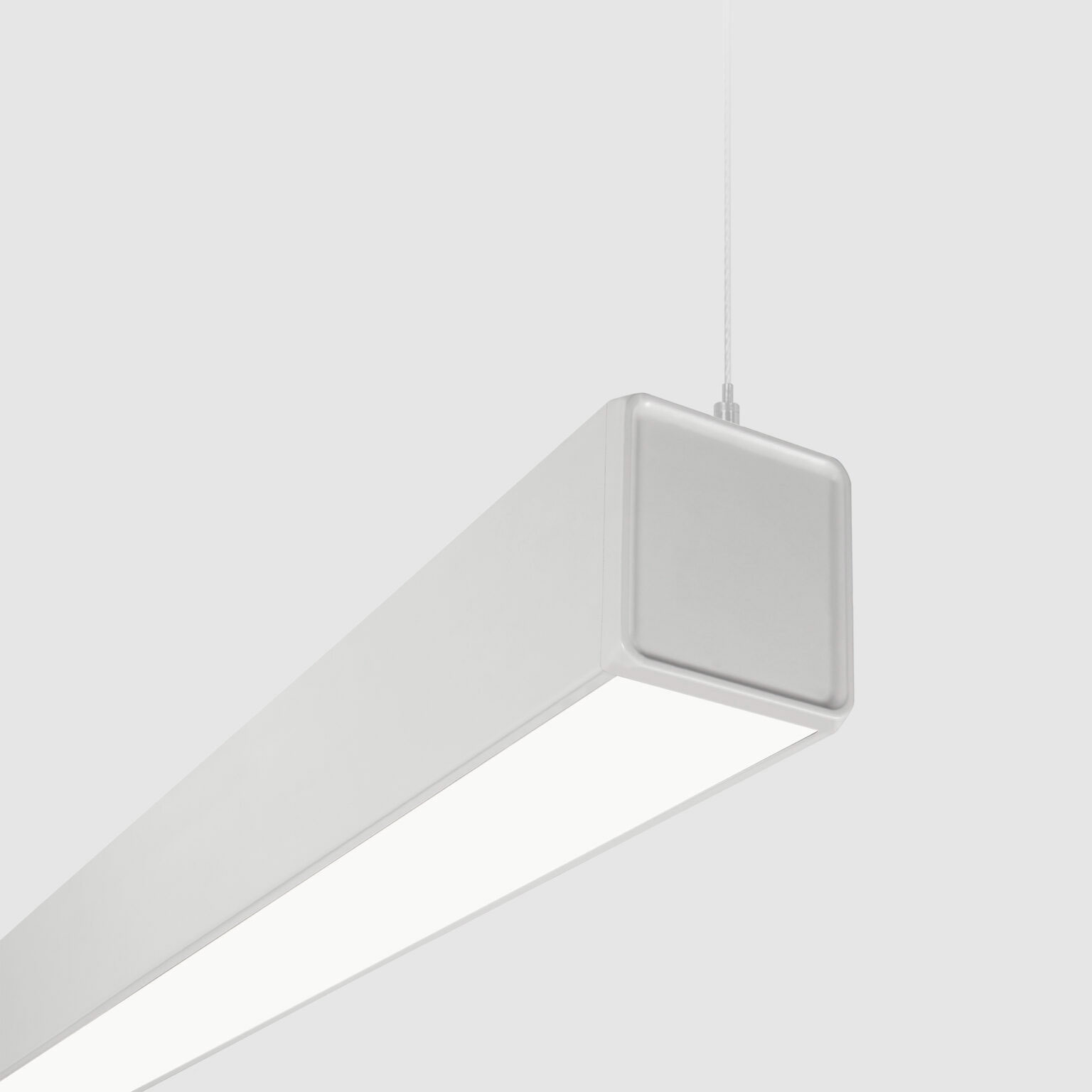

Specifications - Pendant HLO
Product TypeLinear SizesH 2 ¹⁵⁄₁₆", W 2 ⅝" OpticsHLO, TIO, WIO2 CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingPendant LumenXpressYes Distribution TypesDirect, Direct/Indirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
HLO

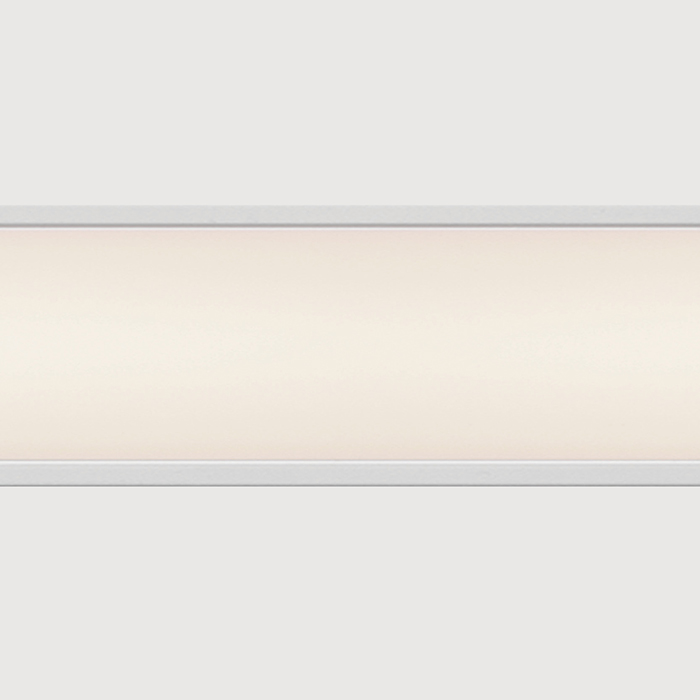

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

UP Technology

For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology.

Ubik

Direct, Direct/Indirect

Geometric purity meets the best in illumination performance in Ubik, the luminaire family engineered to offer a multitude of sleek, sophisticated options for interior spaces. From linear downlighting and long linear runs to elaborate light patterns and striking corner illumination, Ubik’s potential is immense. These compact 2″ square fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination, and wide-spread or translucent optics for indirect illumination.

  • Up to 1600 lm/ft
  • Low glare with a UGR of 6
  • 145 lm/W (HLO)
  • Optical flexibility with parabolic louvers, HLO, wall wash, or blanks
Product Downloads
Specifications - Pendant SPL
Product TypeLinear SizesH 2 ¹⁵⁄₁₆", W 2 ⅝" OpticsPAR, MBPL, MSPL, MWPL, TIO, WIO2 CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingPendant LumenXpressYes Distribution TypesDirect, Direct/Indirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

MBPL

Matte Black Parabolic Louver

MSPL

Matte Silver Parabolic Louver

MWPL

Matte White Parabolic Louver

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

UP Technology

For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology.

Ubik

Direct, Direct/Indirect

Geometric purity meets the best in illumination performance in Ubik, the luminaire family engineered to offer a multitude of sleek, sophisticated options for interior spaces. From linear downlighting and long linear runs to elaborate light patterns and striking corner illumination, Ubik’s potential is immense. These compact 2″ square fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination, and wide-spread or translucent optics for indirect illumination.

  • Up to 1600 lm/ft
  • Low glare with a UGR of 6
  • 145 lm/W (HLO)
  • Optical flexibility with parabolic louvers, HLO, wall wash, or blanks
Product Downloads
Specifications - Pendant Wall Wash
Product TypeLinear SizesH 2 ¹⁵⁄₁₆", W 2 ⅝" OpticsHLO, TIO, WIO2, WWB, WWS, WWW CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingPendant LumenXpressYes Distribution TypesDirect, Wall Wash
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

WWB

Wall Wash Black Optic

WWS

Wall Wash Silver Optic

WWW

Wall Wash White Optic

UP Technology

For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology.

Ubik

Direct, Direct/Indirect

Geometric purity meets the best in illumination performance in Ubik, the luminaire family engineered to offer a multitude of sleek, sophisticated options for interior spaces. From linear downlighting and long linear runs to elaborate light patterns and striking corner illumination, Ubik’s potential is immense. These compact 2″ square fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination, and wide-spread or translucent optics for indirect illumination.

  • Up to 1600 lm/ft
  • Low glare with a UGR of 6
  • 145 lm/W (HLO)
  • Optical flexibility with parabolic louvers, HLO, wall wash, or blanks
Product Downloads

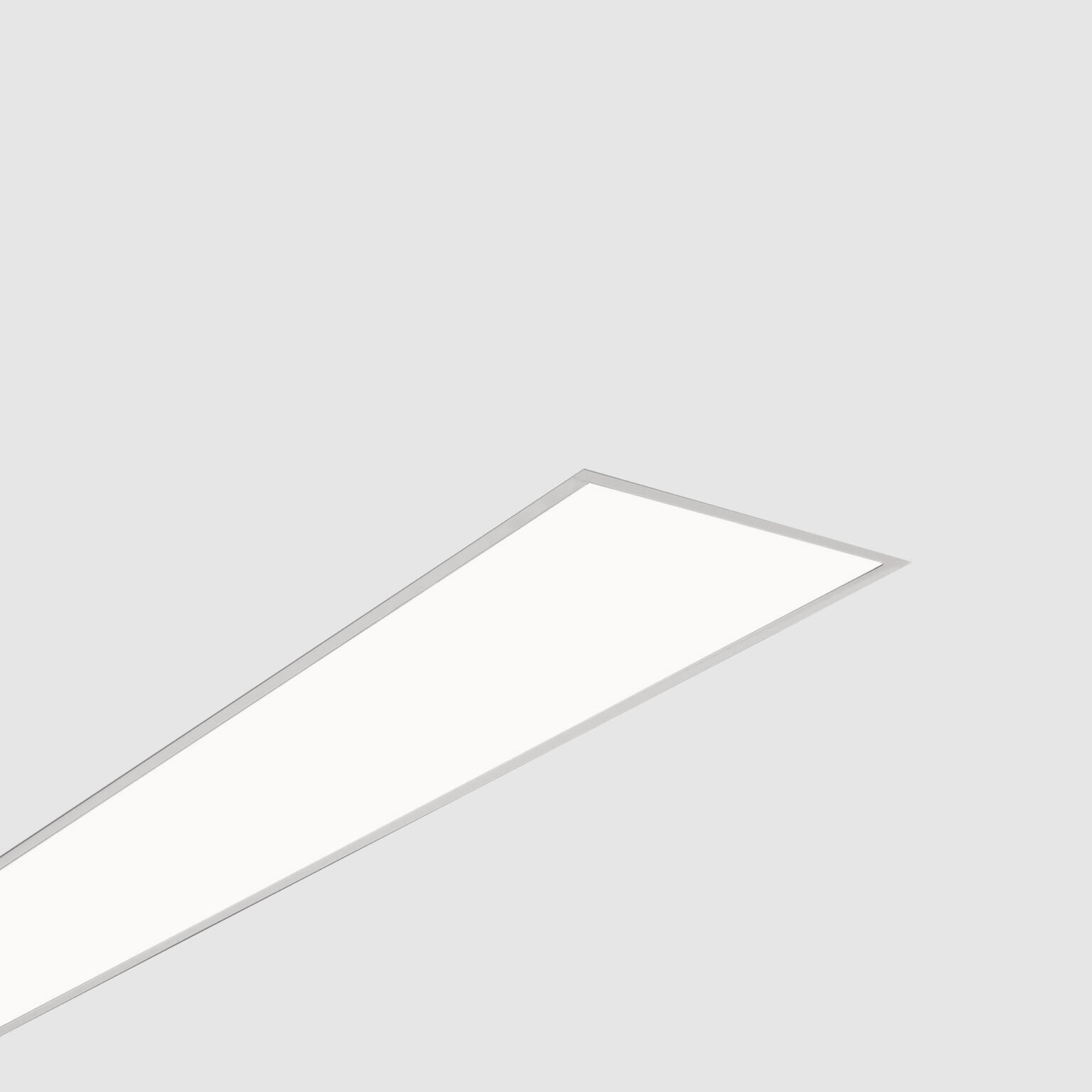

Specifications - Recessed HLO
Product TypeLinear SizesH 3 ¾", W 2 ⅝" OpticsHLO, TIO, WIO2 CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingRecessed LumenXpressYes Distribution TypeDirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

UP Technology

For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology.

Ubik

Direct, Direct/Indirect

Geometric purity meets the best in illumination performance in Ubik, the luminaire family engineered to offer a multitude of sleek, sophisticated options for interior spaces. From linear downlighting and long linear runs to elaborate light patterns and striking corner illumination, Ubik’s potential is immense. These compact 2″ square fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination, and wide-spread or translucent optics for indirect illumination.

  • Up to 1600 lm/ft
  • Low glare with a UGR of 6
  • 145 lm/W (HLO)
  • Optical flexibility with parabolic louvers, HLO, wall wash, or blanks
Product Downloads

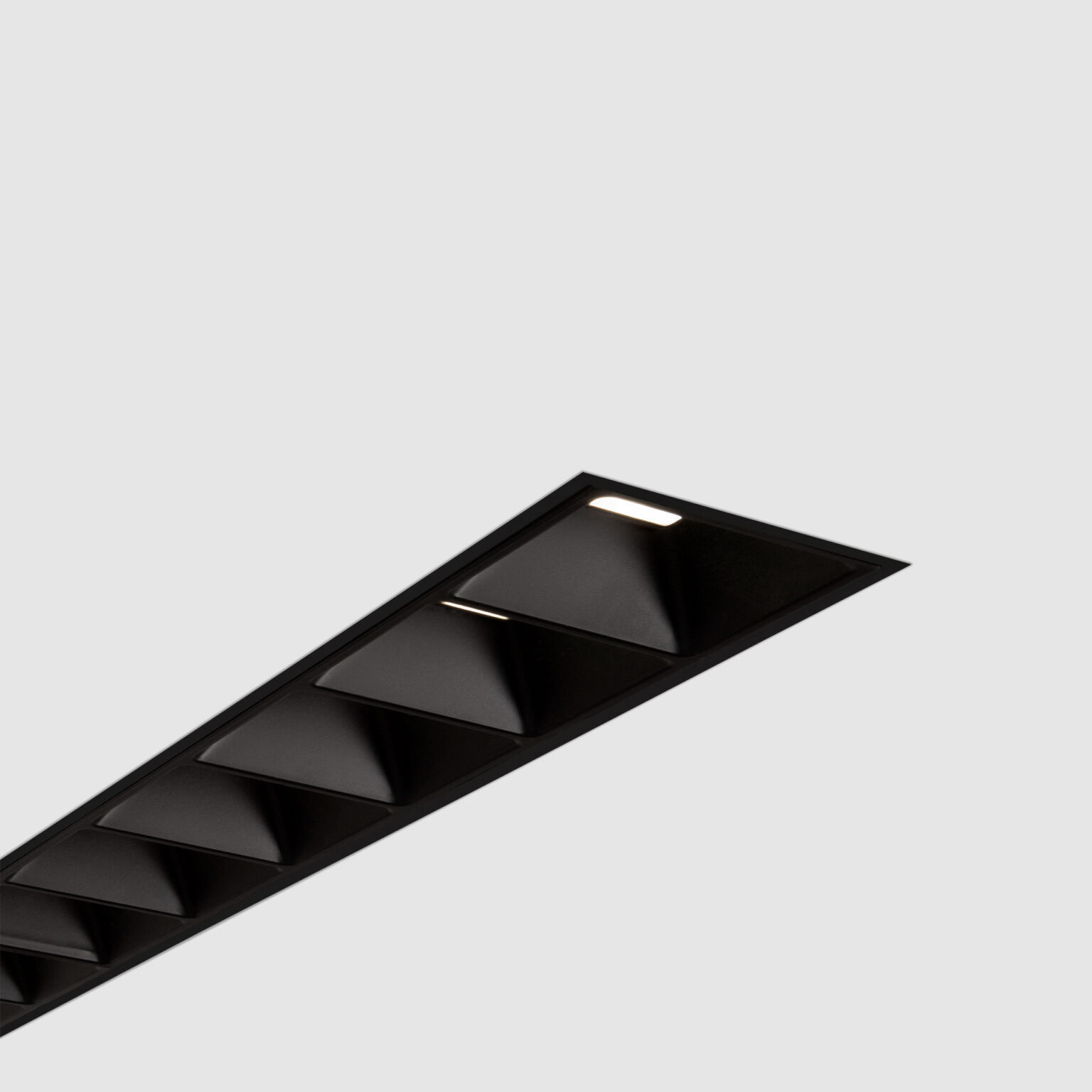

Specifications - Recessed SPL
Product TypeLinear SizesH 3 ¾", W 2 ⅝" OpticsPAR, MBPL, MSPL, MWPL, TIO, WIO2 CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingRecessed LumenXpressYes Distribution TypeDirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

MBPL

Matte Black Parabolic Louver

MSPL

Matte Silver Parabolic Louver

MWPL

Matte White Parabolic Louver

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

UP Technology

For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology.

Ubik

Direct, Direct/Indirect

Geometric purity meets the best in illumination performance in Ubik, the luminaire family engineered to offer a multitude of sleek, sophisticated options for interior spaces. From linear downlighting and long linear runs to elaborate light patterns and striking corner illumination, Ubik’s potential is immense. These compact 2″ square fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination, and wide-spread or translucent optics for indirect illumination.

  • Up to 1600 lm/ft
  • Low glare with a UGR of 6
  • 145 lm/W (HLO)
  • Optical flexibility with parabolic louvers, HLO, wall wash, or blanks
Product Downloads

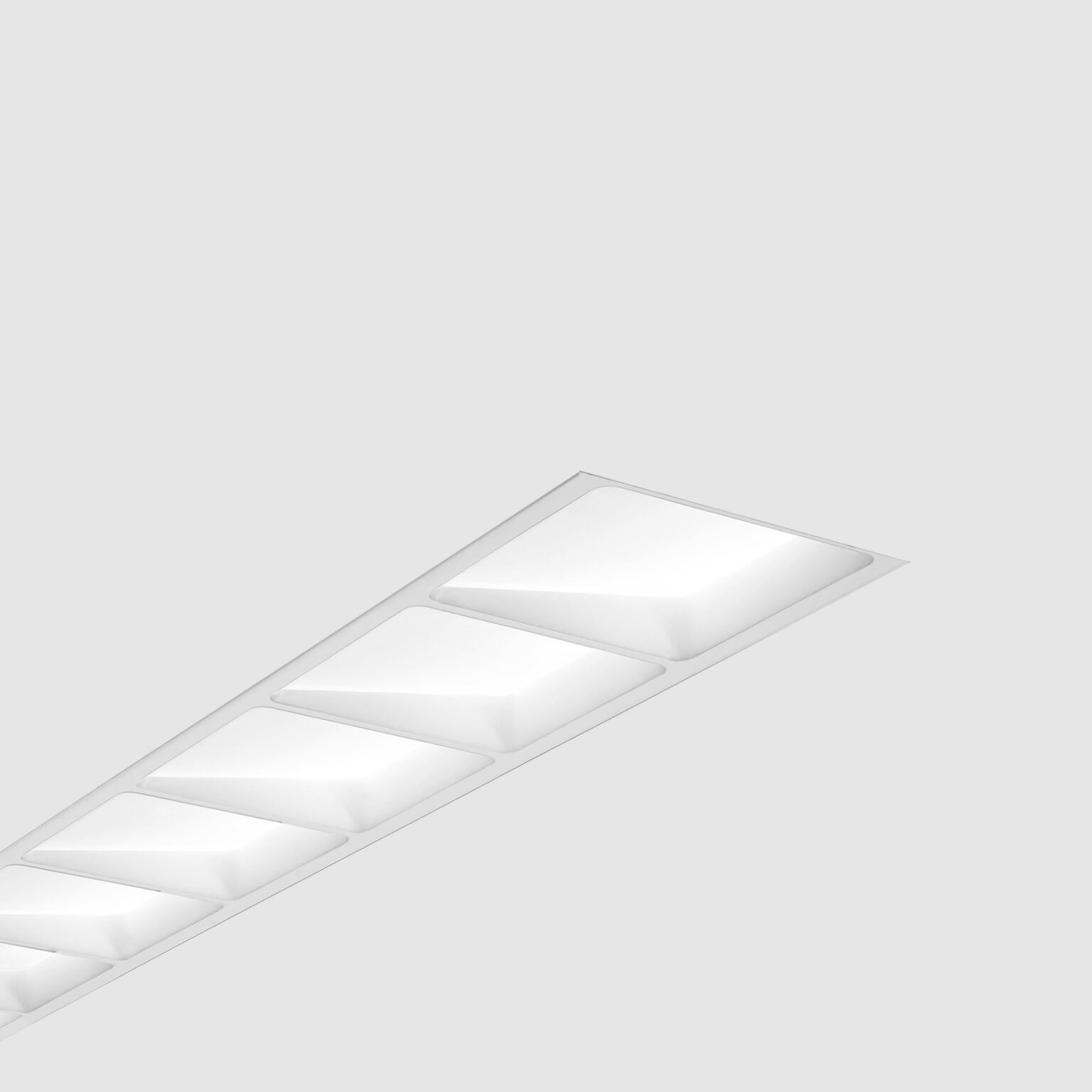

Specifications - Recessed Wall Wash
Product TypeLinear SizesH 3 ¾", W 2 ⅝" OpticsHLO, TIO, WIO2, WWB, WWS, WWW CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingRecessed LumenXpressYes Distribution TypeWall Wash
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

WWB

Wall Wash Black Optic

WWS

Wall Wash Silver Optic

WWW

Wall Wash White Optic

UP Technology

For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology.

Ubik

Direct, Direct/Indirect

Geometric purity meets the best in illumination performance in Ubik, the luminaire family engineered to offer a multitude of sleek, sophisticated options for interior spaces. From linear downlighting and long linear runs to elaborate light patterns and striking corner illumination, Ubik’s potential is immense. These compact 2″ square fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination, and wide-spread or translucent optics for indirect illumination.

  • Up to 1600 lm/ft
  • Low glare with a UGR of 6
  • 145 lm/W (HLO)
  • Optical flexibility with parabolic louvers, HLO, wall wash, or blanks
Product Downloads

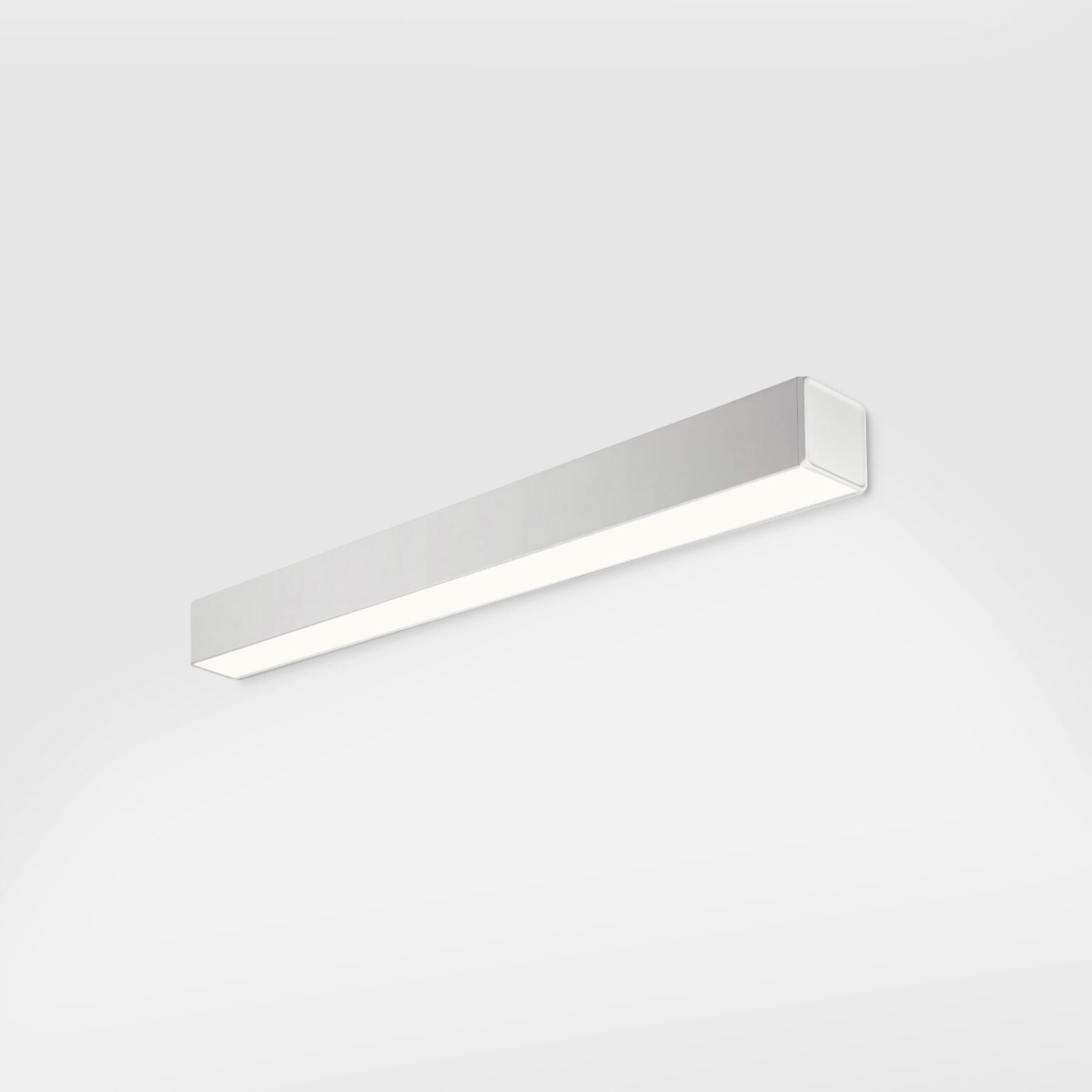

Specifications - Wall HLO
Product TypeLinear SizesH 2 ¹⁵⁄₁₆", W 2 ⅝" OpticsPAR, HLO, TIO, WIO2 CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingWall LumenXpressYes Distribution TypesDirect, Direct/Indirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

UP Technology

For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology.

Ubik

Direct, Direct/Indirect

Geometric purity meets the best in illumination performance in Ubik, the luminaire family engineered to offer a multitude of sleek, sophisticated options for interior spaces. From linear downlighting and long linear runs to elaborate light patterns and striking corner illumination, Ubik’s potential is immense. These compact 2″ square fixtures are offered with HLO, parabolic louvers, and wall wash optics for direct illumination, and wide-spread or translucent optics for indirect illumination.

  • Up to 1600 lm/ft
  • Low glare with a UGR of 6
  • 145 lm/W (HLO)
  • Optical flexibility with parabolic louvers, HLO, wall wash, or blanks
Product Downloads

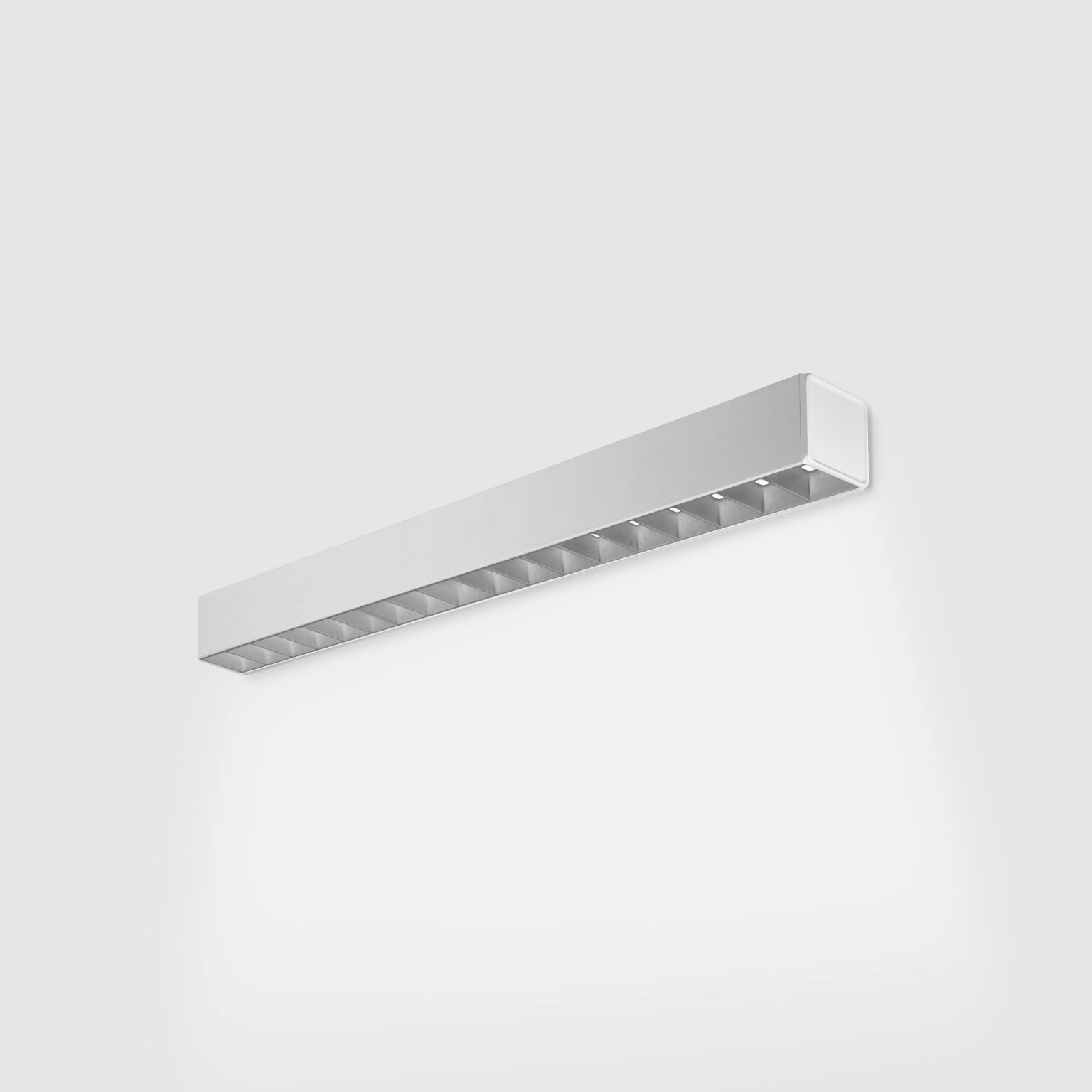

Specifications - Wall SPL
Product TypeLinear SizesH 2 ¹⁵⁄₁₆", W 2 ⅝" OpticsPAR, MBPL, MSPL, MWPL, TIO, WIO2 CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingWall LumenXpressYes Distribution TypesDirect, Direct/Indirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

MBPL

Matte Black Parabolic Louver

MSPL

Matte Silver Parabolic Louver

MWPL

Matte White Parabolic Louver

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

UP Technology

For our entire Ubik collection, once you decide the output, each luminaire, regardless of shape and size, will emit identical luminous intensity values, precisely measurable down to the square inch with Unity Pointed (UP) technology.

UGR 6

137 lm/W

L90 <
150,000 hrs

Linear

Play with lines, patterns, and corners.

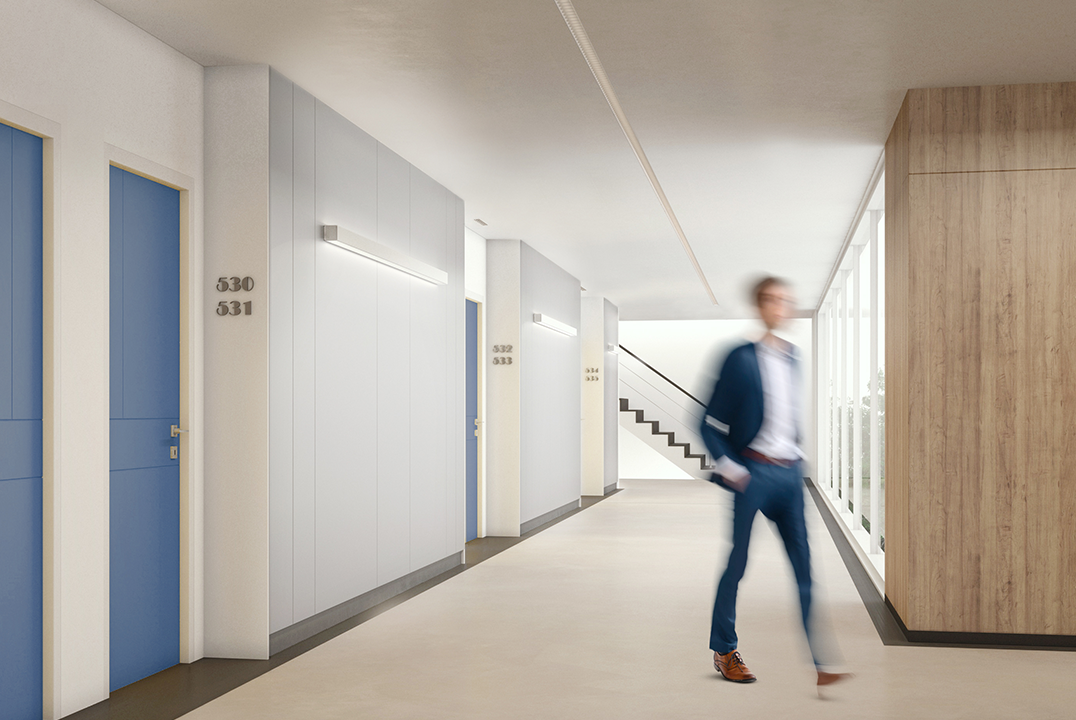

Define, punctuate, enrich your spaces with Ubik. Install pendant and wall fixtures as individual luminaires or in continuous runs and patterns. Balance lit and unlit areas to create contrast and drama with a chiaroscuro effect. Enabled by our High-Efficiency Lambertian Optic (HLO),

Ubik can transform dim corners into bright design features. Seal option available.

Parabolic Louvers

HLO

Wall wash

Optical Flexibility

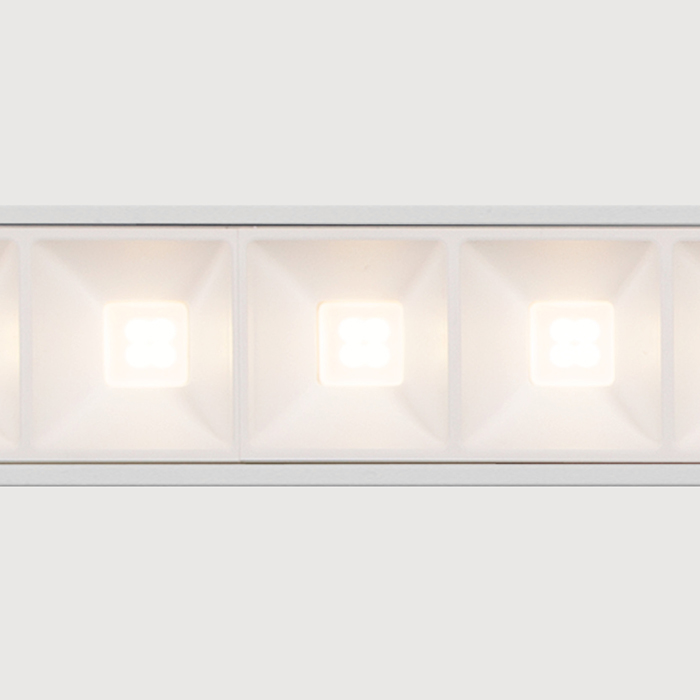

Parabolic Louvers

High-Efficiency Lambertian Optic (HLO)

Wall Wash

Wide Indirect Optic (WIO)

Translucent Indirect Optic (TIO)

General Lighting

Ubik is offered in five standard lumen packages to allow for the best interior lighting environments to be created. Whether you choose direct or direct/indirect, Ubik is a comfortable luminaire. If you want ultra-low glare, Ubik black parabolic louvers offer an industry-best UGR (between 6 and 8, depending on the output selected). If you want more vertical brightness, then HLO is the solution. You can mix and match in the same linear run with louvers and HLO, and also use the Ubik Cube downlight to set off the space.

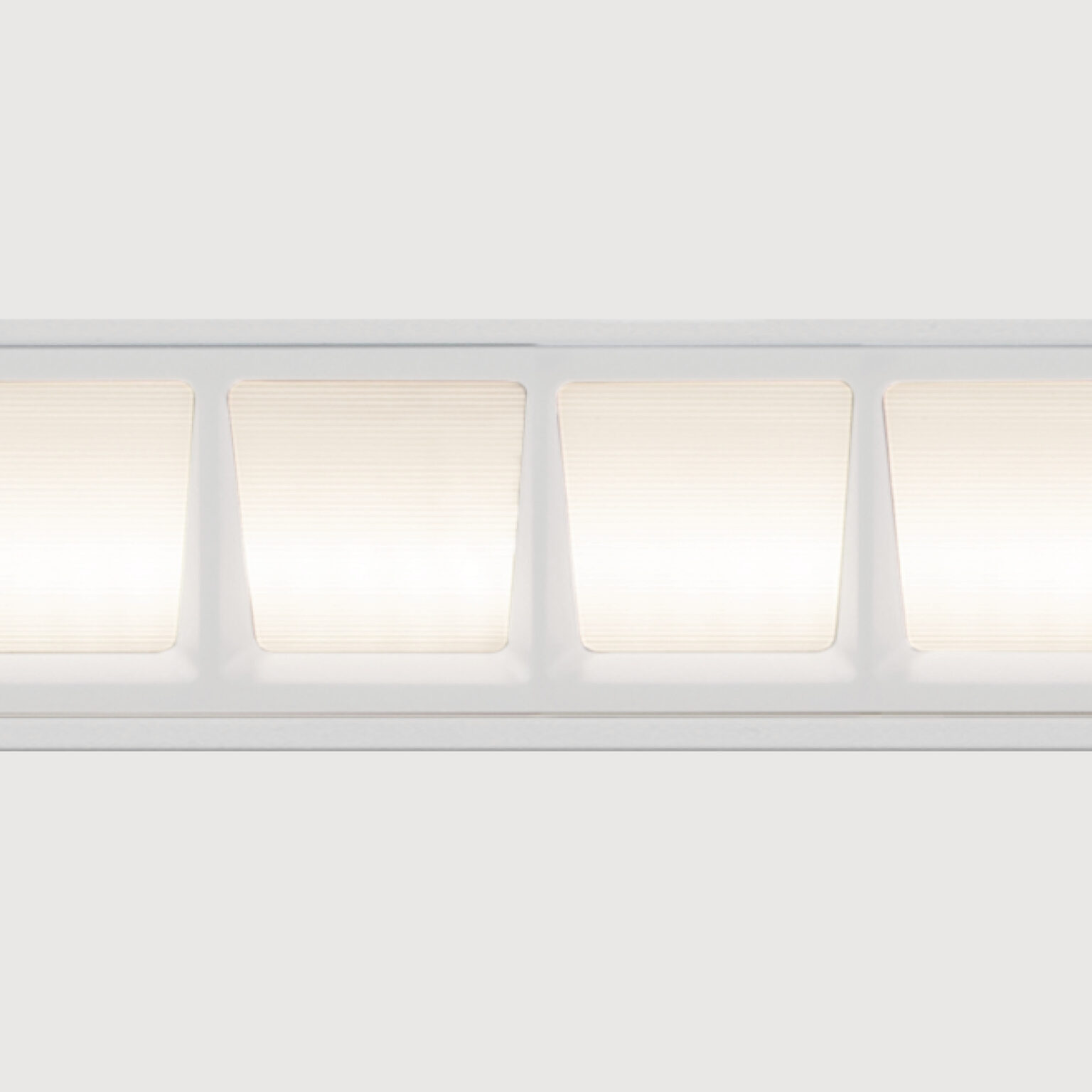

Wall Washing

A unique feature of the Ubik Wall Wash is that, on higher walls of up to 20’, the wall wash maintains excellent performance that surpasses that of leading competitors, which essentially stop performing beyond wall heights greater than 10’.

Wide Indirect Optic

This second generation of Wide Indirect Optic offers an impressive beam spread of 140 degrees and is compatible with high-ceiling applications, providing a far reach in all directions within the 140-degree range.

Related Projects

From illuminating retail and residential projects, to human-centric lighting for schools and offices, explore our recent projects and learn how purposeful, intentional lighting can transform any space.

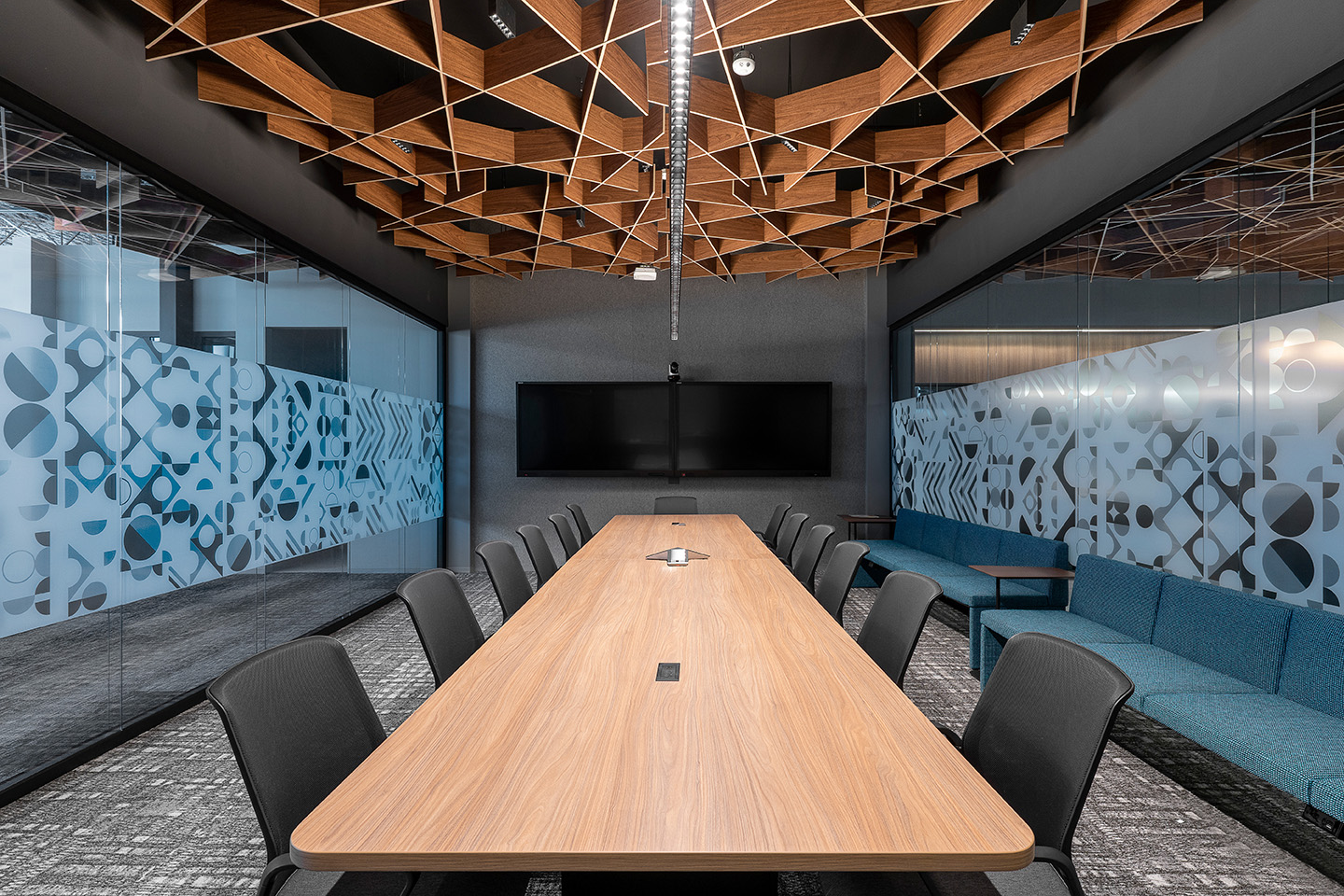

Major Food Brand

Location Mississauga, Ontario, Canada Project TypeOffice, Public Space

LEGO

Location Boston, Massachusetts, U.S. Project TypeOffice, Public Space

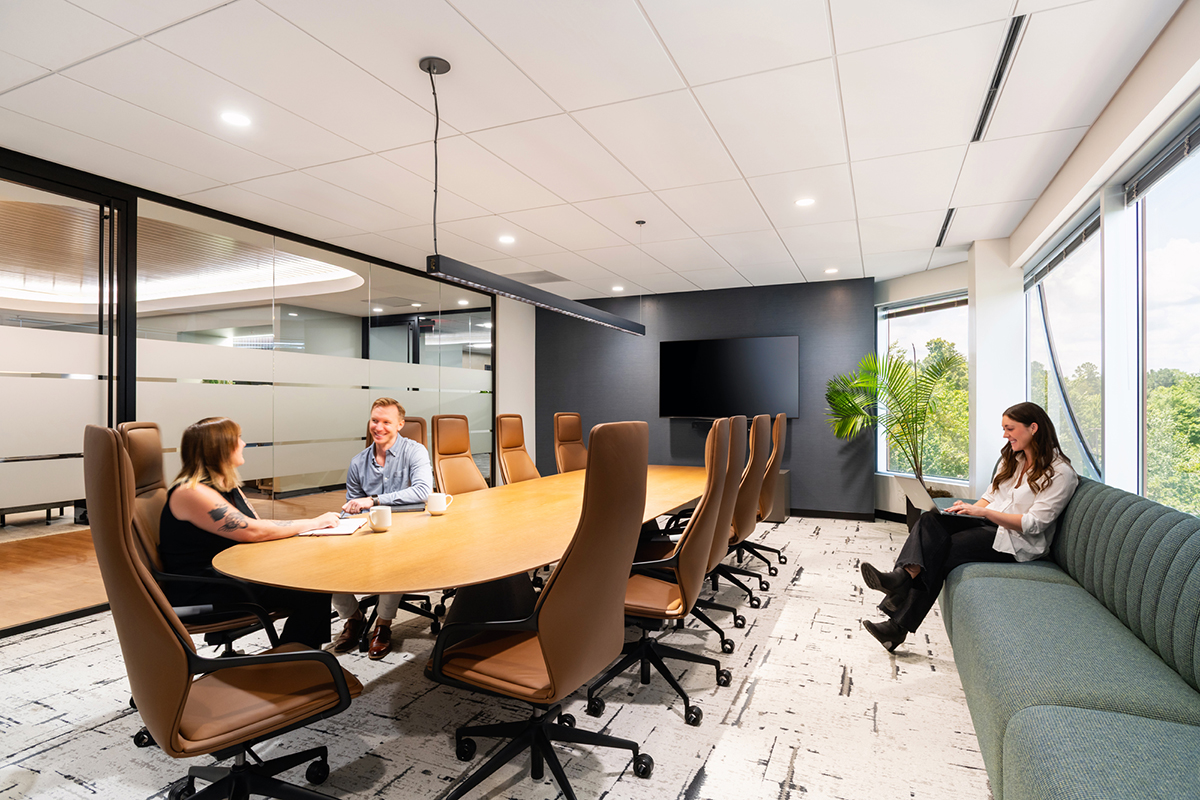

Heartwood Wealth

Location Richmond, Virginia, U.S. Project TypeOffice, Public Space
