Cluster Pendant

Downlight

Cluster pendants include linear and cuboid configurations with downlight, parabolic, and wall-wash optics that match recessed types. Linear pendants are available in 1-, 3-, and 5-cell configurations, and cuboid pendants are available in 2″ × 2″ and 3″ × 3″ arrays. Pendant Clusters fit a choice of 3″, 8″, or 12″ deep cuboid enclosures. Nominal light output is 200 lumens per cell, with efficacy over 80 LPW. Pendant Clusters can be suspended using stems, and a canopy for conduit connection is available. The driver is either integral or remote and is capable of powering multiple luminaires.

Product Downloads

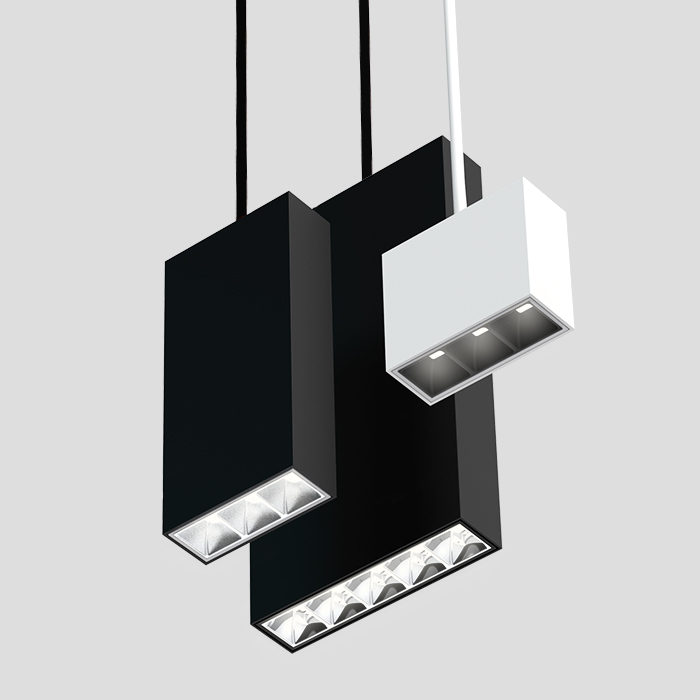

Specifications - Parabolic Linear
Product TypesLinear, Cylinder/Cuboid Sizes3 × 1 Cell, 5 × 1 Cell OpticsPAR, MBPL, MPL, MWPL, SPL CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingPendant Distribution TypeDirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

MBPL

Matte Black Parabolic Louver

MPL

Matte Aluminum Parabolic Louver

MWPL

Matte White Parabolic Louver

SPL

Specular Aluminum

Parabolic Louvers
Soft-Edge & Sharp-Edge Downlights

Soft-Edge Downlights:



Sharp-Edge Downlights:

Louver Shapes & Finishes

Louver is injection molded with integral texture and color.

Wall Wash Louver Finishes

Cluster Pendant

Downlight

Cluster pendants include linear and cuboid configurations with downlight, parabolic, and wall-wash optics that match recessed types. Linear pendants are available in 1-, 3-, and 5-cell configurations, and cuboid pendants are available in 2″ × 2″ and 3″ × 3″ arrays. Pendant Clusters fit a choice of 3″, 8″, or 12″ deep cuboid enclosures. Nominal light output is 200 lumens per cell, with efficacy over 80 LPW. Pendant Clusters can be suspended using stems, and a canopy for conduit connection is available. The driver is either integral or remote and is capable of powering multiple luminaires.

Product Downloads

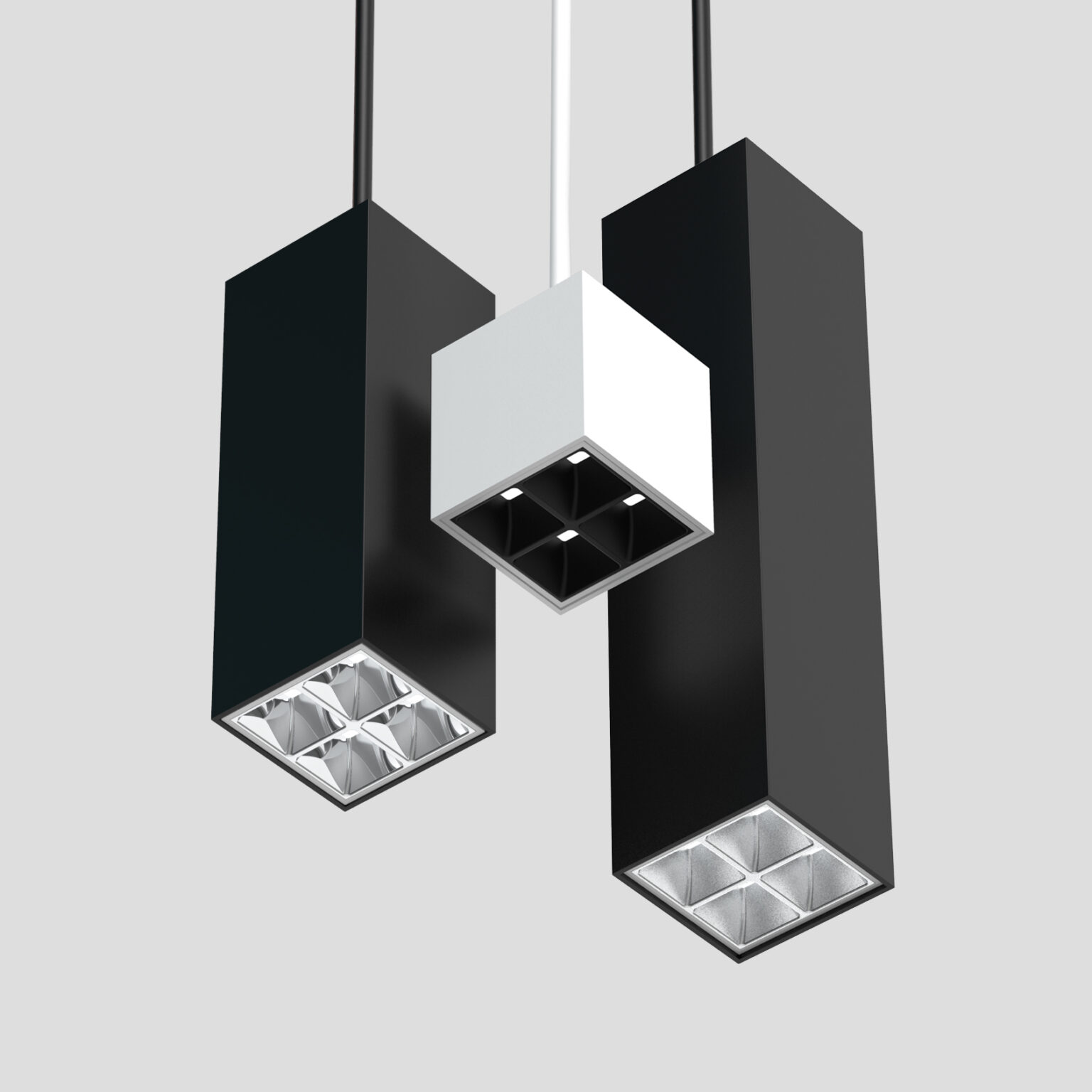

Specifications - Parabolic Planar
Product TypeCylinder/Cuboid Sizes3 × 1 Cell, 5 × 1 Cell, 2 × 2 Cell OpticsPAR, MBPL, MPL, MWPL, SPL CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingPendant Distribution TypeDirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

MBPL

Matte Black Parabolic Louver

MPL

Matte Aluminum Parabolic Louver

MWPL

Matte White Parabolic Louver

SPL

Specular Aluminum

Parabolic Louvers
Soft-Edge & Sharp-Edge Downlights

Soft-Edge Downlights:



Sharp-Edge Downlights:

Louver Shapes & Finishes

Louver is injection molded with integral texture and color.

Wall Wash Louver Finishes

Cluster Pendant

Downlight

Cluster pendants include linear and cuboid configurations with downlight, parabolic, and wall-wash optics that match recessed types. Linear pendants are available in 1-, 3-, and 5-cell configurations, and cuboid pendants are available in 2″ × 2″ and 3″ × 3″ arrays. Pendant Clusters fit a choice of 3″, 8″, or 12″ deep cuboid enclosures. Nominal light output is 200 lumens per cell, with efficacy over 80 LPW. Pendant Clusters can be suspended using stems, and a canopy for conduit connection is available. The driver is either integral or remote and is capable of powering multiple luminaires.

Product Downloads
Specifications - Linear
Product TypesLinear, Cylinder/Cuboid Sizes1 × 1 Cell, 3 × 1 Cell, 5 × 1 Cell OpticsREF, SOF CCT/Light & ColorStatic White MountingPendant Distribution TypeDirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics
REF

The Sharp Edge Downlight creates dramatic impact by limiting light spread outside the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle, while a 0.5″ reflective square louver provides cutoff with a UGR of 10. Three different TIR elements offer a choice of beam spreads: 15° spot (SPT), 30° flood (FLD), or 45° wide flood (WFL).

SOF

Soft Edge Downlight blends light into darker areas for a gentle brightness transition. Each LED emitter directs light through a custom-molded circular optic using total internal reflection (TIR) to shape the beam. A 0.5″ reflective square louver provides cutoff with a UGR of 10, and three TIR elements allow selectable beam spreads: 25° Narrow Flood (NFL), 35° Flood (FLD), or 55° Wide Flood (WFL).

Parabolic Louvers
Soft-Edge & Sharp-Edge Downlights

Soft-Edge Downlights:



Sharp-Edge Downlights:

Louver Shapes & Finishes

Louver is injection molded with integral texture and color.

Wall Wash Louver Finishes

Cluster Pendant

Downlight

Cluster pendants include linear and cuboid configurations with downlight, parabolic, and wall-wash optics that match recessed types. Linear pendants are available in 1-, 3-, and 5-cell configurations, and cuboid pendants are available in 2″ × 2″ and 3″ × 3″ arrays. Pendant Clusters fit a choice of 3″, 8″, or 12″ deep cuboid enclosures. Nominal light output is 200 lumens per cell, with efficacy over 80 LPW. Pendant Clusters can be suspended using stems, and a canopy for conduit connection is available. The driver is either integral or remote and is capable of powering multiple luminaires.

Product Downloads
Specifications - Planar
Product TypeCylinder/Cuboid Sizes1 × 1 Cell, 3 × 1 Cell, 5 × 1 Cell, 2 × 2 Cell, 3 × 3 Cell OpticsREF, SOF CCT/Light & ColorStatic White MountingPendant Distribution TypeDirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics
REF

The Sharp Edge Downlight creates dramatic impact by limiting light spread outside the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle, while a 0.5″ reflective square louver provides cutoff with a UGR of 10. Three different TIR elements offer a choice of beam spreads: 15° spot (SPT), 30° flood (FLD), or 45° wide flood (WFL).

SOF

Soft Edge Downlight blends light into darker areas for a gentle brightness transition. Each LED emitter directs light through a custom-molded circular optic using total internal reflection (TIR) to shape the beam. A 0.5″ reflective square louver provides cutoff with a UGR of 10, and three TIR elements allow selectable beam spreads: 25° Narrow Flood (NFL), 35° Flood (FLD), or 55° Wide Flood (WFL).

Parabolic Louvers
Soft-Edge & Sharp-Edge Downlights

Soft-Edge Downlights:



Sharp-Edge Downlights:

Louver Shapes & Finishes

Louver is injection molded with integral texture and color.

Wall Wash Louver Finishes
CELL CONFIGURATIONS

1 × 1 Cell
3 × 1 Cell
5 × 1 Cell
2 × 2 Cell
3 × 3 Cell

CLUSTER TYPES

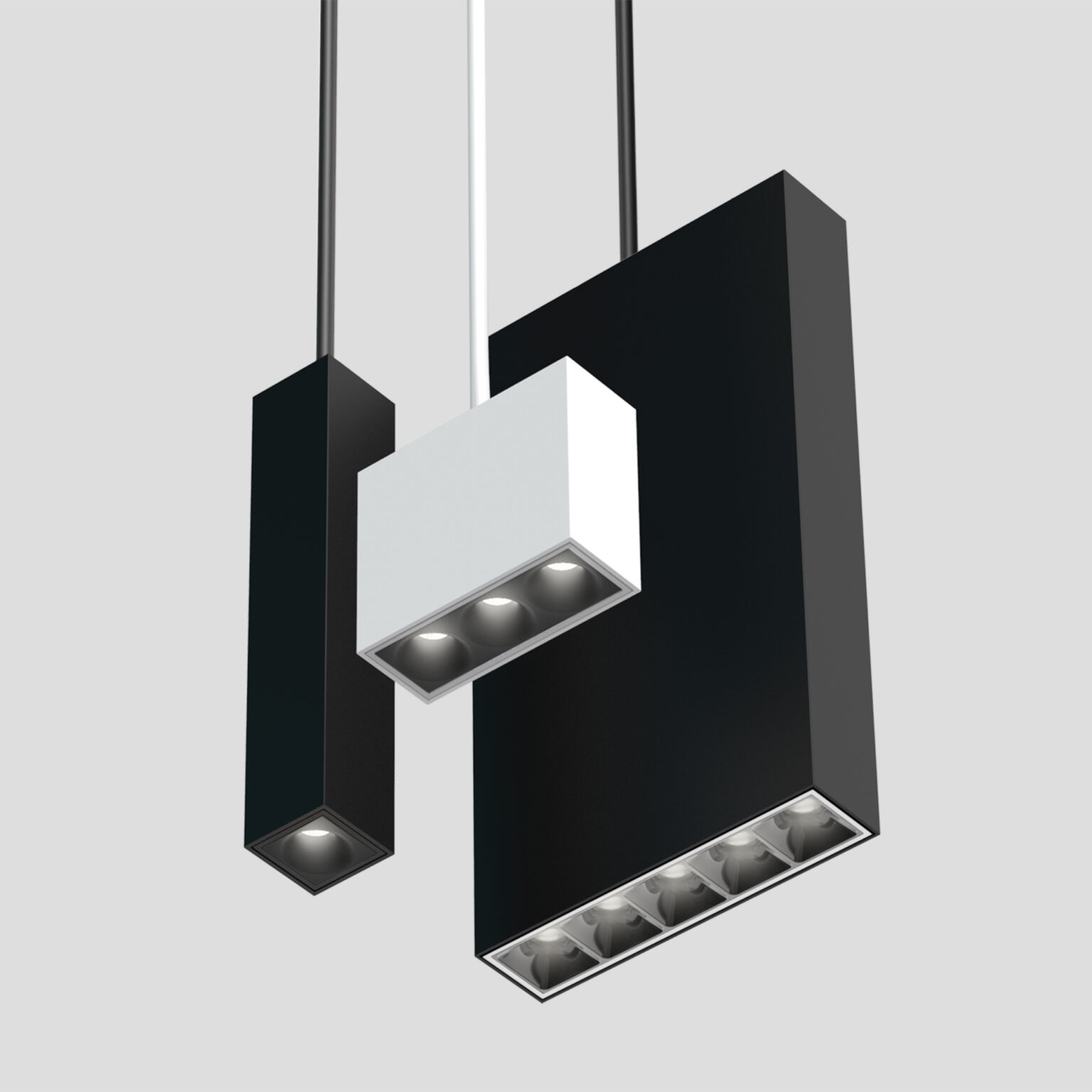

Cluster Linear

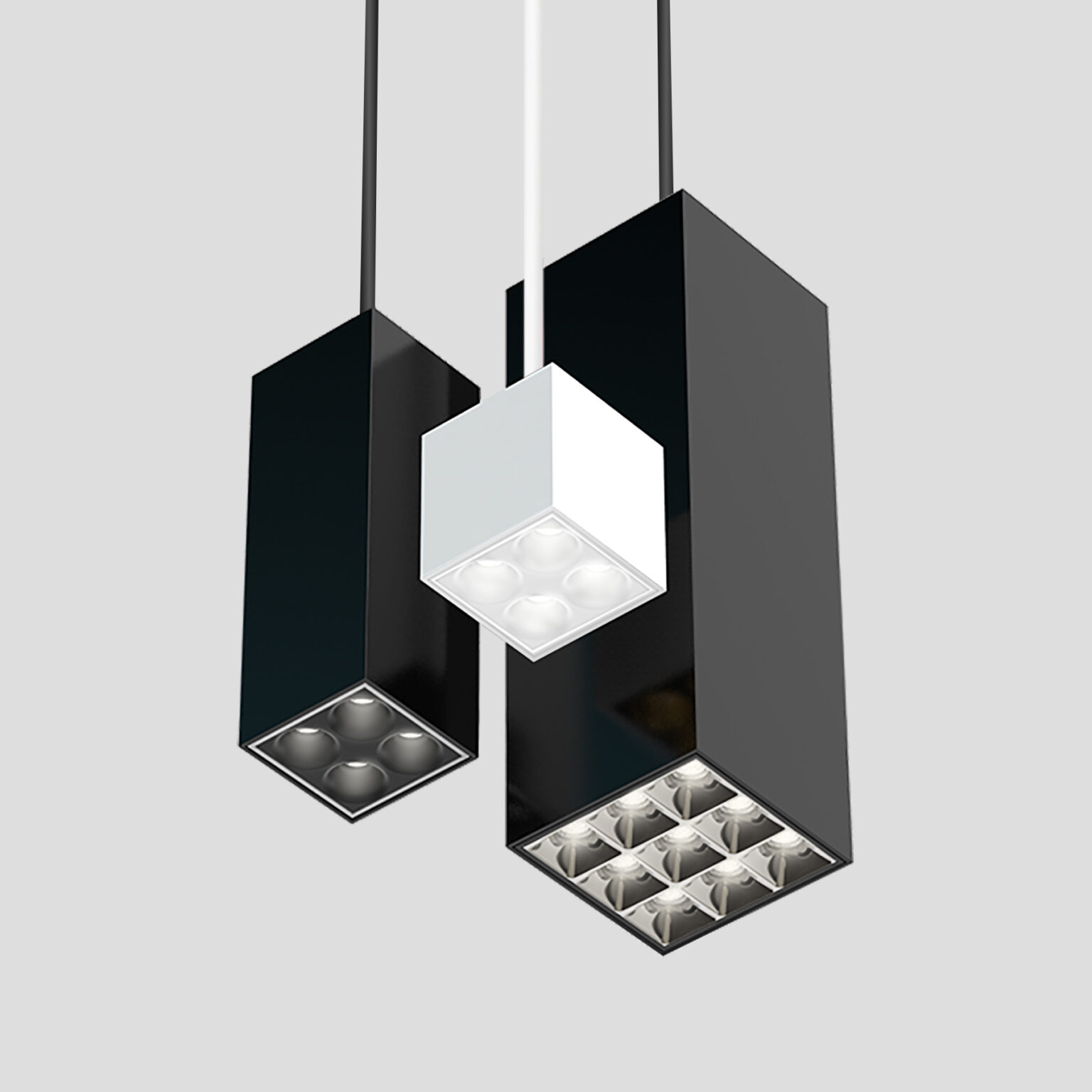

Cluster Planar

UP TO

200 lumens per cell

Glare Control and URG

Very small sources of light can diminish visual comfort. The Universal Glare Rating (UGR) model assesses the glare from an installation of luminaires, based on the number and light distribution of the luminaires and the parameters of the space.

Ratings range from 5 to 40; lower ratings are better. As the table shows, Cluster downlights achieve a UGR of 11-18*, which is very comfortable and suitable for applications such as conference rooms, hospitality, and boutique retail.

Parameter Option 1 Option 2 Option 3 Option 4 Option 5 Option 6
Optic Parabolic Parabolic Sharp Edge Sharp Edge Soft Edge Soft Edge
Louver SQR SQR CON HYP SQR SQR
Finish SPL MPL GL06 GL06 BL05 MF01
Beam Spread 57° 62° 45° 45° 55° 55°
UGR 11 12 12 12 14 18

Colors

Clusters are available in 2700K, 3000K, 3500K, and 4000K, all with 90 CRI, providing rich color rendering. Tight color consistency is maintained within 2 SDCM.

Clusters with parabolic louvers are also available with ChromaWerx Sola and Duo. Sola provides a dim-to-warm effect, warming color temperature in a predetermined relationship as output dims. Duo provides a tunable white effect, with independent control of color temperature and light output. See specification sheets for details.
