Cluster Combinations

Downlight – Pendant, Recessed, Surface

Cluster Combinations integrate miniature optical elements, linear HLO lighting and blank unlit panels, within a narrow, 1.5″ extruded channel. Compatible optics include downlight, parabolic, and wall wash options in 3-, 5-, and 10-cell configurations, with all applicable beam spreads and aperture finishes. Cluster Combinations can run any length from 4’ onward and can be recessed, surface-mounted, or pendant-mounted with on-board drivers.

Product Downloads
Specifications - Pendant Downlight
Product TypeLinear OpticsREF, SOF MountingPendant Distribution TypeDirect
Optics
REF

The Sharp Edge Downlight creates dramatic impact by limiting light spread outside the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle, while a 0.5″ reflective square louver provides cutoff with a UGR of 10. Three different TIR elements offer a choice of beam spreads: 15° spot (SPT), 30° flood (FLD), or 45° wide flood (WFL).

SOF

Soft Edge Downlight blends light into darker areas for a gentle brightness transition. Each LED emitter directs light through a custom-molded circular optic using total internal reflection (TIR) to shape the beam. A 0.5″ reflective square louver provides cutoff with a UGR of 10, and three TIR elements allow selectable beam spreads: 25° Narrow Flood (NFL), 35° Flood (FLD), or 55° Wide Flood (WFL).

Cluster Combinations

Downlight – Pendant, Recessed, Surface

Cluster Combinations integrate miniature optical elements, linear HLO lighting and blank unlit panels, within a narrow, 1.5″ extruded channel. Compatible optics include downlight, parabolic, and wall wash options in 3-, 5-, and 10-cell configurations, with all applicable beam spreads and aperture finishes. Cluster Combinations can run any length from 4’ onward and can be recessed, surface-mounted, or pendant-mounted with on-board drivers.

Product Downloads

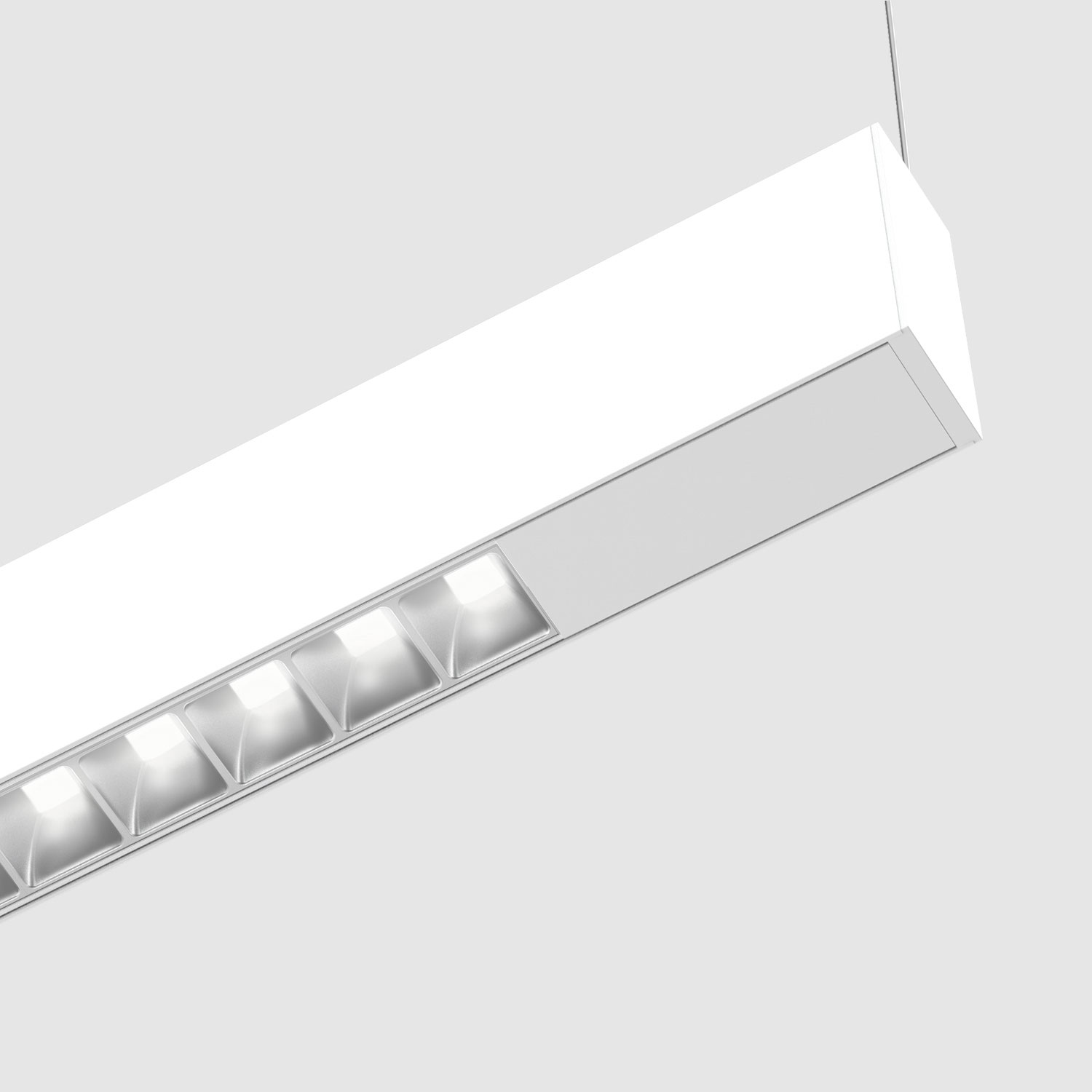

Specifications - Pendant Parabolic
Product TypeLinear Sizes3 × 1 Cells, 5 × 1 Cells, 10 × 1 Cells OpticsPAR, BPL, MPL, SPL, WPL CCT/Lights & ColorsDim to Warm (Sola), Tunable White (Duo) MountingPendant Distribution TypeDirect
Light Source
Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

BPL

Matte Black

MPL

Matte Aluminum Parabolic Louver

SPL

Specular Aluminum

WPL

Matte White

Cluster Combinations

Downlight – Pendant, Recessed, Surface

Cluster Combinations integrate miniature optical elements, linear HLO lighting and blank unlit panels, within a narrow, 1.5″ extruded channel. Compatible optics include downlight, parabolic, and wall wash options in 3-, 5-, and 10-cell configurations, with all applicable beam spreads and aperture finishes. Cluster Combinations can run any length from 4’ onward and can be recessed, surface-mounted, or pendant-mounted with on-board drivers.

Product Downloads

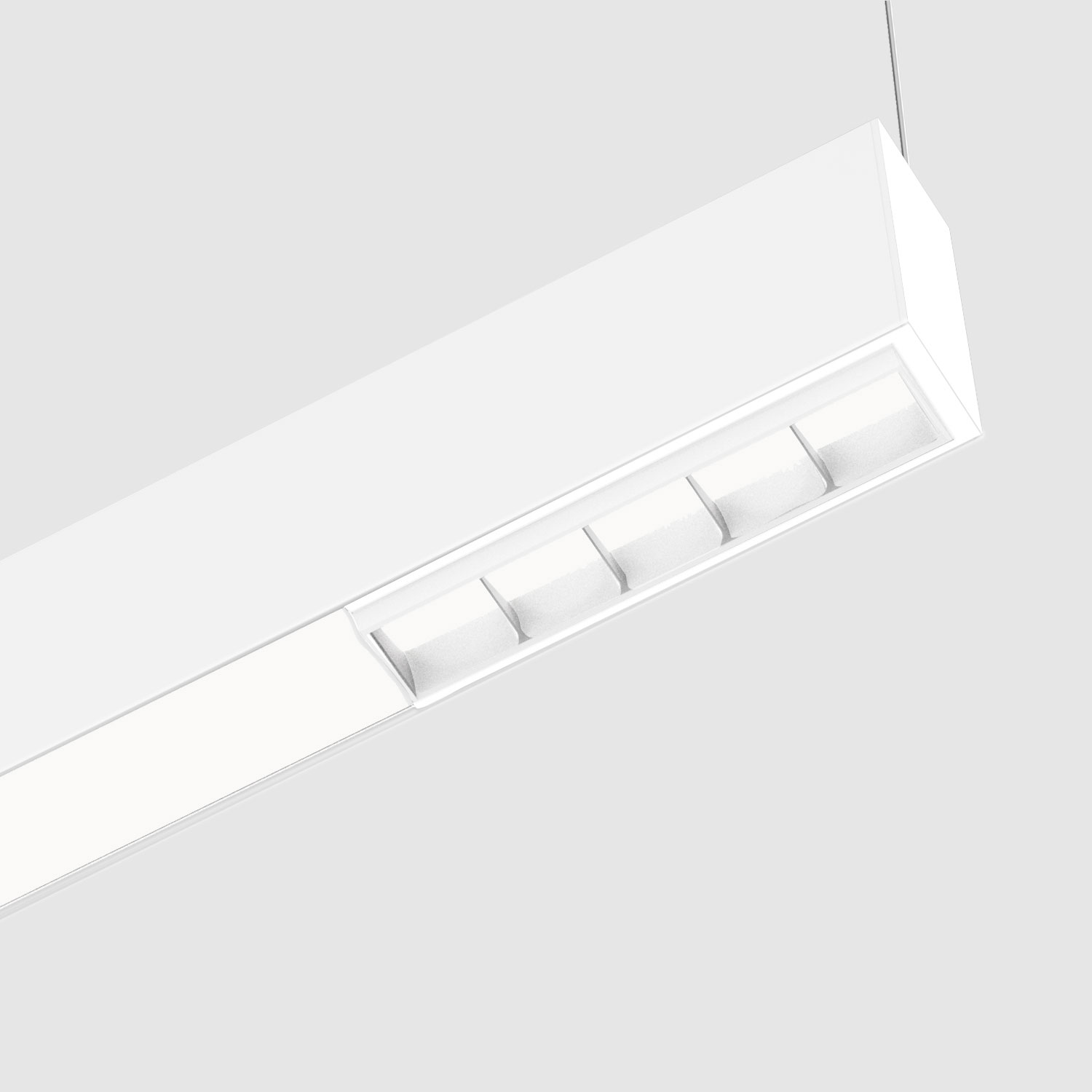

Specifications - Pendant Wall Wash
Product TypeLinear OpticWRO MountingPendant Distribution TypeWall Wash
Optics
WRO

Wall Wash Reflector Optics (WRO) – Cluster Wall Wash linear optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates the source image. The result is excellent uniformity up and down the wall, as well as between luminaires.

Cluster Combinations

Downlight – Pendant, Recessed, Surface

Cluster Combinations integrate miniature optical elements, linear HLO lighting and blank unlit panels, within a narrow, 1.5″ extruded channel. Compatible optics include downlight, parabolic, and wall wash options in 3-, 5-, and 10-cell configurations, with all applicable beam spreads and aperture finishes. Cluster Combinations can run any length from 4’ onward and can be recessed, surface-mounted, or pendant-mounted with on-board drivers.

Product Downloads

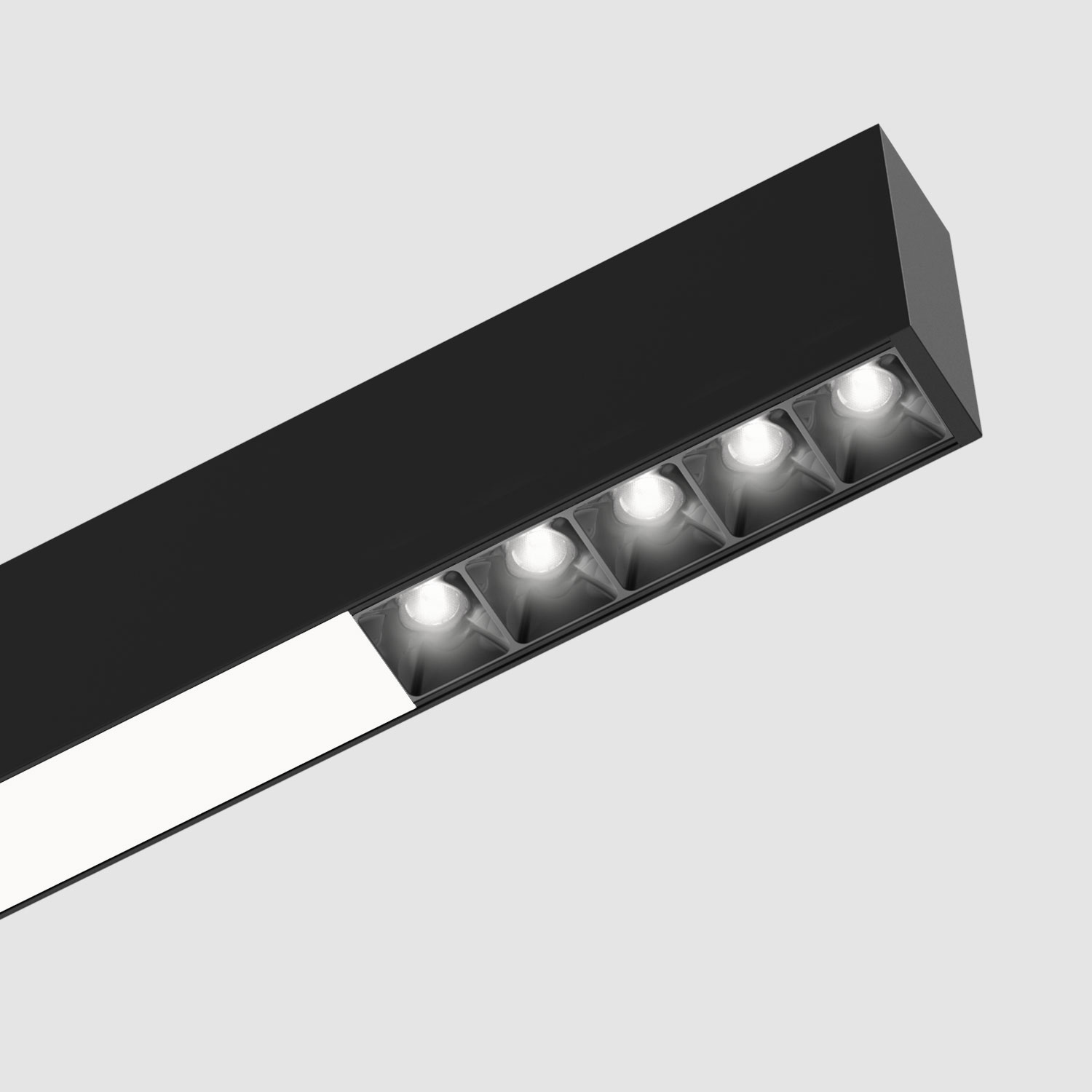

Specifications - Surface Downlight
Product TypeLinear OpticsREF, SOF MountingSurface Distribution TypeDirect
Optics
REF

The Sharp Edge Downlight creates dramatic impact by limiting light spread outside the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle, while a 0.5″ reflective square louver provides cutoff with a UGR of 10. Three different TIR elements offer a choice of beam spreads: 15° spot (SPT), 30° flood (FLD), or 45° wide flood (WFL).

SOF

Soft Edge Downlight blends light into darker areas for a gentle brightness transition. Each LED emitter directs light through a custom-molded circular optic using total internal reflection (TIR) to shape the beam. A 0.5″ reflective square louver provides cutoff with a UGR of 10, and three TIR elements allow selectable beam spreads: 25° Narrow Flood (NFL), 35° Flood (FLD), or 55° Wide Flood (WFL).

Cluster Combinations

Downlight – Pendant, Recessed, Surface

Cluster Combinations integrate miniature optical elements, linear HLO lighting and blank unlit panels, within a narrow, 1.5″ extruded channel. Compatible optics include downlight, parabolic, and wall wash options in 3-, 5-, and 10-cell configurations, with all applicable beam spreads and aperture finishes. Cluster Combinations can run any length from 4’ onward and can be recessed, surface-mounted, or pendant-mounted with on-board drivers.

Product Downloads

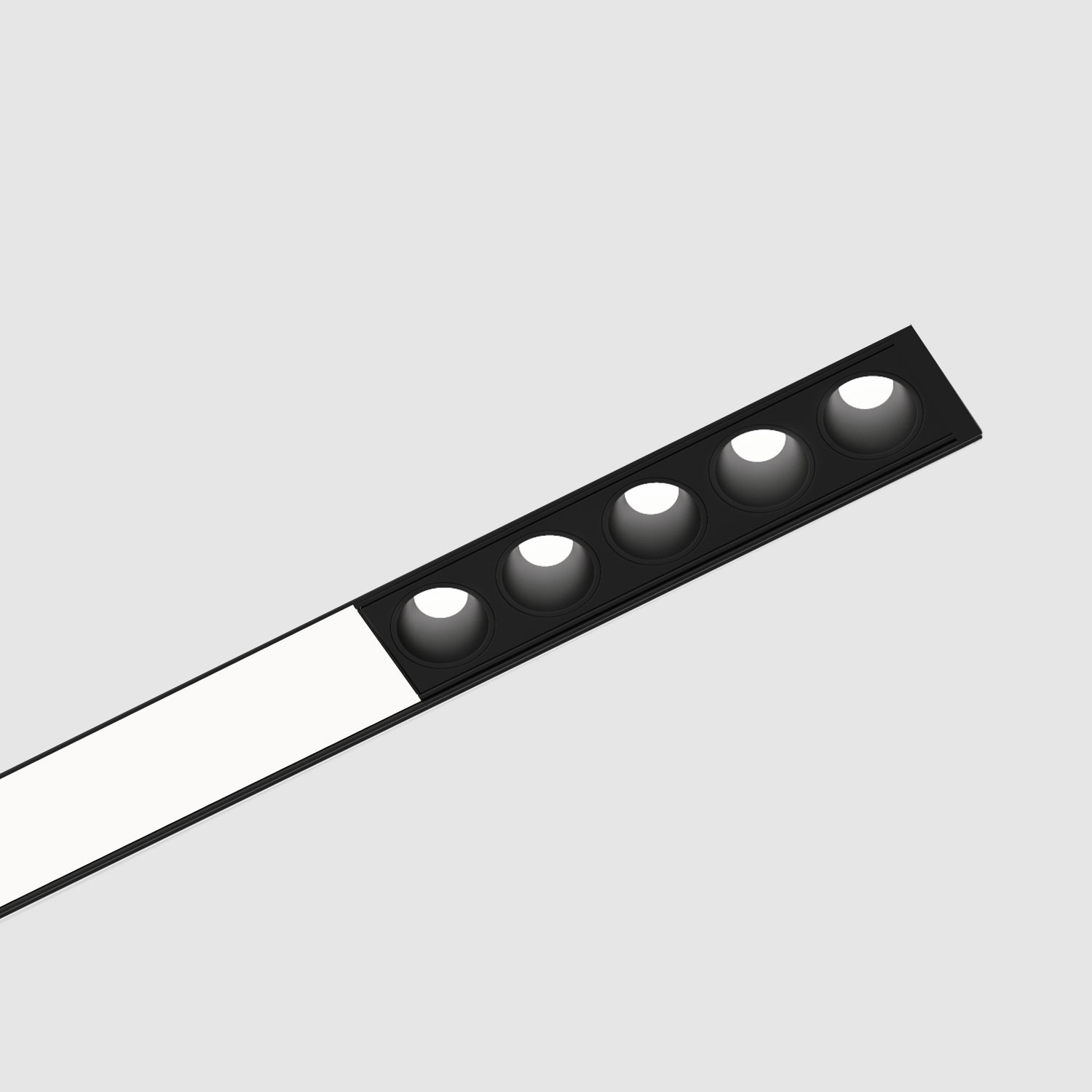

Specifications - Recessed Downlight
Product TypeLinear Sizes3 × 1 Cells, 5 × 1 Cells, 10 × 1 Cells OpticsREF, SOF CCT/Light & ColorStatic White MountingRecessed Distribution TypeDirect
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics
REF

The Sharp Edge Downlight creates dramatic impact by limiting light spread outside the primary beam. A molded conical reflector redirects light from each emitter into the desired beam angle, while a 0.5″ reflective square louver provides cutoff with a UGR of 10. Three different TIR elements offer a choice of beam spreads: 15° spot (SPT), 30° flood (FLD), or 45° wide flood (WFL).

SOF

Soft Edge Downlight blends light into darker areas for a gentle brightness transition. Each LED emitter directs light through a custom-molded circular optic using total internal reflection (TIR) to shape the beam. A 0.5″ reflective square louver provides cutoff with a UGR of 10, and three TIR elements allow selectable beam spreads: 25° Narrow Flood (NFL), 35° Flood (FLD), or 55° Wide Flood (WFL).

Cluster Combinations

Downlight – Pendant, Recessed, Surface

Cluster Combinations integrate miniature optical elements, linear HLO lighting and blank unlit panels, within a narrow, 1.5″ extruded channel. Compatible optics include downlight, parabolic, and wall wash options in 3-, 5-, and 10-cell configurations, with all applicable beam spreads and aperture finishes. Cluster Combinations can run any length from 4’ onward and can be recessed, surface-mounted, or pendant-mounted with on-board drivers.

Product Downloads

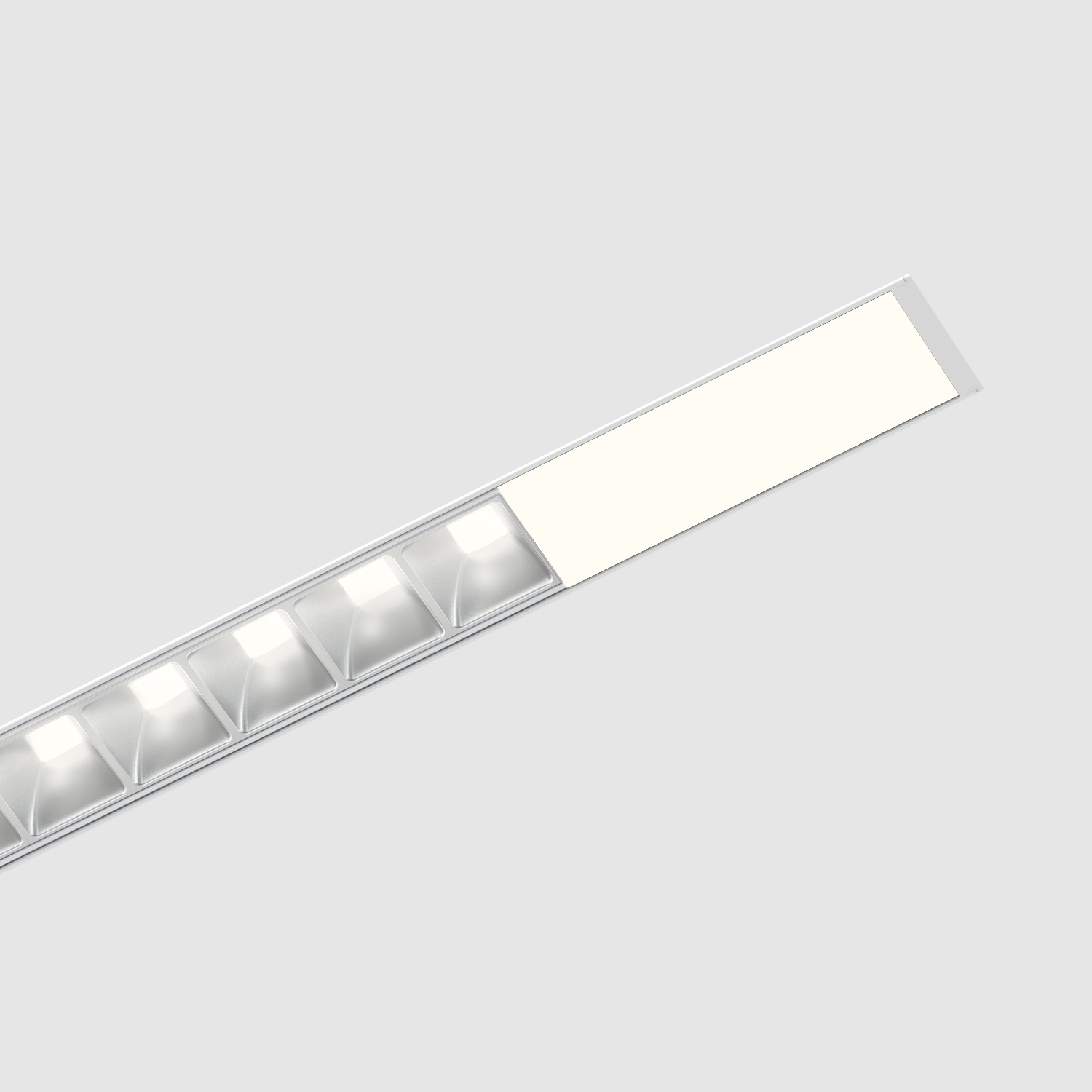

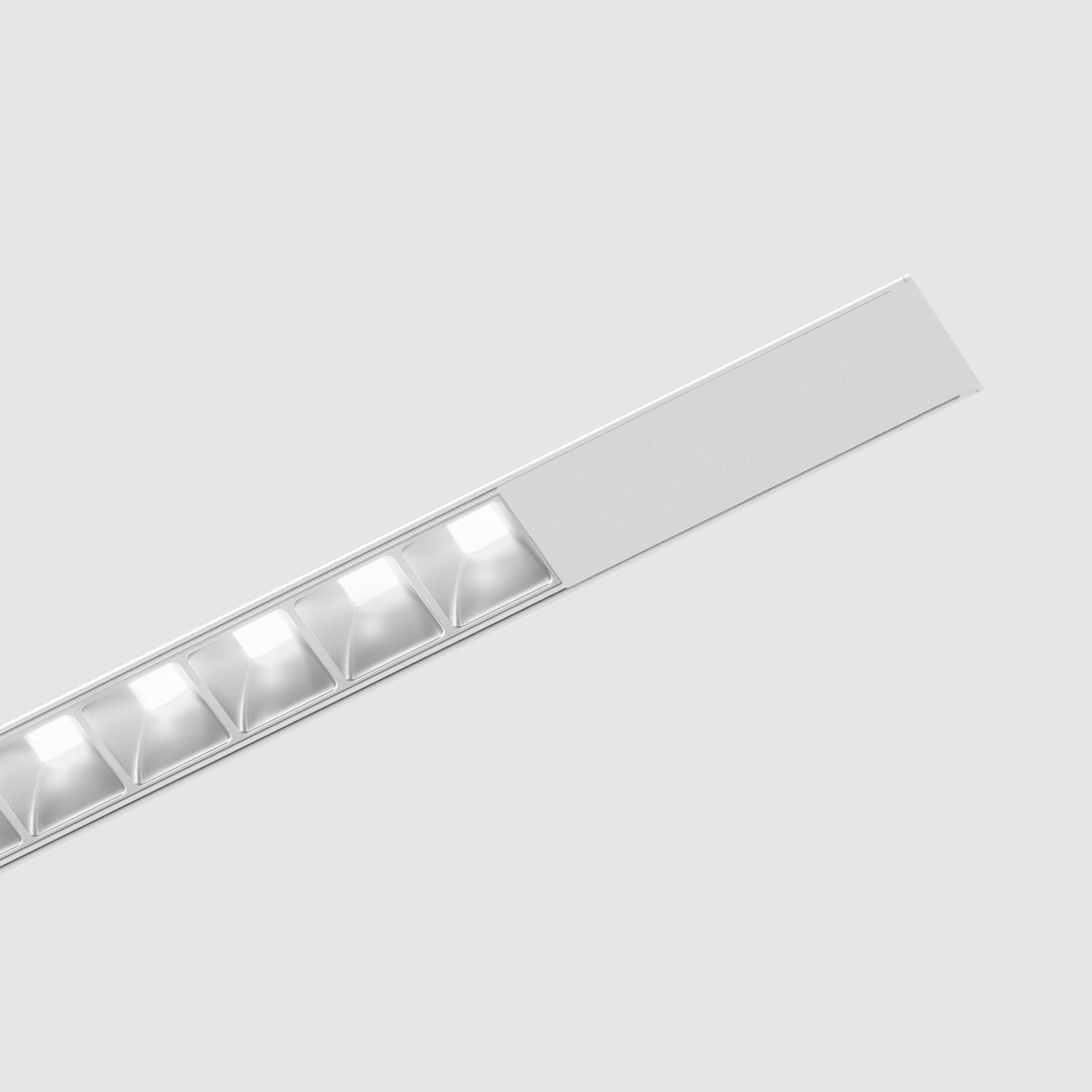

Specifications - Recessed Parabolic
Product TypeLinear Sizes3 × 1 Cells, 5 × 1 Cells, 10 × 1 Cells, 15 × 1 Cells OpticsPAR, BPL, MPL, SPL, WPL CCT/Lights & ColorsDim to Warm (Sola), Tunable White (Duo) MountingRecessed Distribution TypeDirect
Light Source
Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
PAR

Parabolic louver optics provide excellent shielding and a pleasing crisp visual texture. The parabolic contour of the blades and side reflectors direct light into a comfortable downlight distribution, while minimizing shadows from the LED array above each cell. Four finishes are available. Specular Aluminum (SPL), Matte Aluminum (MPL), Matte White (WPL) and Matte Black (BPL).

BPL

Matte Black

MPL

Matte Aluminum Parabolic Louver

SPL

Specular Aluminum

WPL

Matte White

Cluster Combinations

Downlight – Pendant, Recessed, Surface

Cluster Combinations integrate miniature optical elements, linear HLO lighting and blank unlit panels, within a narrow, 1.5″ extruded channel. Compatible optics include downlight, parabolic, and wall wash options in 3-, 5-, and 10-cell configurations, with all applicable beam spreads and aperture finishes. Cluster Combinations can run any length from 4’ onward and can be recessed, surface-mounted, or pendant-mounted with on-board drivers.

Product Downloads

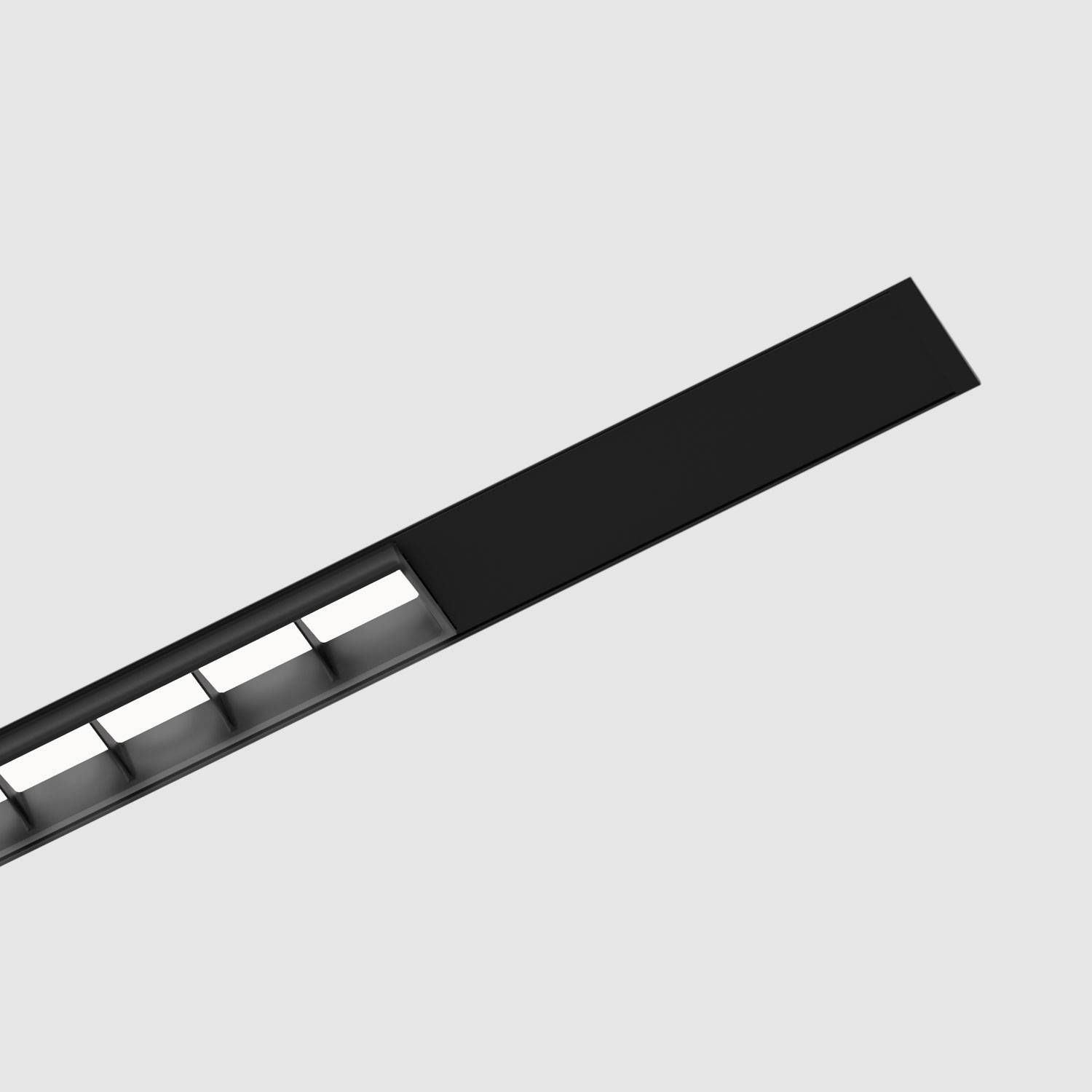

Specifications - Recessed Wall Wash
Product TypeLinear Sizes3 × 1 Cells, 5 × 1 Cells, 10 × 1 Cells OpticWRO CCT/Light & ColorStatic White MountingRecessed Distribution TypeWall Wash
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Optics
WRO

Wall Wash Reflector Optics (WRO) – Cluster Wall Wash linear optics use multiple mid-flux emitters in a continuous array, supported by an angled board. An aluminum reflector collects and redirects emitter flux, while a refractive film adjusts both vertical and horizontal intensity and eliminates the source image. The result is excellent uniformity up and down the wall, as well as between luminaires.

CELL CONFIGURATIONS

3 × 1 Cell
5 × 1 Cells
10 × 1 Cells
15 × 1 Cells

CLUSTER TYPE

Linear

MOUNTINGS

Pendant
Recessed
Surface

Cluster Combinations Options

Pendant Downlight

Pendant Parabolic

Pendant Wall Wash

Recessed Downlight

Recessed Parabolic

Recessed Wall Wash

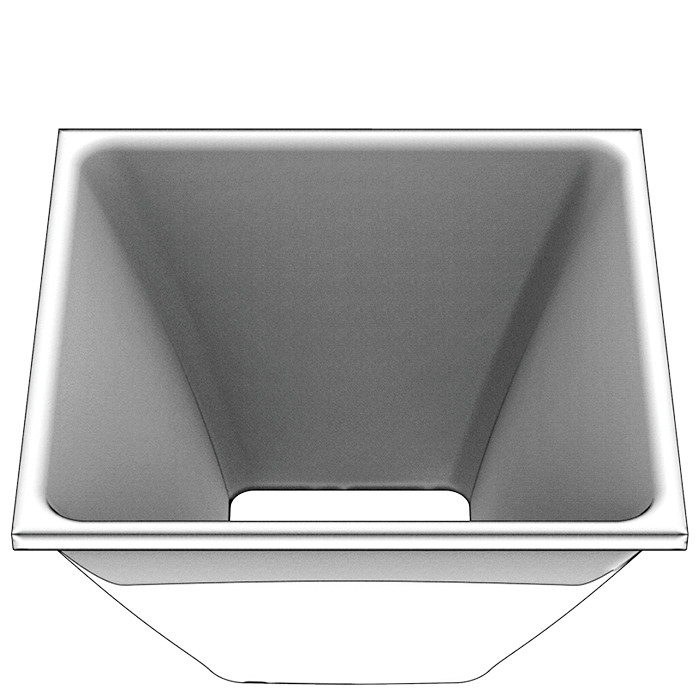

Parabolic Louvers

PL – Parabolic Louver

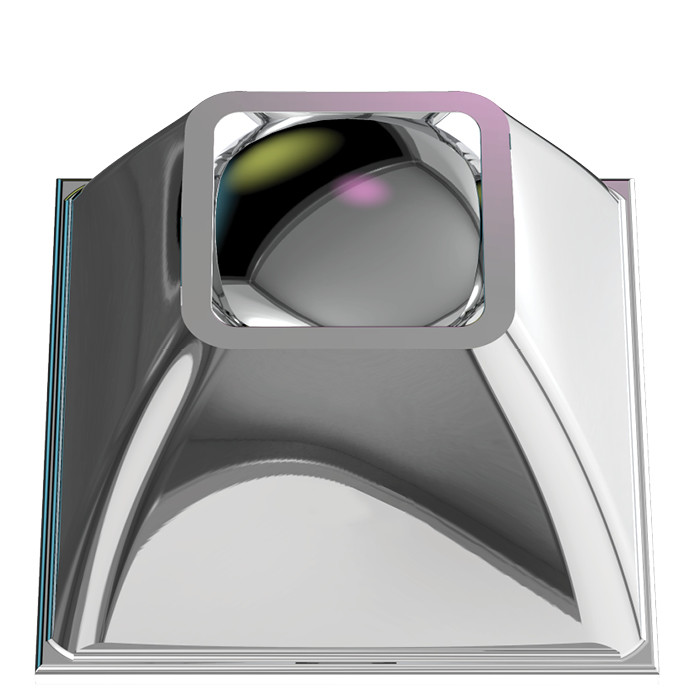

SPL – Specular Aluminum

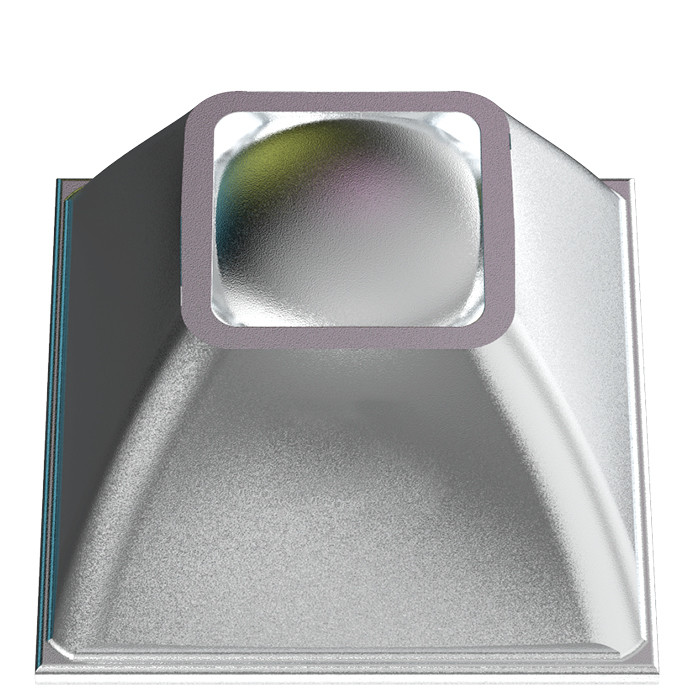

MPL – Matte Aluminum

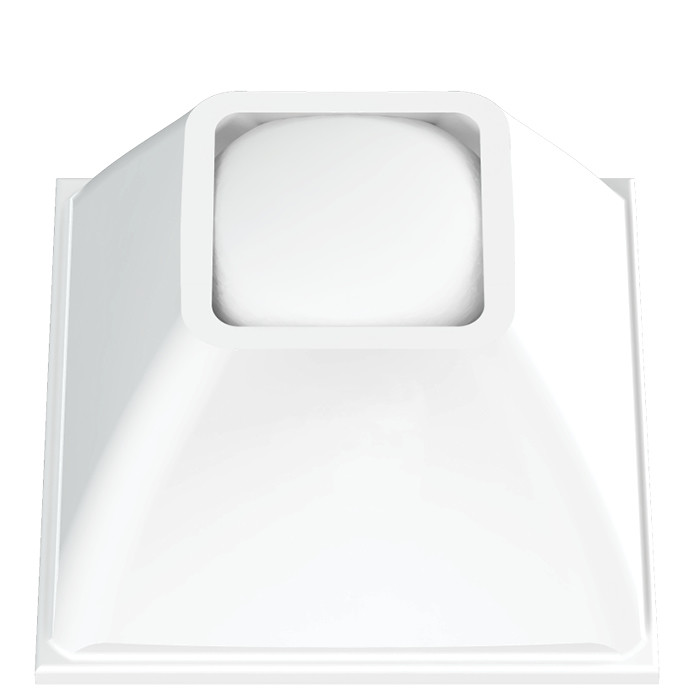

WPL – Matte White

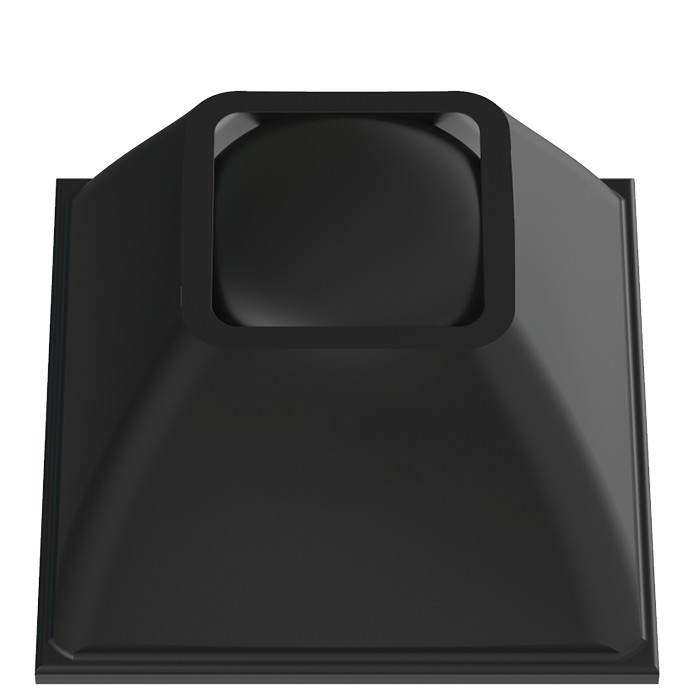

BPL – Matte Black

Soft-Edge & Sharp-Edge Downlights

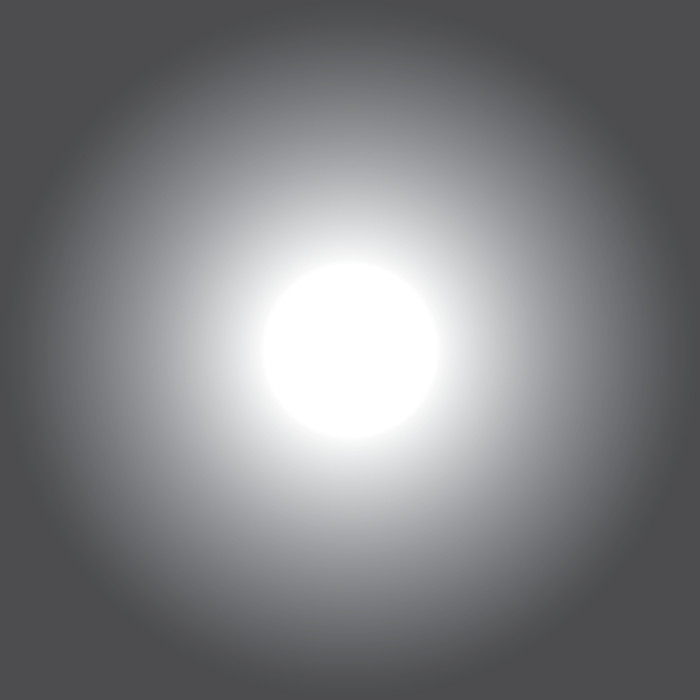

SOF – Soft-Edge Downlight

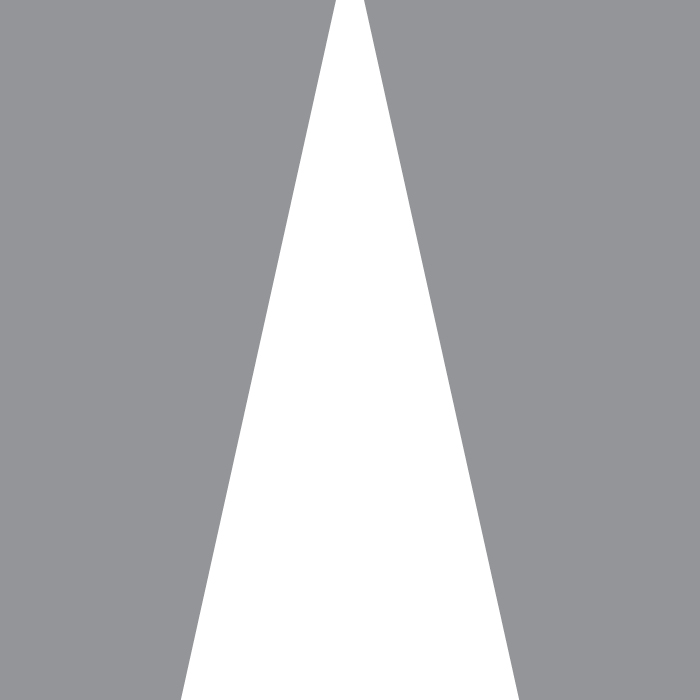

NFL – Narrow Flood 25º

Soft-Edge

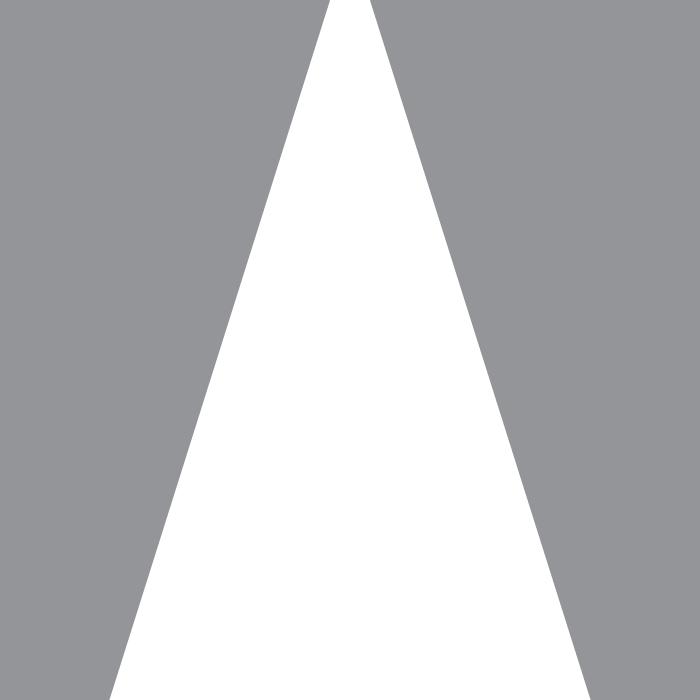

FLD – Flood 35º

Soft-Edge

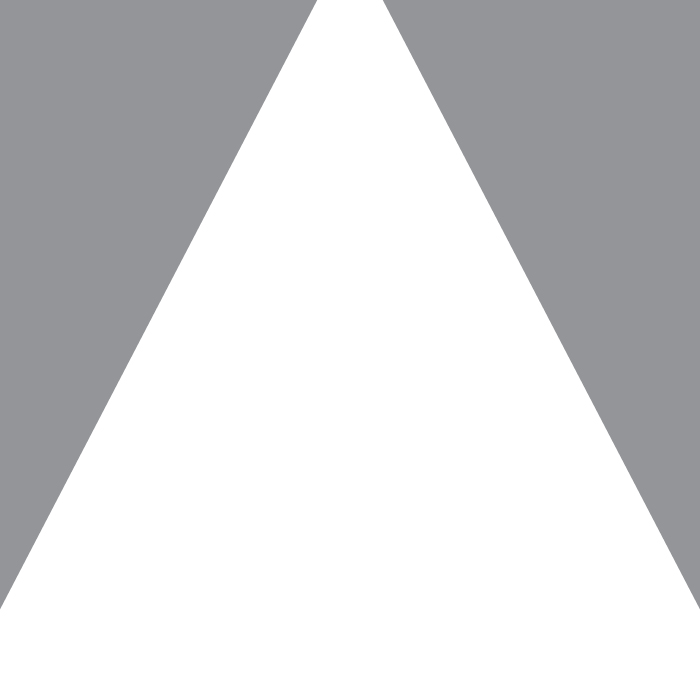

WFL – Wide Flood 55º

Soft-Edge

REF – Sharp-Edge Downlight

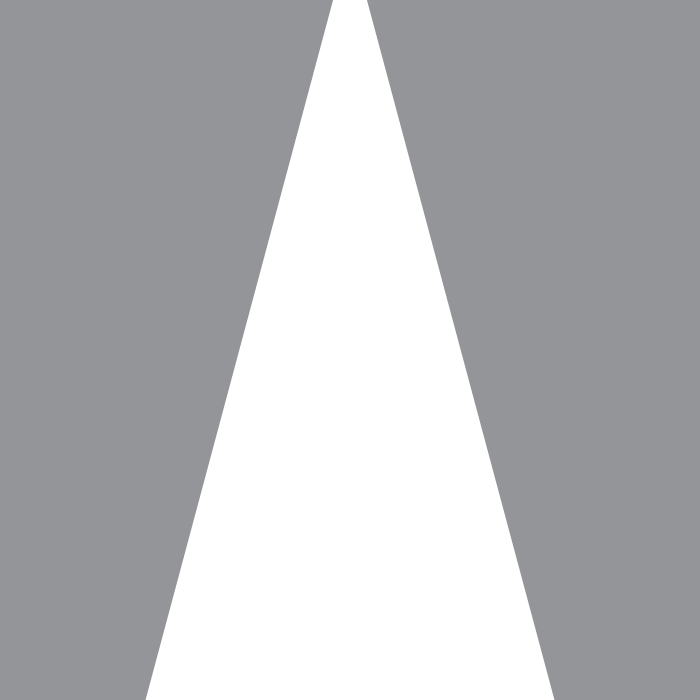

FLD – Flood 30º

Sharp-Edge

FLD – Flood 35º

Sharp-Edge

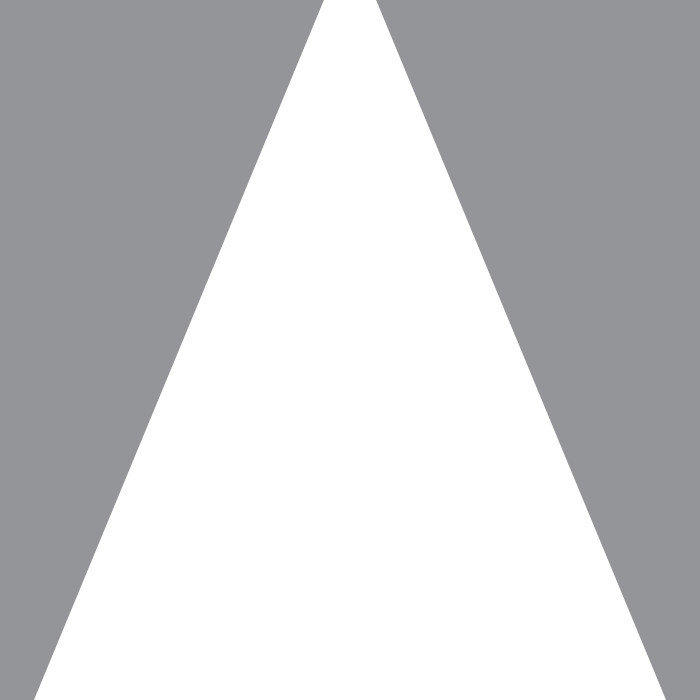

WFL – Wide Flood 45º

Sharp-Edge

Louver Shapes & Finishes

Louver is injection molded with integral texture and color.

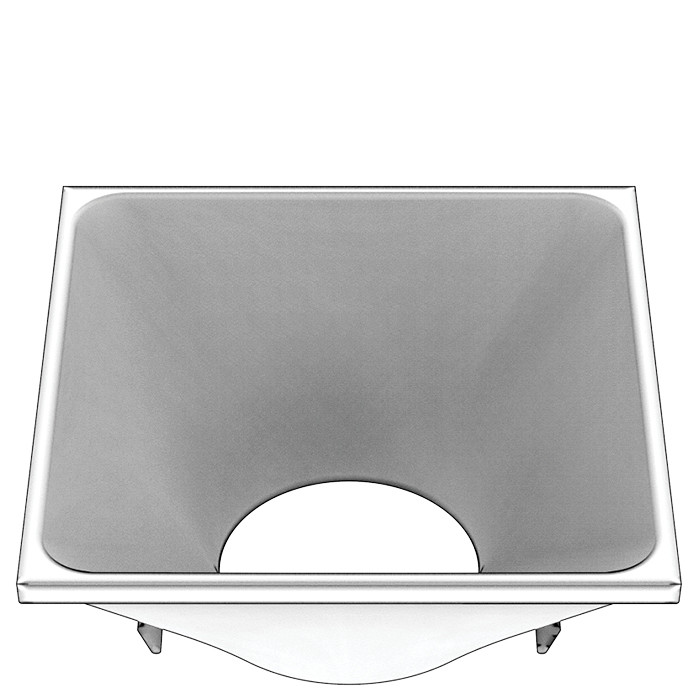

SQR – Square

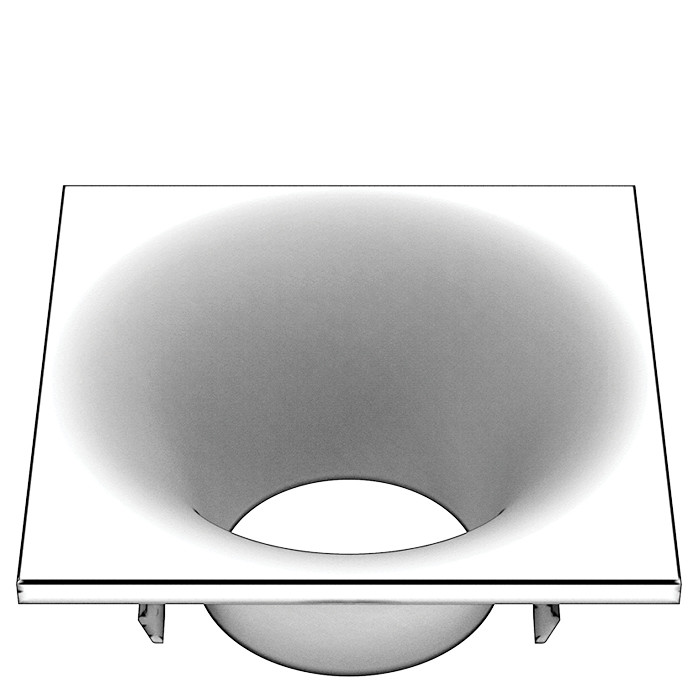

HYP – Hyperbolic

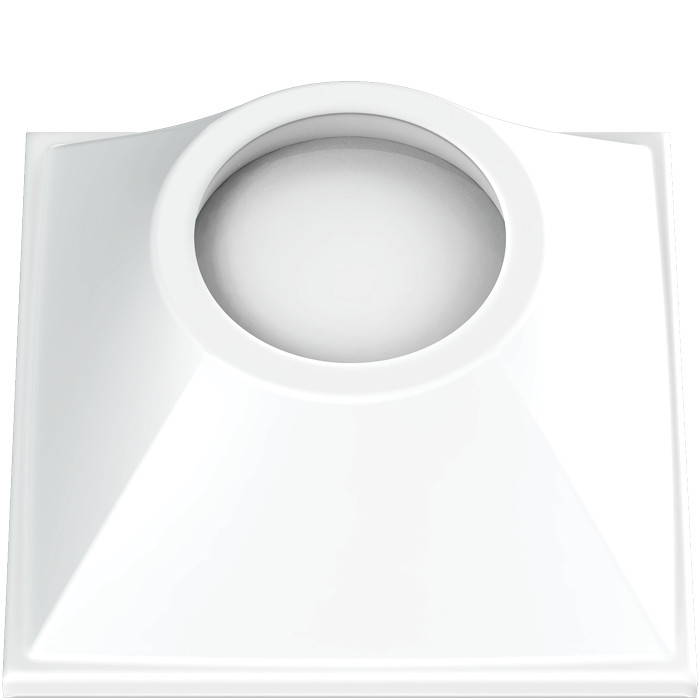

MF01 – Matte White

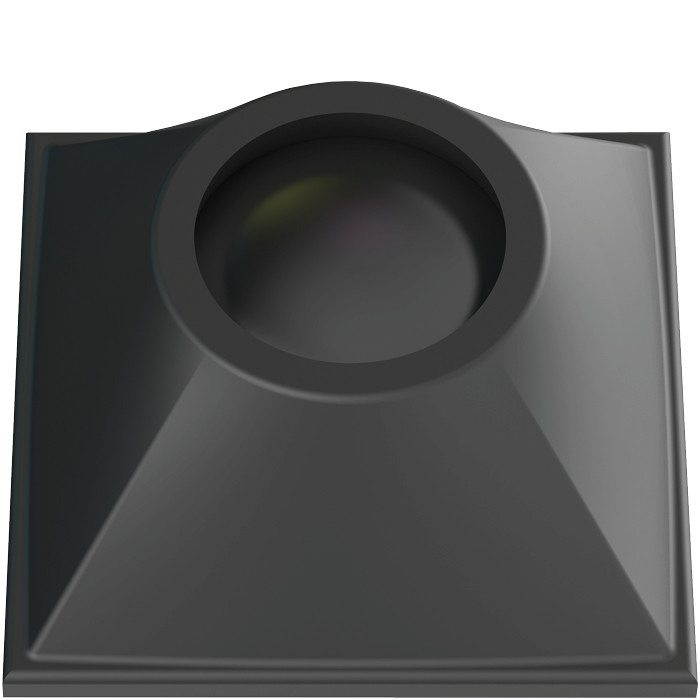

MF04 – Matte black

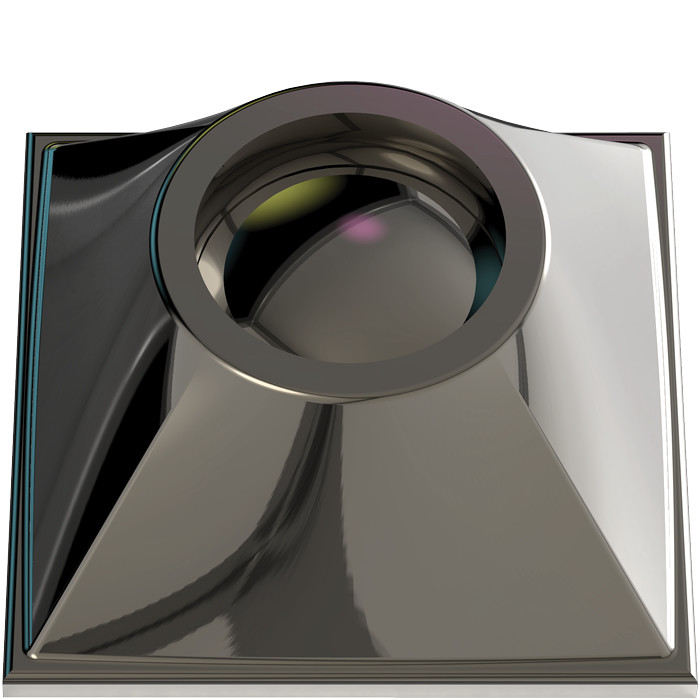

BL05 – Black Chrome

Wall Wash Louver Finishes

MF01 – Matte White

MF04 – Matte Black

Glare Control and URG

Very small sources of light can diminish visual comfort. The Universal Glare Rating (UGR) model assesses the glare from an installation of luminaires, based on the number and light distribution of the luminaires and the parameters of the space.

Ratings range from 5 to 40; lower ratings are better. Cluster downlights achieve a UGR of 11-18, which is very comfortable and suitable for applications such as conference rooms, hospitality, and boutique retail.

Colors

Cluster systems are typically available in color temperatures ranging from 2700K, 3000K, 3500K, and 4000K, all with 90 CRI, providing rich color rendering. Tight color consistency is maintained within 2 SDCM.

Clusters with parabolic louvers are also available with ChromaWerx Sola and Duo. Sola provides a dim-to-warm effect, warming color temperature in a predetermined relationship as output dims. Duo provides a tunable white effect, with independent control of color temperature and light output. See specification sheets for details.

Related Projects

From illuminating retail and residential projects, to human-centric lighting for schools and offices, explore our recent projects and learn how purposeful, intentional lighting can transform any space.

NFL Headquarters

Location Los Angeles, California, U.S. Project TypePublic Space, Sports & Entertainment

Supernal

Location Irvine, California, U.S. Project TypeOffice

Inspiration Gallery

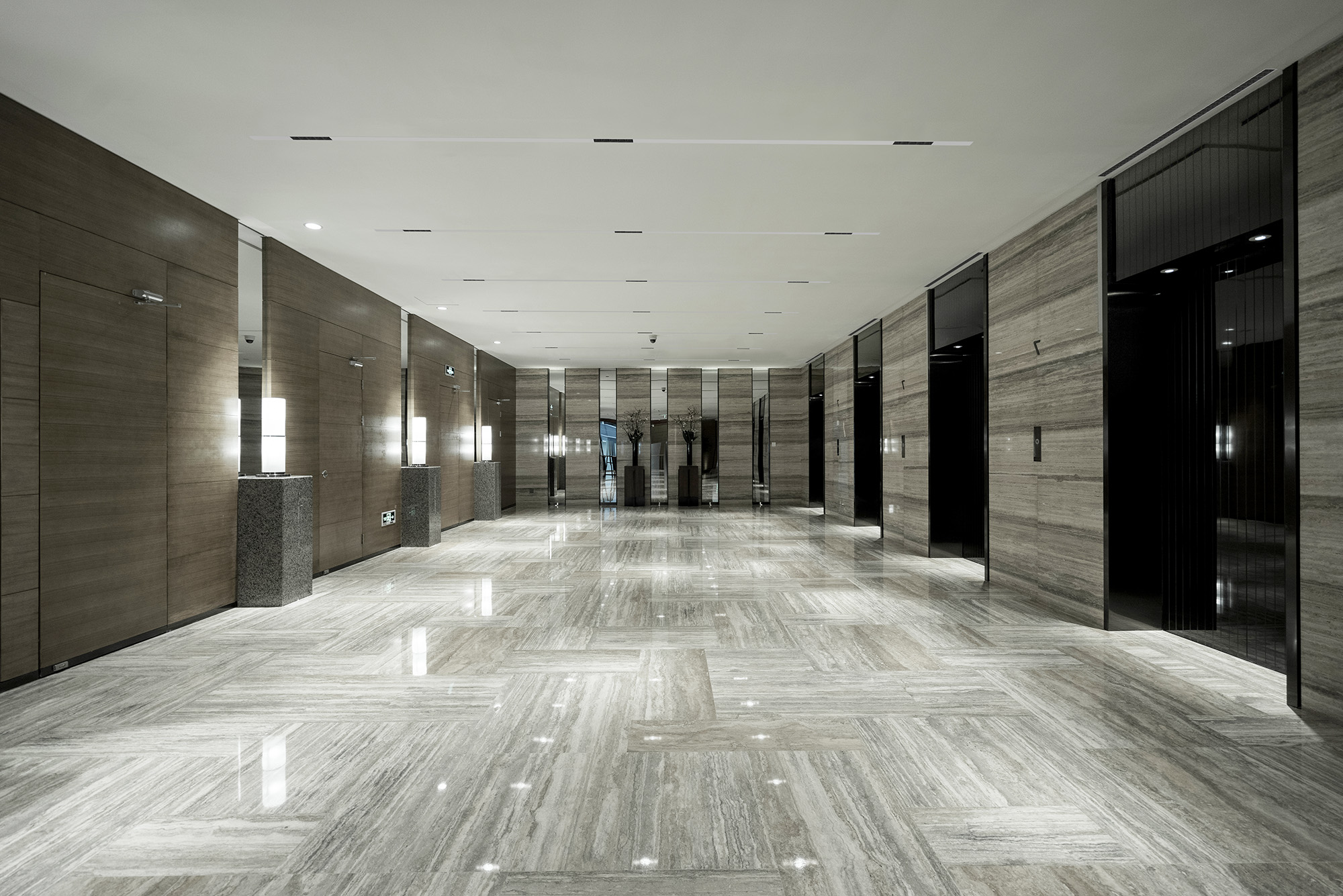

Recessed clusters combination
