Pendant Combination
Recessed Combination
Surface Combination

Pendant Combination
Recessed Combination
Surface Combination

Via 2 Prism Combination

Pendant, Recessed, Surface

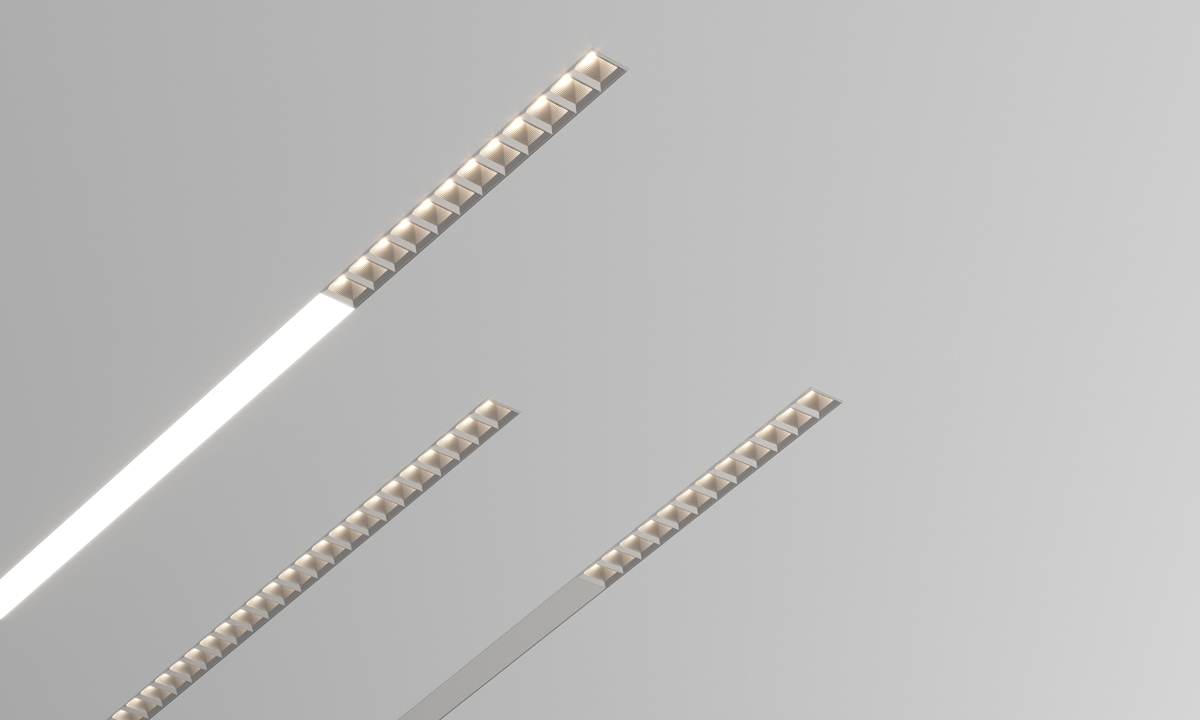

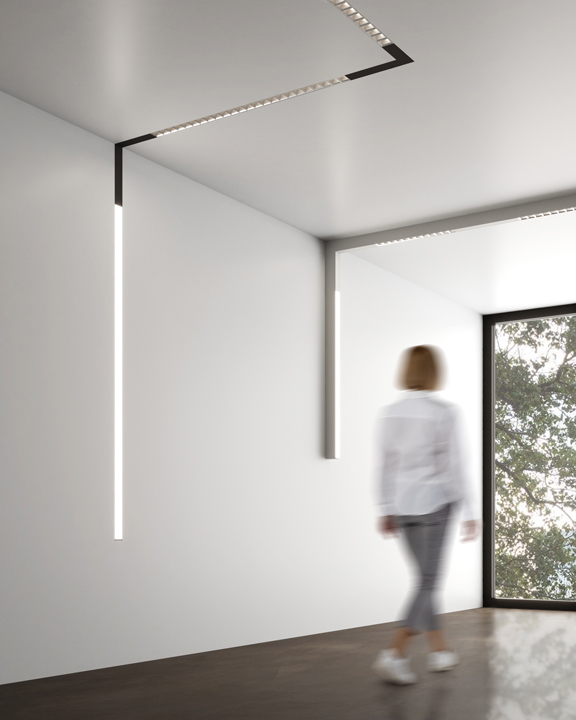

Via 2″ Prism Combination luminaires allow for the combining of different optics within the same fixture to enable the layering of lighting types (task, ambient, accent, etc.). In addition, different linear units can be joined at various angles to create Combination Pattern luminaires that can extend through corners and along the lengths of walls and/or ceilings, depending on the creative and structural requirements of the lighting design.

Specifications - Pendant Combination

Product TypeLinear SizesH 3 ¾", H 4 ½", W 2 ⅜" OpticsDPO, HLO, TIO, WAI2, WIO2 CCT/Lights & ColorsStatic White, Full-Spectrum MountingPendant LumenXpressYes Distribution TypesDirect, Direct/Indirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Full-Spectrum

Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.

Optics

DPO

The Diamond Prism Optic™ (DPO) is a patent-pending, three-tiered optic meticulously crafted to refract and reflect beams with high precision, minimizing glare while delivering light of exceptional quality and visual comfort.

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

TIO

The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.

WAI2

The Widespread Asymmetric Indirect Optic (WAI2) offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling with uplight while distributing the required illumination throughout the rest of the interior space. To minimize glare and enhance visual comfort, the WAI2 is an ideal solution.

WIO2

The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

Performance

UGR TABLE, VIA 2 PRISM WITH DPO™ TECHNOLOGY

Lumen Output (lm/ft)	Precision Specular	Matte Silver	Matte Black	Matte White
350 lm/ft	1.2	9.7	1.2	14.9
500 lm/ft	2.4	10.9	2.4	16.1
750 lm/ft	3.8	12.3	3.8	17.8
1000 lm/ft	4.8	13.3	N/A	18.8
1200 lm/ft	5.4	13.9	N/A	19.2

Via 2 Prism Combination

Pendant, Recessed, Surface

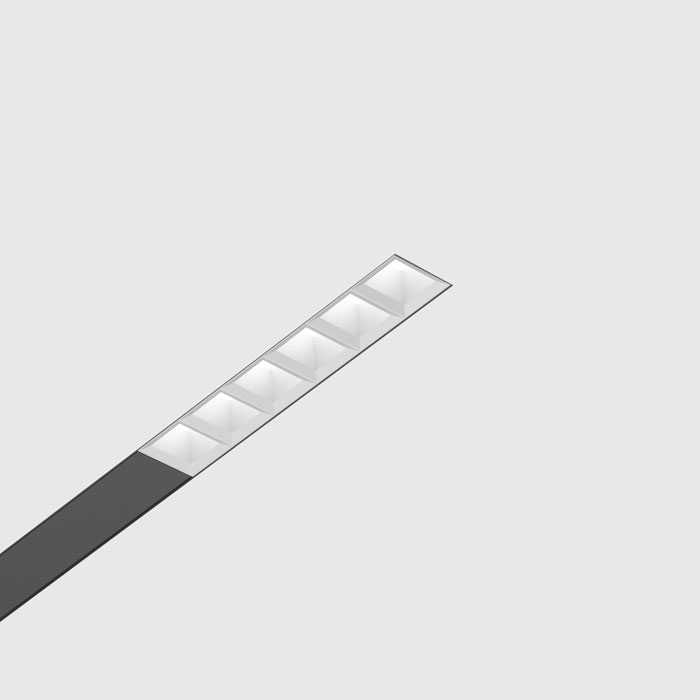

Specifications - Recessed Combination

Product TypeLinear SizesH 3 ¾", W 2 ⅜" OpticsDPO, HLO CCT/Lights & ColorsStatic White, Full-Spectrum MountingRecessed LumenXpressYes Distribution TypeDirect

Light Source

Static White

Full-Spectrum

Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.

Optics

DPO

HLO

Performance

UGR TABLE, VIA 2 PRISM WITH DPO™ TECHNOLOGY

Lumen Output (lm/ft)	Precision Specular	Matte Silver	Matte Black	Matte White
350 lm/ft	1.2	9.7	1.2	14.9
500 lm/ft	2.4	10.9	2.4	16.1
750 lm/ft	3.8	12.3	3.8	17.8
1000 lm/ft	4.8	13.3	N/A	18.8
1200 lm/ft	5.4	13.9	N/A	19.2

Via 2 Prism Combination

Pendant, Recessed, Surface

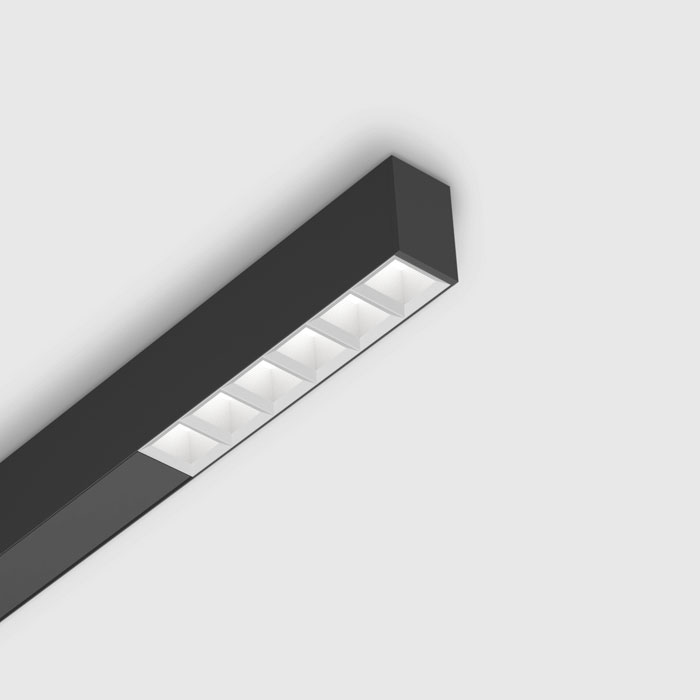

Specifications - Surface Combination

Product TypeLinear SizesH 3 ¾", W 2 ⅜" OpticsDPO, HLO CCT/Lights & ColorsStatic White, Full-Spectrum MountingSurface LumenXpressYes Distribution TypeDirect

Light Source

Static White

Full-Spectrum

Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.

Optics

DPO

HLO

Performance

UGR TABLE, VIA 2 PRISM WITH DPO™ TECHNOLOGY

Lumen Output (lm/ft)	Precision Specular	Matte Silver	Matte Black	Matte White
350 lm/ft	1.2	9.7	1.2	14.9
500 lm/ft	2.4	10.9	2.4	16.1
750 lm/ft	3.8	12.3	3.8	17.8
1000 lm/ft	4.8	13.3	N/A	18.8
1200 lm/ft	5.4	13.9	N/A	19.2

LOW UGR

<5

FEATURE

Patent Pending
DPO™ Technology

UP TO

150 lm/w

Via Low-Glare Optics

Engineered optics that meet today’s architectural demands with performance, precision, and visual comfort.

Diamond Prismatic Optic

The Diamond Prism Optic™ (DPO™) is a sophisticated prismatic optic engineered for gentle, glare-free lighting in direct distribution. With DPO™, light appears to wrap around subjects and tasks to create subtle, soft-edged graduated shadows.
