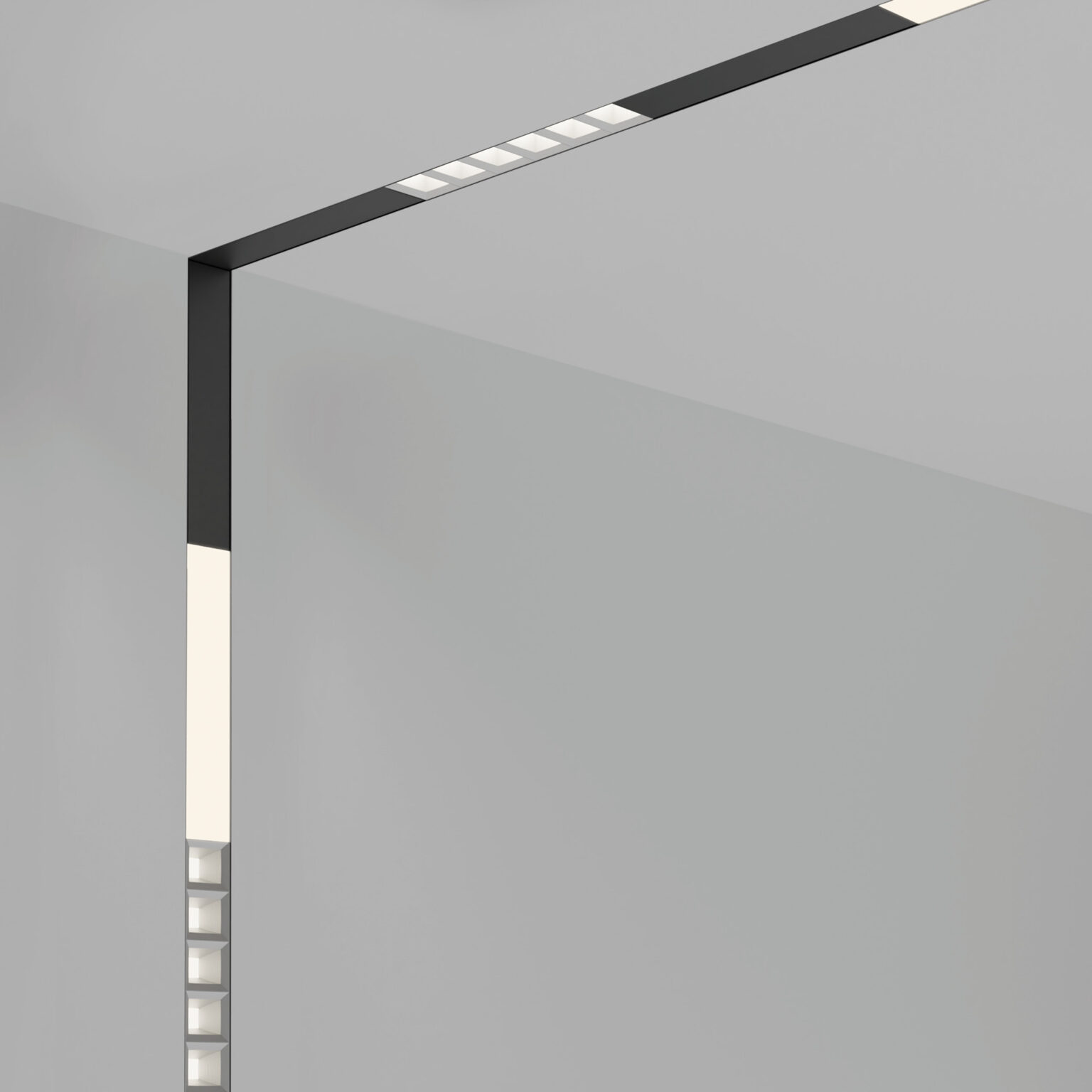

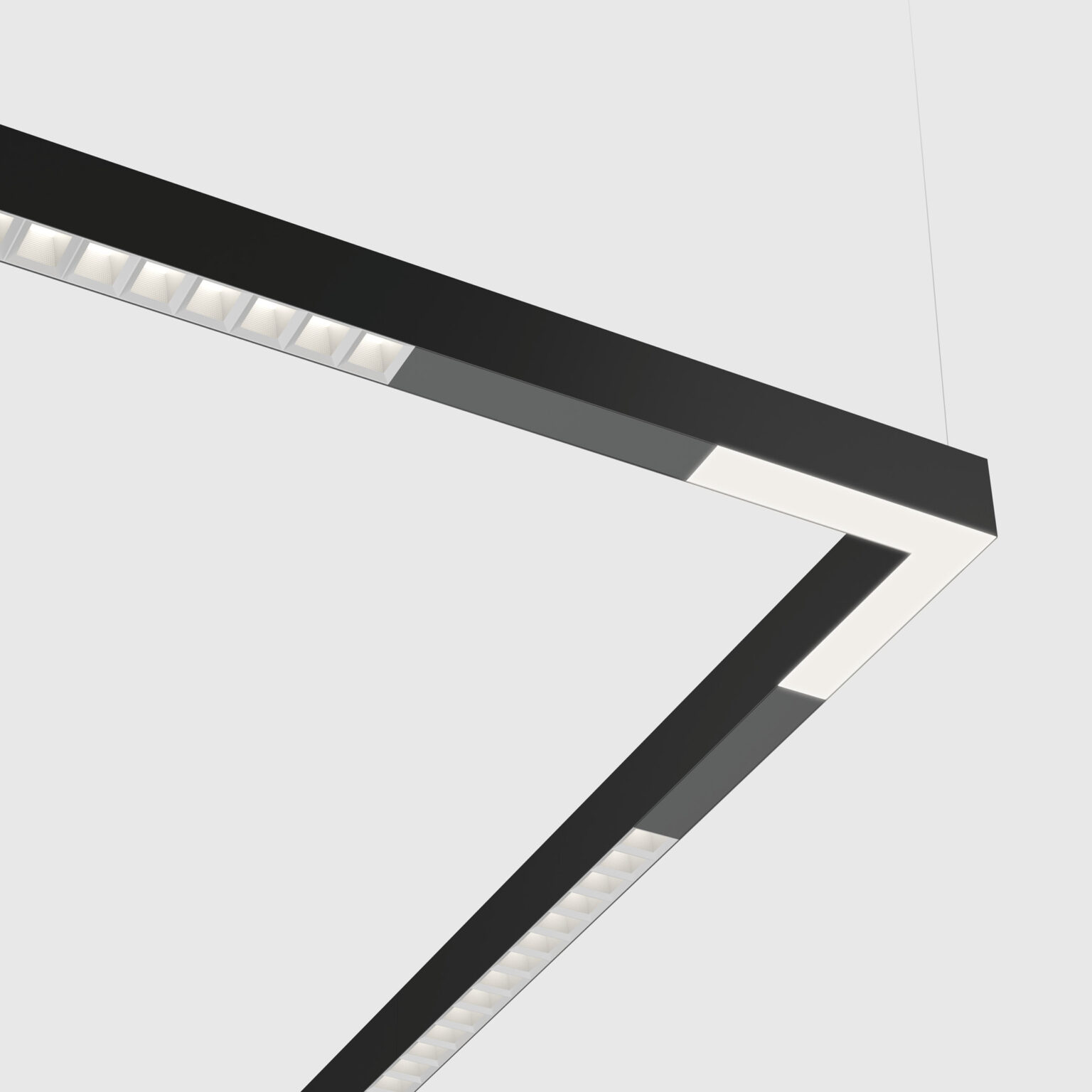

Based on the design of our successful Via product line, the Via 2″ Prism pushes technological boundaries with a Diamond Prism Optic™ (DPO™). This sophisticated innovation delivers soft, glare-free lighting that wraps around subjects, casting subtle shadows. At 2″ wide, the Via 2″ Prism offers outstanding efficacy of up to 150 lm/W and an industry-topping UGR of <5.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.

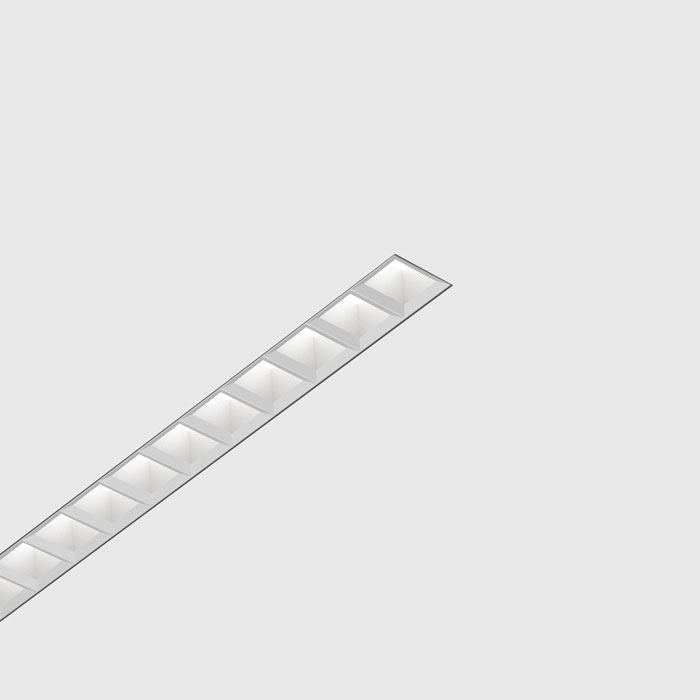

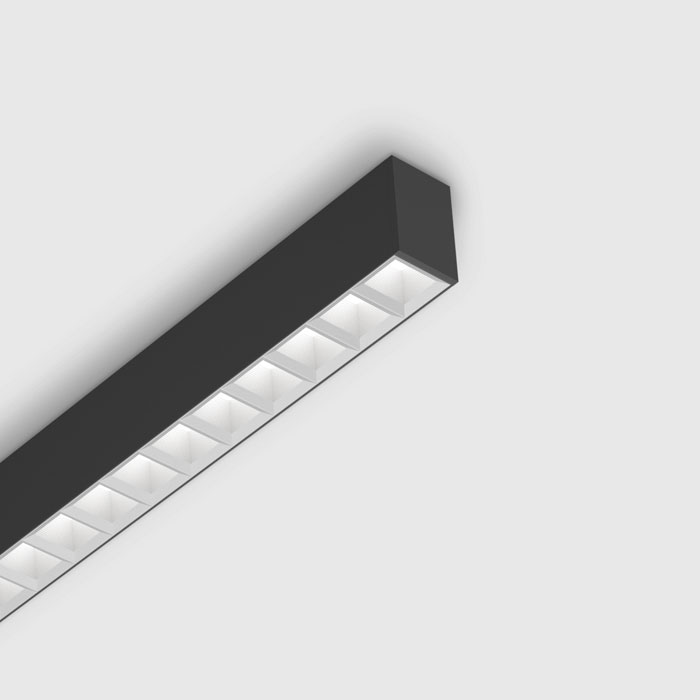

The Diamond Prism Optic™ (DPO) is a patent-pending, three-tiered optic meticulously crafted to refract and reflect beams with high precision, minimizing glare while delivering light of exceptional quality and visual comfort.
The Translucent Indirect Optic (TIO) is composed of a horizontal LED array with a translucent lens that masks pixelation from the diodes. The TIO provides a 100° indirect spread, making it ideal when the fixture is mounted farther from the ceiling.
The Widespread Asymmetric Indirect Optic (WAI2) offers an upward grazing effect with a 45° forward throw. It softly highlights the ceiling with uplight while distributing the required illumination throughout the rest of the interior space. To minimize glare and enhance visual comfort, the WAI2 is an ideal solution.
The Widespread Indirect Optic (WIO2) is a horizontal LED array with a widespread indirect micro-prismatic optic that offers an impressive 160° spread. The WIO2 provides even illumination for smooth ceiling brightness, achieving uniformity ratios of up to 2:1.

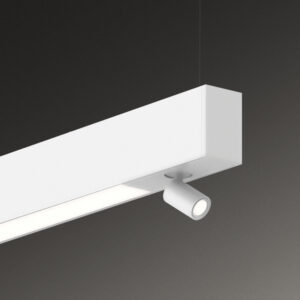

Via 1.5 and 2 can house Micro Spot modules with 25° to 50° beam angles, for general and accent illumination.
UGR TABLE, VIA 2 PRISM WITH DPO™ TECHNOLOGY

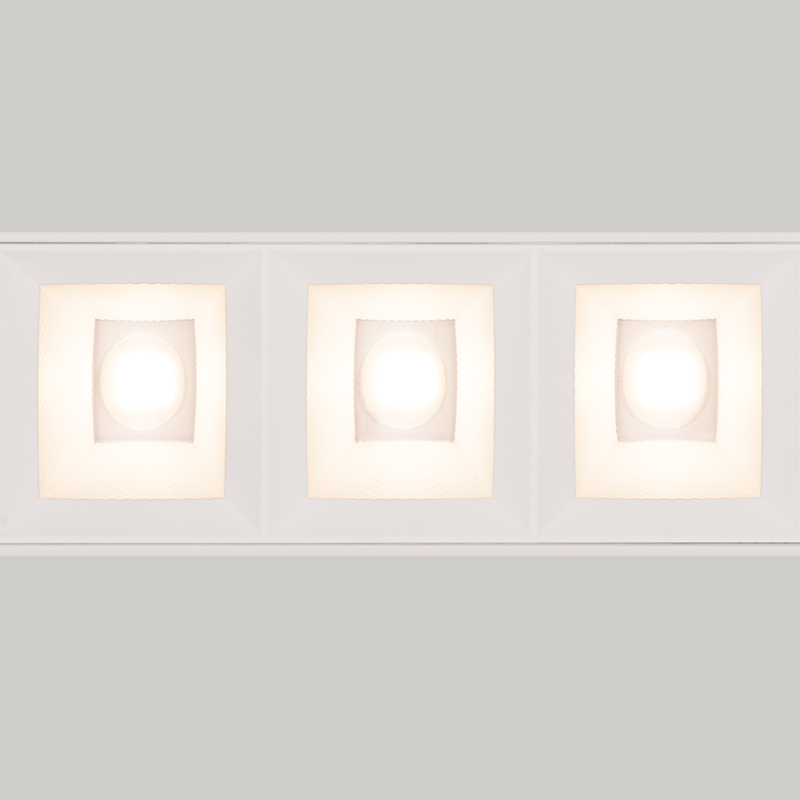

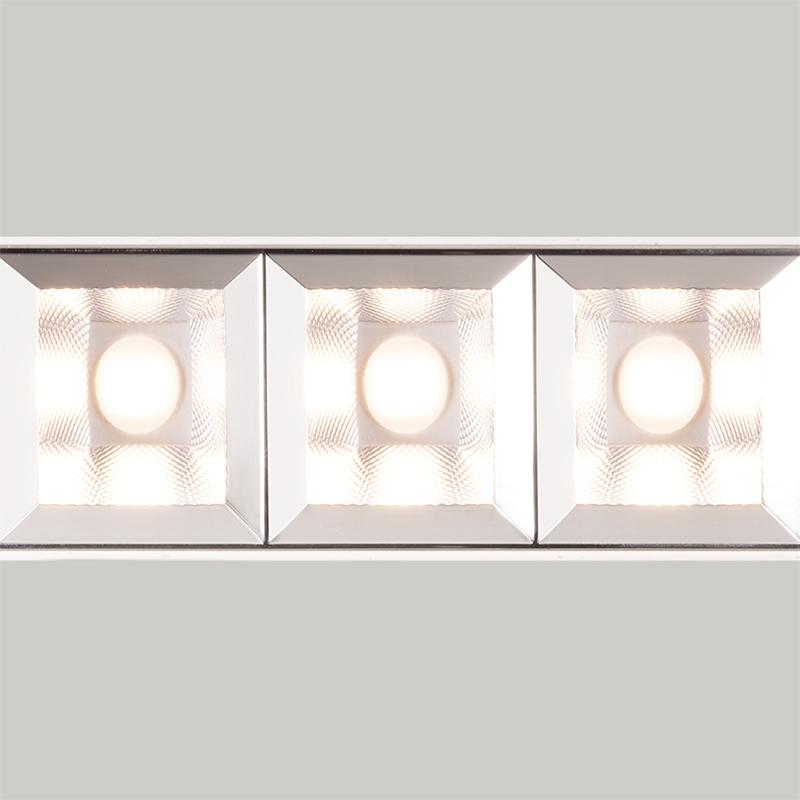

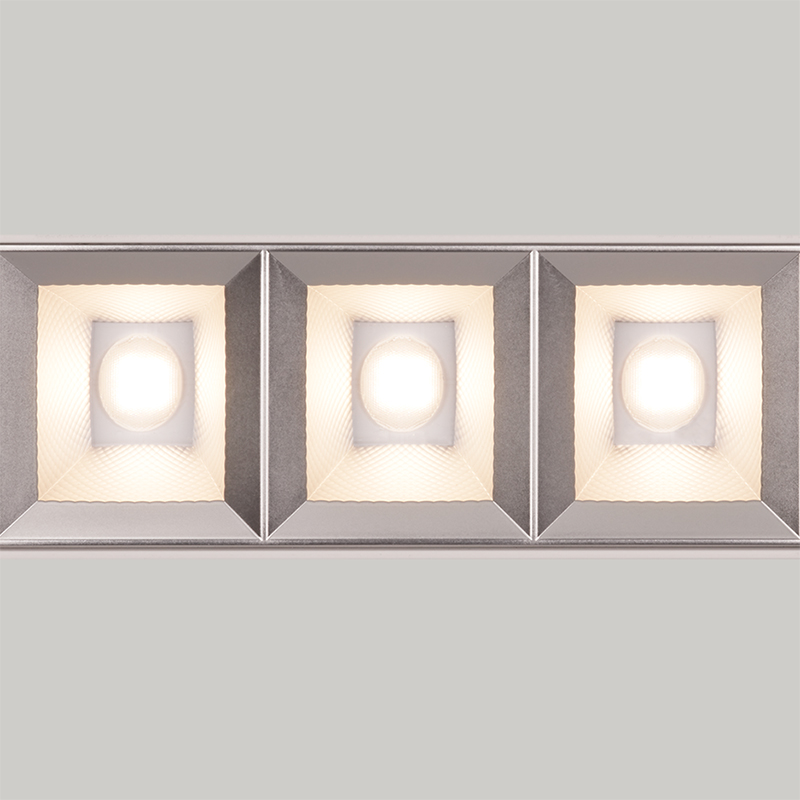

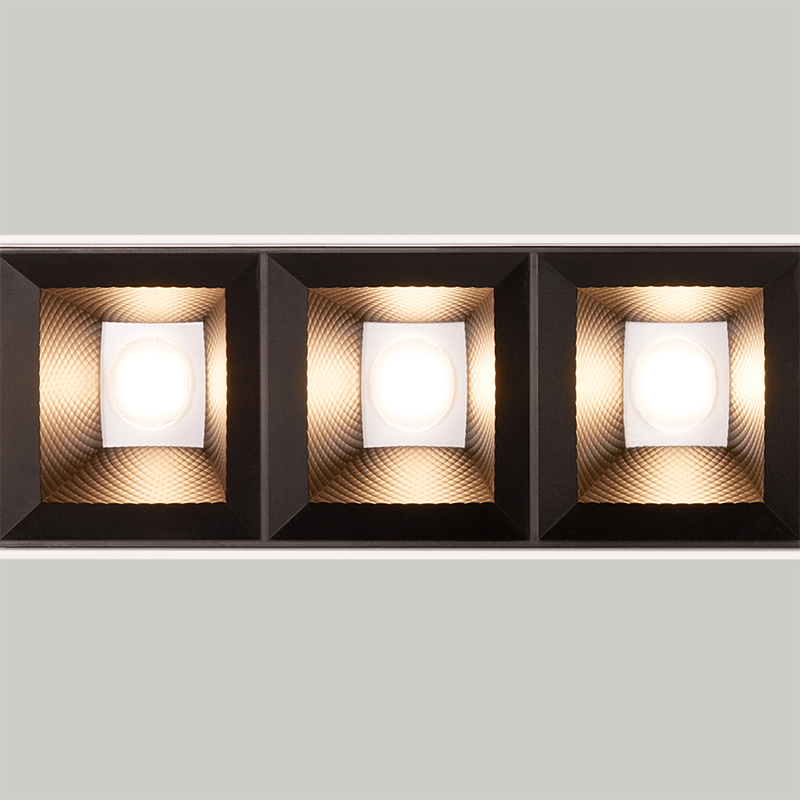

| Lumen Output (lm/ft) | Precision Specular | Matte Silver | Matte Black | Matte White |
|---|---|---|---|---|
| 350 lm/ft | 1.2 | 9.7 | 1.2 | 14.9 |
| 500 lm/ft | 2.4 | 10.9 | 2.4 | 16.1 |
| 750 lm/ft | 3.8 | 12.3 | 3.8 | 17.8 |
| 1000 lm/ft | 4.8 | 13.3 | N/A | 18.8 |
| 1200 lm/ft | 5.4 | 13.9 | N/A | 19.2 |
Based on the design of our successful Via product line, the Via 2″ Prism pushes technological boundaries with a Diamond Prism Optic™ (DPO™). This sophisticated innovation delivers soft, glare-free lighting that wraps around subjects, casting subtle shadows. At 2″ wide, the Via 2″ Prism offers outstanding efficacy of up to 150 lm/W and an industry-topping UGR of <5.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.
The Diamond Prism Optic™ (DPO) is a patent-pending, three-tiered optic meticulously crafted to refract and reflect beams with high precision, minimizing glare while delivering light of exceptional quality and visual comfort.
Via 1.5 and 2 can house Micro Spot modules with 25° to 50° beam angles, for general and accent illumination.
UGR TABLE, VIA 2 PRISM WITH DPO™ TECHNOLOGY
| Lumen Output (lm/ft) | Precision Specular | Matte Silver | Matte Black | Matte White |
|---|---|---|---|---|
| 350 lm/ft | 1.2 | 9.7 | 1.2 | 14.9 |
| 500 lm/ft | 2.4 | 10.9 | 2.4 | 16.1 |
| 750 lm/ft | 3.8 | 12.3 | 3.8 | 17.8 |
| 1000 lm/ft | 4.8 | 13.3 | N/A | 18.8 |
| 1200 lm/ft | 5.4 | 13.9 | N/A | 19.2 |
Based on the design of our successful Via product line, the Via 2″ Prism pushes technological boundaries with a Diamond Prism Optic™ (DPO™). This sophisticated innovation delivers soft, glare-free lighting that wraps around subjects, casting subtle shadows. At 2″ wide, the Via 2″ Prism offers outstanding efficacy of up to 150 lm/W and an industry-topping UGR of <5.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.
The Diamond Prism Optic™ (DPO) is a patent-pending, three-tiered optic meticulously crafted to refract and reflect beams with high precision, minimizing glare while delivering light of exceptional quality and visual comfort.
Via 1.5 and 2 can house Micro Spot modules with 25° to 50° beam angles, for general and accent illumination.
UGR TABLE, VIA 2 PRISM WITH DPO™ TECHNOLOGY
| Lumen Output (lm/ft) | Precision Specular | Matte Silver | Matte Black | Matte White |
|---|---|---|---|---|
| 350 lm/ft | 1.2 | 9.7 | 1.2 | 14.9 |
| 500 lm/ft | 2.4 | 10.9 | 2.4 | 16.1 |
| 750 lm/ft | 3.8 | 12.3 | 3.8 | 17.8 |
| 1000 lm/ft | 4.8 | 13.3 | N/A | 18.8 |
| 1200 lm/ft | 5.4 | 13.9 | N/A | 19.2 |
Engineered optics that meet today’s architectural demands with performance, precision, and visual comfort.
The Diamond Prism Optic™ (DPO™) is a sophisticated prismatic optic engineered for gentle, glare-free lighting in direct distribution. With DPO™, light appears to wrap around subjects and tasks to create subtle, soft-edged graduated shadows.
