Alcove

Indirect

Alcove is a compact, high-performance luminaire that provides efficient asymmetric light distribution, measuring just 1-13/16″ in height by 3-7/8″ in depth. Alcove delivers optimal ceiling illumination with peak intensity of 110°, adjustable optics, light output from 350-1200 lm/ft, and efficacy up to 134 lm/W. Fixtures can be installed into site-built coves and other architectural enclosures as individual luminaires, or in continuous runs with quick-connect wiring. Driver and LED boards are accessible without removing the luminaire.

Product Downloads
Specifications - Indirect
Product TypeCove SizeW 3 ⅞" OpticAPO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo) MountingCove LumenXpressYes Distribution TypesIndirect, Asymmetric
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)
Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)
Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

Optics
APO

Cartridge-mounted linear LED arrays are paired with precisely formed specular and semi-specular reflectors for smooth light distribution and a 95º beam spread. The LED array is protected by a clear acrylic cover. Peak intensity occurs 30º below nadir, with a peak-to-zenith intensity ratio of 5.2:1.

MOUNTING

Installs in
Site-built Coves

OPTICS

Field Adjustable
Aiming

COMPACT

1 13/16″ x 3 7/8″

Adjustable Mounting Brackets

Mounting bracket raises the luminaire up to 3-5/16″, in 1/8″ increments.

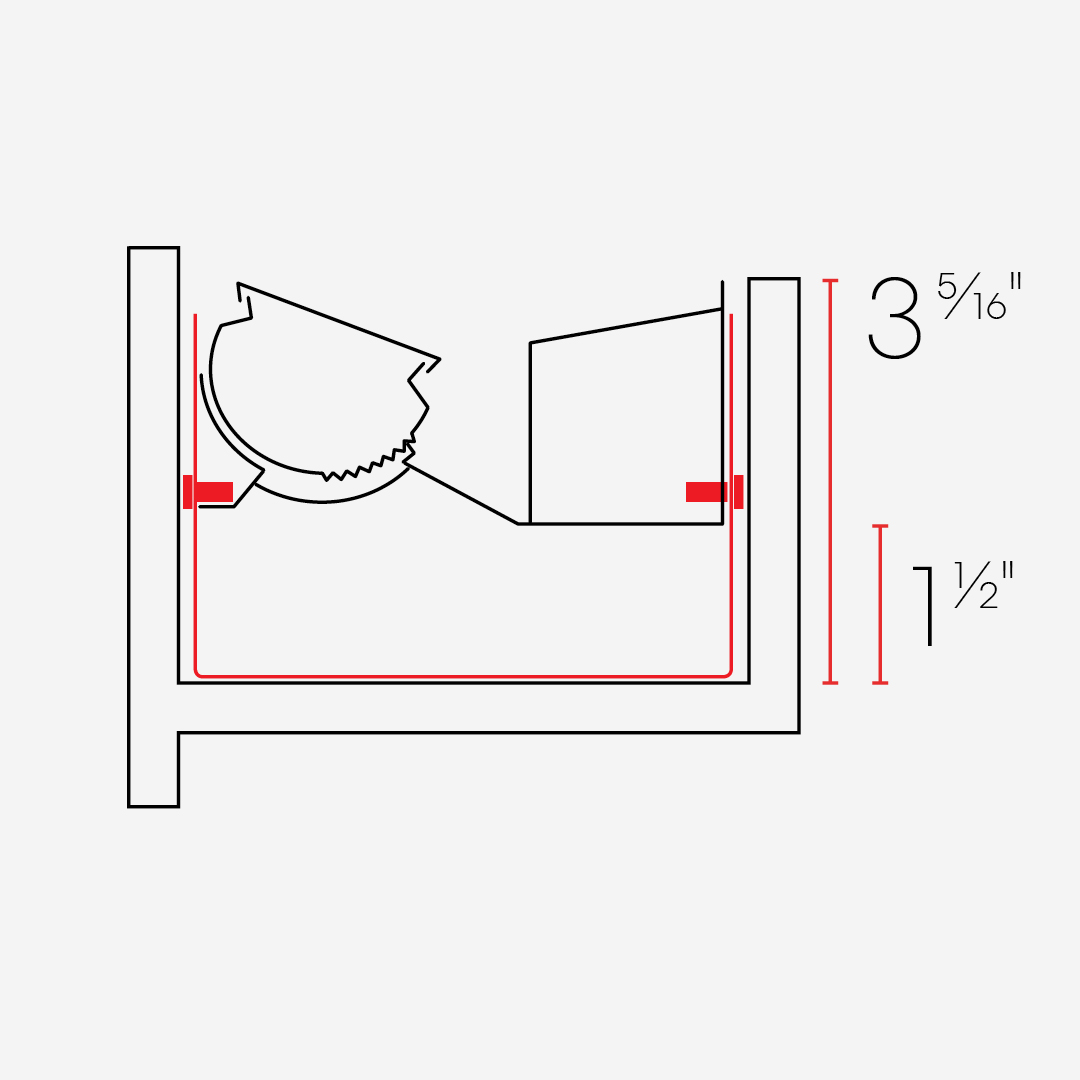

Adjustable_Mounting_Bracket_3 5/16" height

3 ⁵⁄₁₆" Height

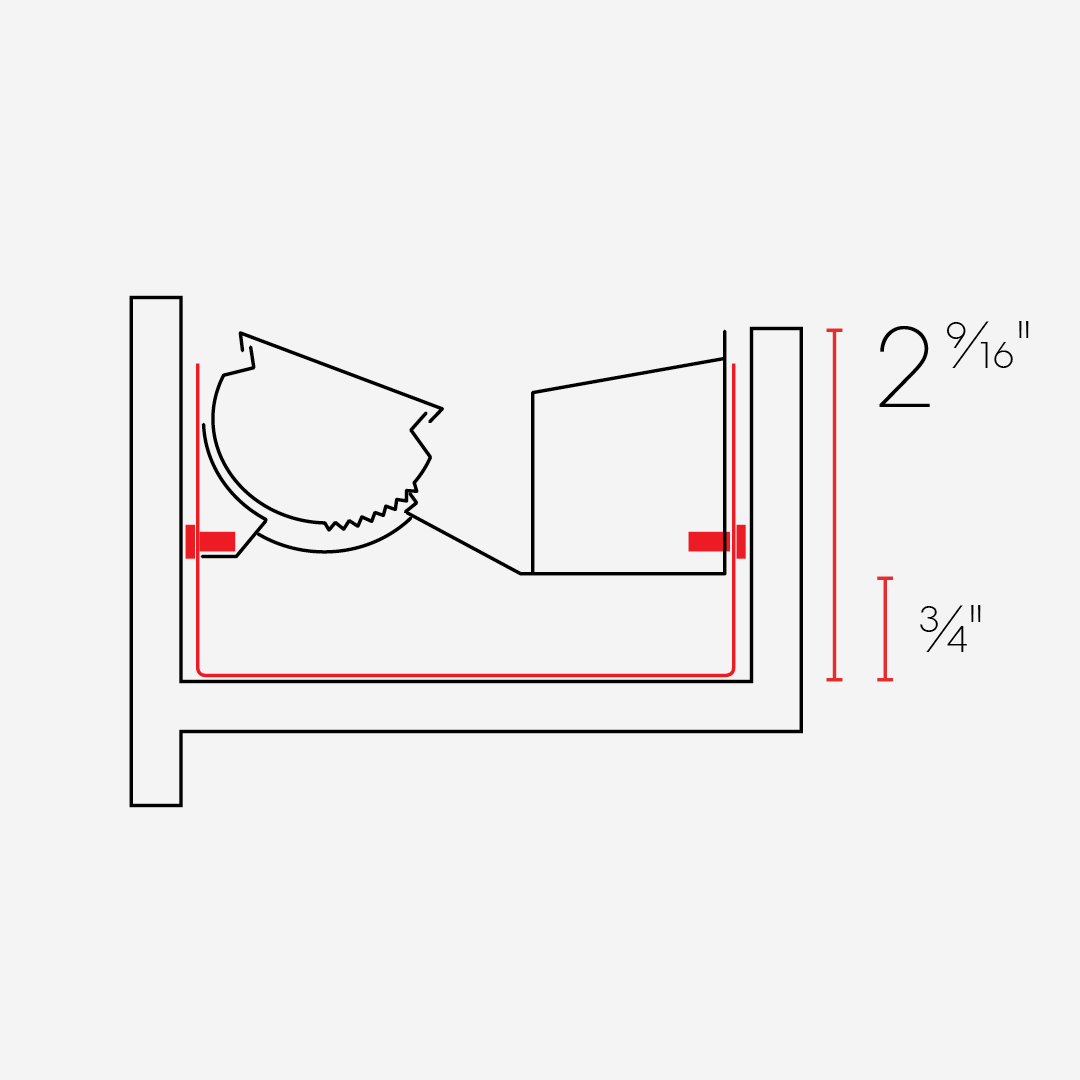

Adjustable_Mounting_Bracket 2 9/16" height

2 ⁹⁄₁₆″ Height

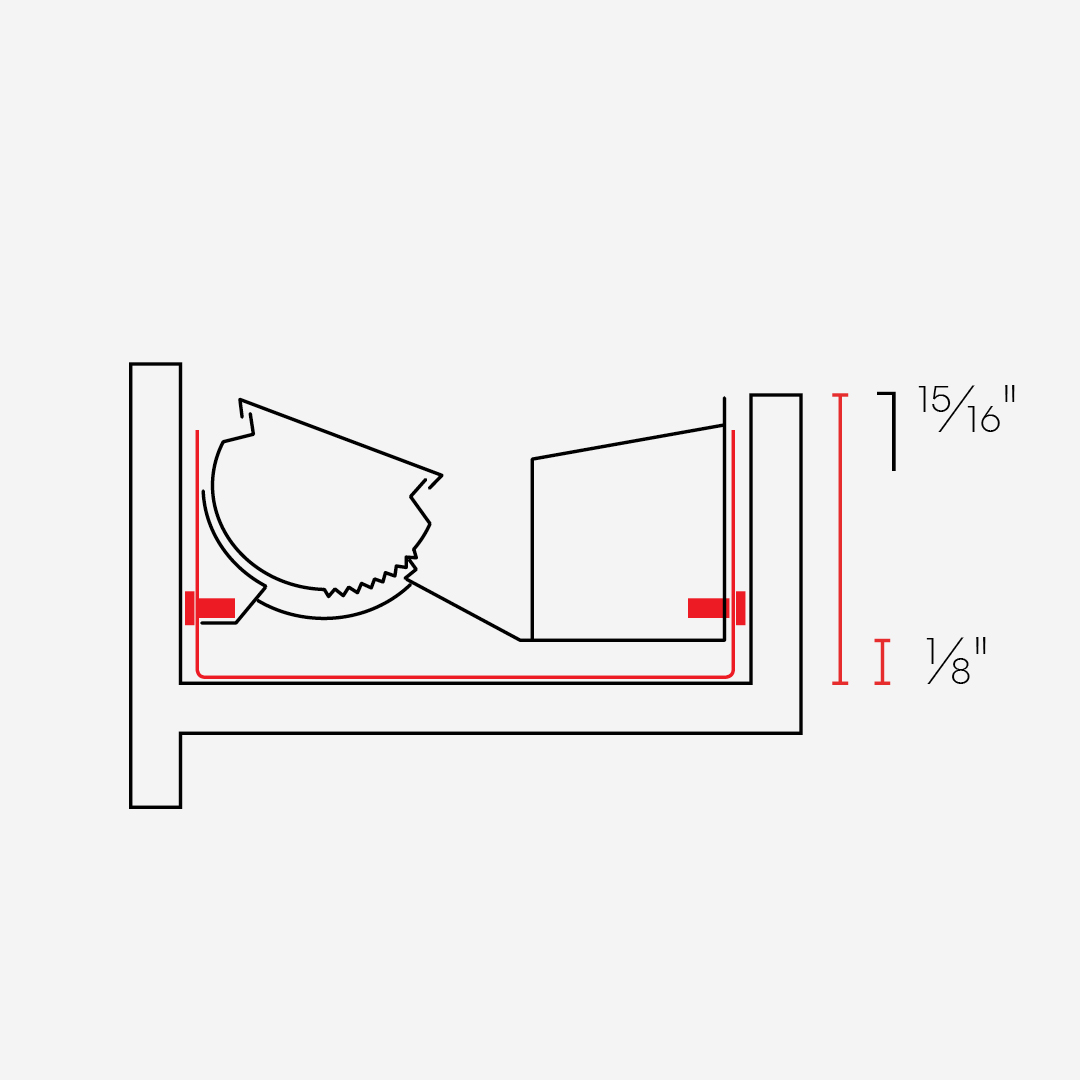

Adjustable_Mounting_Bracket 1 15/16" height

1 ¹⁵⁄₁₆″ Height

Field Adjustable Aiming (13 Options)

The Asymmetric Projecting Optic cartridges can be rotated upwards on site by 60º to increase vertical projection. Click-stop of 5º intervals, as well as visible aiming marks, provide 13 discrete aiming angles and simplify consistent orientation in long coves.

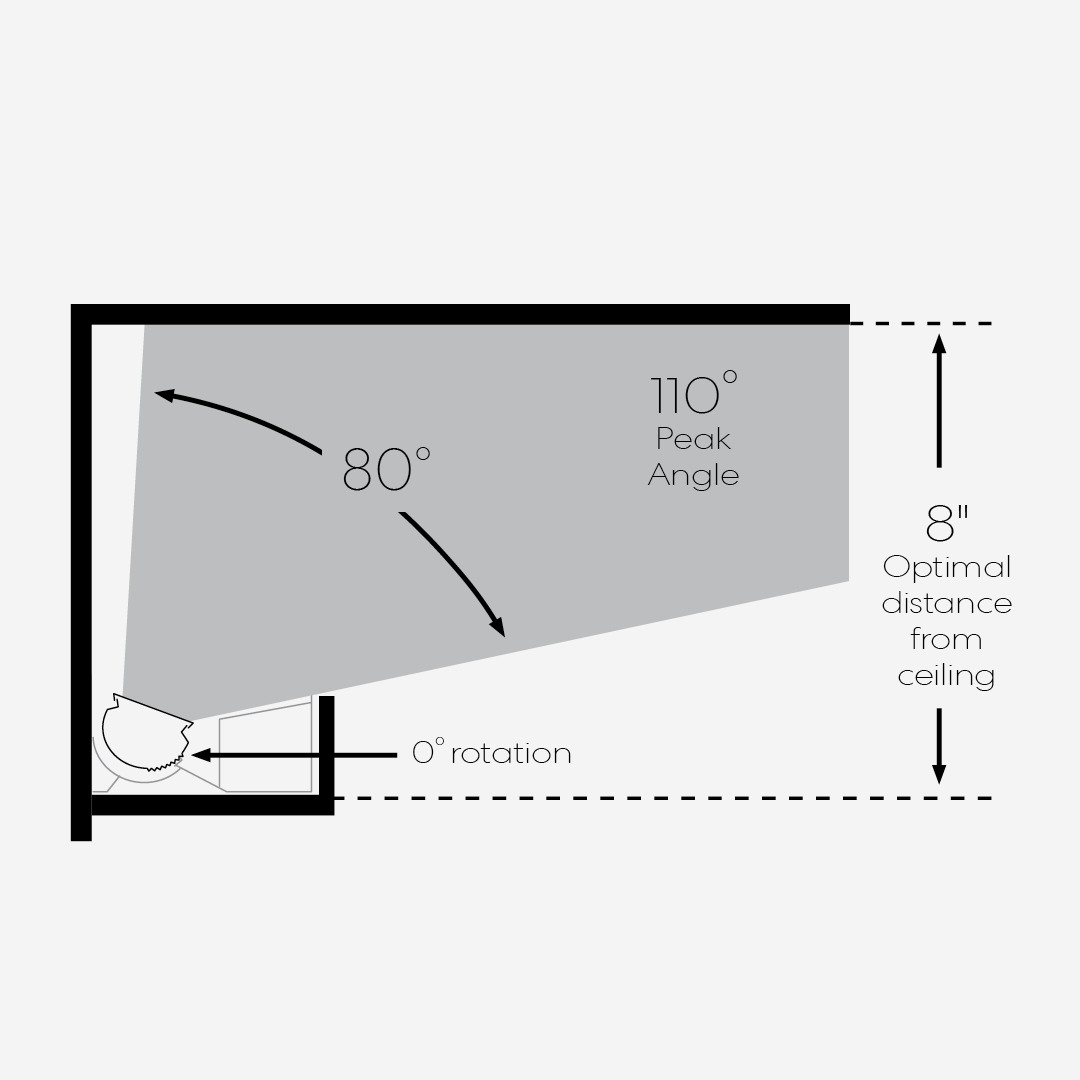

Field Adjustable Aiming, Horizontal Mount, 0º rotation

Horizontal Mount

0º rotation

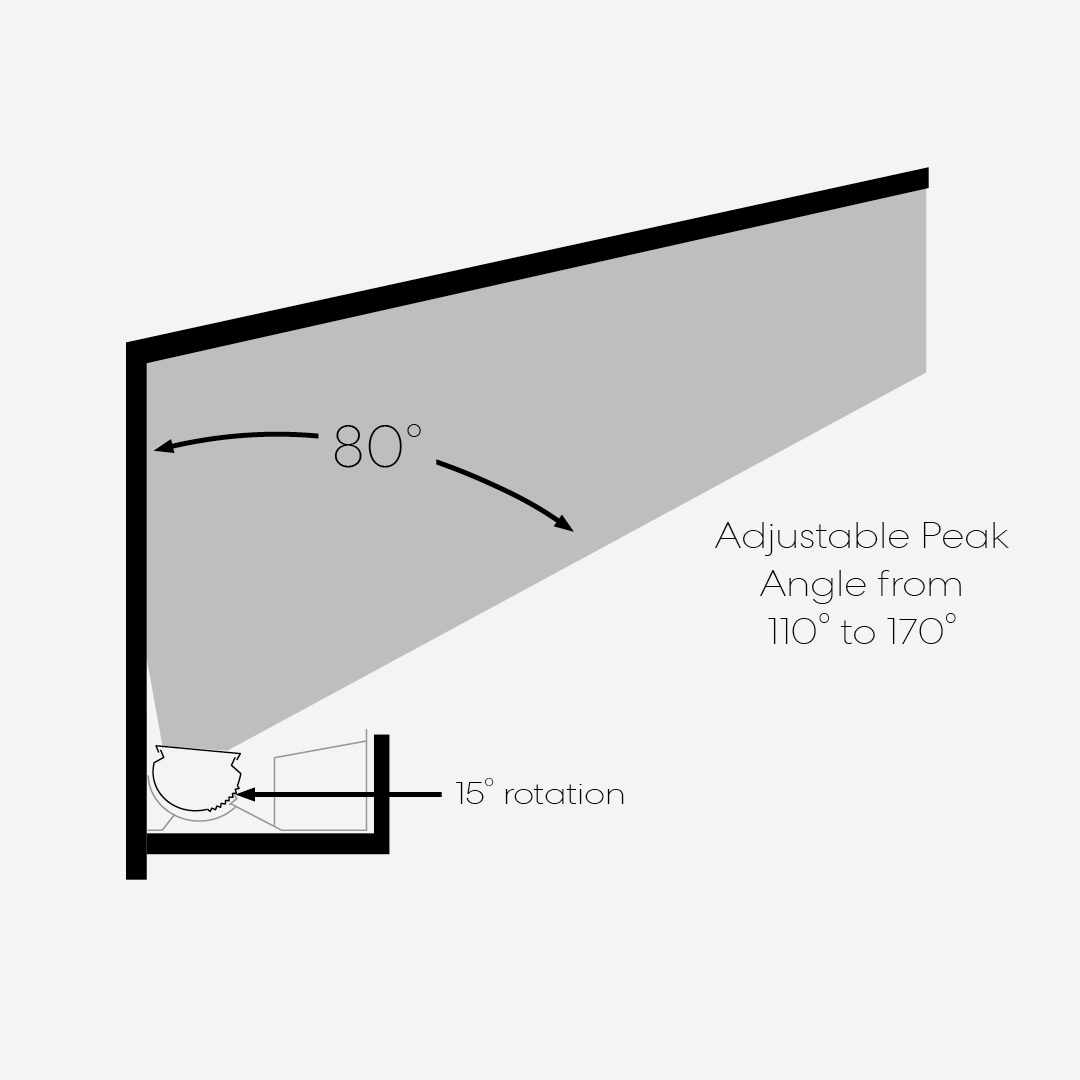

Field Adjustable Aiming, Horizontal Mount, 15º rotation

Horizontal Mount

15º rotation

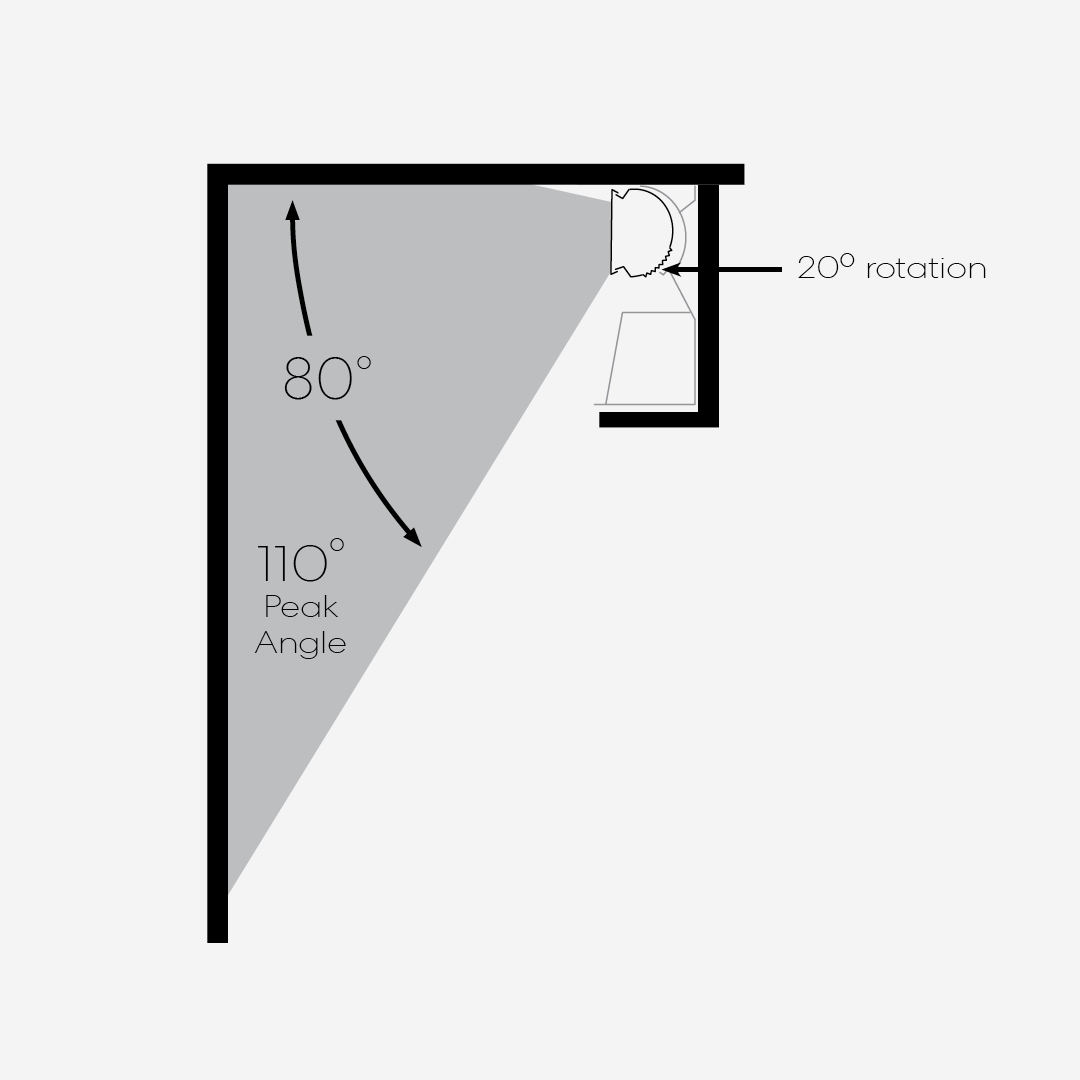

Field-Adjustable-Aiming, Vertical Mount, 20º rotation

Vertical Mount

20º rotation
