Inwalo

Direct, Indirect

Inwalo offers practical illumination from a linear in-wall luminaire. The Inwalo housing requires just 5/8″ of mounting depth – the thickness of common drywall – so the luminaire mounts on top of the wall studs. The driver compartment slides behind the luminaire for totally flexible installation between the wall studs. A removable LED and optical cartridge permits access to the driver without disturbing the drywall/housing connection. Inwalo can be installed as a discrete or continuous linear luminaire and oriented for either uplight or downlight.

Product Downloads

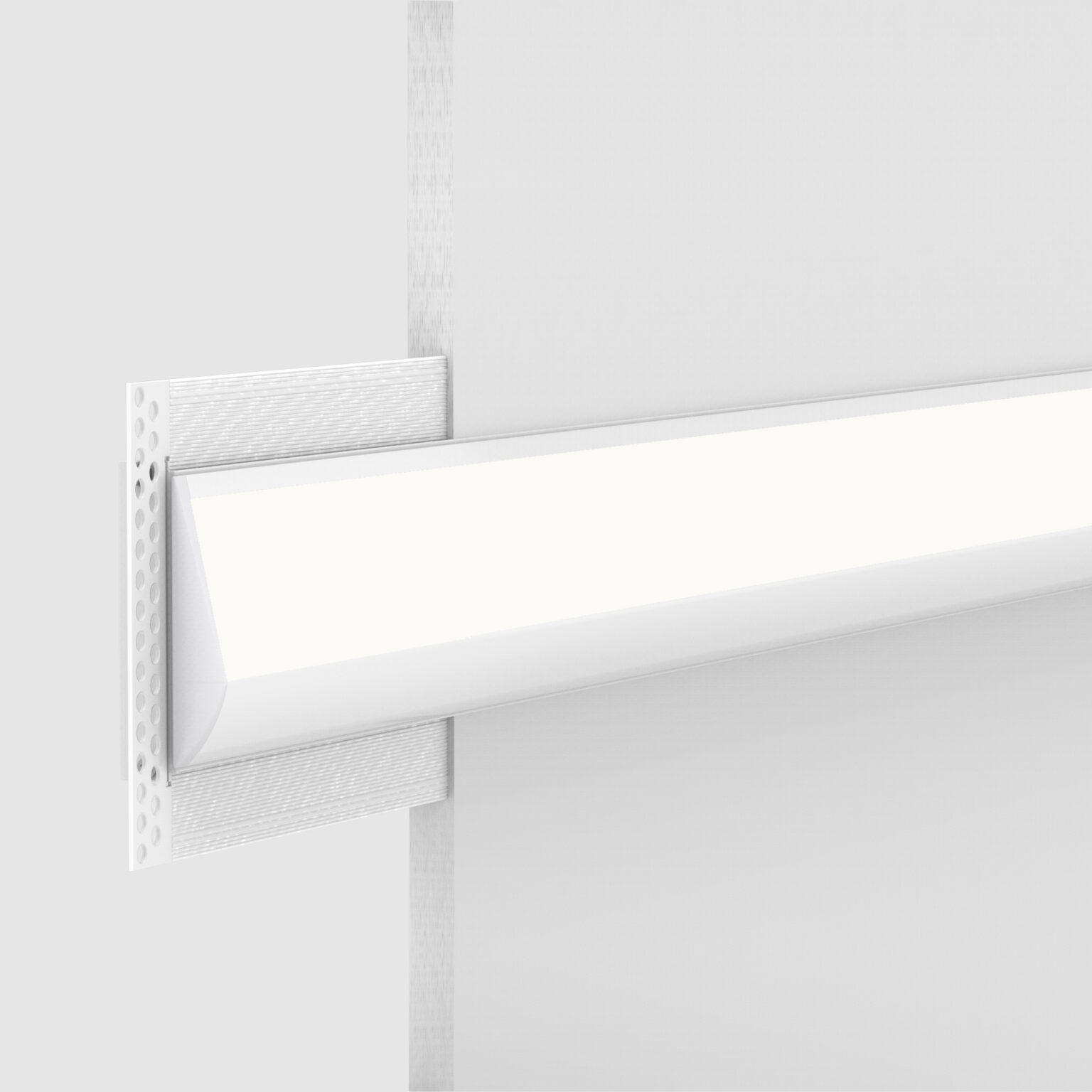

Specifications - Wall-Recessed Drywall Mud Flange
Product TypesLinear, Healthcare SizeH 3 ⅝" OpticAIO CCT/Lights & ColorsStatic White, Full-Spectrum MountingWall-Recessed Distribution TypesDirect, Direct/Indirect, Indirect, Asymmetric
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Full-Spectrum
Full-Spectrum

Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.

Optics
AIO

Asymmetric In-Wall Optic (AIO) combines semi-specular reflectors with an elliptical refractive film to produce a comfortable beam, with peak intensity at 140° from horizontal. Its in-wall construction eliminates backlight, and the integral optic and LED cartridge can be removed to access both the LED array and driver without disturbing the wall trim.

Patterns

Fully lit 90-degree inside corners are also available. To specify, download the Inwalo Patterns specification sheet and provide the required information along with a simple drawing. Inwalo can create inside corners and complete continuous lighting patterns for rooms and corridors.

ADA Compliant

Ultra-shallow Housing

With a 5/8″ mounting depth to match standard drywall, Inwalo’s drive compartment slides behind the luminaire for flexible installation between wall studs. Driver access is facilitated through a removable LED and optical cartridge, with optional sealed and gasketed lenses for 1P44 environments. May be installed as a standalone luminaire or continuous linear run with direct/indirect distribution.

Inwalo

Direct, Indirect

Inwalo offers practical illumination from a linear in-wall luminaire. The Inwalo housing requires just 5/8″ of mounting depth – the thickness of common drywall – so the luminaire mounts on top of the wall studs. The driver compartment slides behind the luminaire for totally flexible installation between the wall studs. A removable LED and optical cartridge permits access to the driver without disturbing the drywall/housing connection. Inwalo can be installed as a discrete or continuous linear luminaire and oriented for either uplight or downlight.

Product Downloads
Specifications - Wall-Recessed Drywall Trim
Product TypesLinear, Healthcare SizeH 4 ¾" OpticAIO CCT/Lights & ColorsStatic White, Full-Spectrum MountingWall-Recessed Distribution TypesIndirect, Asymmetric
Light Source
Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Full-Spectrum
Full-Spectrum

Full-spectrum LED arrays provide broad spectral distribution for enhanced color rendition and material clarity.

Optics
AIO

Asymmetric In-Wall Optic (AIO) combines semi-specular reflectors with an elliptical refractive film to produce a comfortable beam, with peak intensity at 140° from horizontal. Its in-wall construction eliminates backlight, and the integral optic and LED cartridge can be removed to access both the LED array and driver without disturbing the wall trim.

Patterns

Fully lit 90-degree inside corners are also available. To specify, download the Inwalo Patterns specification sheet and provide the required information along with a simple drawing. Inwalo can create inside corners and complete continuous lighting patterns for rooms and corridors.

ADA Compliant

Ultra-shallow Housing

With a 5/8″ mounting depth to match standard drywall, Inwalo’s drive compartment slides behind the luminaire for flexible installation between wall studs. Driver access is facilitated through a removable LED and optical cartridge, with optional sealed and gasketed lenses for 1P44 environments. May be installed as a standalone luminaire or continuous linear run with direct/indirect distribution.

PROFILE

Ultra-shallow
Housing

UP TO

1000 lm/ft
131 lm/W

DISTRIBUTION

Asymmetric

Construction

  1. In-wall housing fits within 5/8″ drywall and supports continuous runs and patterns.
  2. The asymmetric in-wall optic delivers a comfortable 140º beam from horizontal.
  3. The cartridge-mounted LED array and optic are fully enclosed and easily removable.
  4. The driver installs flexibly between wall studs.
