Walo

Direct/Indirect

Walo is a linear luminaire that casts light to either side, reflecting off of the adjacent surface. The resulting parallel bands of brightness – whether up-and-down or side-to-side – define and delineate walls and pathways.

Walo is compact, projecting just 2″, from wall or ceiling. A 4 ½” fascia and chamfered sides return light to the mounting surface and minimize the direct brightness from the luminaire.

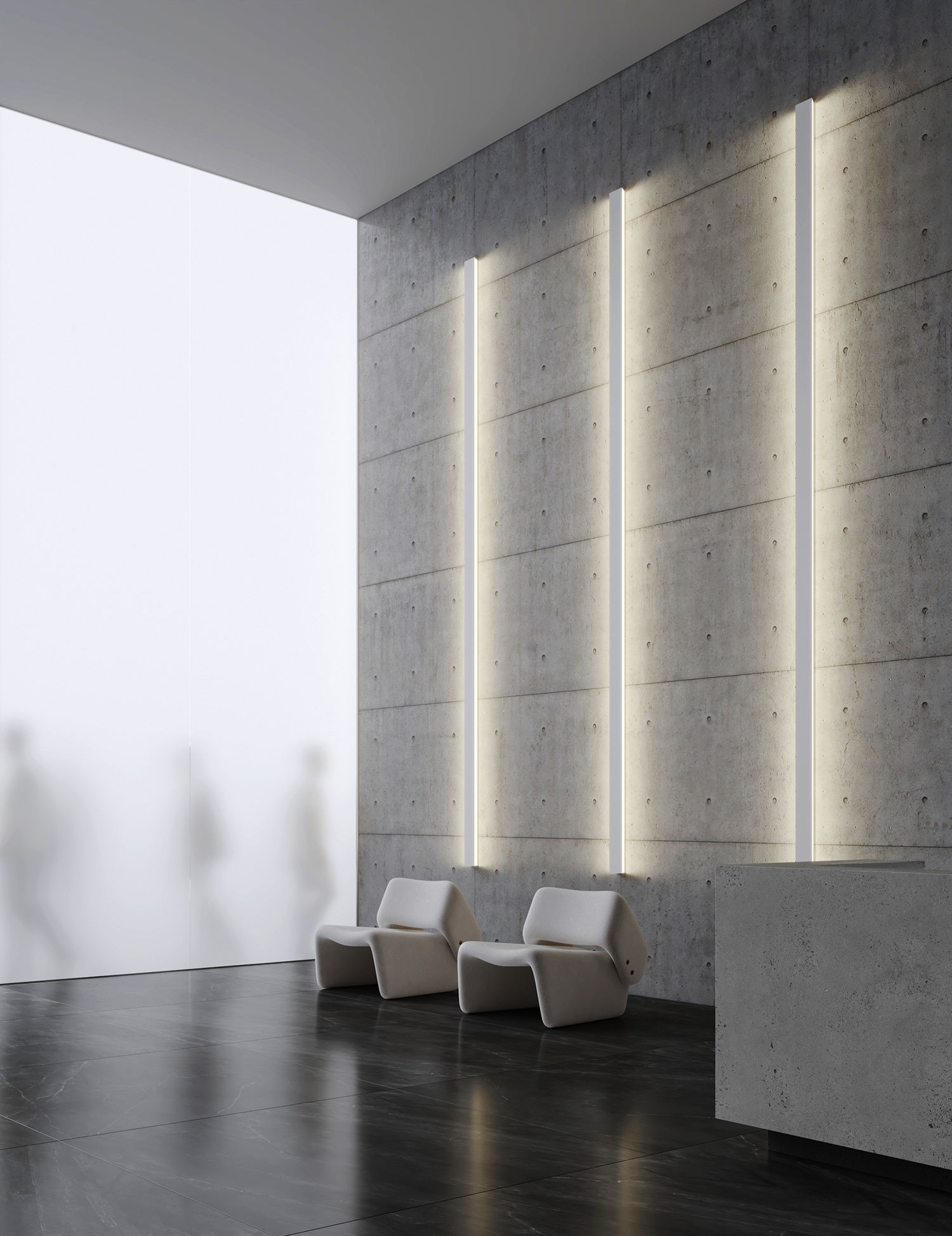

Walo can be used individually or in patterns, installing vertically or horizontally on walls and on ceilings. Lighted joiner elements enable Walo to turn inside and outside corners. A full suite of on-board driver, battery pack and electrical options makes Walo a practical approach for lighting circulation areas.

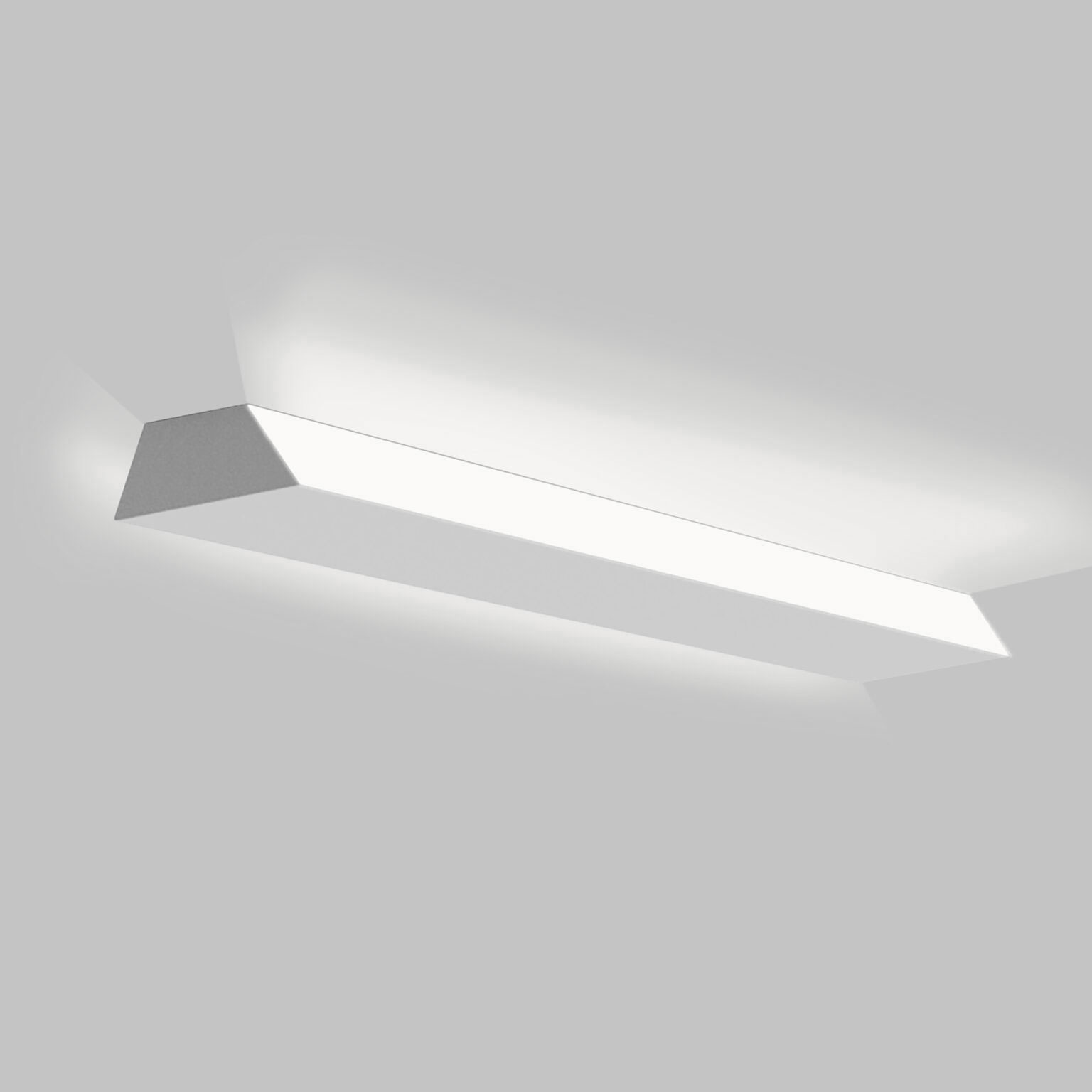

Specifications - Surface Direct/Indirect

Product TypesLinear, Healthcare SizeW 4 ½" OpticHLO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo), RGBW (Quadro) MountingSurface LumenXpressYes Distribution TypeDirect/Indirect

Light Source

Static White

LED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

RGBW (Quadro)

Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.

Optics

HLO

High-Efficiency Lambertian Optic (HLO) is engineered with reflective sidewalls that distribute LED output across the acrylic shielding. To accommodate the curves of Lumenwerx rounded fixtures, the HLO is equipped with proprietary SupremeGrip™ technology, which keeps the optic securely in place.

Patterns

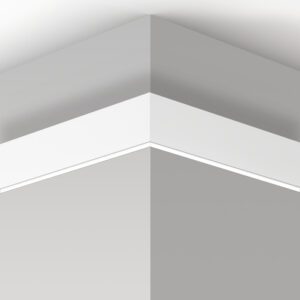

Levelled 90º corner for both surface and wall mount, customize angles are also available.

Walo

Direct/Indirect

Walo is compact, projecting just 2″, from wall or ceiling. A 4 ½” fascia and chamfered sides return light to the mounting surface and minimize the direct brightness from the luminaire.

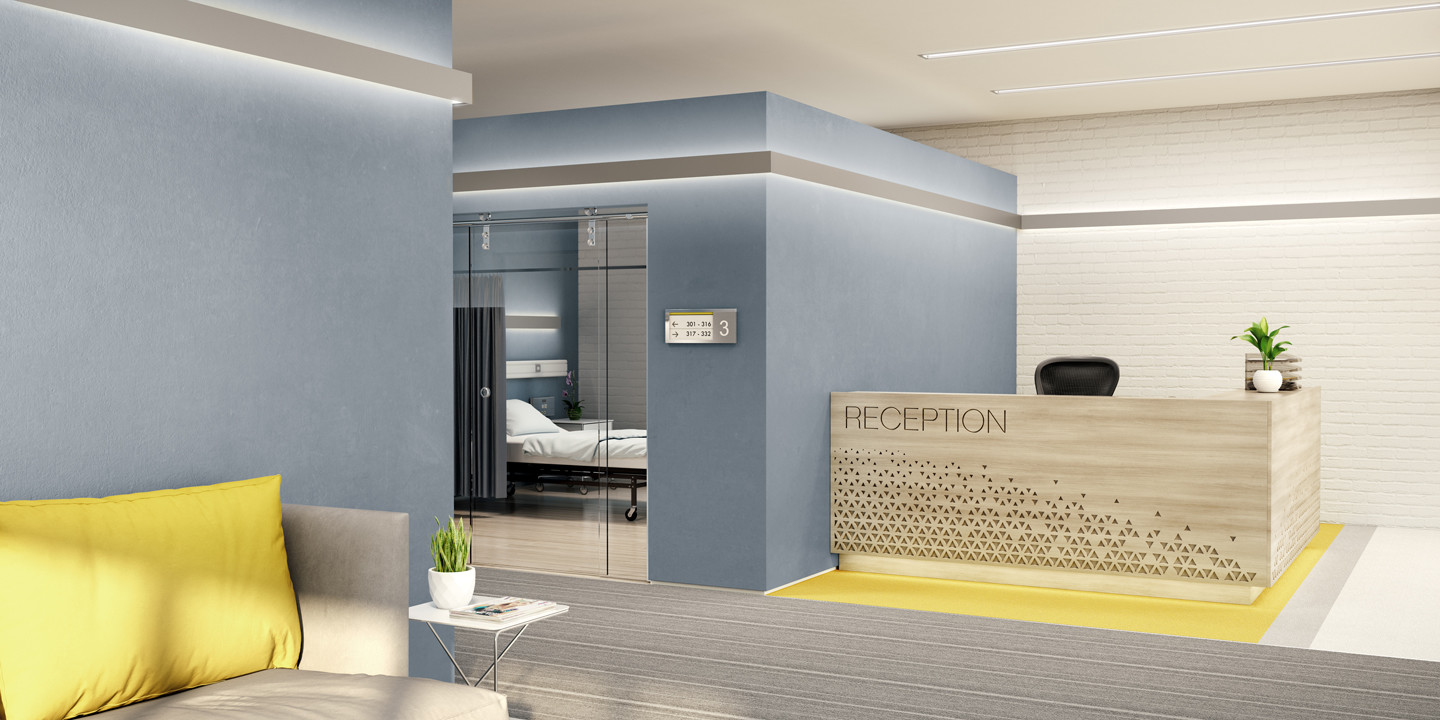

Specifications - Wall Direct/Indirect Horizontal

Product TypesLinear, Healthcare SizeW 4 ½" OpticHLO CCT/Lights & ColorsStatic White, Dim to Warm (Sola), Tunable White (Duo), RGBW (Quadro) MountingWall LumenXpressYes Distribution TypeDirect/Indirect

Light Source

Static White

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

RGBW (Quadro)

Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.

Optics

HLO

Patterns

Levelled 90º corner for both surface and wall mount, customize angles are also available.

Walo

Direct/Indirect

Walo is compact, projecting just 2″, from wall or ceiling. A 4 ½” fascia and chamfered sides return light to the mounting surface and minimize the direct brightness from the luminaire.

Specifications - Wall Direct/Indirect Vertical

Light Source

Static White

Dim to Warm (Sola)

Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.

Tunable White (Duo)

Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.

RGBW (Quadro)

Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.

Optics

HLO

Patterns

Levelled 90º corner for both surface and wall mount, customize angles are also available.

PROFILE

Compact
2″ from wall

AVAILABLE OPTIONS

Patterns and
Lit Corners

OPTIONS

Use it Vertically
or Horizontally
