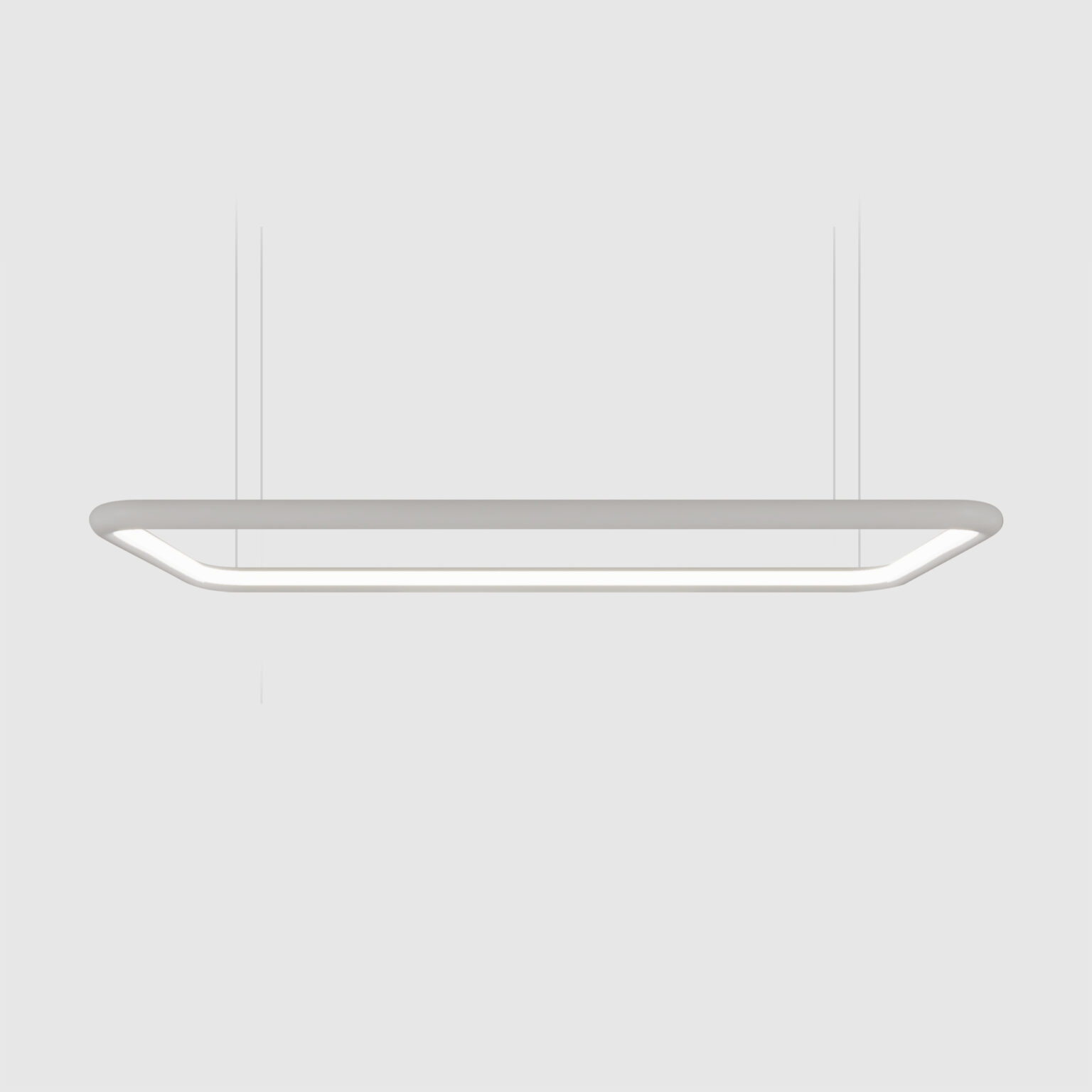

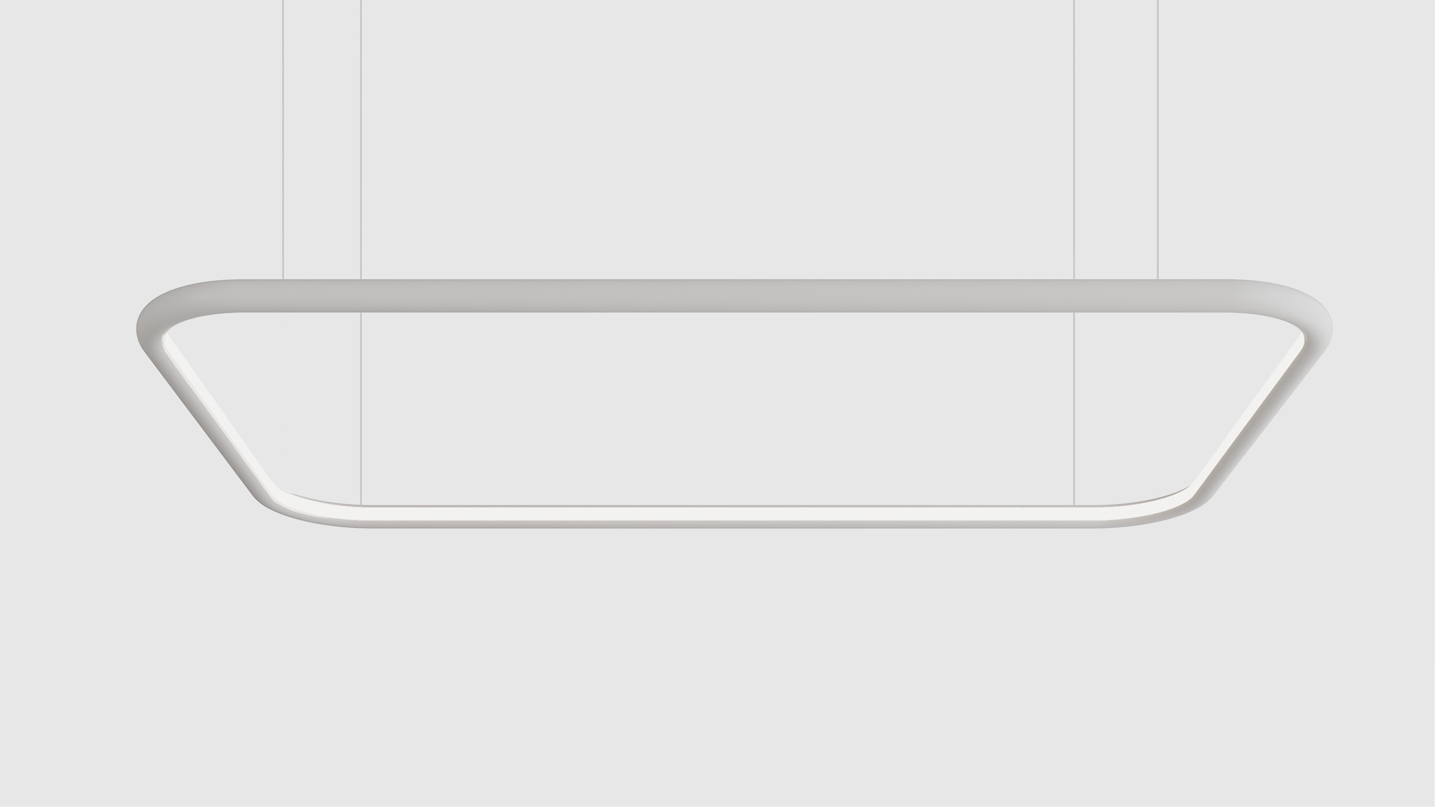

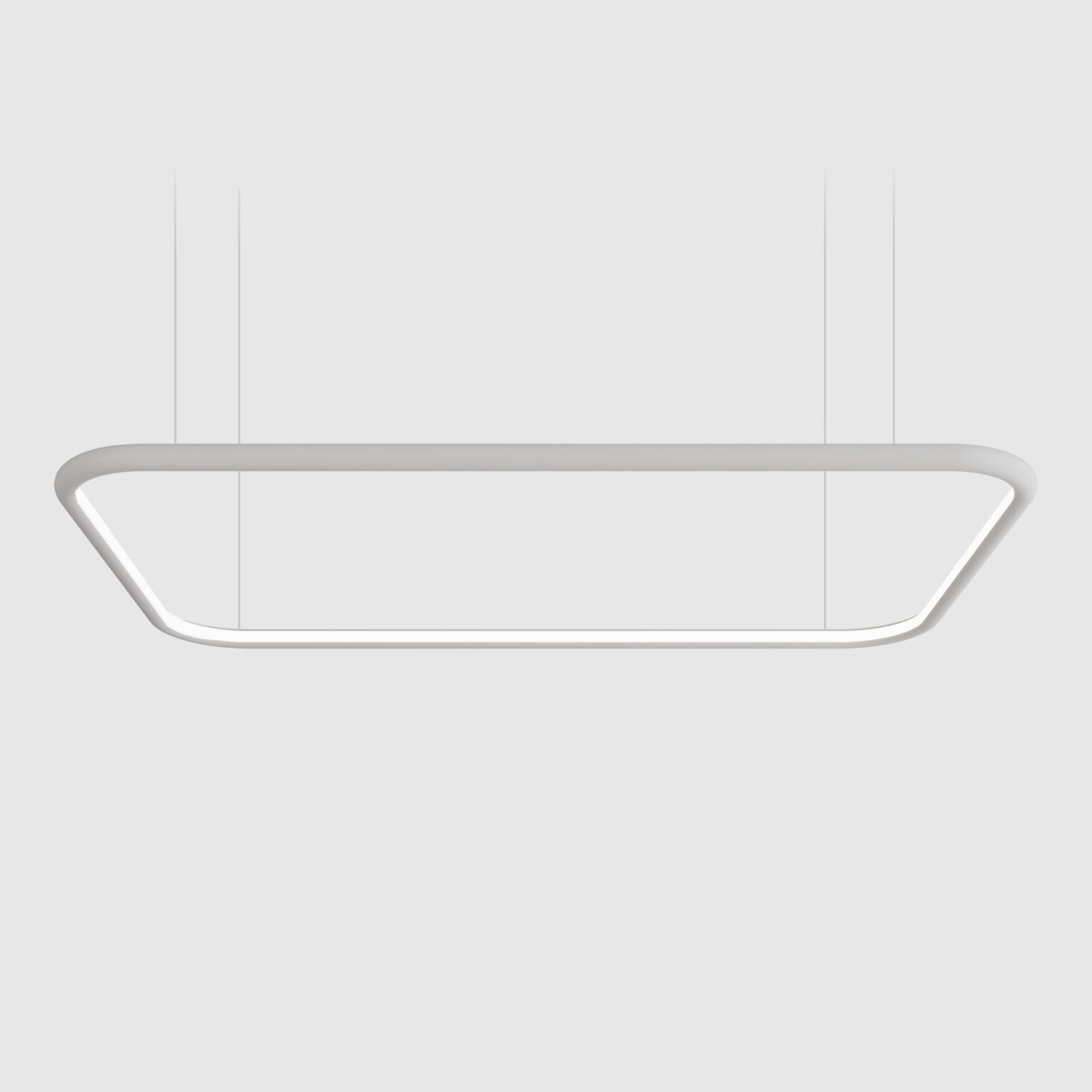

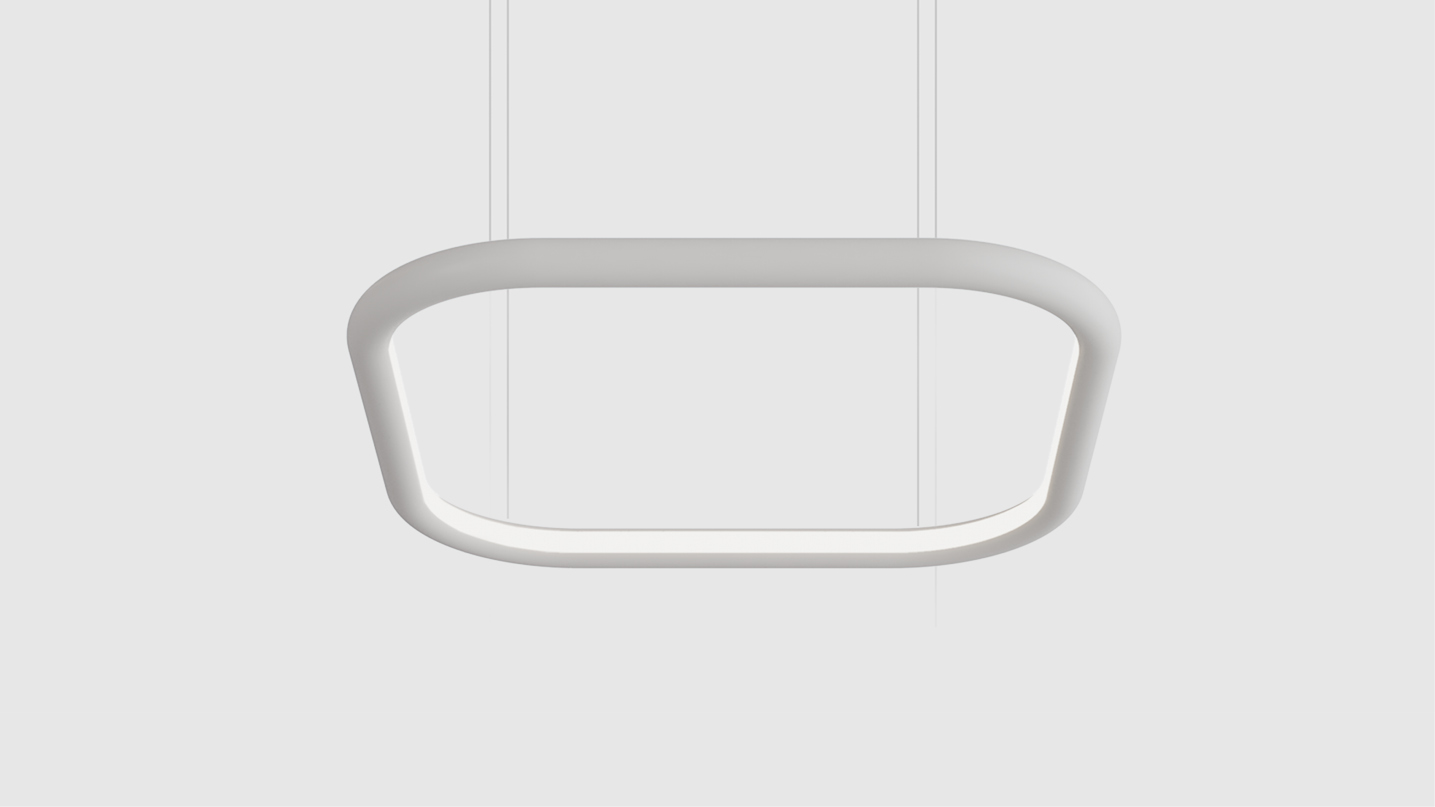

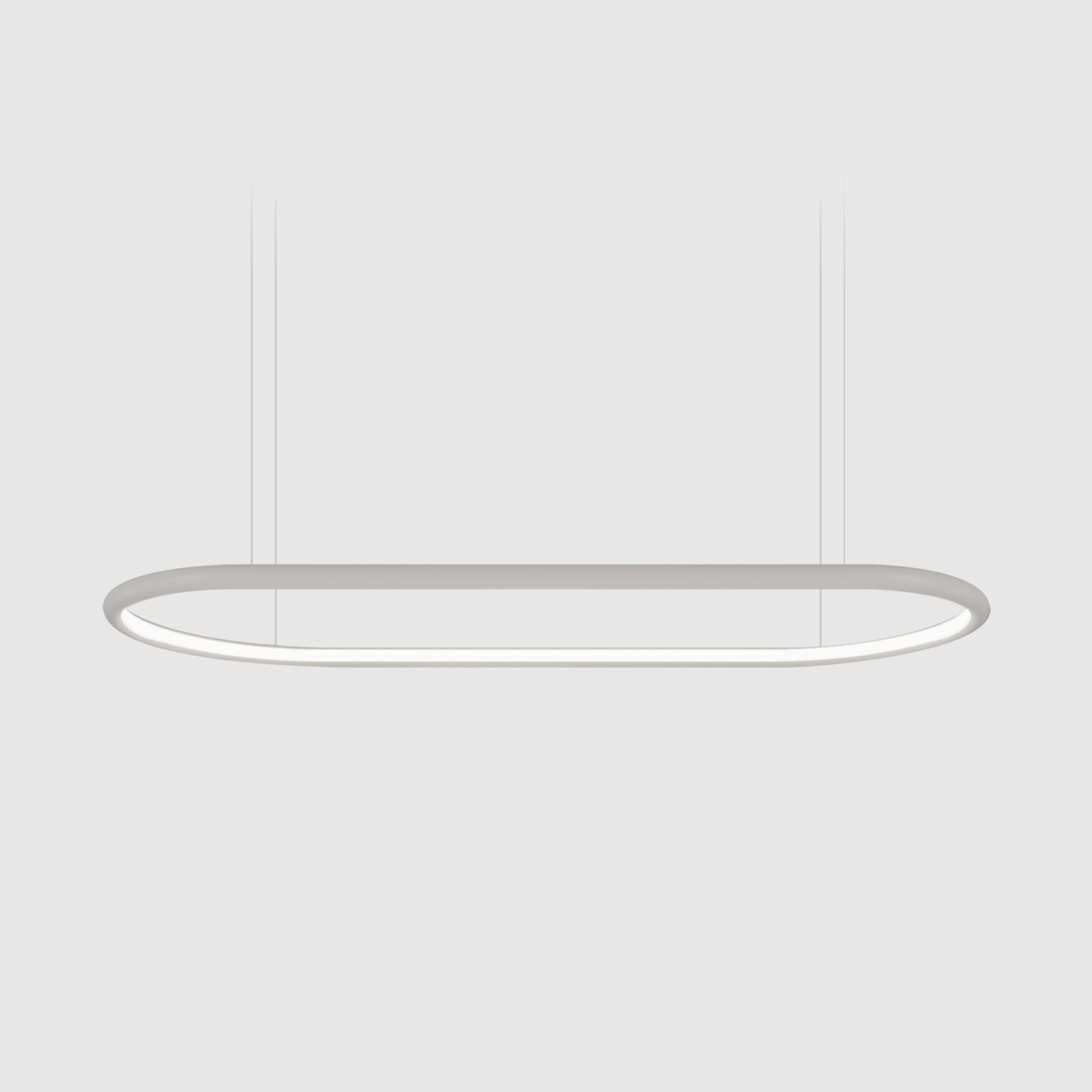

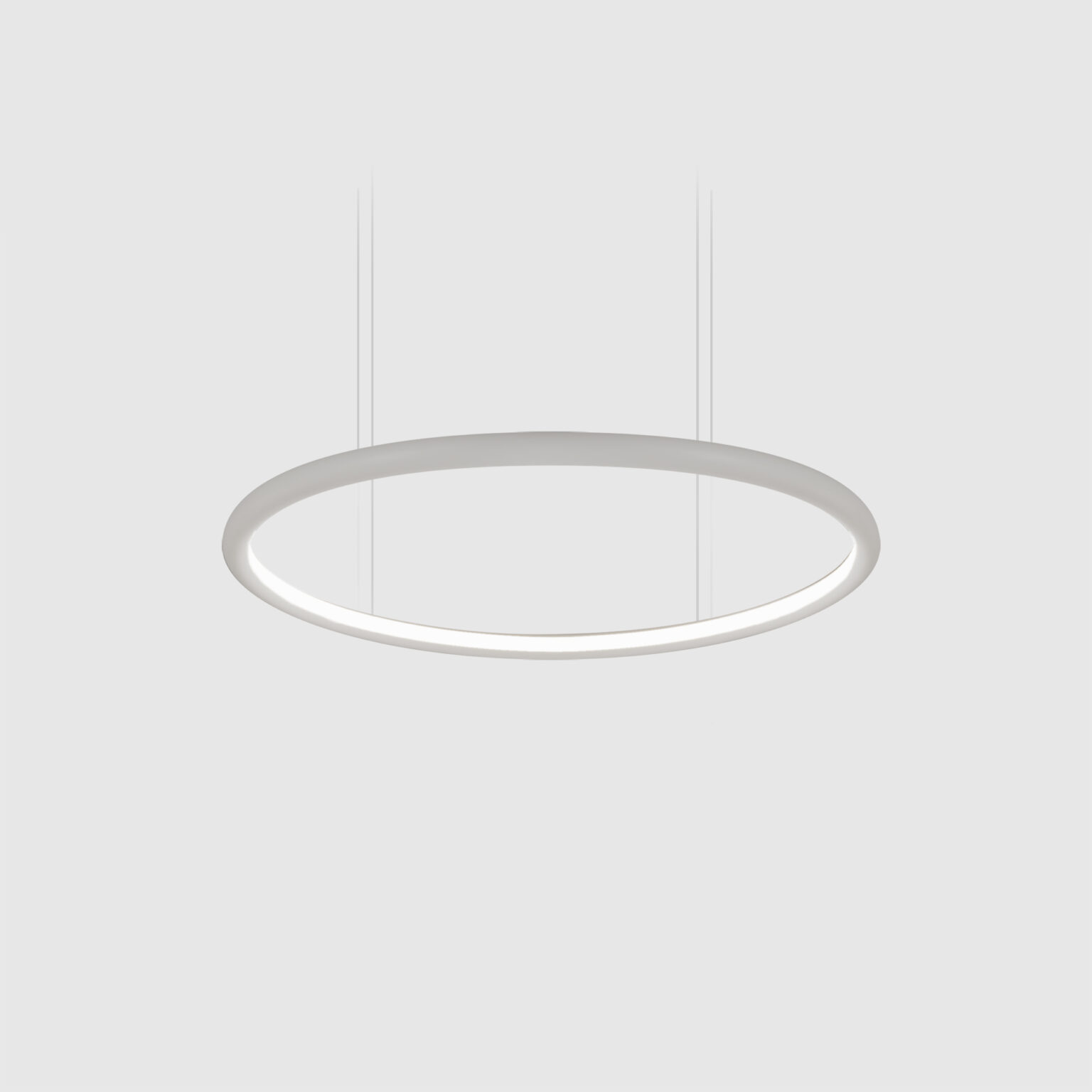

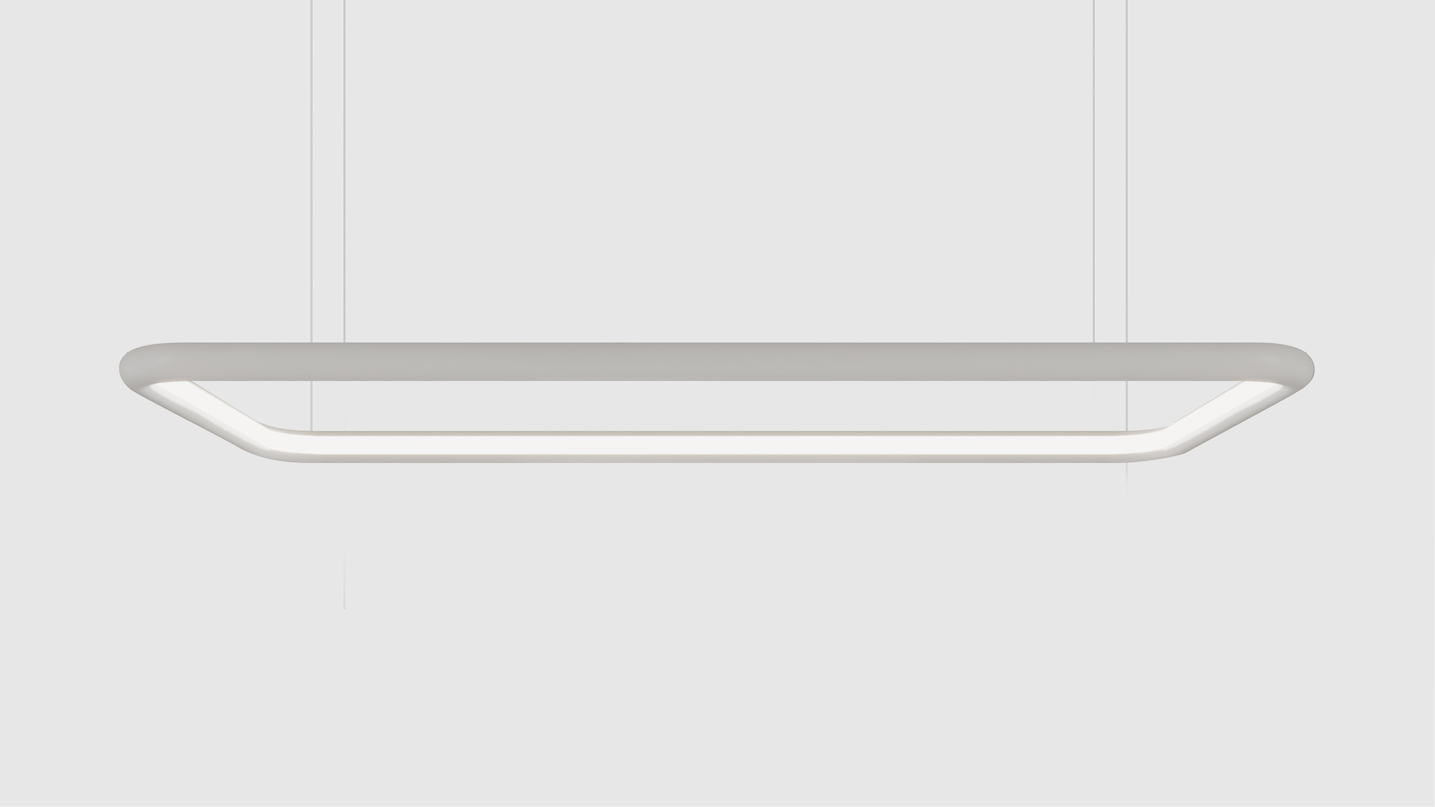

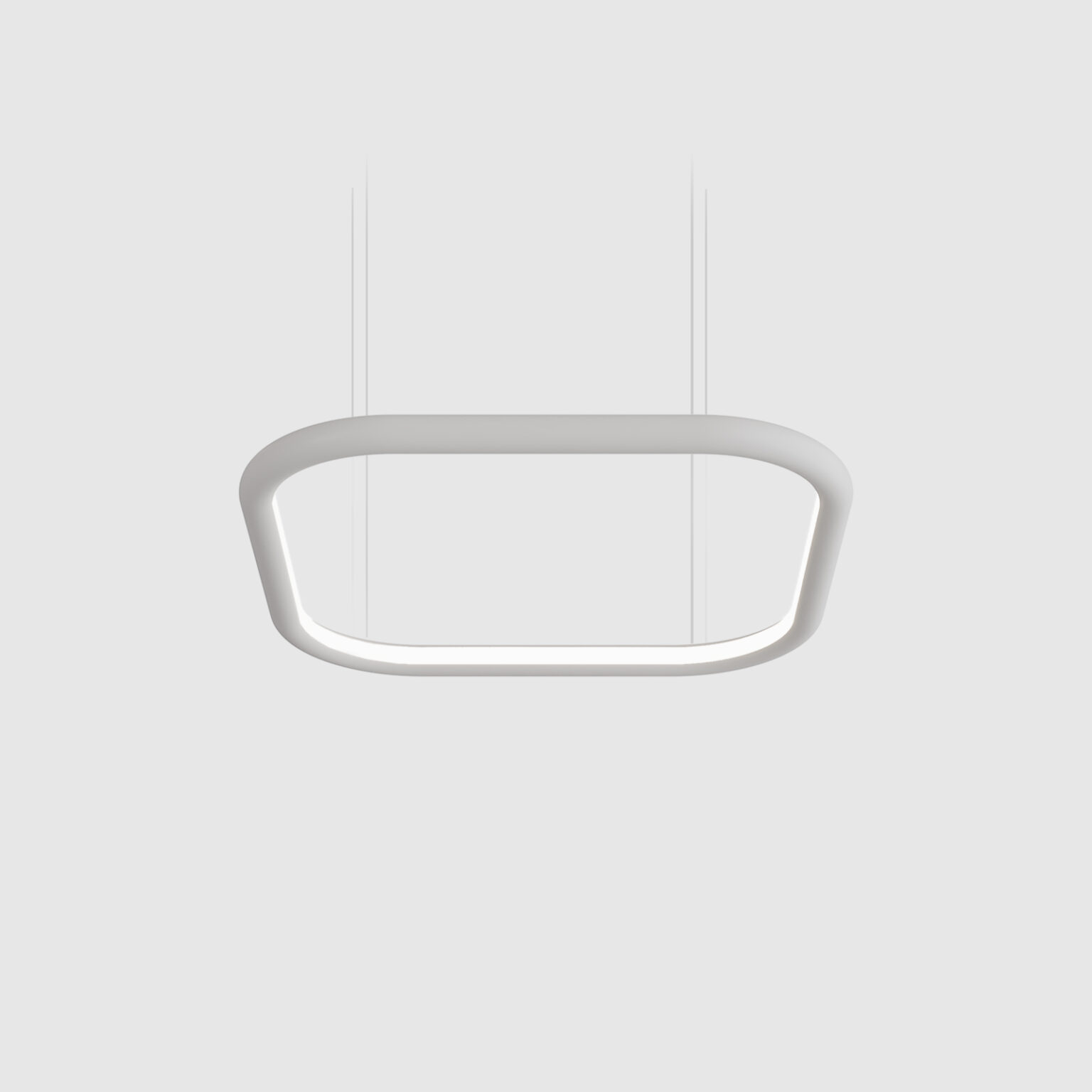

Rim Tube introduces a refined tubular form to the Rim Collection with its minimalist 1.4″ diameter. This versatile luminaire delivers bold expression through its clean geometry and striking illumination. Available in multiple shapes, configurations, and sizes, Rim Tube maintains the signature sleek and minimalist aesthetic of the Rim family, scaling from simple geometric shapes to sculptural, multidimensional installations.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Tube introduces a refined tubular form to the Rim Collection with its minimalist 1.4″ diameter. This versatile luminaire delivers bold expression through its clean geometry and striking illumination. Available in multiple shapes, configurations, and sizes, Rim Tube maintains the signature sleek and minimalist aesthetic of the Rim family, scaling from simple geometric shapes to sculptural, multidimensional installations.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Tube introduces a refined tubular form to the Rim Collection with its minimalist 1.4″ diameter. This versatile luminaire delivers bold expression through its clean geometry and striking illumination. Available in multiple shapes, configurations, and sizes, Rim Tube maintains the signature sleek and minimalist aesthetic of the Rim family, scaling from simple geometric shapes to sculptural, multidimensional installations.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Tube introduces a refined tubular form to the Rim Collection with its minimalist 1.4″ diameter. This versatile luminaire delivers bold expression through its clean geometry and striking illumination. Available in multiple shapes, configurations, and sizes, Rim Tube maintains the signature sleek and minimalist aesthetic of the Rim family, scaling from simple geometric shapes to sculptural, multidimensional installations.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Tube introduces a refined tubular form to the Rim Collection with its minimalist 1.4″ diameter. This versatile luminaire delivers bold expression through its clean geometry and striking illumination. Available in multiple shapes, configurations, and sizes, Rim Tube maintains the signature sleek and minimalist aesthetic of the Rim family, scaling from simple geometric shapes to sculptural, multidimensional installations.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Tube introduces a refined tubular form to the Rim Collection with its minimalist 1.4″ diameter. This versatile luminaire delivers bold expression through its clean geometry and striking illumination. Available in multiple shapes, configurations, and sizes, Rim Tube maintains the signature sleek and minimalist aesthetic of the Rim family, scaling from simple geometric shapes to sculptural, multidimensional installations.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Tube introduces a refined tubular form to the Rim Collection with its minimalist 1.4″ diameter. This versatile luminaire delivers bold expression through its clean geometry and striking illumination. Available in multiple shapes, configurations, and sizes, Rim Tube maintains the signature sleek and minimalist aesthetic of the Rim family, scaling from simple geometric shapes to sculptural, multidimensional installations.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
The integrated suspension and power-over-cable provides an elegant mounting arrangement. Current from the driver to the LED array flows through seven-strand galvanized copper conductors.
A dielectric polymer coating insulates the cable which is supported by insulated holders at ceiling and luminaire mounting plate. Our standard integrated power-over-cable supports all available dimming and control options without additional conductors.
From illuminating retail and residential projects, to human-centric lighting for schools and offices, explore our recent projects and learn how purposeful, intentional lighting can transform any space.
