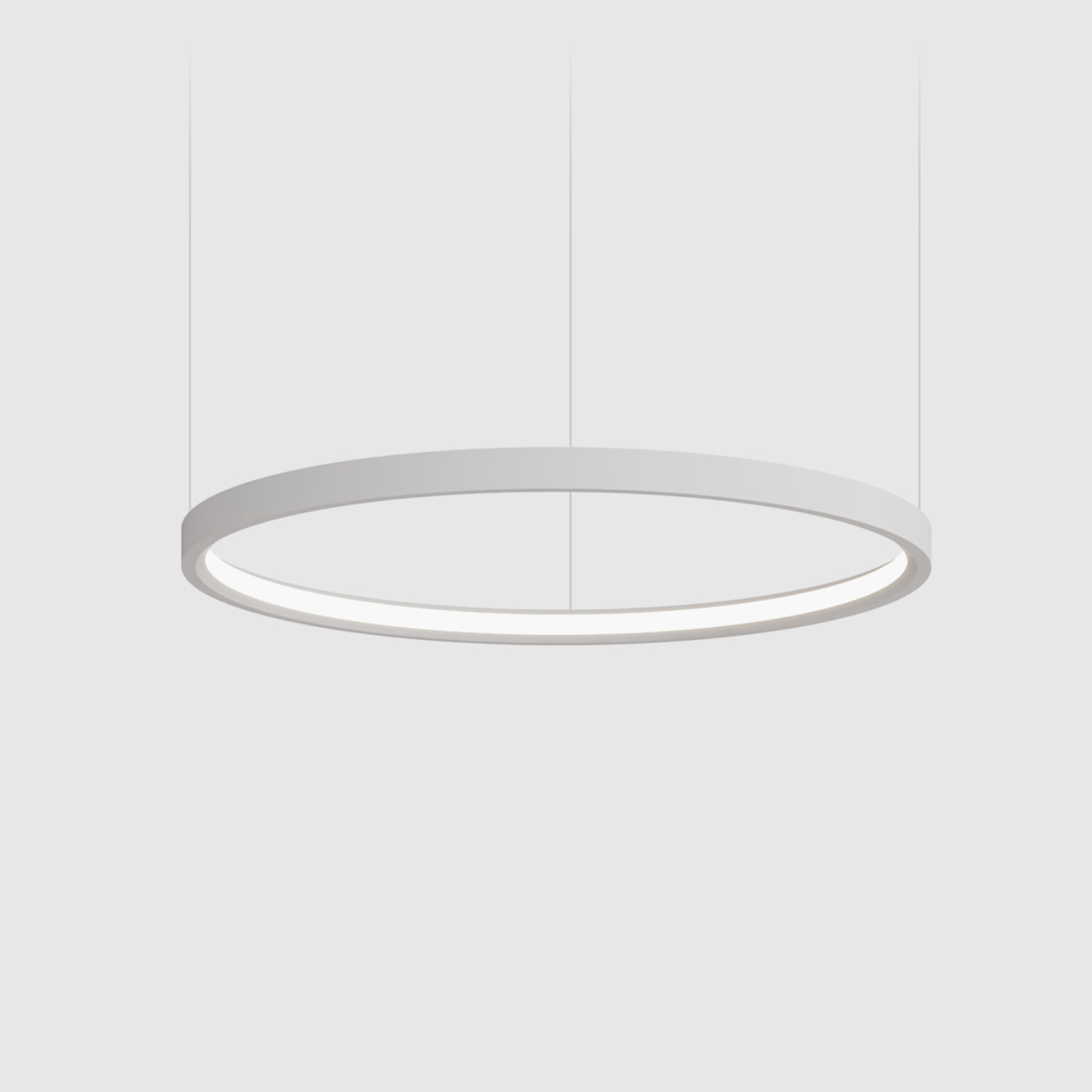

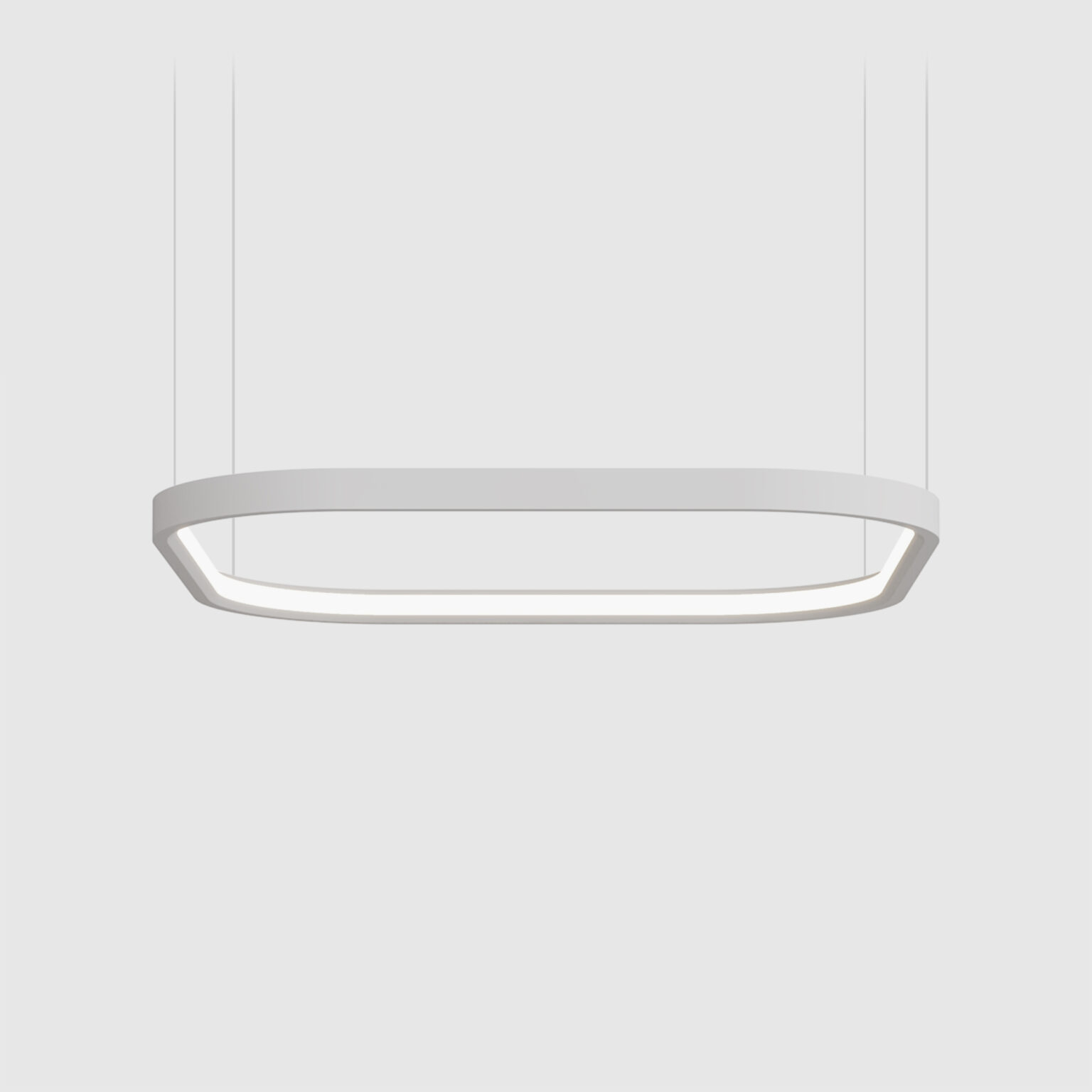

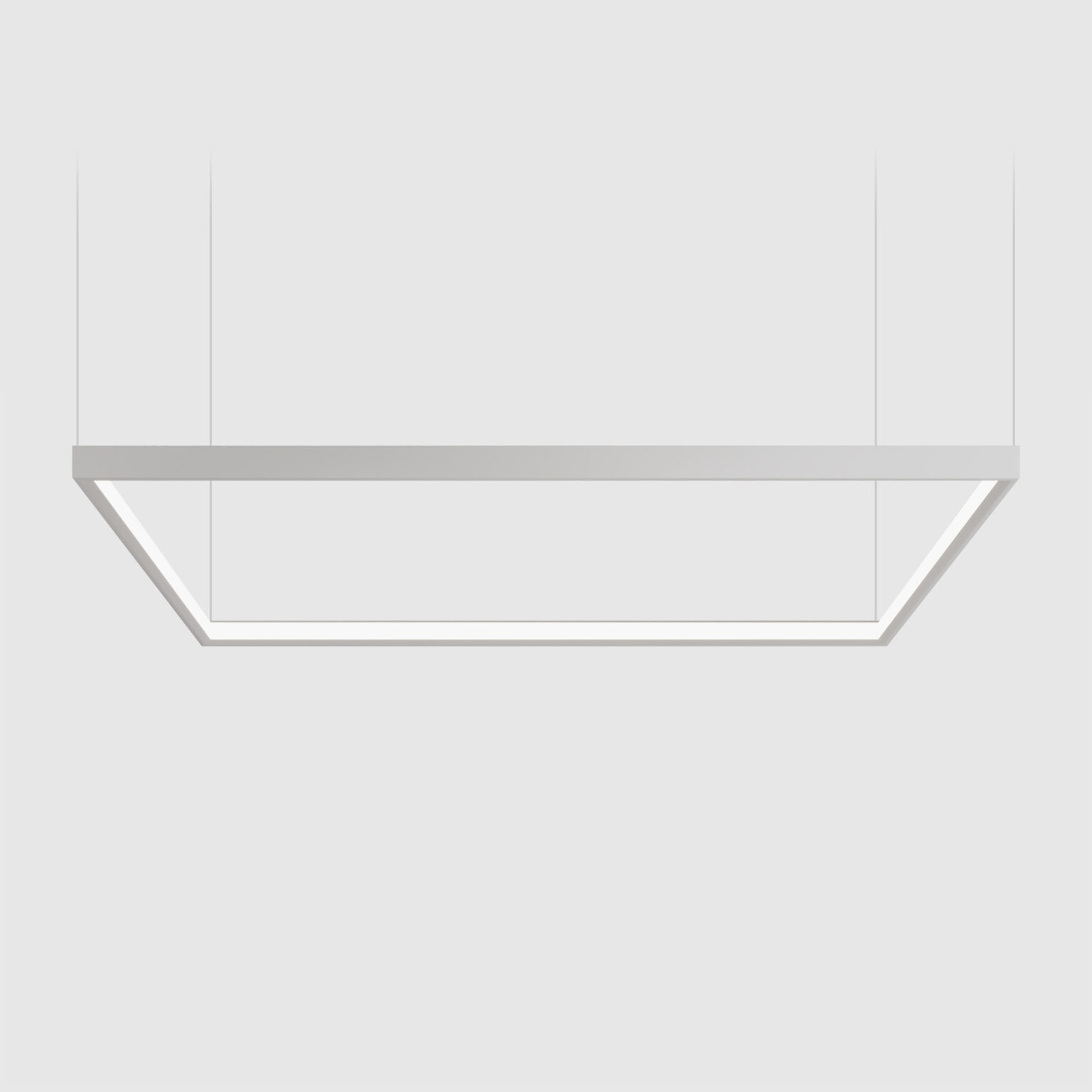

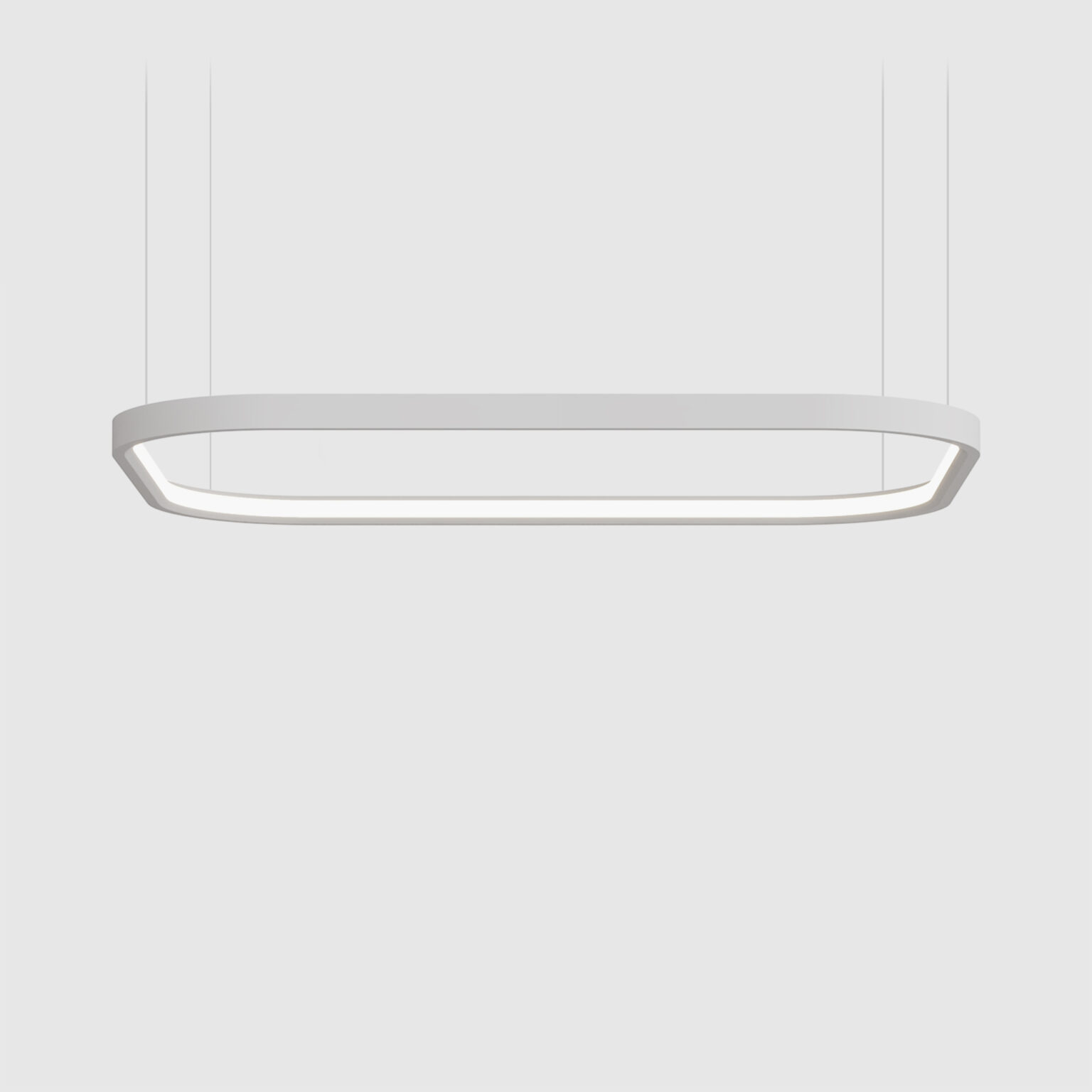

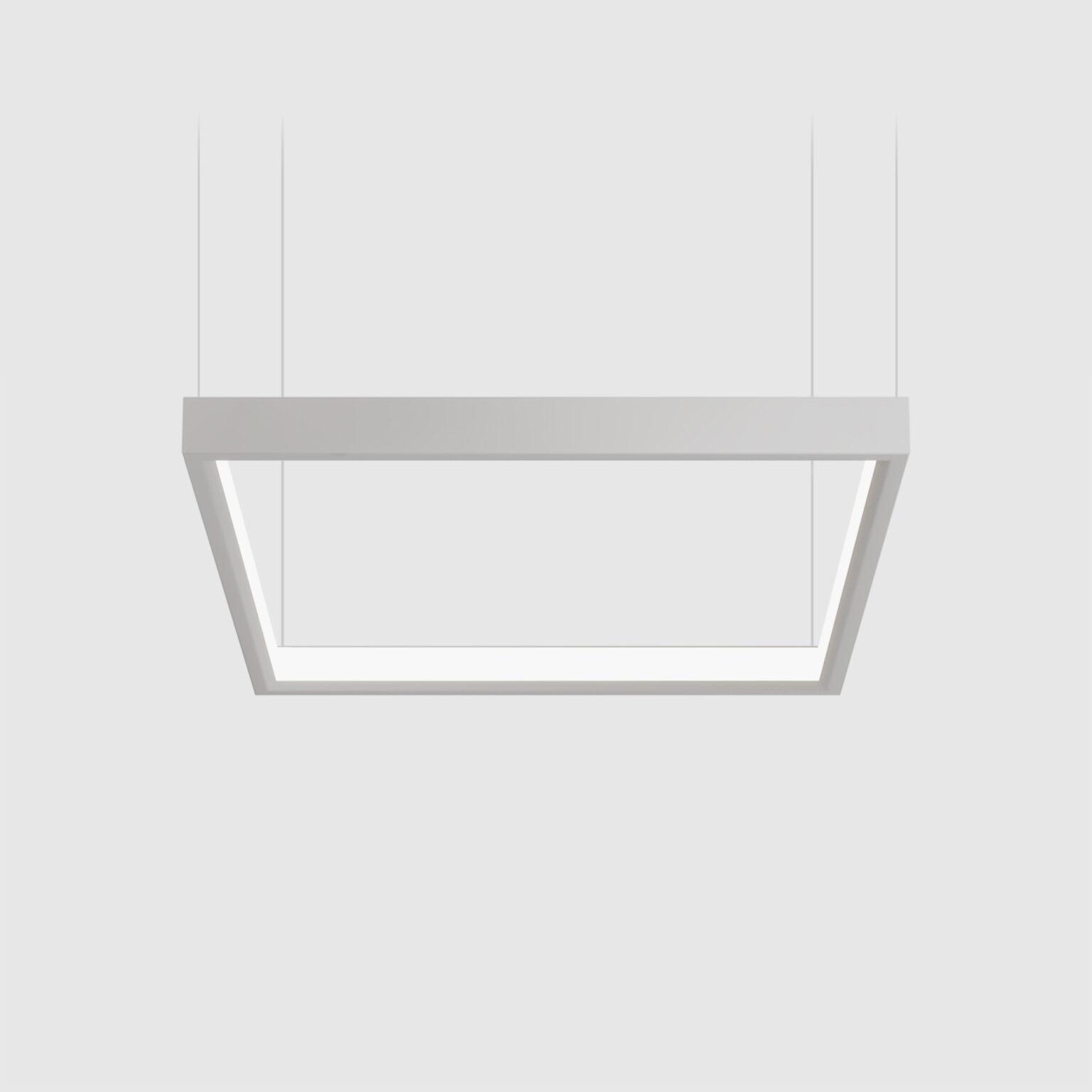

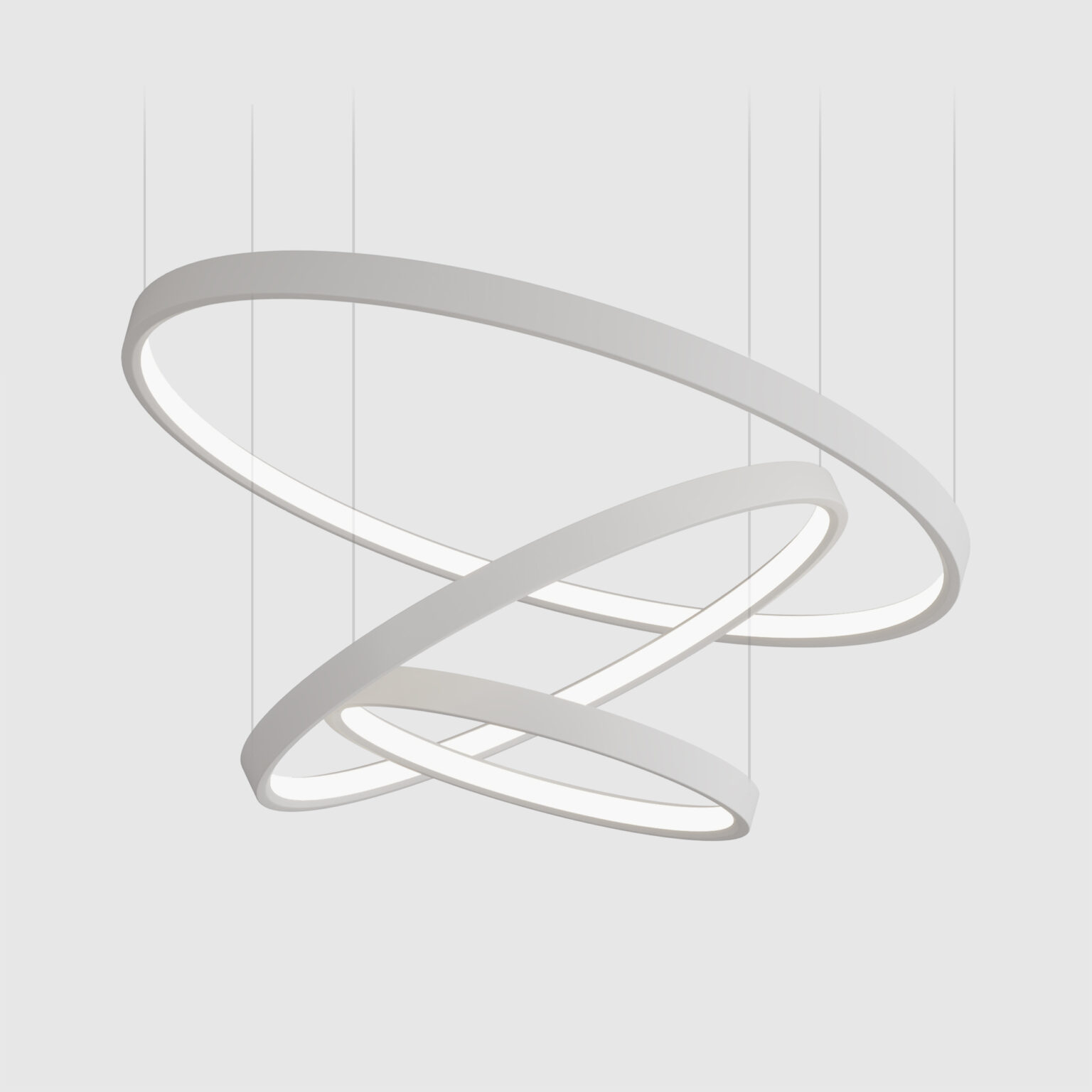

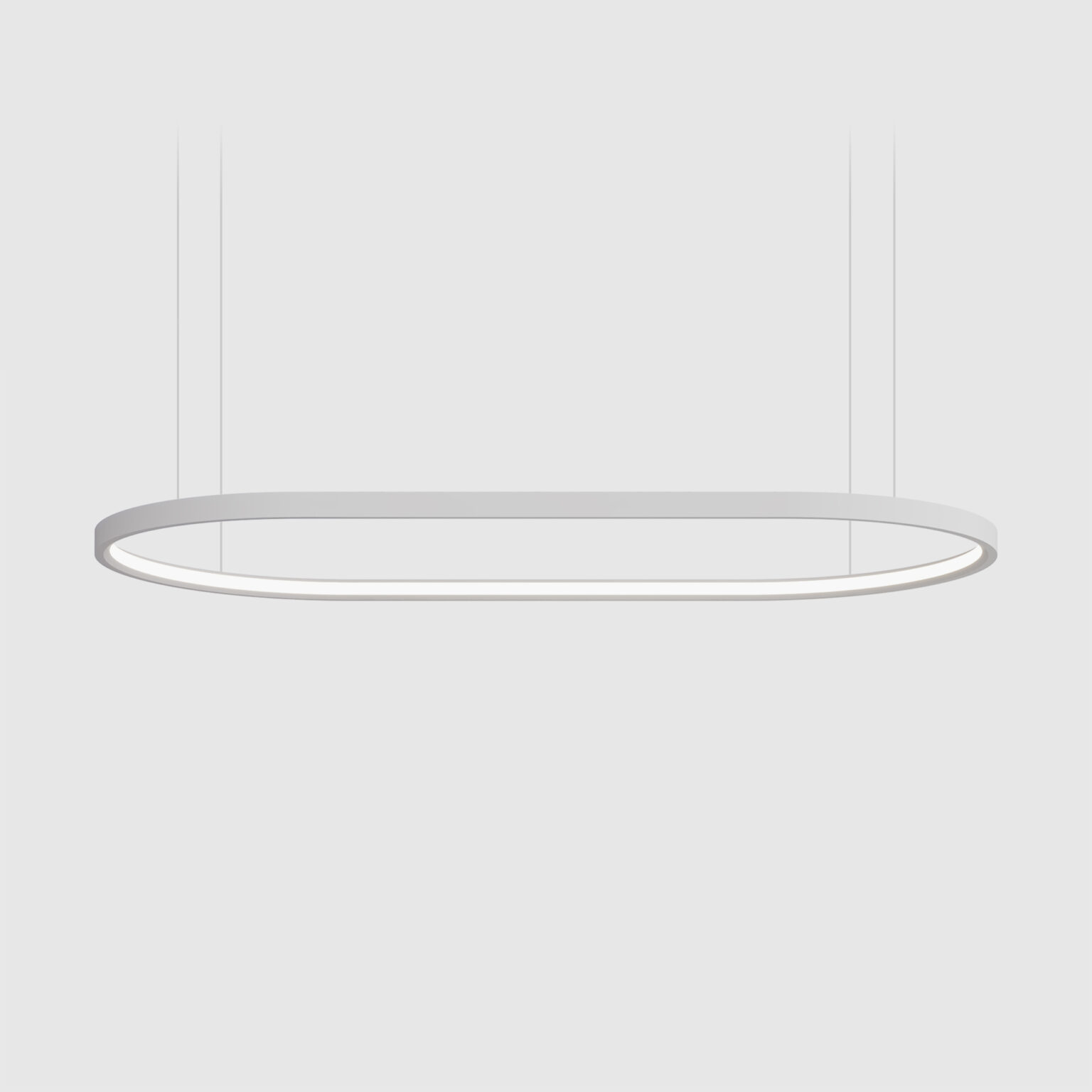

Rim Mini is part of our Miniwerx Collection—a growing series of luminaires engineered to deliver full-scale performance in significantly reduced form factors. At just 1.25″ tall and 0.8″ wide, Rim Mini is over 40% slimmer than the standard Rim profile and maintains the design freedom the Rim Collection is known for. It enables clean, precise lighting with a minimal visual footprint and maximum flexibility across shapes, sizes, and configuration options.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Mini is part of our Miniwerx Collection—a growing series of luminaires engineered to deliver full-scale performance in significantly reduced form factors. At just 1.25″ tall and 0.8″ wide, Rim Mini is over 40% slimmer than the standard Rim profile and maintains the design freedom the Rim Collection is known for. It enables clean, precise lighting with a minimal visual footprint and maximum flexibility across shapes, sizes, and configuration options.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Mini is part of our Miniwerx Collection—a growing series of luminaires engineered to deliver full-scale performance in significantly reduced form factors. At just 1.25″ tall and 0.8″ wide, Rim Mini is over 40% slimmer than the standard Rim profile and maintains the design freedom the Rim Collection is known for. It enables clean, precise lighting with a minimal visual footprint and maximum flexibility across shapes, sizes, and configuration options.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Mini is part of our Miniwerx Collection—a growing series of luminaires engineered to deliver full-scale performance in significantly reduced form factors. At just 1.25″ tall and 0.8″ wide, Rim Mini is over 40% slimmer than the standard Rim profile and maintains the design freedom the Rim Collection is known for. It enables clean, precise lighting with a minimal visual footprint and maximum flexibility across shapes, sizes, and configuration options.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Mini is part of our Miniwerx Collection—a growing series of luminaires engineered to deliver full-scale performance in significantly reduced form factors. At just 1.25″ tall and 0.8″ wide, Rim Mini is over 40% slimmer than the standard Rim profile and maintains the design freedom the Rim Collection is known for. It enables clean, precise lighting with a minimal visual footprint and maximum flexibility across shapes, sizes, and configuration options.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Mini is part of our Miniwerx Collection—a growing series of luminaires engineered to deliver full-scale performance in significantly reduced form factors. At just 1.25″ tall and 0.8″ wide, Rim Mini is over 40% slimmer than the standard Rim profile and maintains the design freedom the Rim Collection is known for. It enables clean, precise lighting with a minimal visual footprint and maximum flexibility across shapes, sizes, and configuration options.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.
Rim Mini is part of our Miniwerx Collection—a growing series of luminaires engineered to deliver full-scale performance in significantly reduced form factors. At just 1.25″ tall and 0.8″ wide, Rim Mini is over 40% slimmer than the standard Rim profile and maintains the design freedom the Rim Collection is known for. It enables clean, precise lighting with a minimal visual footprint and maximum flexibility across shapes, sizes, and configuration options.
Product DownloadsLED arrays provide consistent illumination across available color temperatures from 2700K to 5000K. Standard 80+ CRI with optional 90+ CRI, including enhanced red rendering. Color consistency maintained within 3 SDCM.
Single-channel dim-to-warm control adjusts color temperature as light levels decrease. Transitions from 3500K to 2200K.
Two-channel tunable white control allows adjustment of color temperature across a defined range to support varying lighting requirements throughout the day.
Four-channel RGBW control enables dynamic color mixing and white light output. Compatible with DMX control protocols.
Uniform Efficiency Lambertian Optic (ULO) is thermoformed from impact-modified white PMMA. The ULO optic provides even luminosity with up to 88% transmission. Combined with the LED array running around the inside of the housing, the open form and ULO optic create a widespread 50% direct and 50% indirect light distribution with a spacing criterion of 1.6.

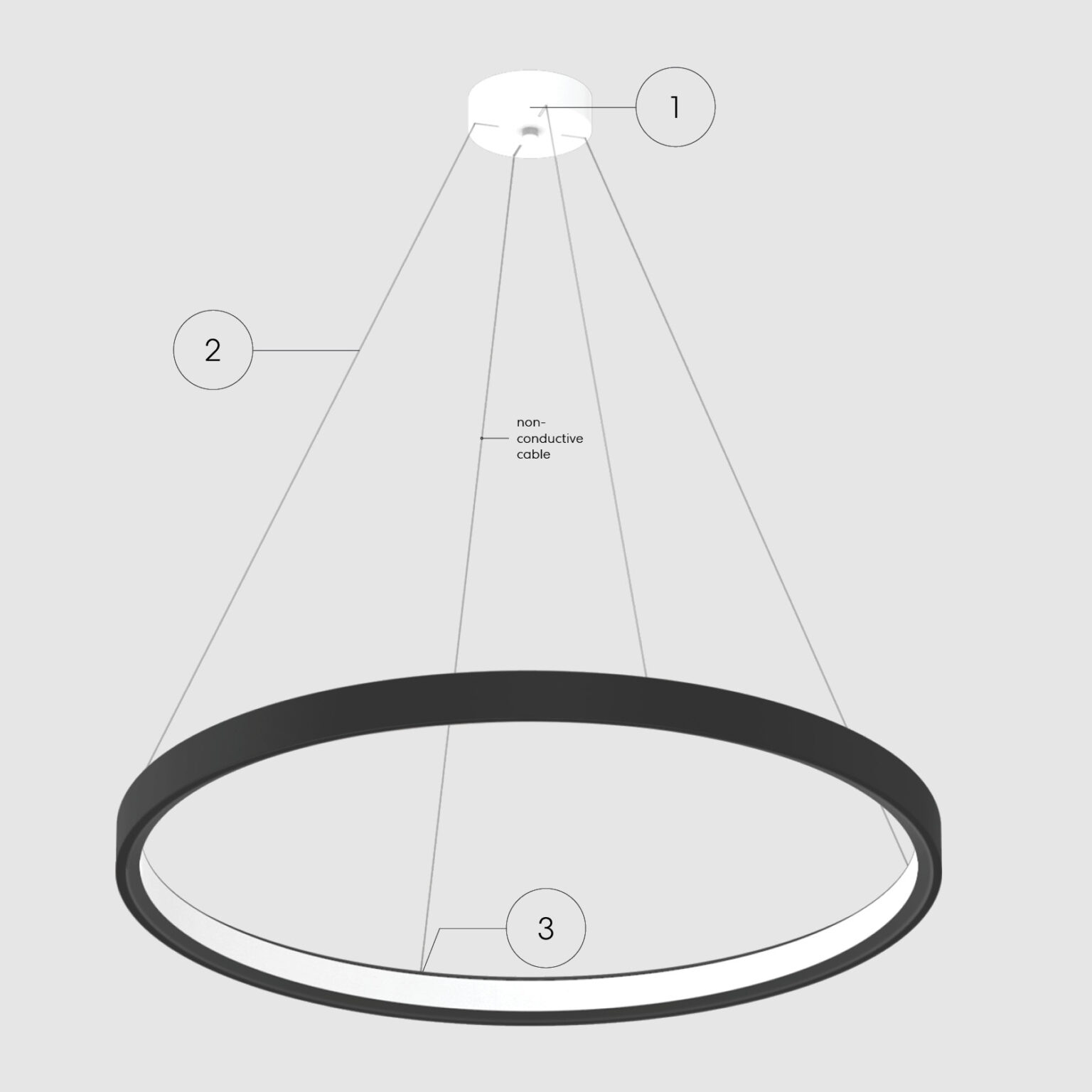

The integrated suspension and power-over-cable provides an elegant mounting arrangement. Current from the driver to the LED array flows through seven-strand galvanized copper conductors.
A dielectric polymer coating insulates the cable which is supported by insulated holders at ceiling and luminaire mounting plate. Our standard integrated power-over-cable supports all available dimming and control options without additional conductors.
